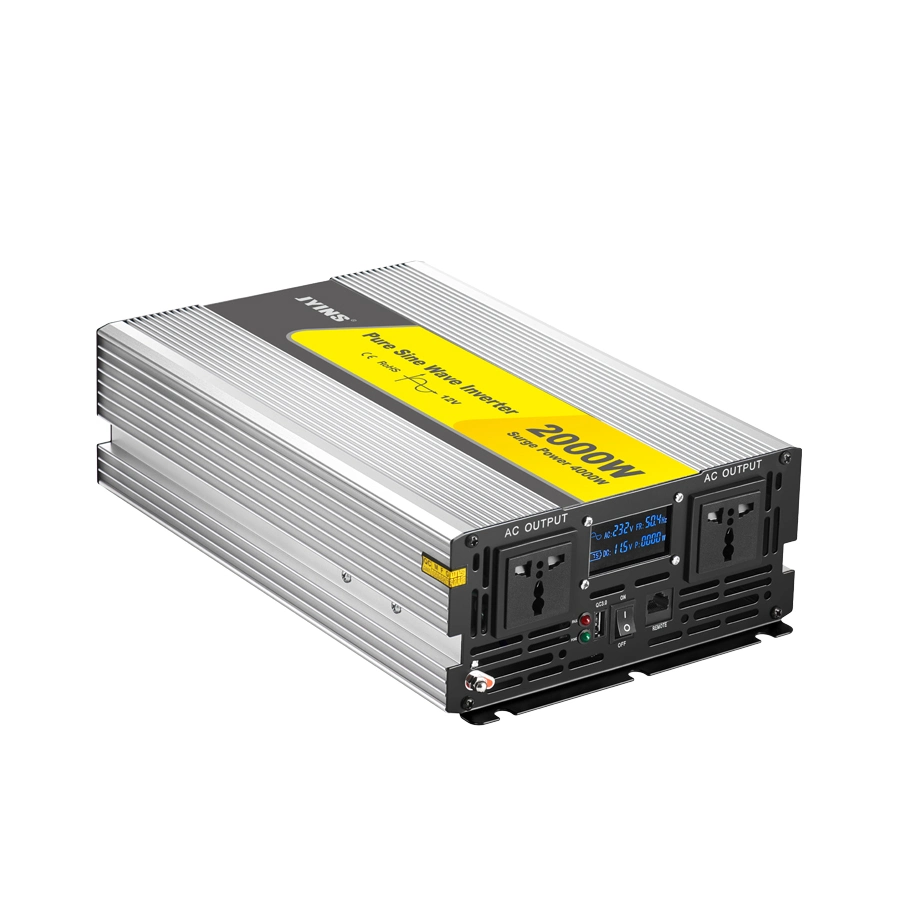

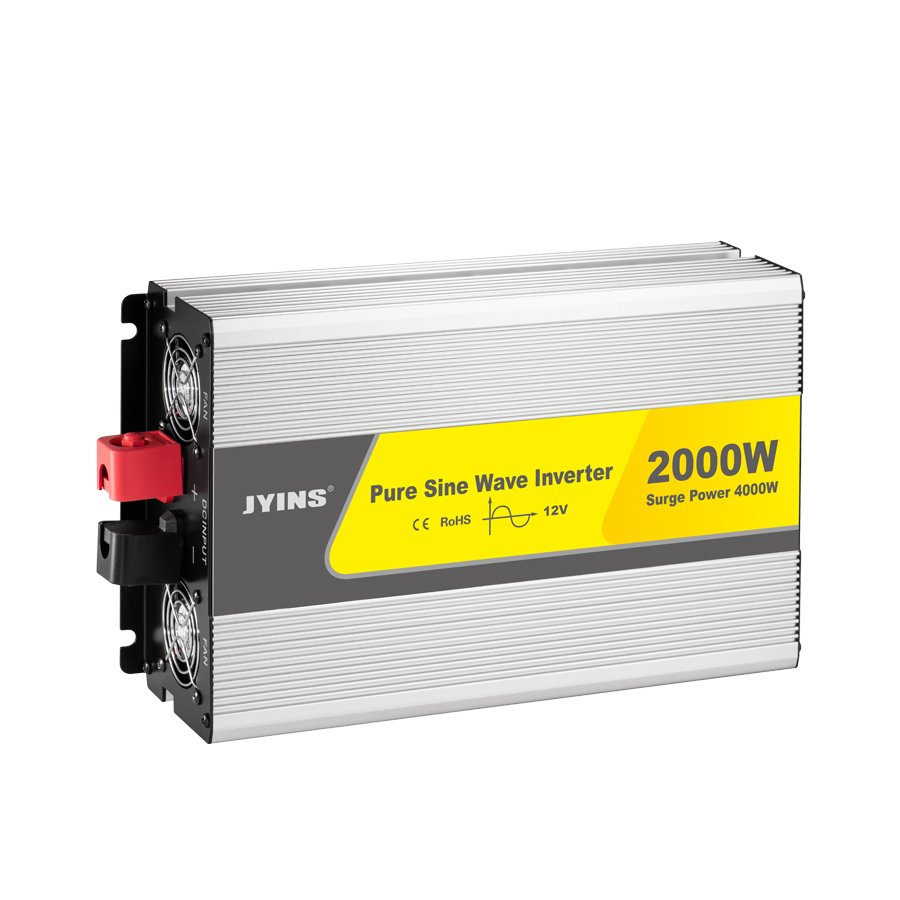

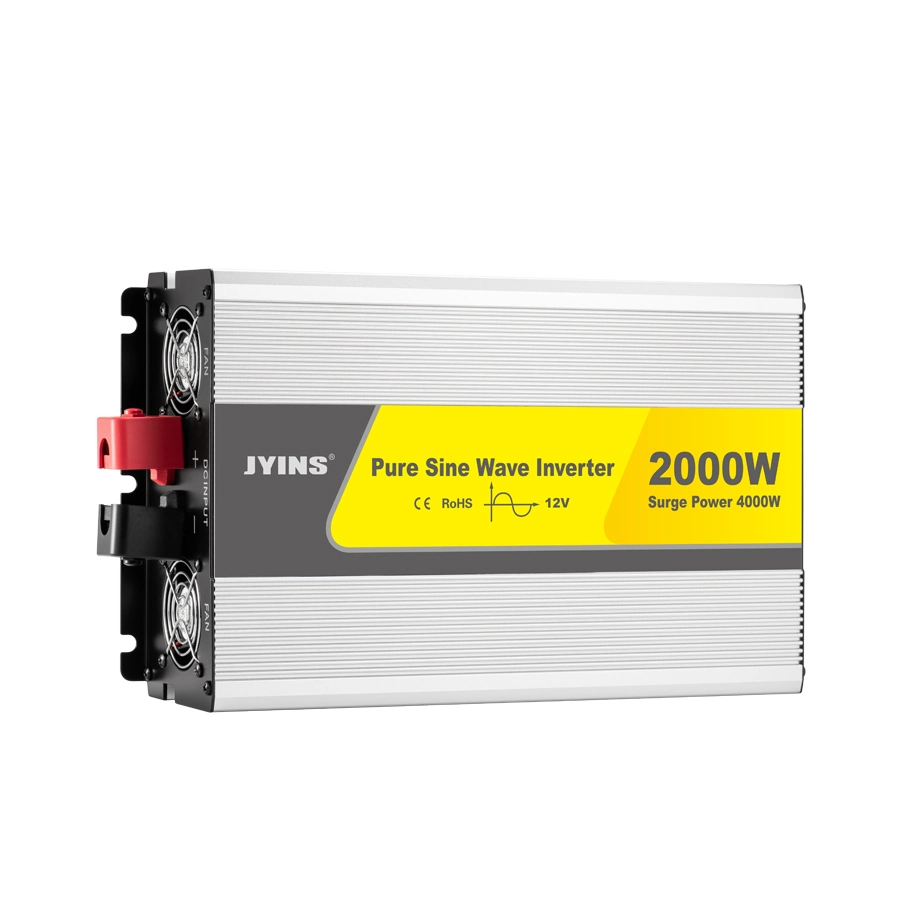

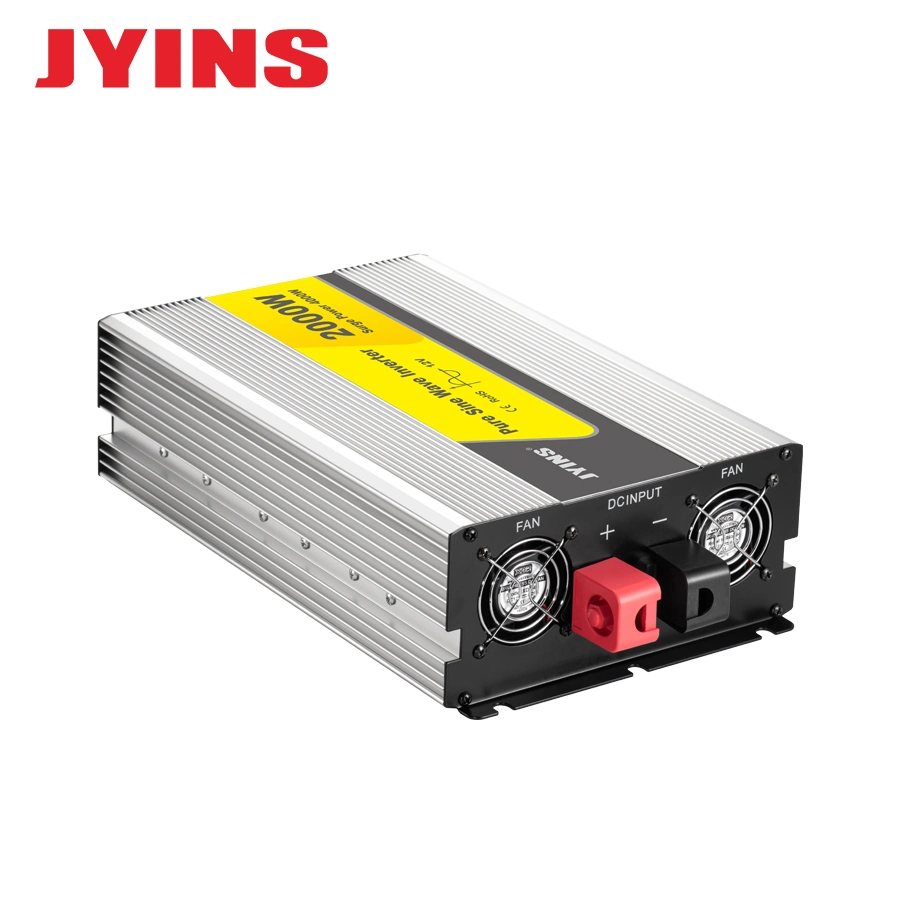

1000W/2000W/3000W/4000W/5000W/6000W Pure Sine Wave Power Inverter
1000W/2000W/3000W/4000W/5000W/6000W Pure Sine Wave Power Inverter
1000W/2000W/3000W/4000W/5000W/6000W Pure Sine Wave Power Inverter
1000W/2000W/3000W/4000W/5000W/6000W Pure Sine Wave Power Inverter
1000W/2000W/3000W/4000W/5000W/6000W Pure Sine Wave Power Inverter
1 / 5
1000W/2000W/3000W/4000W/5000W/6000W Pure Sine Wave Power Inverter
1000W/2000W/3000W/4000W/5000W/6000W Pure Sine Wave Power Inverter
1000W/2000W/3000W/4000W/5000W/6000W Pure Sine Wave Power Inverter
1000W/2000W/3000W/4000W/5000W/6000W Pure Sine Wave Power Inverter
1000W/2000W/3000W/4000W/5000W/6000W Pure Sine Wave Power Inverter

1000W/2000W/3000W/4000W/5000W/6000W Pure Sine Wave Power Inverter

Customization: Available
Nature of Source Flow: Passive inverter
Certification: ISO9001, RoHS, CE
Send Inquiry

Product Description

Basic Information
Model NO.
JYP-1000W~6000w
Output Power
>1000W
Grid Type
off-Grid Inverter
Output Type
Single
Circuit Topologies
Full-Bridge Type
Nature of Wave
Sine Wave Inverter
Type
DC/AC Inverters
Input Voltage
12V/24V/48V
Warranty
12 Months
Application
Electric Tools
Specification
CE ROHS
Production Capacity
10000 PCS/Month
Product Description

1000w/2000w/3000W/4000w/5000w/6000w Pure Sine Wave Power Inverter

Protection Functions:

  • Low voltage alarm & Shutdown
  • Over voltage protection
  • Overload protection
  • Over temperature protection
  • Short circuit protection
  • Reverse Polarity protection
  • Soft start
  • Auto-reset after protection
Inverter Display 1

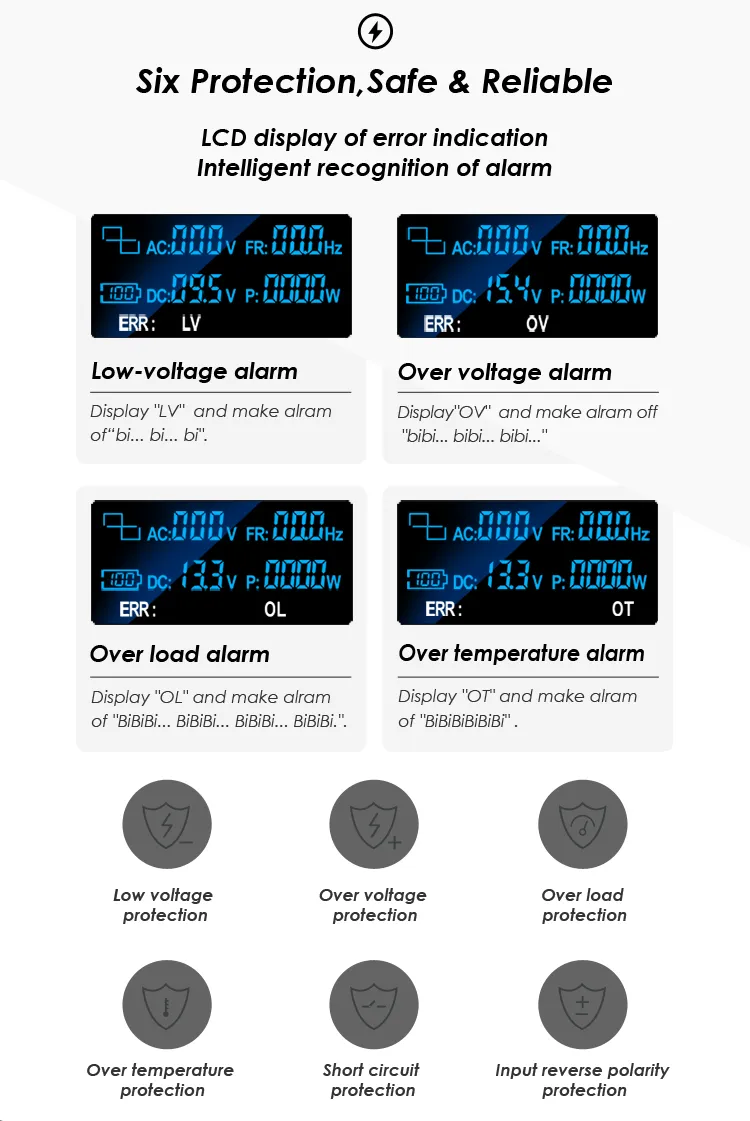

Inverter Display 2

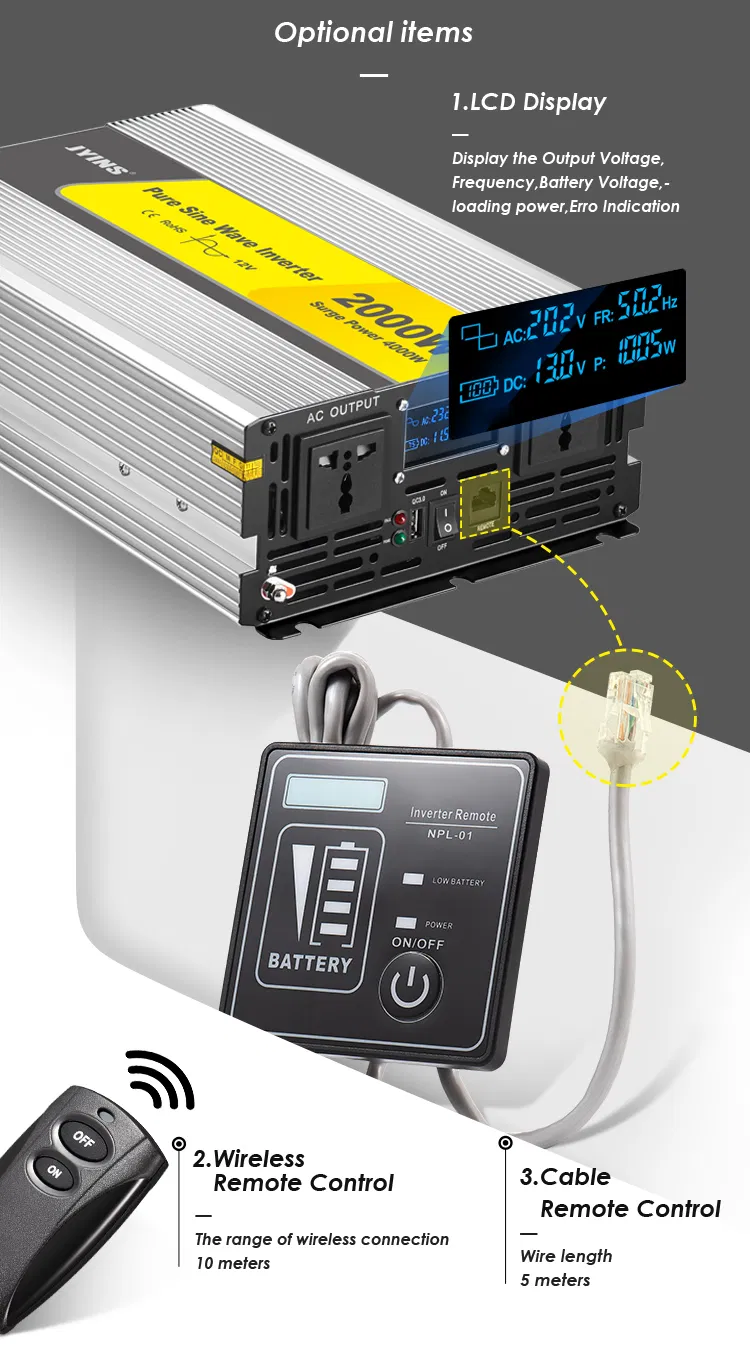

Inverter Display 3

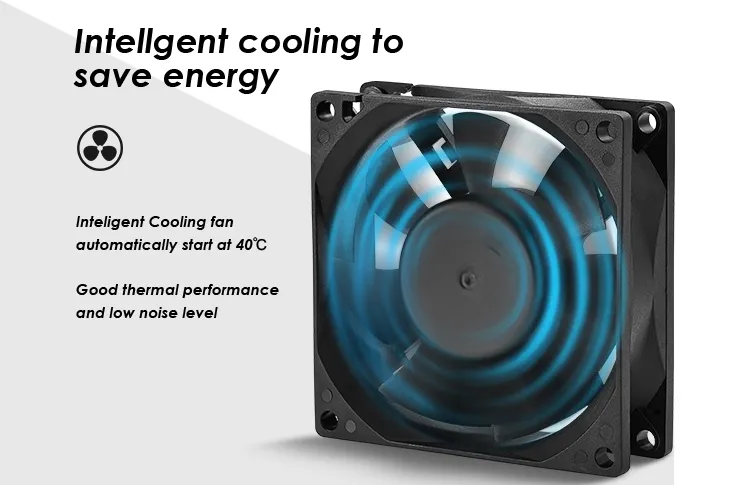

Inverter Technical 1

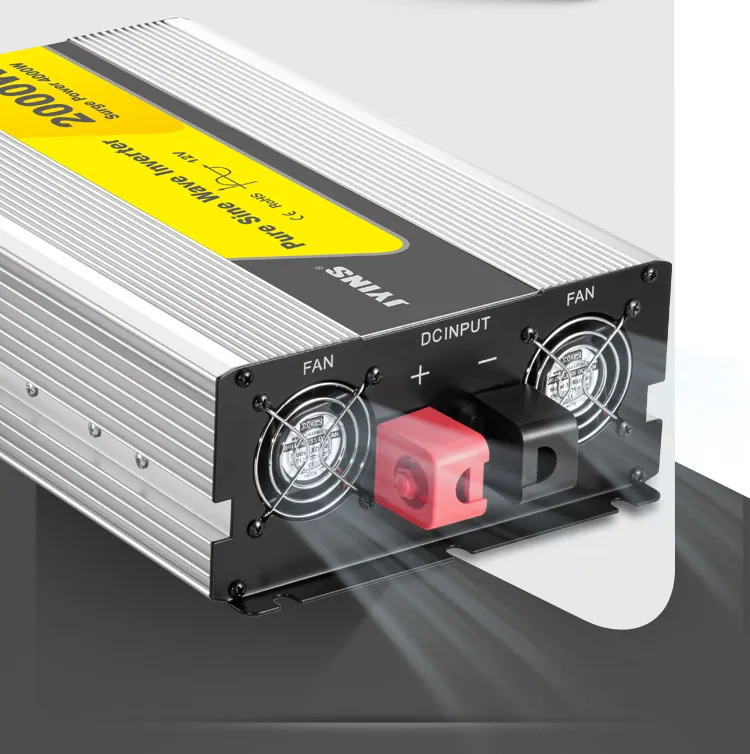

Inverter Technical 2
Inverter Technical 3
Application 1

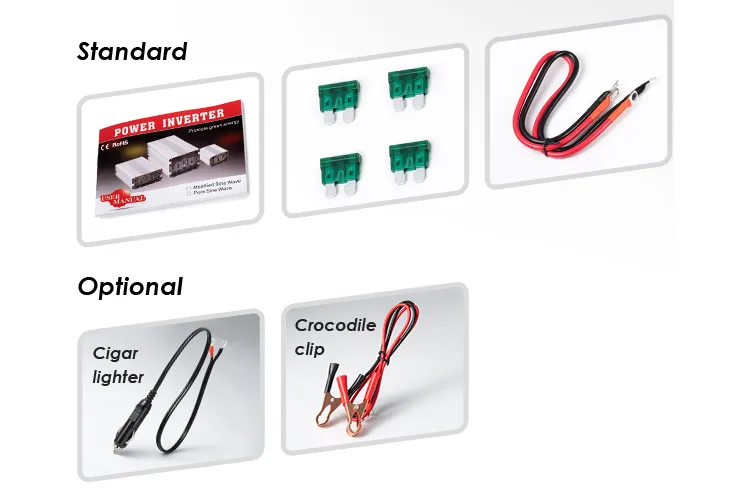

Application 2

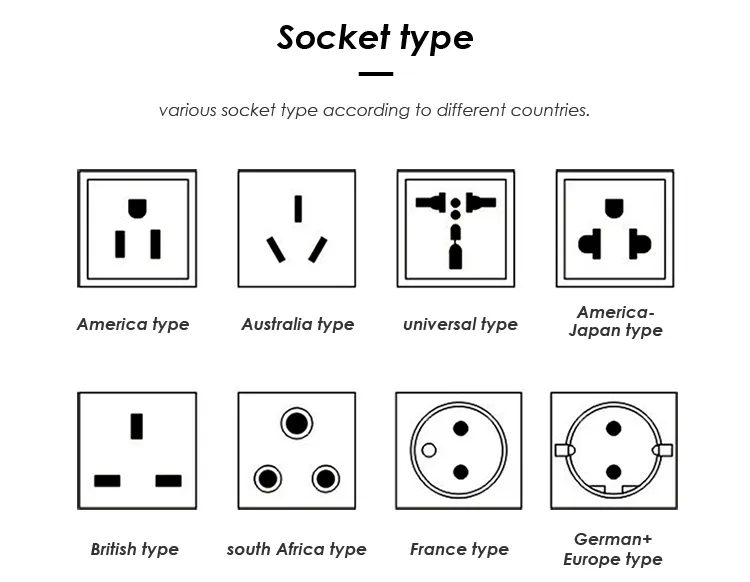

Application 3
Product Parameters
ModelJYP-2K-1 (DC12V/24V/48V)JYP-2K-2 (DC12V/24V/48V)
Rated power2000W
Peak power4000W
Output voltage100VAC / 110VAC / 120VAC±5%220VAC / 230VAC / 240VAC±5%
Output frequency50Hz±0.5Hz or 60Hz±0.5Hz
Output waveformPure Sine Wave
Max.efficiency90%
USB port5V 1A
Working temperature-10° to +50°
Cooling methodIntelligent air cooling

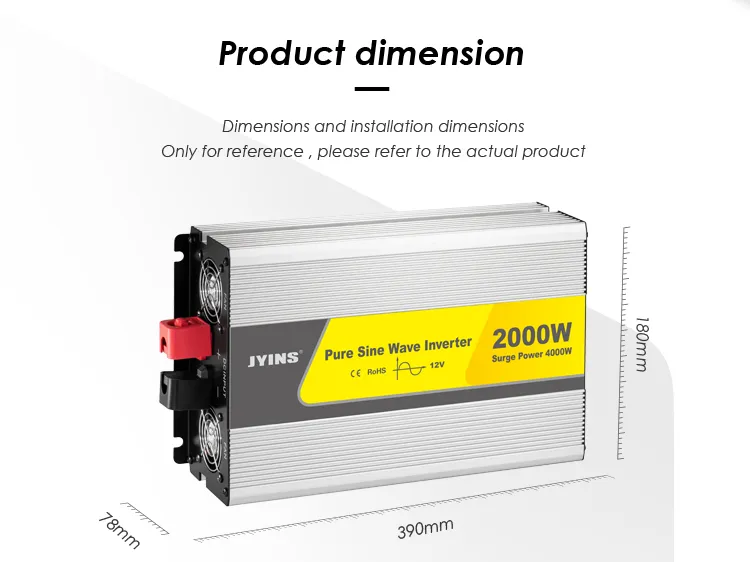

Dimension397x180x78mm
Warranty1 Year

Note: Technical parameters are for reference only. Please refer to the actual product.

Production Environment
Production Facility 1

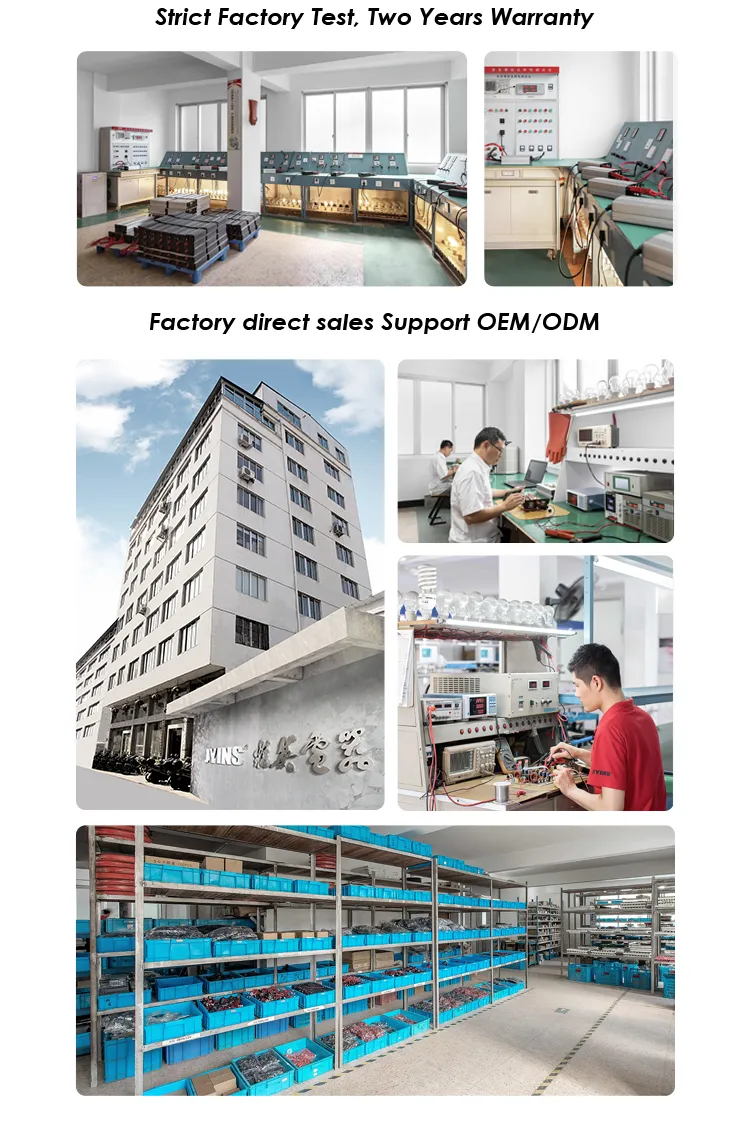

Production Facility 2
Frequently Asked Questions
Why is your quotation higher than some other suppliers?
The market contains various inverter qualities. Low-cost inverters often use substandard components in unlicensed workshops, posing significant security risks. To protect personal and property safety, it is essential to choose a reliable, high-quality inverter rather than just seeking the lowest price.
What are the differences between Modified Sine Wave and Pure Sine Wave inverters?
Modified Sine Wave inverters are cost-effective and suitable for most basic equipment but may have 20% harmonic distortion. Pure Sine Wave inverters (like the JYP series) feature isolated coupling designs, high stability, and are suitable for all loads, including sensitive inductive devices like refrigerators and drills, without interference.
Is the output voltage of the inverter stable?
Yes, our inverters are designed with high-quality regulator circuits. Note that ordinary multimeters may show incorrect readings because they are often designed to measure only pure grid sine waves; a true RMS multimeter is required for accurate testing.
What are resistive load appliances?
These include mobile phones, computers, LCD TVs, incandescent lights, electric fans, and rice cookers. Our inverters can easily drive these devices.
What are inductive load appliances?
These include motors, compressors, relays, fluorescent lamps, refrigerators, and air conditioners. These products require 3-7 times their rated power during startup, so a pure sine wave inverter is required.
What should be noticed during installation?
Place the inverter in a well-ventilated, cool, dry, and waterproof location. Avoid placing foreign objects on the device and always turn on the inverter before turning on the connected appliance.
