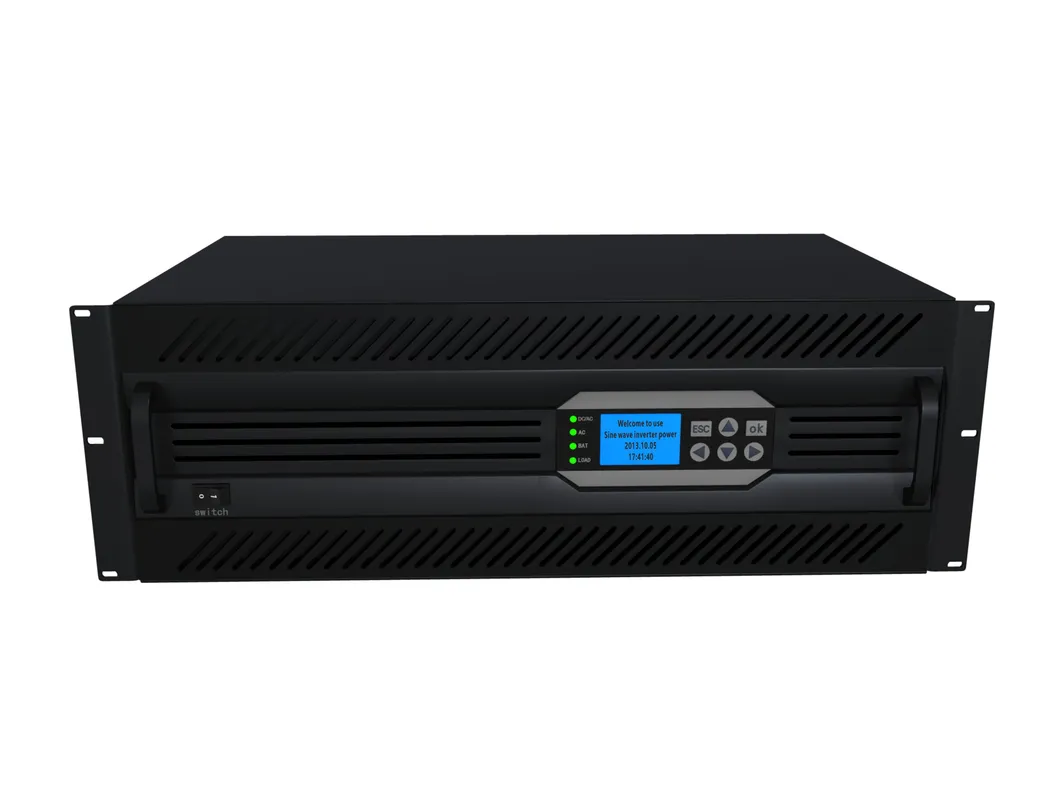

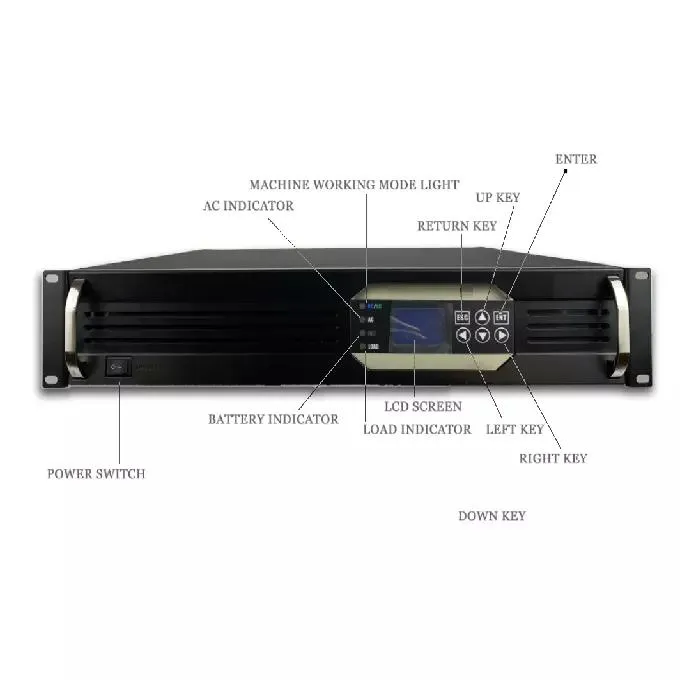

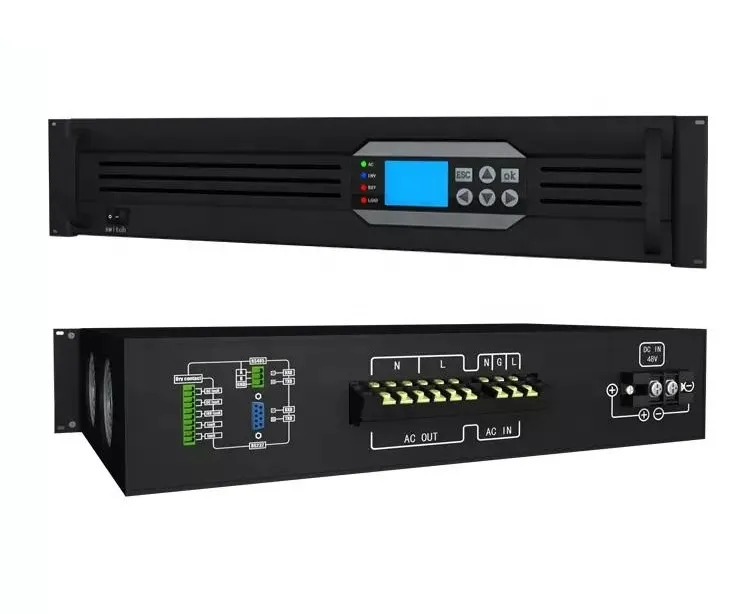

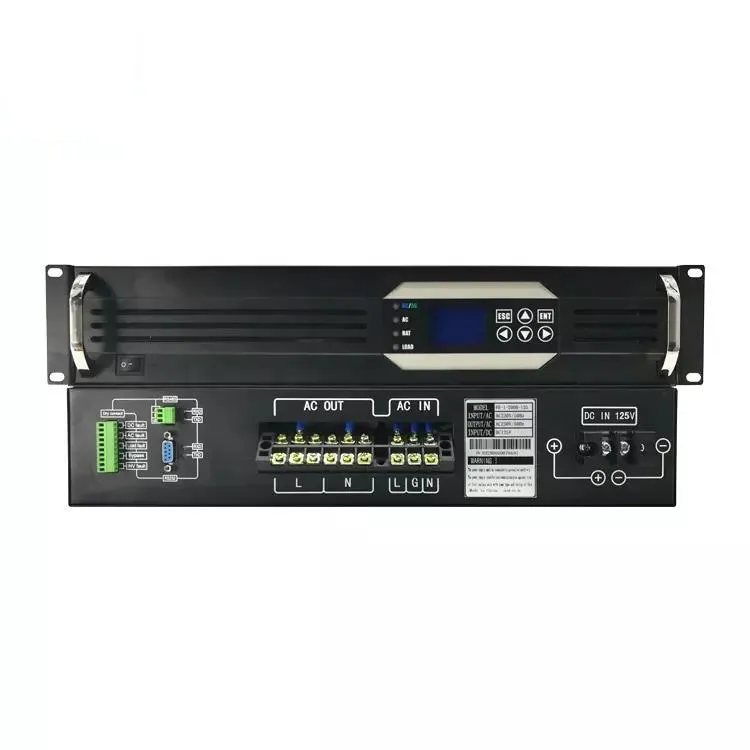

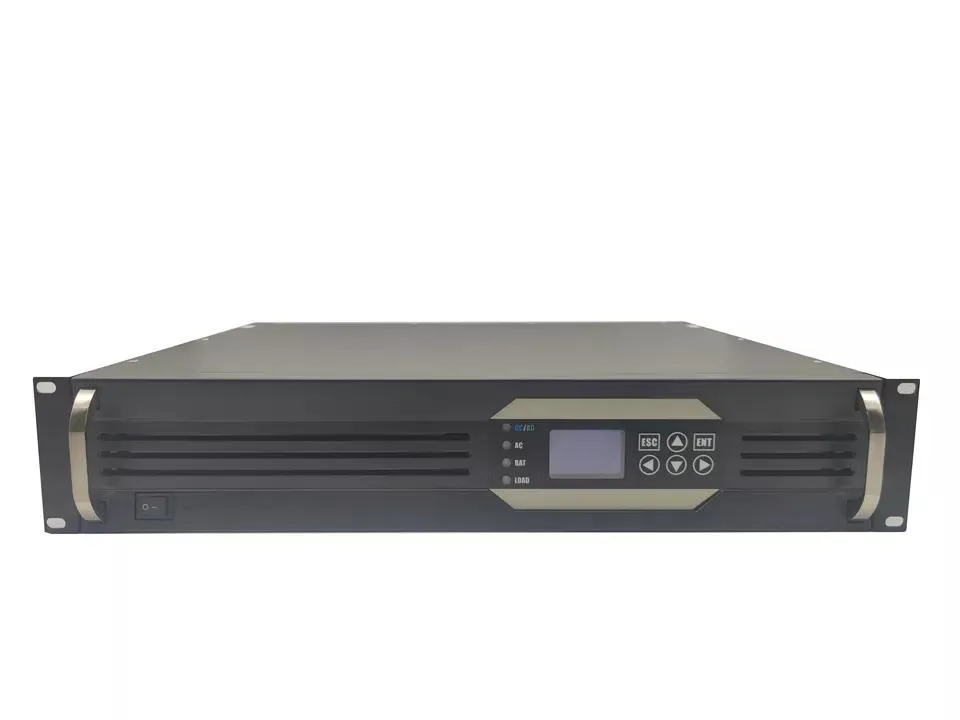

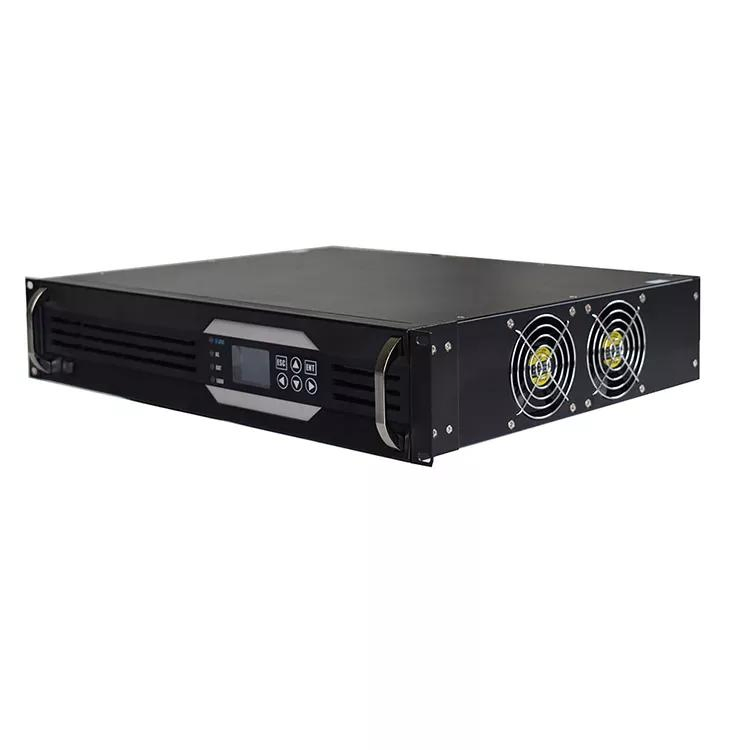

The LCD rackmount Power Supply Pure Sine Wave Inverter is a new generation of intelligent MCU high frequency power supply inverter and a standalone DC to AC inverter system for telecom and industrial power applications. Developed and designed for the requirements of telecom and industrial heavy duty applications, it delivers continuous true sine wave output power with high stability.
Comprehensive solutions for servers, cloud computing, edge computing, 5G networks and communications infrastructure. Widely applied in communication power systems, railway power systems, and other power systems to meet high quality and high reliability requirements. These telecom-grade inverters provide pure AC sine-wave power for all critical network needs, converting DC battery voltage to clean AC power.
| Technical Index | 1K | 2K | 3K | 5K | 8K | 10K |
|---|---|---|---|---|---|---|
| Rated input voltage (Vdc) | 220Vdc | |||||
| Rated input current (A) | 4.5 | 9 | 13.5 | 22.5 | 36.3 | 45.4 |
| Rated capacity (VA) | 1000 | 2000 | 3000 | 5000 | 8000 | 10000 |
| Rated output power (W) | 800 | 1600 | 2400 | 4000 | 6400 | 8000 |
| Output voltage | 220Vac ± 1.5% | |||||
| Waveform | Pure sine wave (THD ≤3%) | |||||
