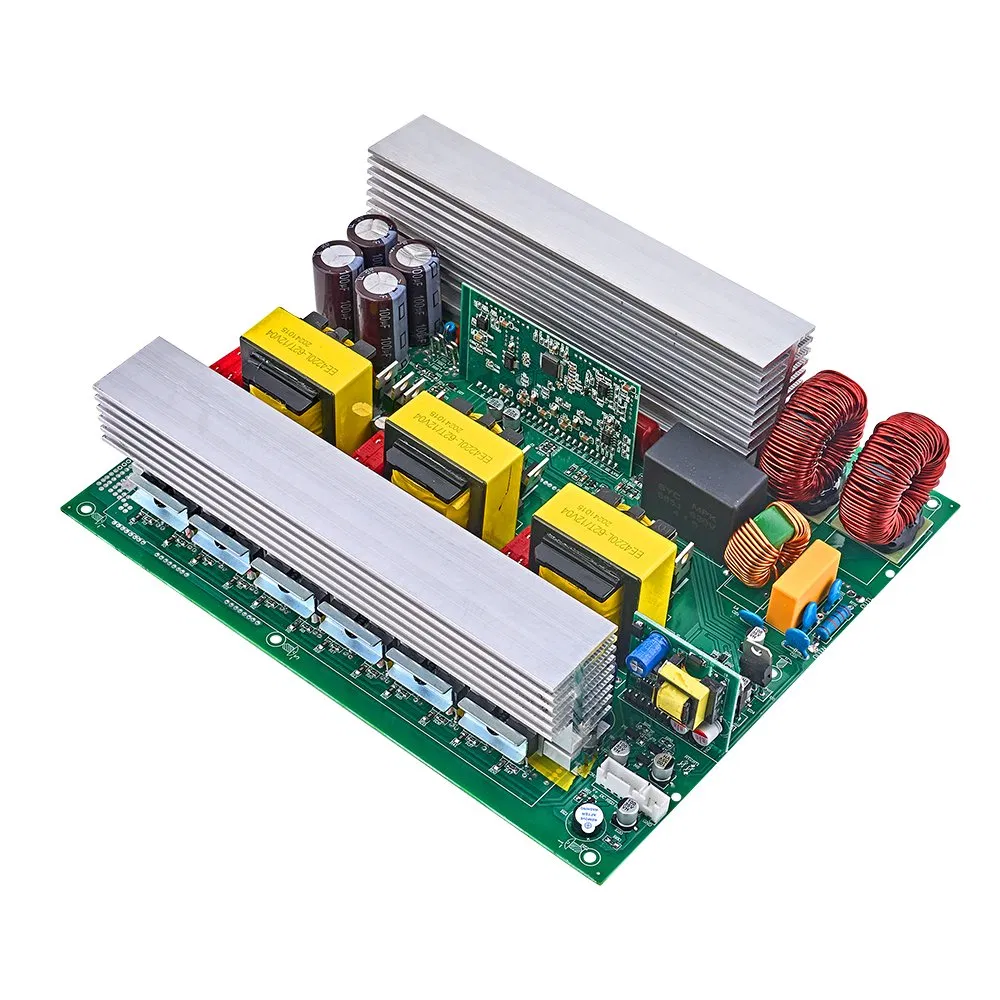

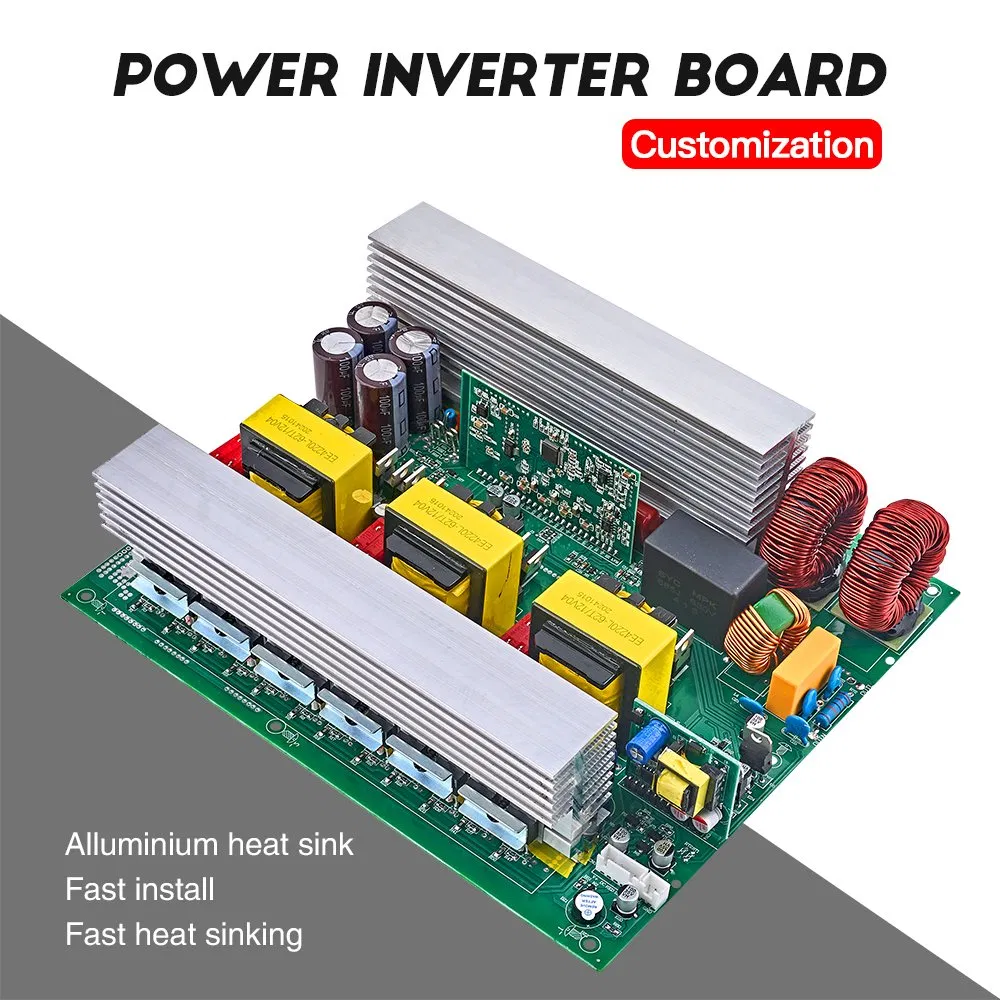

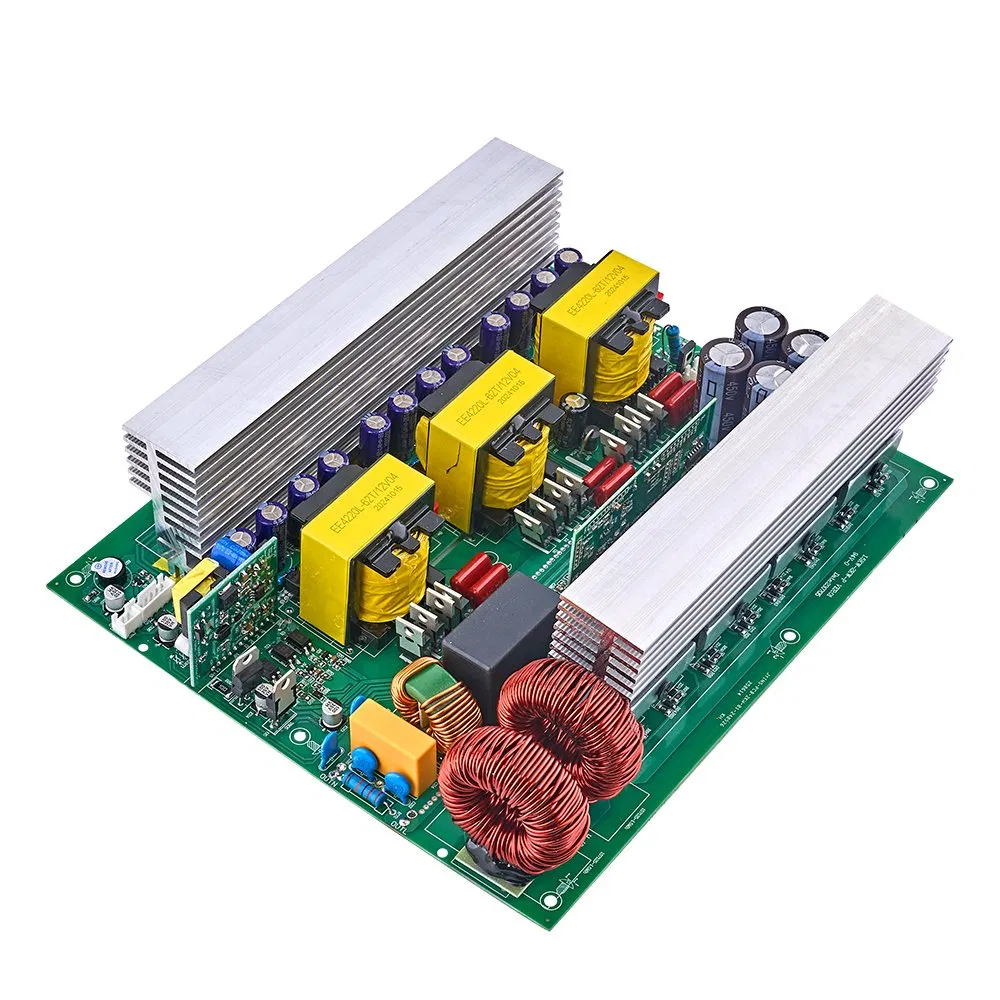

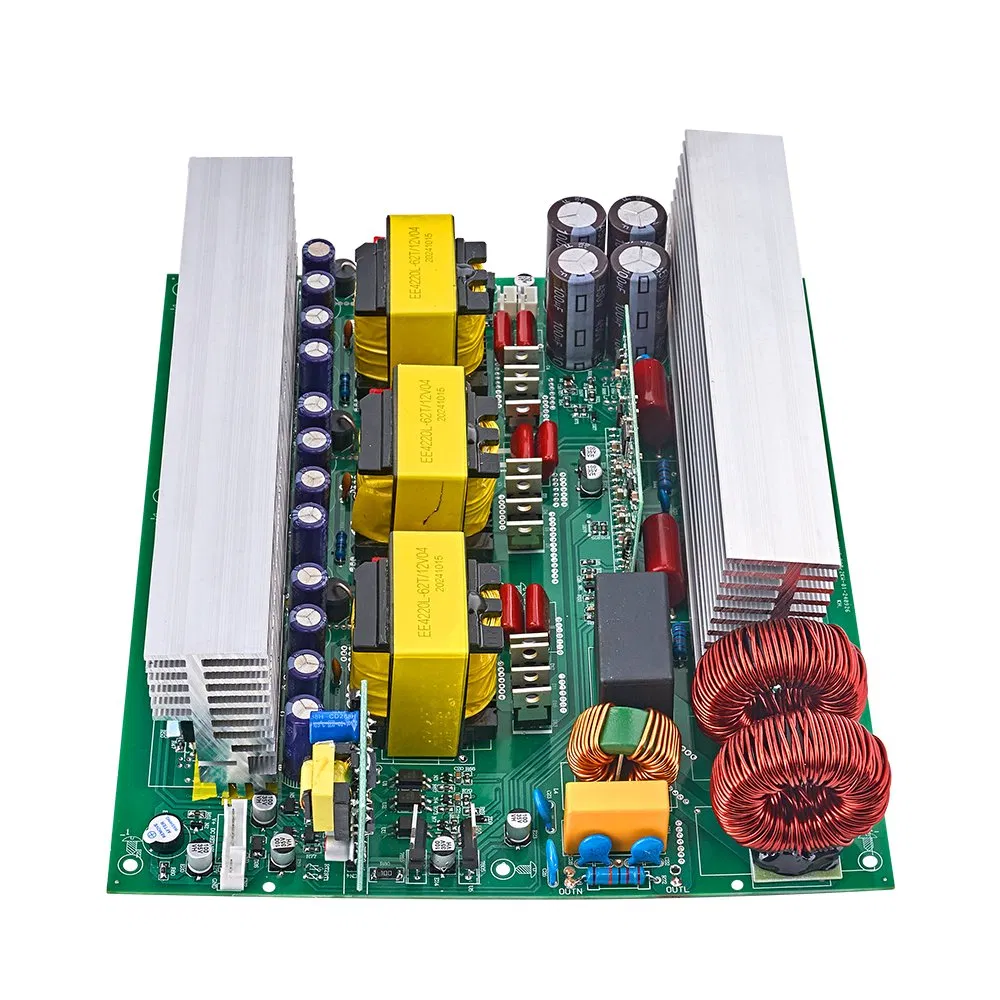

Factory Price 2000W DC to AC Power Inverter PCB Board
Factory Price 2000W DC to AC Power Inverter PCB Board
Factory Price 2000W DC to AC Power Inverter PCB Board
Factory Price 2000W DC to AC Power Inverter PCB Board
Factory Price 2000W DC to AC Power Inverter PCB Board
1 / 5
Factory Price 2000W DC to AC Power Inverter PCB Board
Factory Price 2000W DC to AC Power Inverter PCB Board
Factory Price 2000W DC to AC Power Inverter PCB Board
Factory Price 2000W DC to AC Power Inverter PCB Board
Factory Price 2000W DC to AC Power Inverter PCB Board

Factory Price 2000W DC to AC Power Inverter PCB Board

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

ℹ️ Basic Information
Model NO.
JYP-2000W
Output Power
2000W
Grid Type
off-Grid Inverter
Output Type
Single
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Type
DC/AC Inverters
Warranty
12 Months
OEM
Accepted
Input Voltage
12V/24V/48V
Color
Silver
Output Voltage
110V, 230V
Phase
Single
Power Source
Solar Power
Application
Home/Office Solar System
Transport Package
Carton
Specification
CE Rohs
HS Code
8504403090
Production Capacity
10000 PCS/Months
🛠️ Protection Functions
🛡️ Low voltage alarm & Shutdown
🛡️ Over voltage protection
🛡️ Overload protection
🛡️ Over temperature protection
🛡️ Short circuit protection
🛡️ Reverse Polarity protection
🛡️ Soft start
🛡️ Auto.reset after being in protected
🛡️ Grounding protection
📸 Product Display

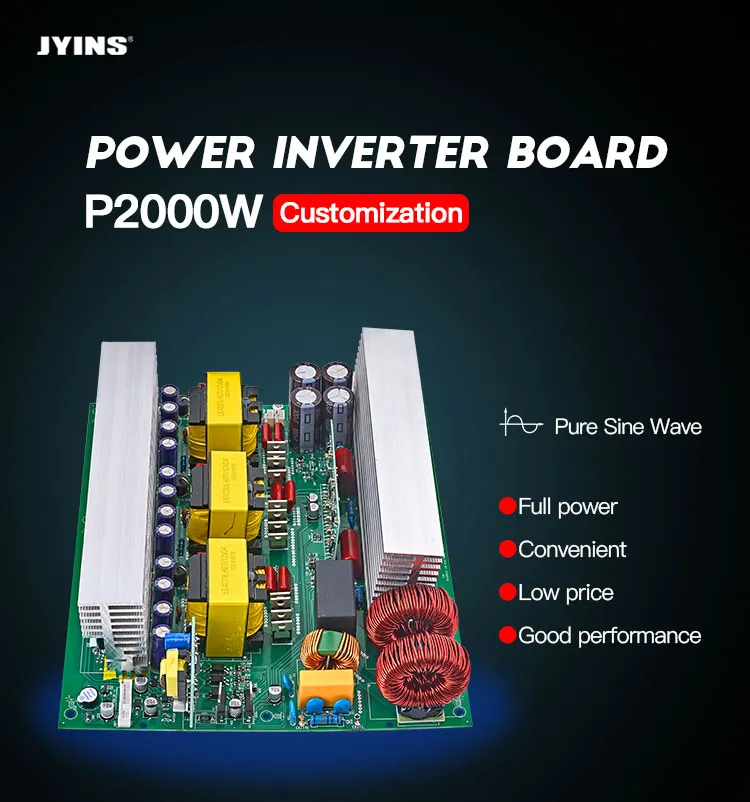

Power Inverter PCB Board View 1

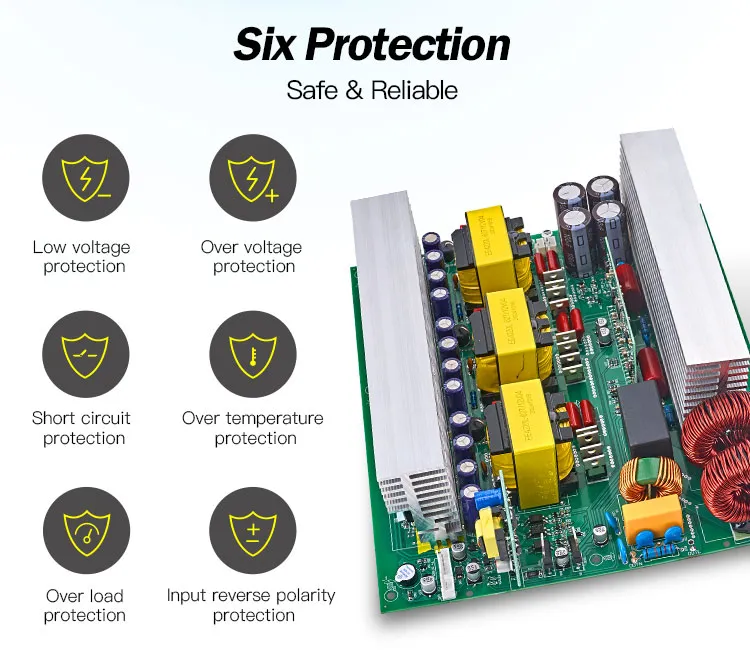

Power Inverter PCB Board View 2
Power Inverter PCB Board View 3

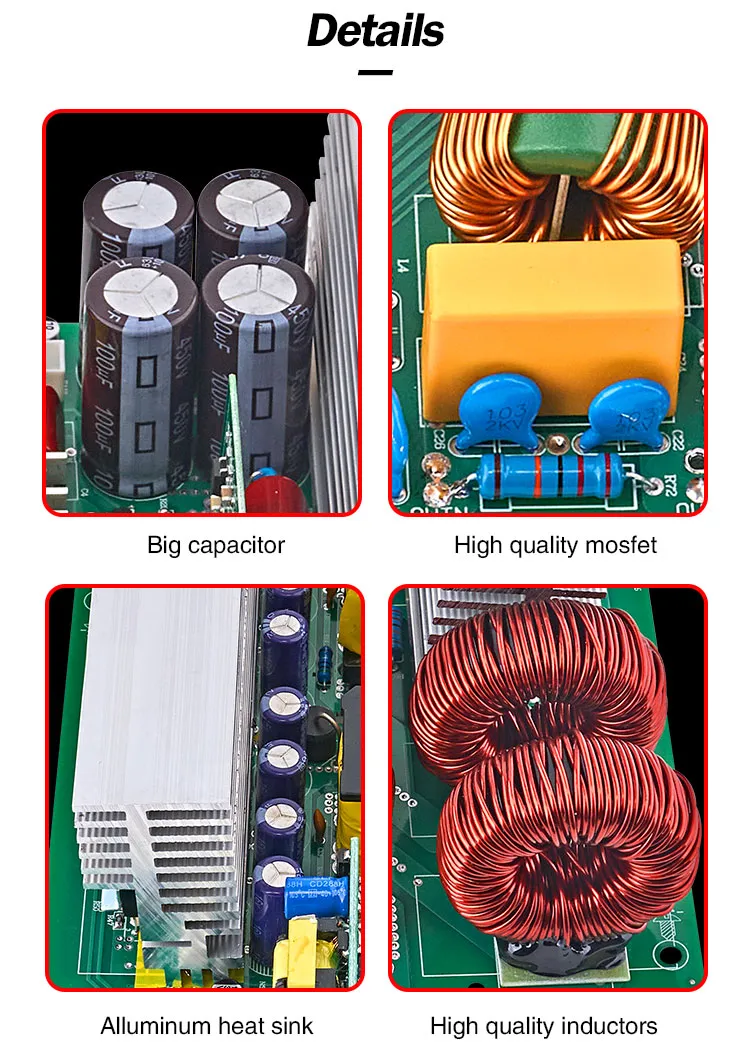

Inverter Features

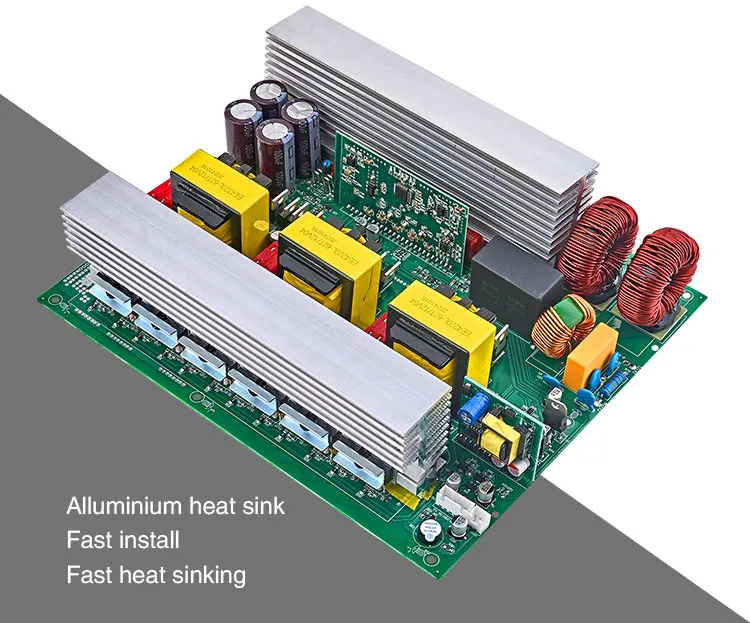

Circuit Detail

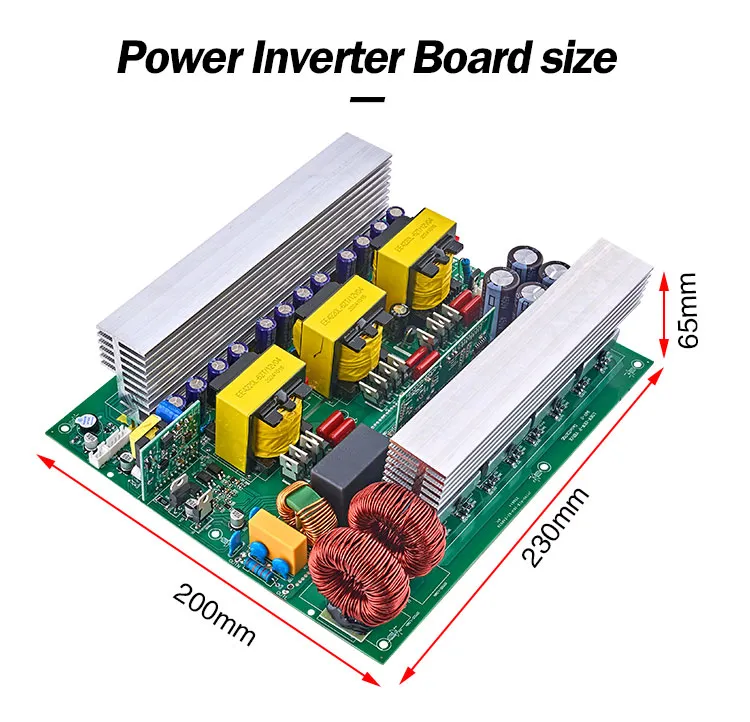

Internal Components
📊 Technical Parameters
ModelJYP-2K-1JYP-2K-1JYP-2K-1JYP-2K-2JYP-2K-2JYP-2K-2
Rated power2000W
Peak power4000W
Input voltageDC12VDC24VDC48VDC12VDC24VDC48V
Output voltage100VAC or 110VAC or 120VAC±5%220VAC or 230VAC or 240VAC±5%
Unload current1.1A0.7A0.5A1.1A0.7A0.5A
Output frequency50Hz±0.5Hz or 60Hz±0.5Hz
Output waveformPure Sine Wave
USB port5V 1A
Max.efficiency90%
Dimension(mm)397x180x78mm
Warranty1 years
💎 Quality Advantage
Why Choose Us Detail 1
Why Choose Us Detail 2
❓ Frequently Asked Questions
How to choose a reliable inverter among mixed brands?
It is crucial to choose a reliable inverter to protect personal and property safety. Many low-cost inverters are assembled in unlicensed workshops using substandard components, posing significant security risks. Avoid choosing based solely on low price.
What are the main categories of inverters by output waveform?
There are two main types: 1. Modified Sine Wave inverters (suitable for basic equipment, cost-effective); 2. Pure Sine Wave inverters (high stability, isolated circuit design, suitable for all loads including inductive devices like refrigerators and drills without interference).
Is the output voltage of your inverter stable?
Yes, our inverters feature advanced regulator circuits. Note that conventional multimeters might show unstable readings because they are designed for pure sine waves only; a true RMS multimeter is required for accurate measurement.
What kind of appliances are considered resistive loads?
Resistive loads include mobile phones, computers, LCD TVs, incandescent lights, electric fans, and rice cookers. Our modified sine wave inverters can drive these successfully.
What are inductive load appliances?
These include products using electromagnetic induction, such as motors, compressors, air conditioners, and refrigerators. These require 3-7 times their rated power to start, and only pure sine wave inverters are suitable for them.
What should be noticed during installation?
Install the product in a well-ventilated, cool, dry, and waterproof location. Ensure there are no foreign objects in the inverter and always turn on the inverter before turning on the connected appliances.
