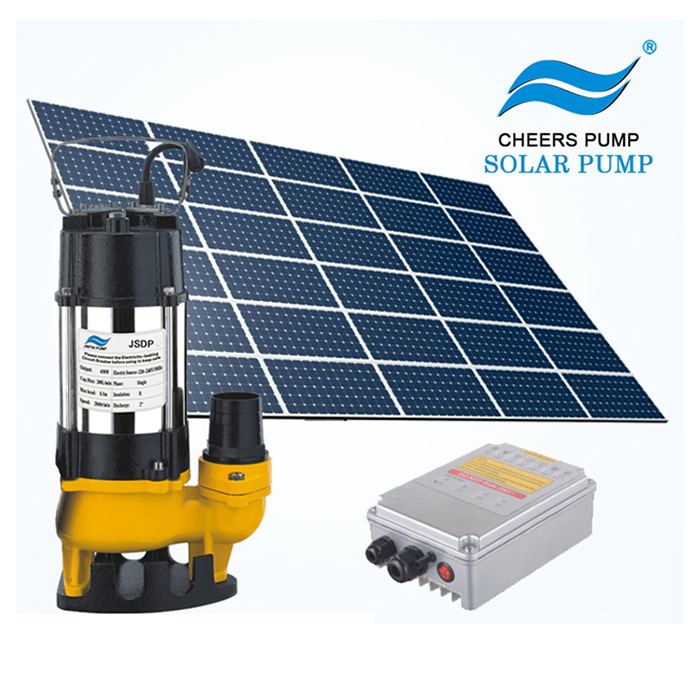

48V Jintai Solar Dirty Water Pump Kit Submersible Solar Powered Water Pump System for Industrial Drainage Wholesale

Customization:	Available
Application:	Home
Solarpanel:	Solar Water Pump Submersible

ⓘ Basic Info.

Model NO.

JSDP

Max. Head

11 meters

Voltage

48V

Warranty

3 Year

Work Time (H)

24 Hours

Original

China

Max. Flow Rate

8 M3/Hour

Transport Package

Packed in Carton and Wooden Case

Specification

Normal

Production Capacity

10000 Units Per Month

💎 Product Introduction

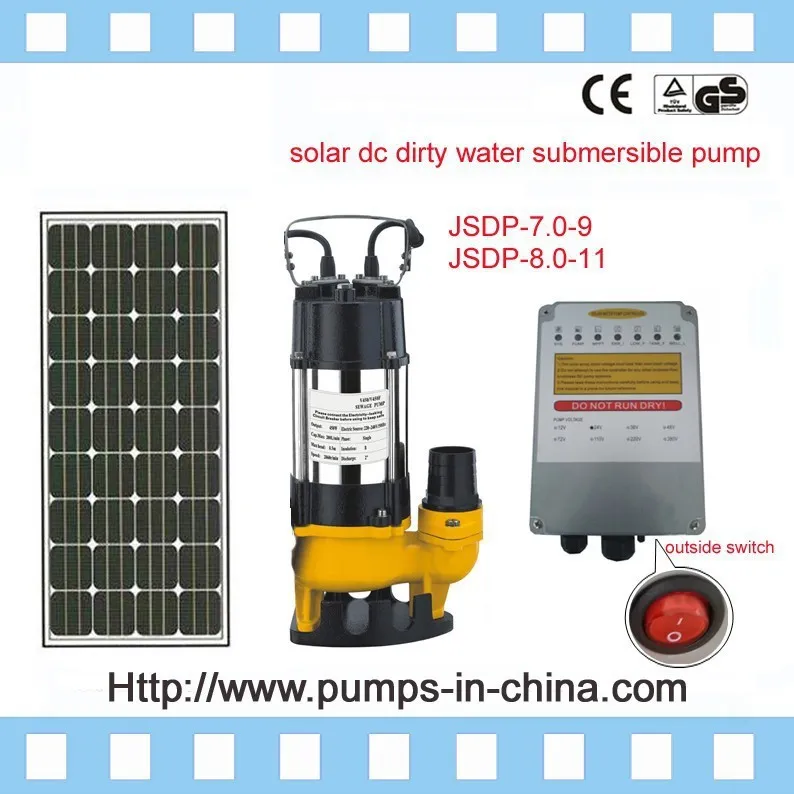

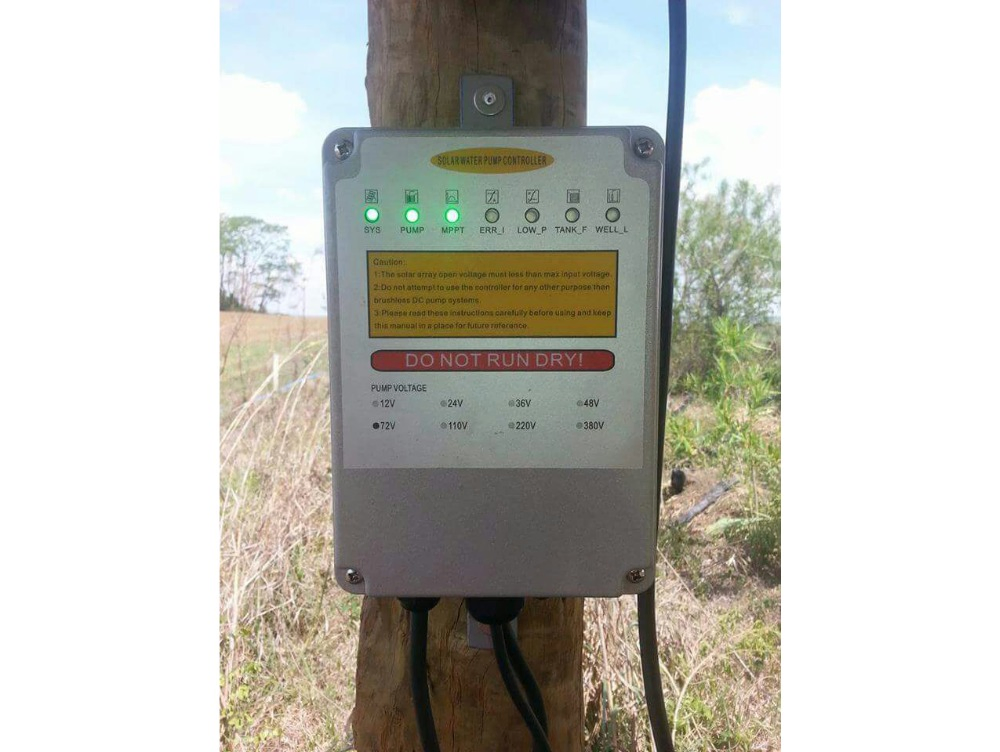

Solar dirty water pump system consists of solar generating systems, photovoltaic water pump controller system and pump. Solar arrays absorb solar radiation energy and convert it to electricity. The photovoltaic water pump controller regulates the running system, turning instable DC from the solar array into stable DC to drive the pump, utilizing Maximum Power Point Tracking (MPPT) to maximize solar energy usage.

✔ Warranty & Service

▶
Solar water pump: 3 years
▶
MPPT controller: 3 years
▶
Solar panels: 25 years

If the controller or motor is damaged within 3 years, a new replacement will be provided. Spare impellers are available if damaged within the 3-year period.

🚀 Advanced Technology

01.

Application Innovation: Permanent magnetism, brushless DC non-sensor motor improves efficiency by 25% compared to traditional AC machines.

02.

Technics Innovation: Double plastic package for rotor and stator; motor insulation ≥300MΩ for enhanced security.

03.

Structure Innovation: Oil filling structure for convenient installation and environmental protection.

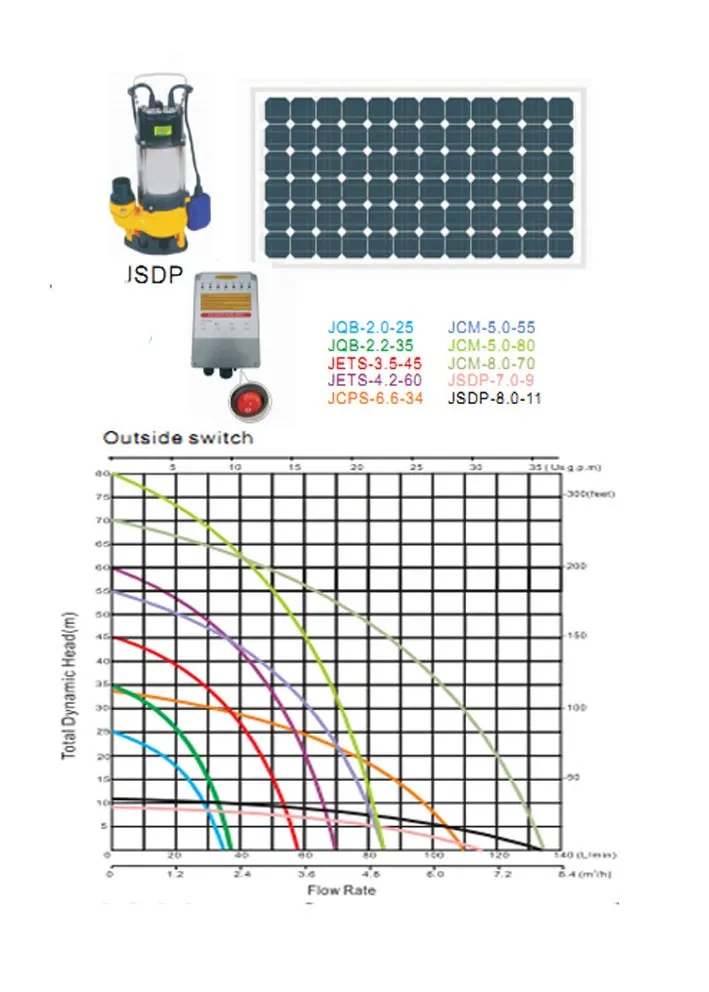

⚙ Technical Specifications

TYPE	VOLTAGE (V)	POWER (W)	MAX FLOW (m3/h)	MAX HEAD (m)	INLET/OUTLET
JSDP-7.0-9	48	400	7	9	1.5"
JSDP-8.0-11	48	500	8	11	1.5"

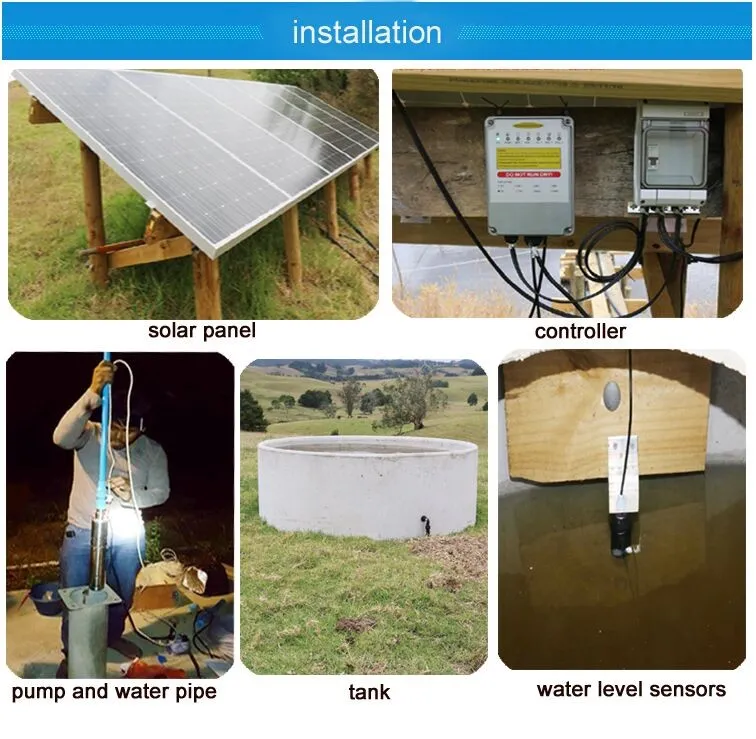

📦 System Components

The Finished Products include:

• Solar pump with 3m cable
• MPPT Controller
• Cable for solar panel (6m)
• Cable connector & Rope for hanging
• Installation Manual

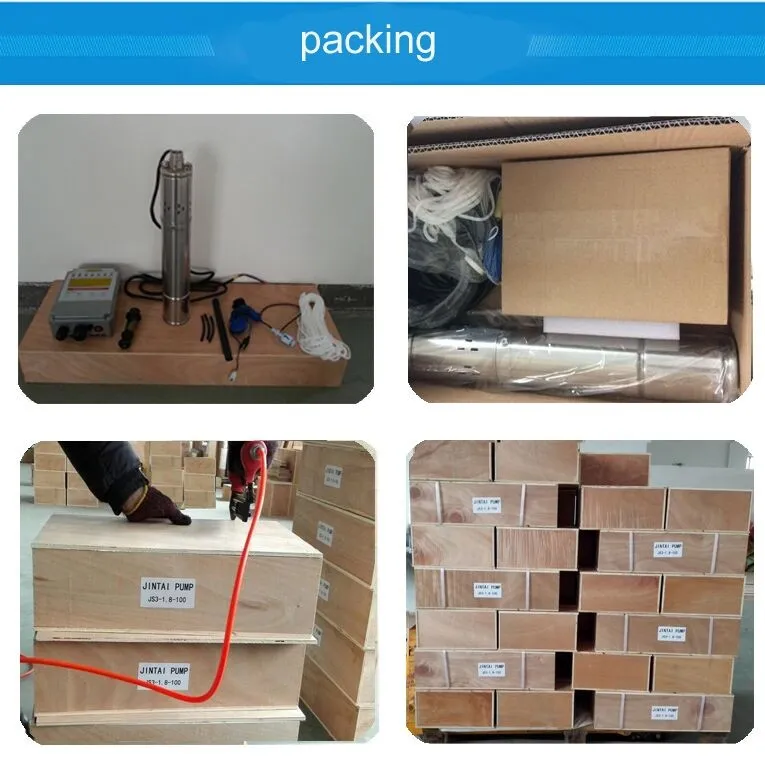

📷 Product Gallery & Packing

? Frequently Asked Questions

1. What is the warranty period for this solar pump system?

We provide a 3-year warranty for the solar water pump and the MPPT controller, and 25 years for the solar panels.

2. What are the advantages of a brushless DC motor?

The permanent magnetism brushless DC motor improves energy efficiency by approximately 25% compared to traditional AC motors.

3. Are solar panels included in the package?

Solar panels are optional. You can choose to purchase the complete kit from us or buy the pump and controller separately.

4. What is the delivery time for orders?

Samples are typically sent within 3-5 days. Batch orders are shipped within 5-15 days after confirmation.

5. Does the controller support battery backup?

Yes, the system includes a controller with battery backup functionality to ensure consistent operation.

6. How is the motor protected against water damage?

The motor utilizes a double plastic package for the rotor and stator, achieving an insulation level of ≥300MΩ for superior safety.
