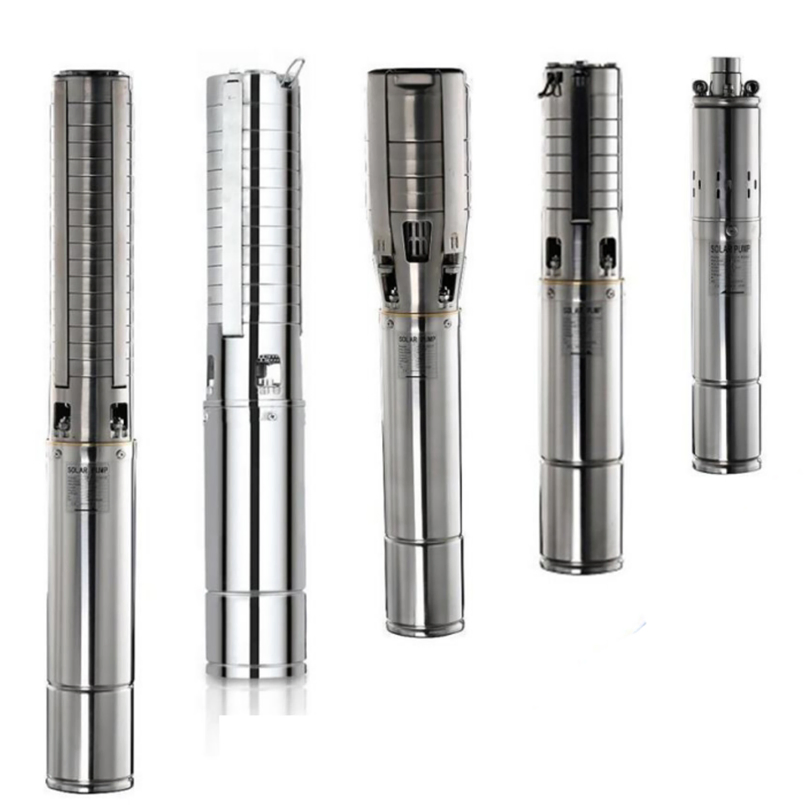

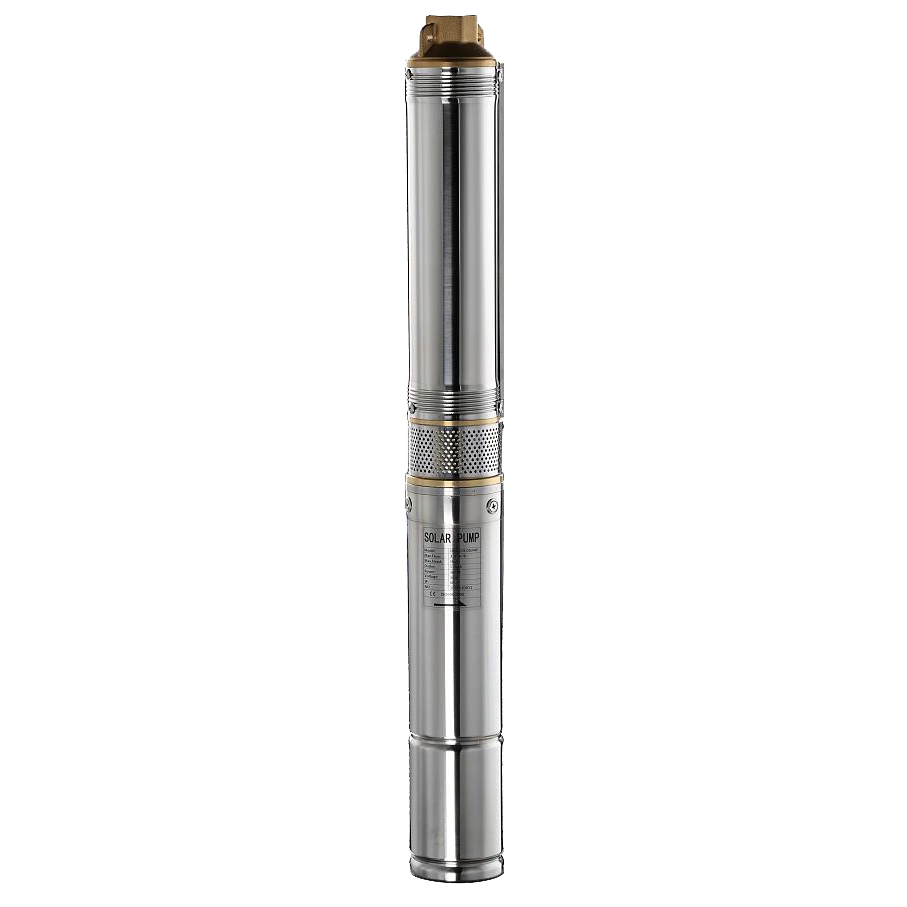

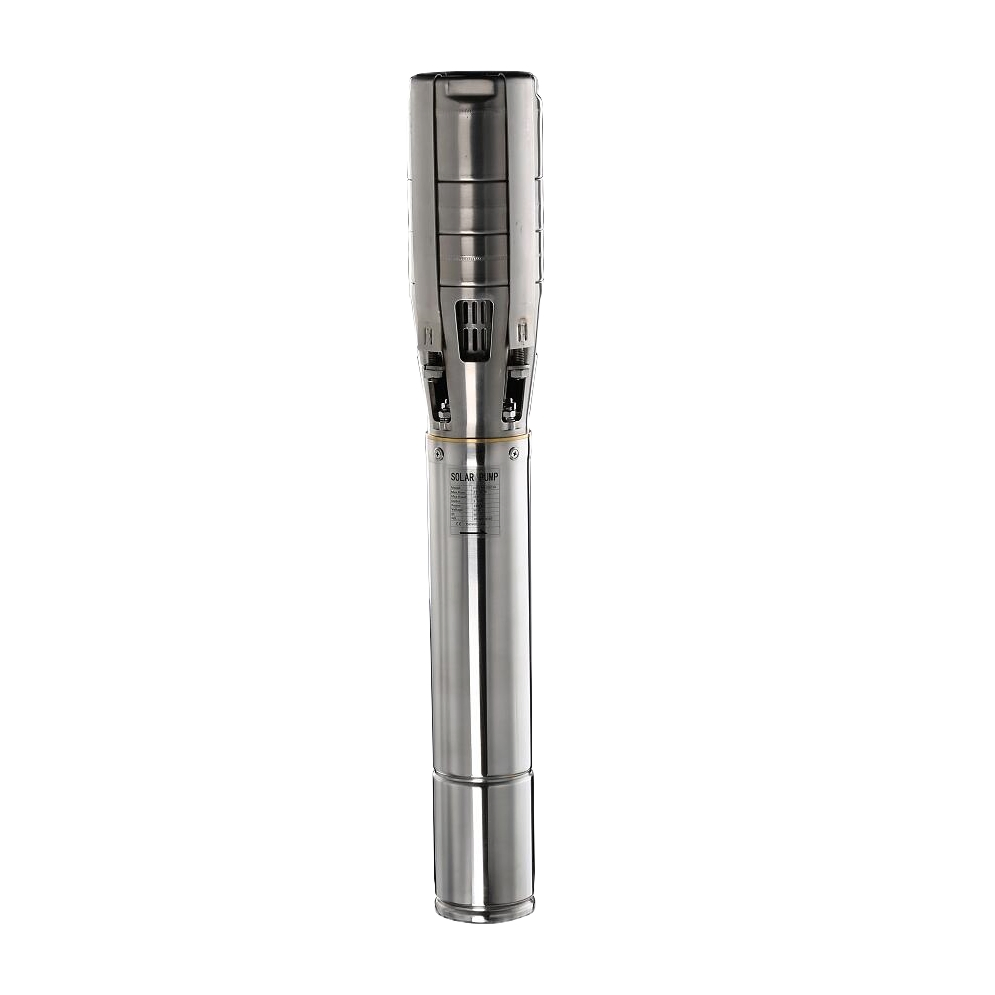

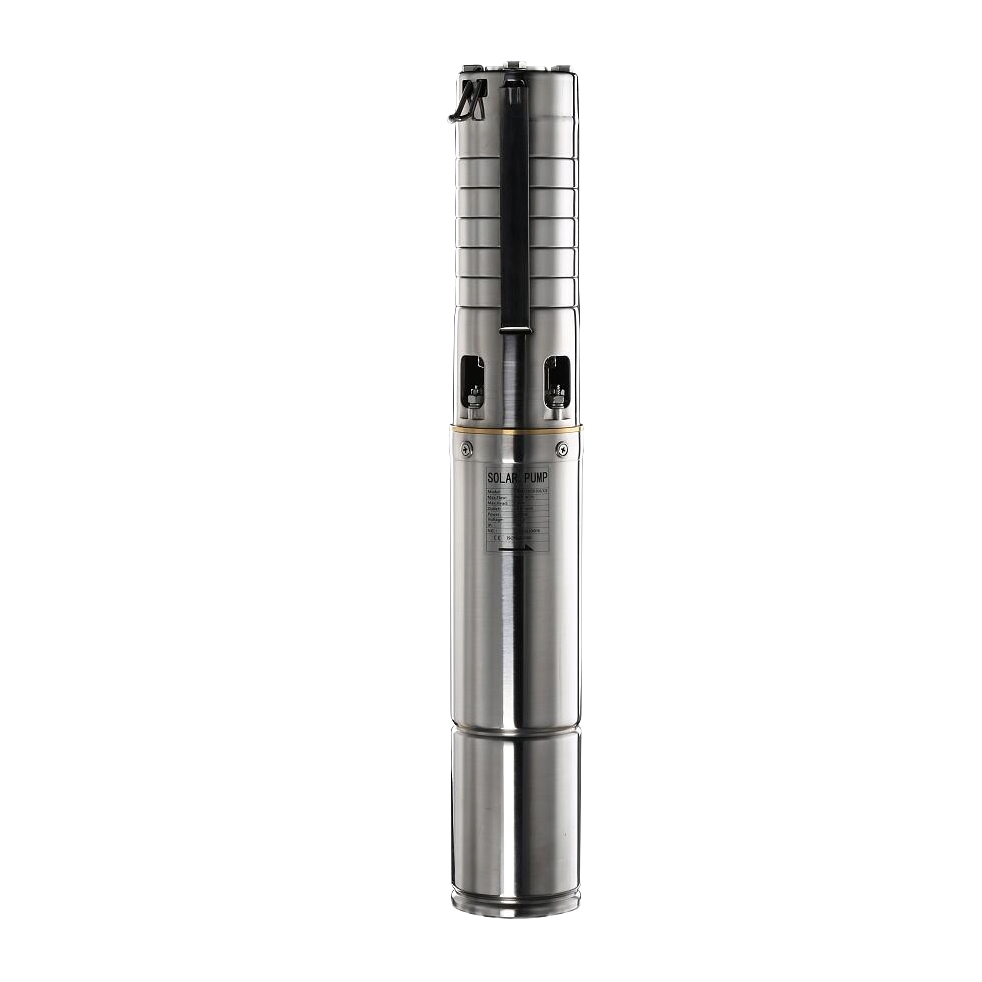

5inch 6inch DC Brushless Stainless Steel Deep Well Solar Submersible Water Pump for Agriculture Irrigation
5inch 6inch DC Brushless Stainless Steel Deep Well Solar Submersible Water Pump for Agriculture Irrigation
5inch 6inch DC Brushless Stainless Steel Deep Well Solar Submersible Water Pump for Agriculture Irrigation
5inch 6inch DC Brushless Stainless Steel Deep Well Solar Submersible Water Pump for Agriculture Irrigation
5inch 6inch DC Brushless Stainless Steel Deep Well Solar Submersible Water Pump for Agriculture Irrigation
1 / 5
5inch 6inch DC Brushless Stainless Steel Deep Well Solar Submersible Water Pump for Agriculture Irrigation
5inch 6inch DC Brushless Stainless Steel Deep Well Solar Submersible Water Pump for Agriculture Irrigation
5inch 6inch DC Brushless Stainless Steel Deep Well Solar Submersible Water Pump for Agriculture Irrigation
5inch 6inch DC Brushless Stainless Steel Deep Well Solar Submersible Water Pump for Agriculture Irrigation
5inch 6inch DC Brushless Stainless Steel Deep Well Solar Submersible Water Pump for Agriculture Irrigation

5inch 6inch DC Brushless Stainless Steel Deep Well Solar Submersible Water Pump for Agriculture Irrigation

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
6SSC36/34-D220/2800
Max.Capacity
>400 L/min
Driving Type
Motor
Material
Stainless Steel
Structure
Multistage Pump
Power Source
Solar Energy
Type
Solar Borehole Pump
Theory
Centrifugal Pump
Flow
36m3/H
Head
34m
Rated Voltage
220V
Power
2800W
Pipe Size
3 inch
Pump Diameter
6 inch
Motor Type
Permanent Magnet Synchronous DC Motor
Controller
MPPT/32bit MCU/Foc/Sine Wave

Product Advantages

  • High Efficiency: Equipped with a permanent magnetic motor, improving efficiency by 15%-30%.
  • Clean Energy: Environmental protection; can be powered by solar panels, batteries, or AC electric sources.
  • Comprehensive Protection: Features over-load, under-load, lock-rotor, and thermal protection.
  • MPPT Technology: Integrated Maximum Power Point Tracking function for optimal energy utilization.
  • Extended Durability: Significantly longer service life compared to standard AC water pumps.

Primary Applications

  • Agricultural Irrigation
  • Drinking Water and Living Water Supply
  • Remote Areas and Farming Solutions
  • Fountains and Water Features
  • Swimming Pool Circulation and Filtration

Technical Features

• Stainless steel pump body and 304ss screw for superior corrosion resistance.

• Motor with copper winding for enhanced conductivity and stability.

• Built-in thermal protector for single-phase motor safety.

• Maximum liquid temperature: +40ºC | Maximum sand content: 0.15% | Maximum immersion: 50m.

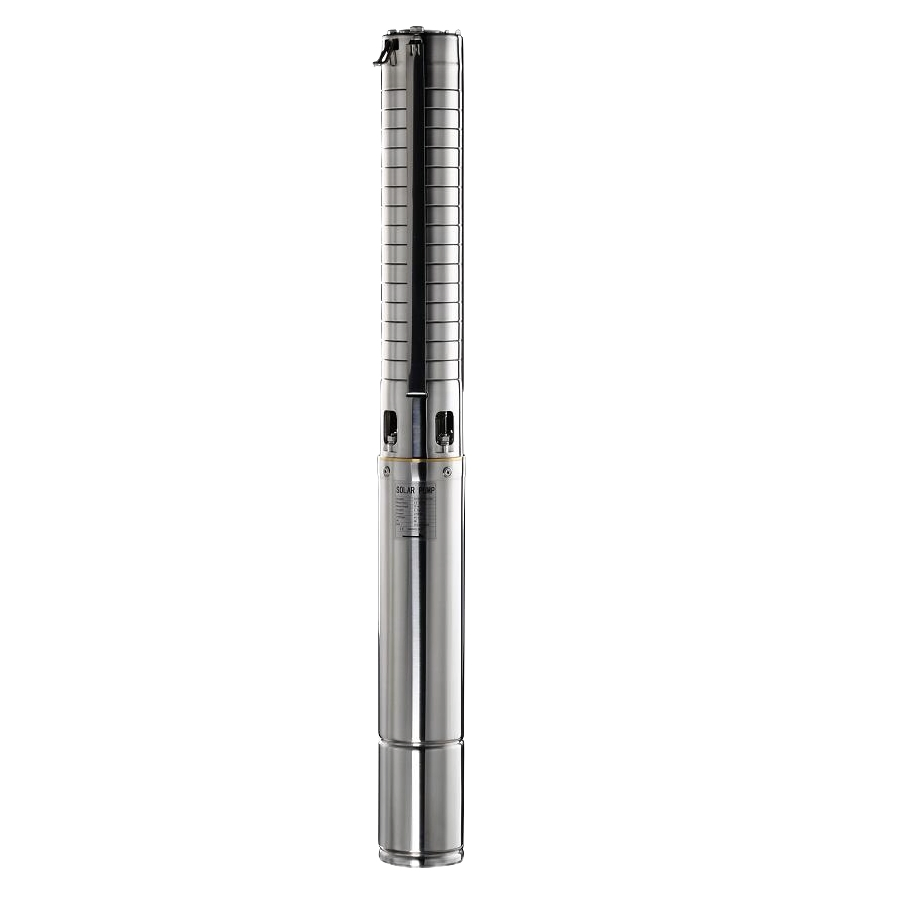

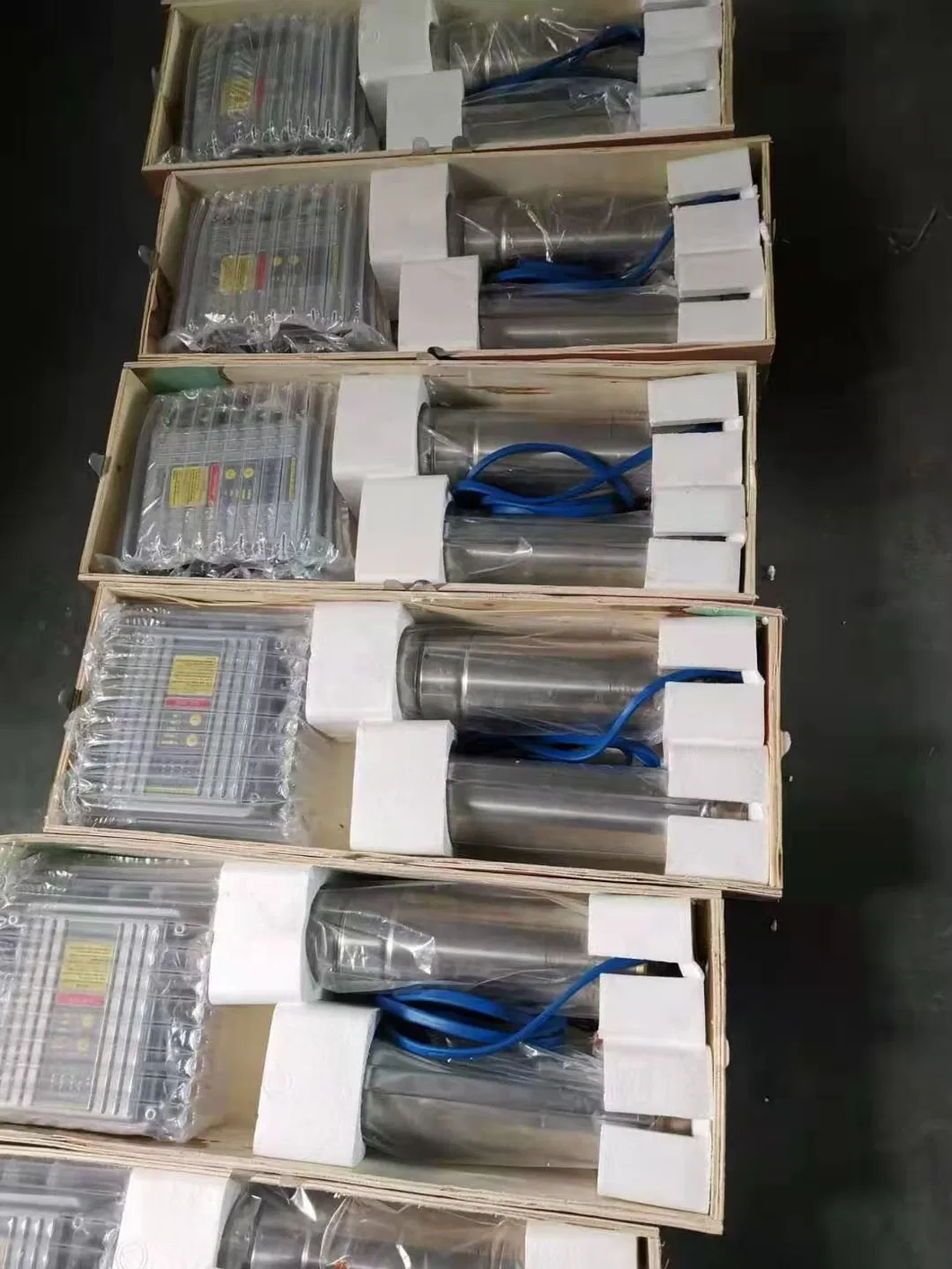

DC Brushless Stainless Steel Solar Pump
Solar Submersible Water Pump Details

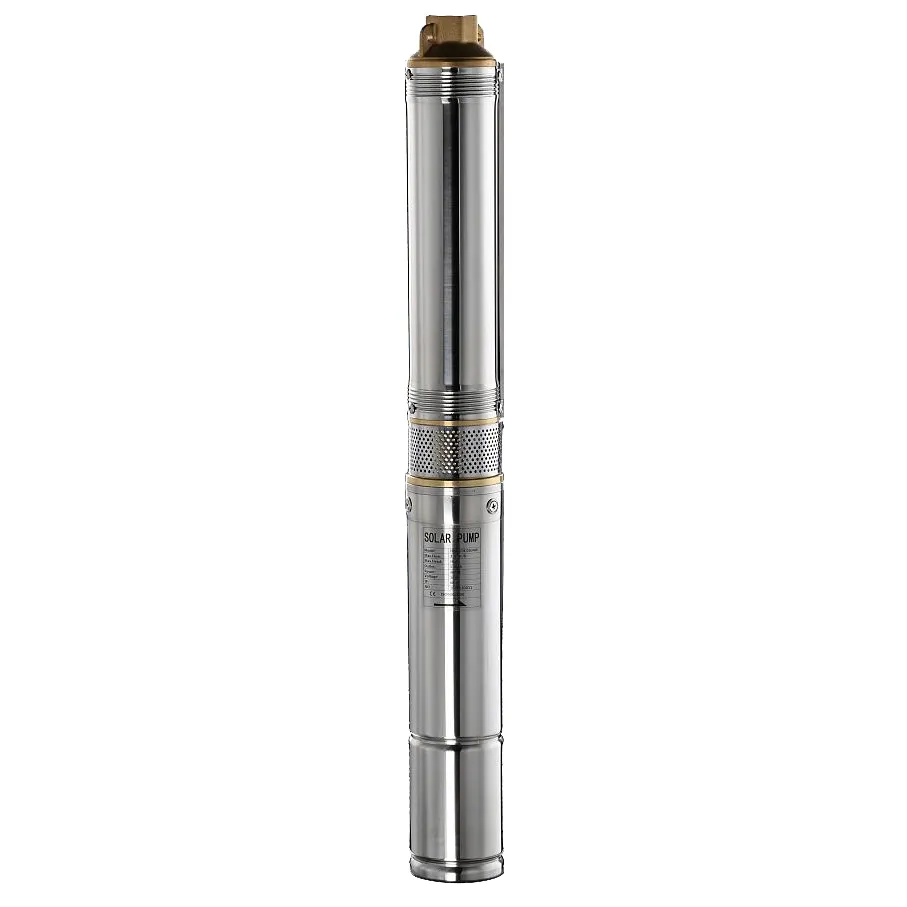

Agriculture Irrigation Pump

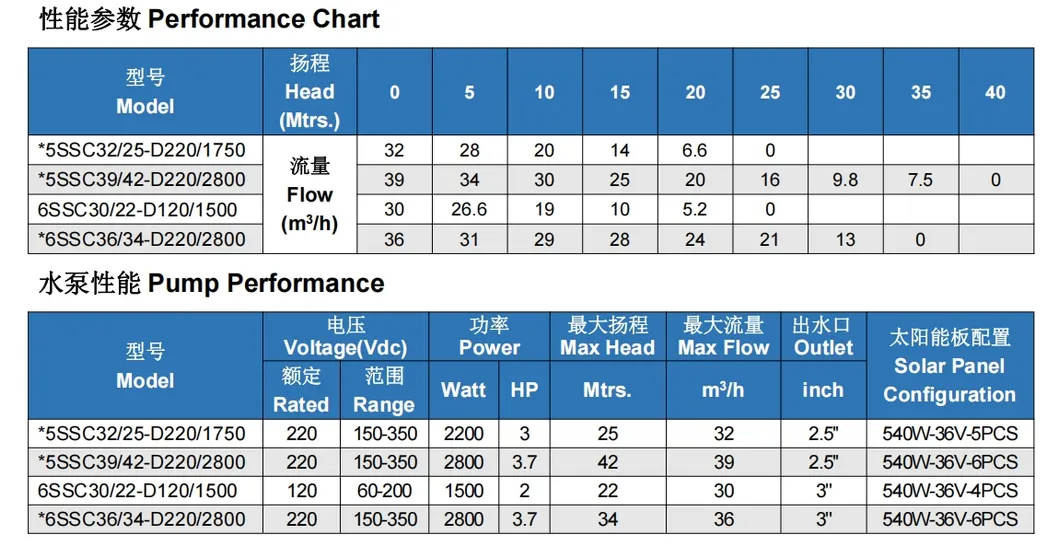

Pump Performance Chart

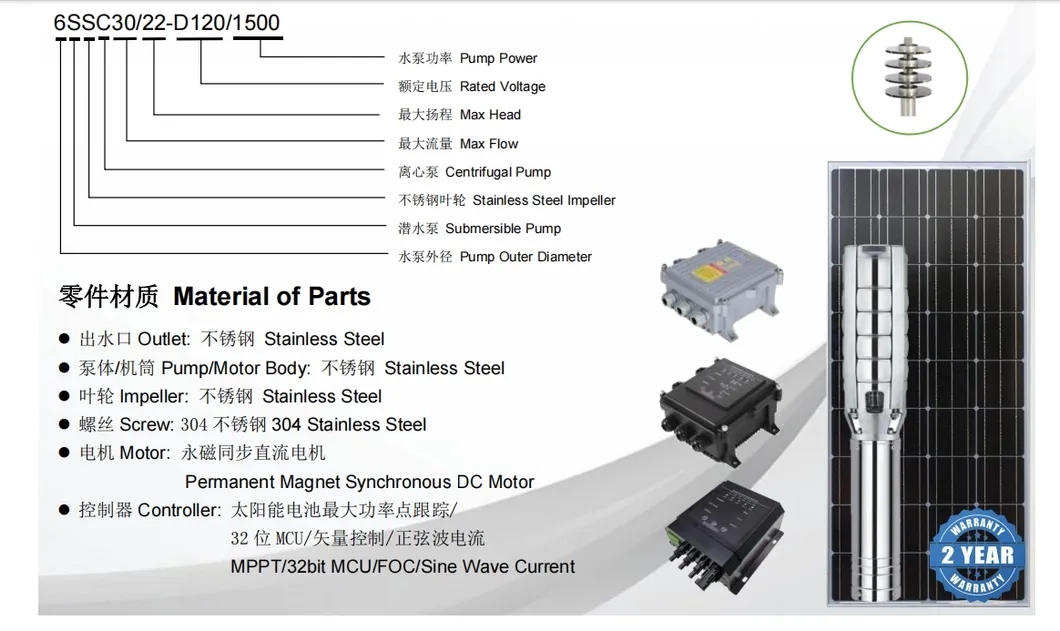

Solar Pump Installation Diagram

Frequently Asked Questions

What are the power options for this pump?
This solar-powered water pump is versatile and can be powered by solar panels, batteries, or standard AC electric sources.
How much more efficient is the permanent magnetic motor?
The high-efficiency permanent magnetic motor provides an efficiency improvement of approximately 15% to 30% compared to traditional motors.
What kind of protective features are built into the system?
The system includes multiple protection mechanisms: over-load protection, under-load protection, lock-rotor protection, and thermal protection.
Can this pump handle water with sand?
Yes, the pump is designed to handle a maximum sand content of 0.15% in the liquid.
What is the maximum flow rate and head for the 6SSC36 model?
The model 6SSC36/34-D220/2800 offers a maximum flow of 36m3/H and a rated head of 34 meters.
Is the pump body resistant to corrosion?
Absolutely. The pump features a stainless steel body and 304ss screws, ensuring long-term durability in submerged environments.
