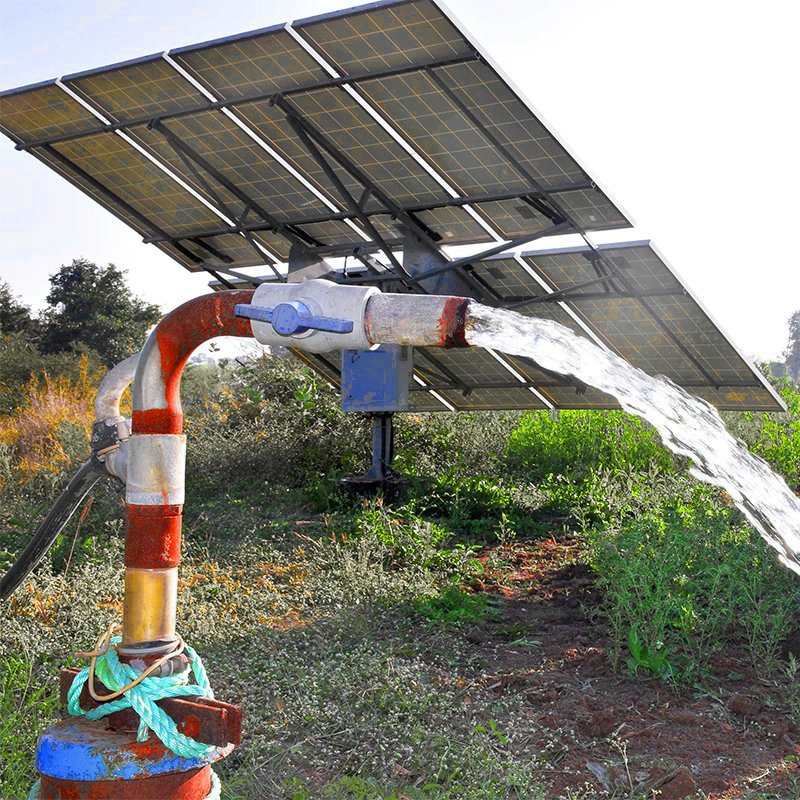

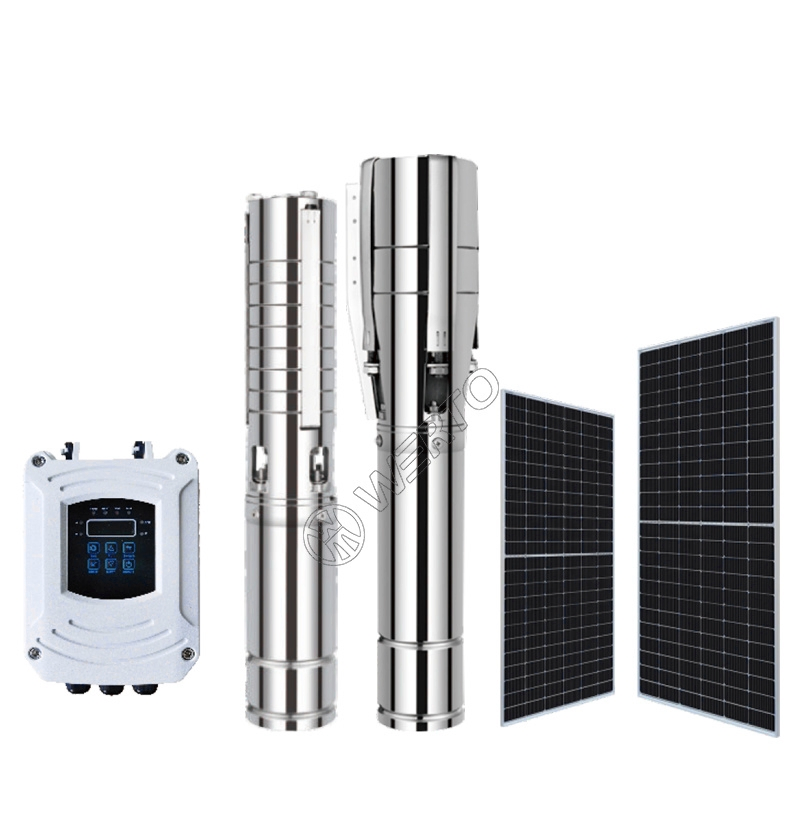

4wsp DC Solar Water Pump Kit Solar Well for Irrigation System

Still deciding? Get samples of $ !
Order Sample

Product Description

📊 Basic Information
Model NO.
4WSP5.5-75-48-750
Max.Head
75m
Max.Capacity
5.5m3/H
Driving Type
Motor
Material
Stainless Steel
Structure
Multistage Pump
Power
Solar Energy
Theory
Vortex Pump
Pump External Casing
AISI 304 Ss
Mechanical Seal
Special Seal for Deep Well(Carbon-Sic/Tc)
HS Code
8413709190
📦 Packaging & Delivery
Package Size
128.00cm * 22.00cm * 13.00cm
Package Gross Weight
14.500kg
Transport Package
Carton Box
📝 Product Description
DC Solar Water Pump Overview

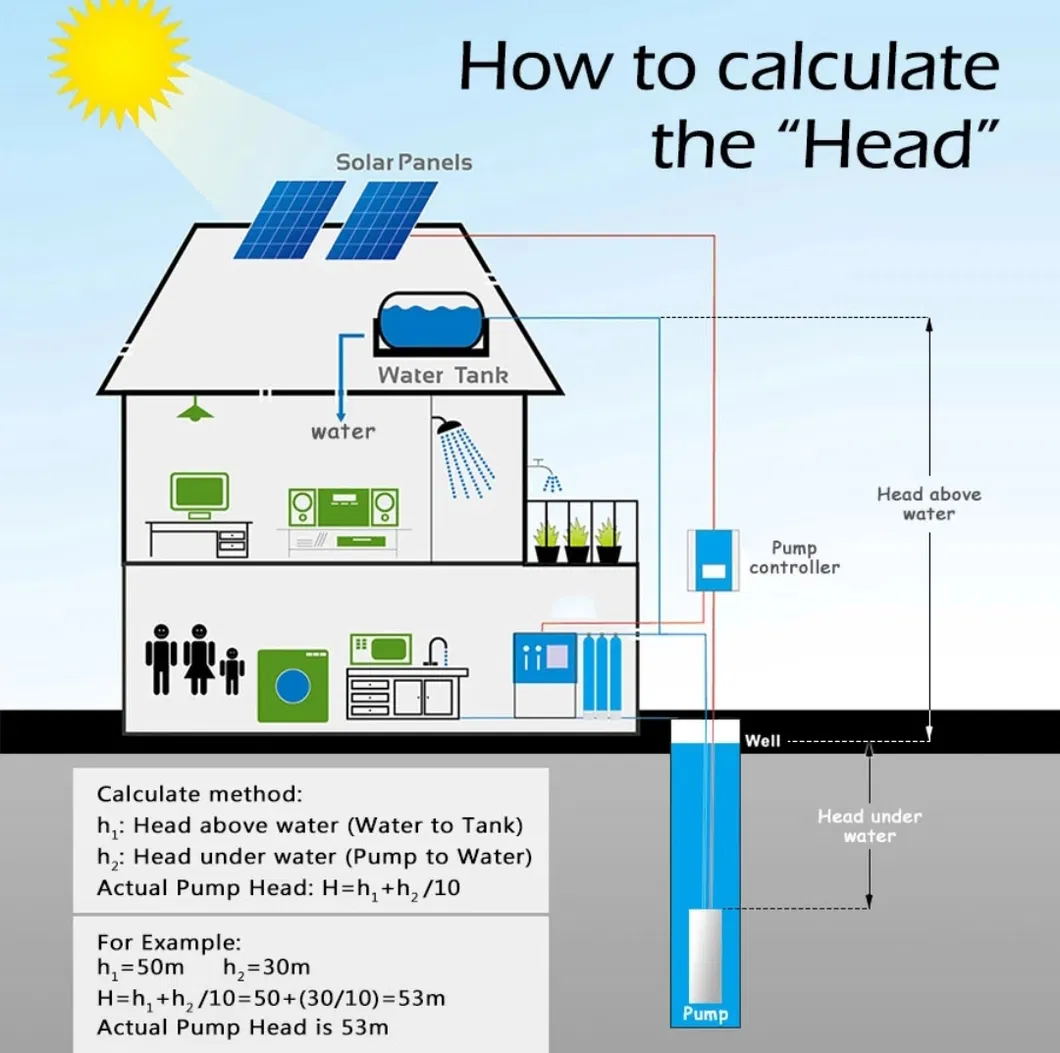

Solar Pump Details 1

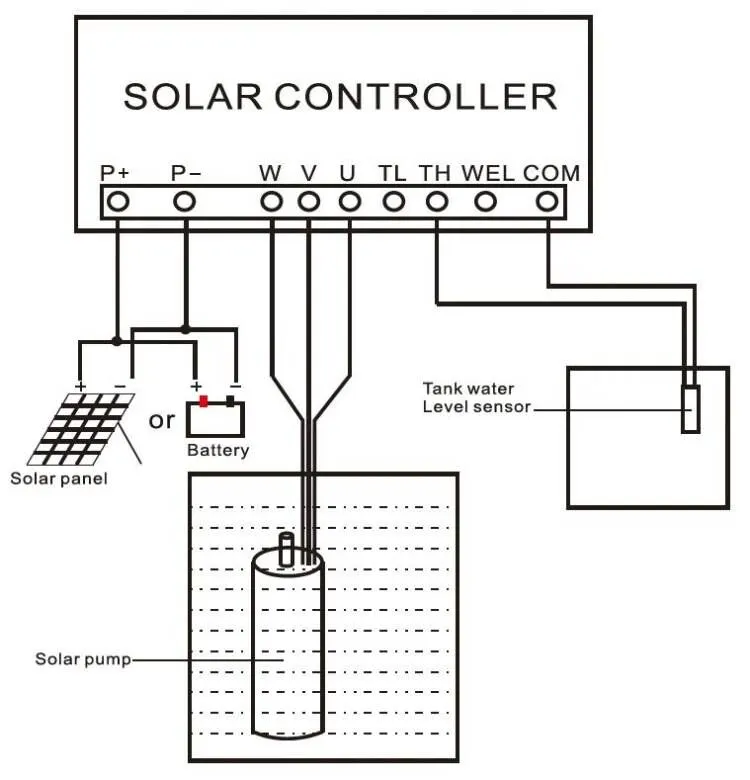

Solar Pump Details 2
📈 Performance Curve & Data

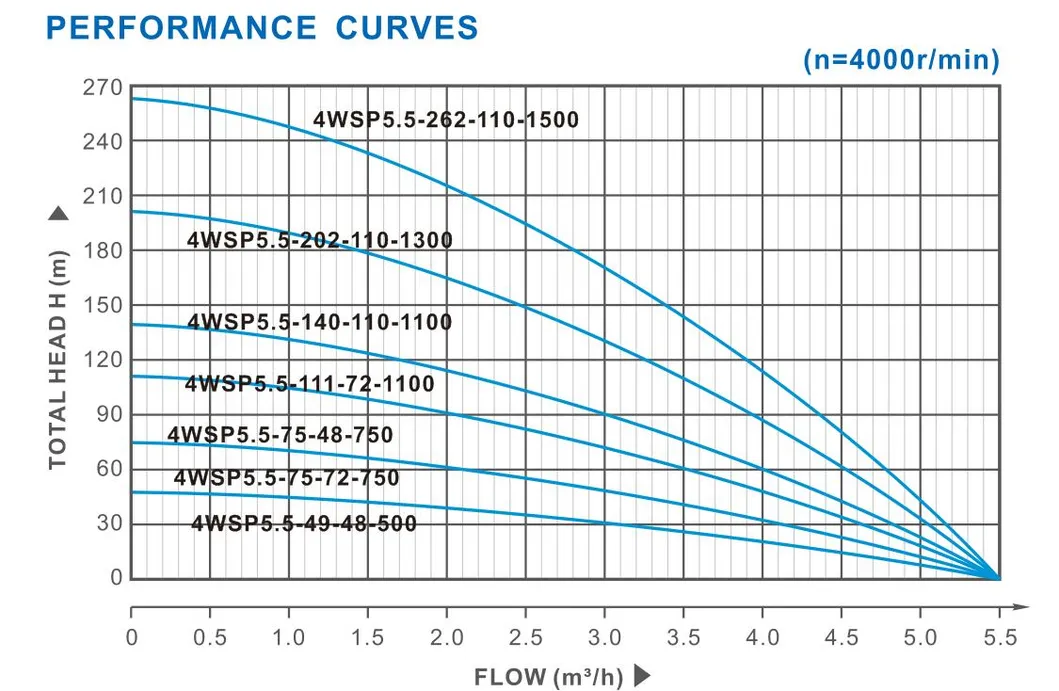

Performance Curve
Model Power (W) Voltage (V) Max Flow (m³/h) Max Head (m) Outlet (inch)
4WSP5.5-49-48-500500485.5491.25"-1"
4WSP5.5-75-48-750750485.5751.25"-1"
4WSP5.5-75-72-750750725.5751.25"-1"
4WSP5.5-111-72-11001100725.51111.25"-1"
4WSP5.5-140-110-110011001105.51401.25"-1"
4WSP5.5-202-110-130013001105.52021.25"-1"
4WSP5.5-262-110-150015001105.52621.25"-1"
🛠️ Accessories

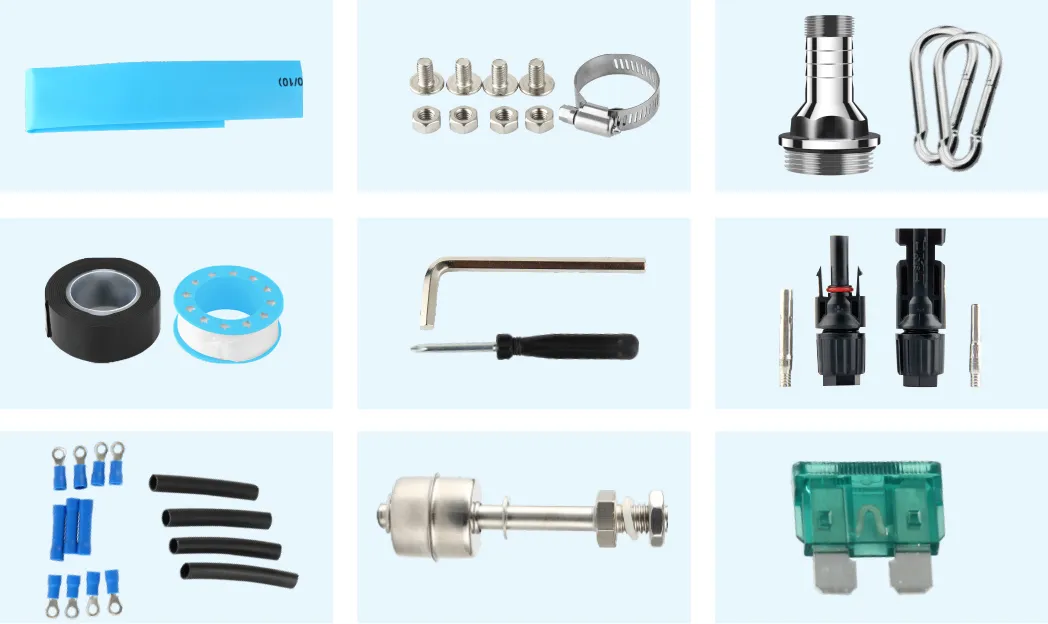

Pump Accessories
🏆 Why Choose Us
⚙️
Customization: Strong R&D team to develop products according to specific drawings or samples.
💰
Cost-Effective: Own production lines for pumps and motors, ensuring factory-direct prices.
Quality Assurance: Advanced laboratory and testing equipment to guarantee industry-leading quality.
🔄
Diversity: Over 100 types of pump motors with various power and performance options.
🌍
International Service: Products meet international standards and are exported globally.
Surface Pumps Centrifugal Pumps Peripheral Pumps Submersible Pumps
Frequently Asked Questions
How does a DC solar water pump work?
Solar panels capture sunlight and convert it into DC electricity, which powers the high-efficiency motor of the pump to extract water from wells or reservoirs.
Can the pump operate on cloudy days?
Yes, the pump can still operate under low-light conditions, although the flow rate will be reduced compared to full sunlight.
Is the pump made of corrosion-resistant materials?
Absolutely. The external casing and shaft are made of high-grade AISI 304 or 316 stainless steel to ensure long-term durability in water.
Does the system require a battery?
While it can work directly with solar panels during the day, a battery can be added if you require water pumping during the night or consistently during heavy cloud cover.
What is the maximum depth this pump can handle?
This specific series offers a maximum head of up to 262 meters depending on the model chosen, making it ideal for deep well applications.
Is the installation complex?
The kit is designed for easy installation. It includes a smart controller that manages the power flow and protects the pump from dry-running.
