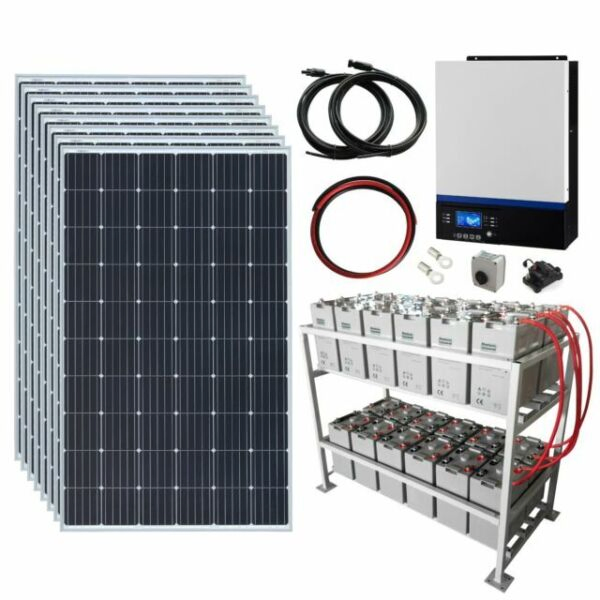

5kw Hybrid Solar Energy System On Off Grid Solar Panel System Complete Kit 220V 380V PV Module Power System Wholesale

📋 Overview - Basic Info

Number of Cells

144PCS

Application

Industrial

Condition

New

Certification

ISO, CE, Rosh

Material

Monocrystalline Silicon

Product Name

Mono Solar Panel

Type

Half Cell N Type Mono PV Module

Cell Size

78mm*166mm

Specification1

535W-550W

Shipment

620PCS/40'hq

Junction Box

IP68

Front Glass

High Transparency, Coated Tempered Glass

Frame

Anodized Aluminum Alloy

Weight

28kgs

Origin

China

HS Code

85414020

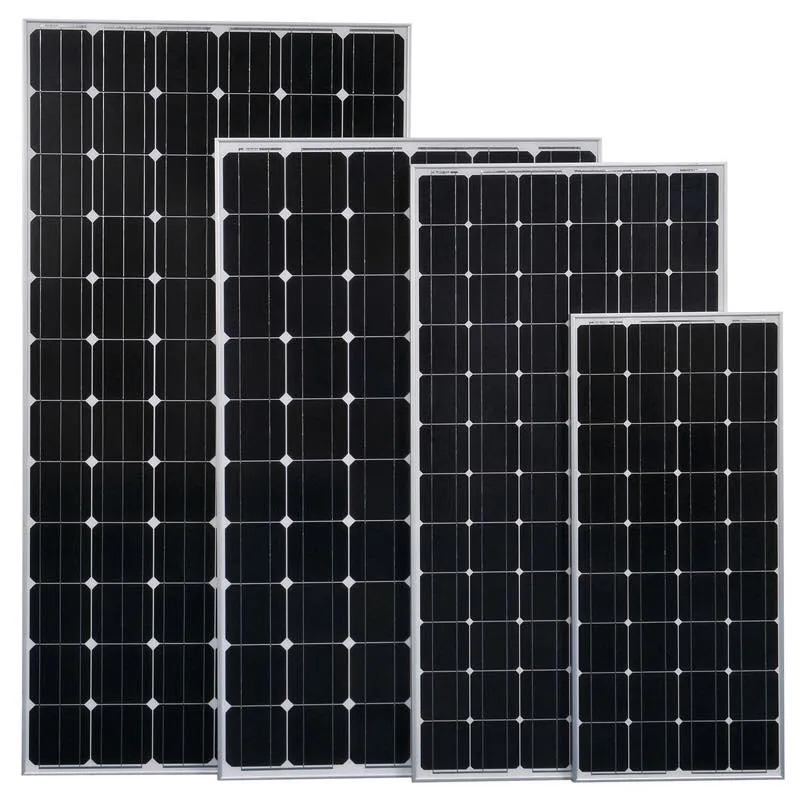

🖼️ Detailed Photos

📊 Product Parameters

Solar Panel Mono Half Cell Solar Power double glass solar modules tier 1

Rated Power - Pmax (W)	530w	535w	540w	545w	550w
Open Circuit Voltage - Voc (V)	49.2	49.35	49.51	49.69	49.88
Short Circuit Current - Isc (A)	13.68	13.75	13.82	13.89	13.97
Working Voltage - Vpm (V)	41.53	41.82	42.12	42.41	42.71
Working Current - Ipm (A)	12.76	12.79	12.82	12.85	12.88
Module Efficiency (%)	20.51	20.7	20.89	21.09	21.28
STC: Irradiance 1000W/square meter, Cell Temperature 25°C, Air Mass AM 1.5

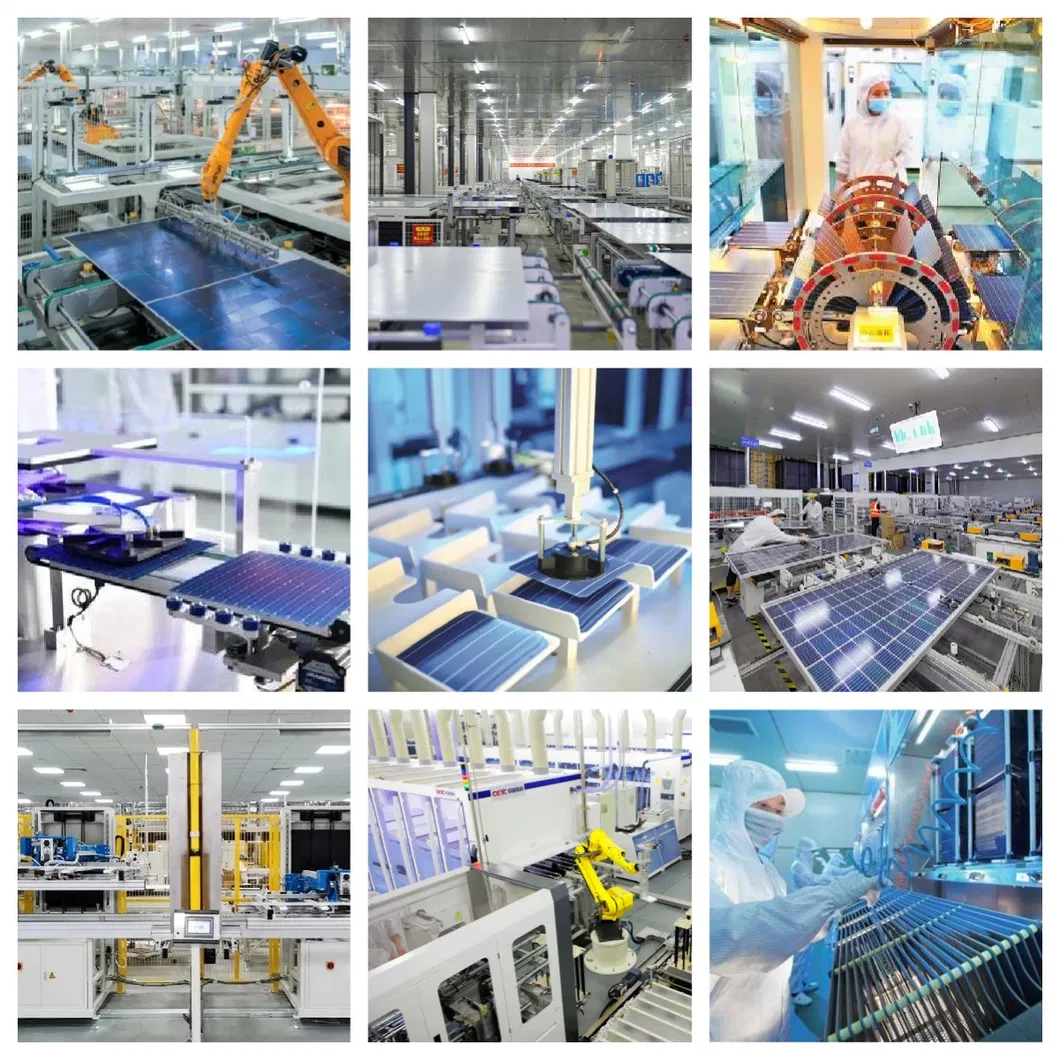

🏭 Production Line

As an industry-leading solar energy company with a current high-efficiency module production capacity of 10GW, we design, manufacture, and supply high-efficiency monocrystalline solar modules. We provide outstanding photovoltaic products, system solutions, and related services to customers around the world, committed to promoting global carbon peaking goals.

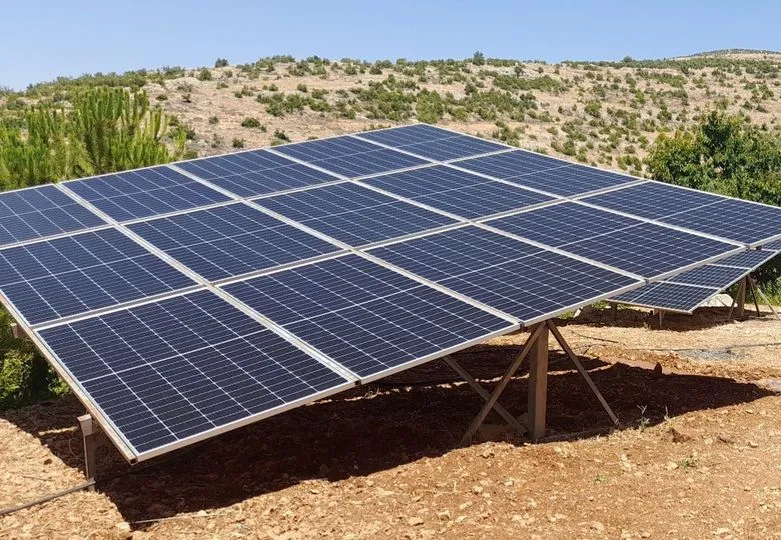

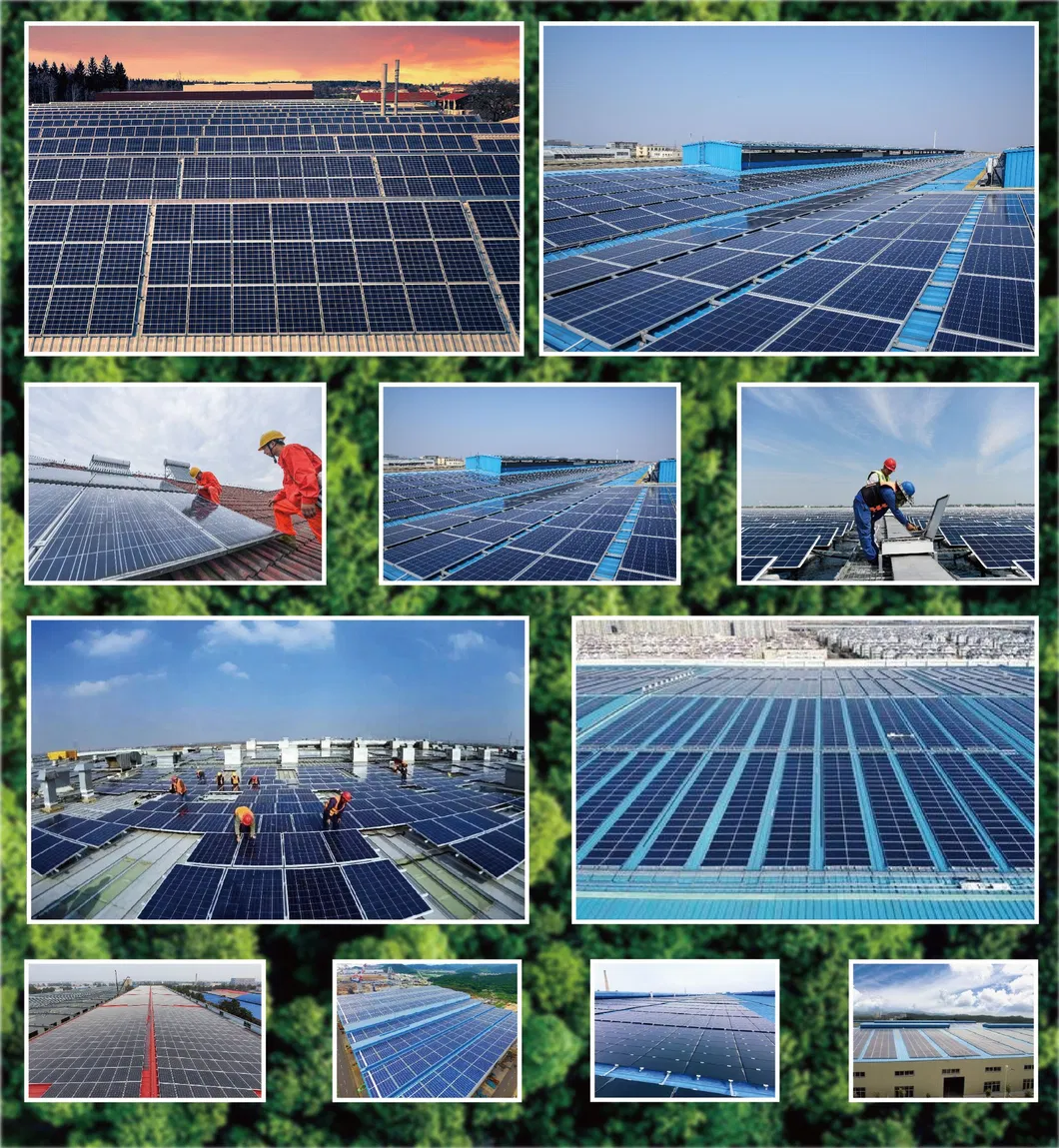

☀️ Photovoltaic Projects

📜 Certifications

📦 Packaging & Shipping

👥 Our Team

❓ Frequently Asked Questions

What about the lead time?

10 days for <200kW requirements; we need to negotiate if your needs exceed 200kW.

How can I make payment?

100% TT or we can accept 30% TT in advance and 70% TT upon goods ready before shipment.

What is the mode of transport?

International sections are generally via sea transport. After entry, we use multimodal transport including rail and barge.

What is the product warranty?

10 years enhanced product warranty on materials and workmanship, and 25 years linear power output warranty.

What are the main materials of the module?

The panels use high-efficiency Monocrystalline Silicon cells with an Anodized Aluminum Alloy frame and coated tempered glass.

What certifications do these modules have?

Our products are fully certified with ISO, CE, and Rosh standards, ensuring high quality and safety for industrial applications.

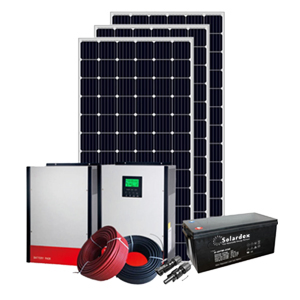

5kw Solar Energy System on&off Grid Solar Panel System 220V 380V PV Module Complete Set
