Basic Information
Certification:
ISO, CB, CE, TUV, VDE, IEC61215, IEC617, Pid, Cec, Jet
Application:
Home, Industrial, Commercial, Agriculture Irrigation
Specification:
Normal, 5KW/10KW
Solar Panel Type:
Mono / Poly Solar Panel
Output Voltage:
EU: 230/400/480V US: 120/240V etc
Monitoring:
WiFi/GPRS Device
Work Time (H):
24hours/Day
Mounting Brackets:
Roof/Ground Installation
Accessories:
Mc4 Spanner, Crimping Pliers etc
Inverter:
Singe Phase/Three Phase
Battery Type:
AGM/Gel/Lithium Battery
Package Size:
210.00cm * 120.00cm * 120.00cm

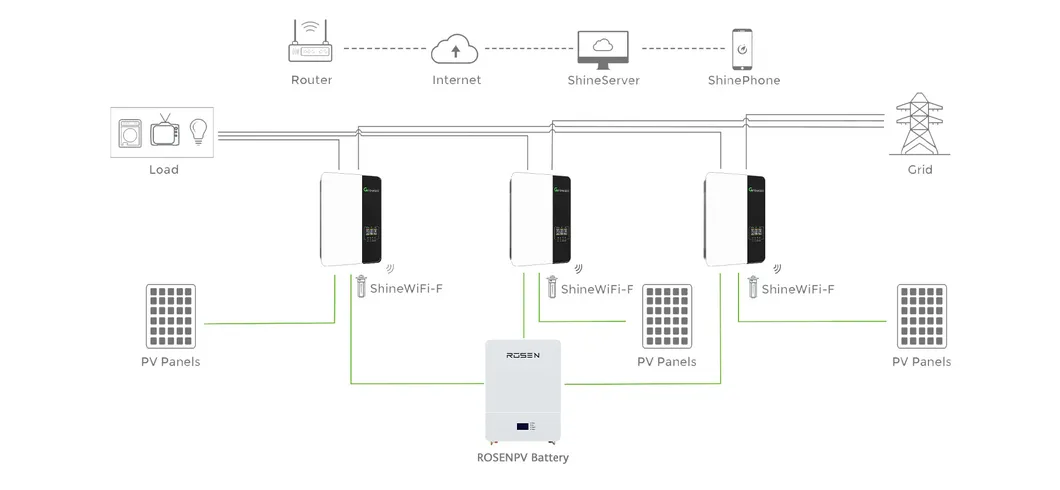

System Configuration
| Item |
5KW |
10KW |
15KW |
| Half Cell Solar Panel |
10 pieces |
20 pieces |
30 pieces |
| PV Combiner Box |
DC Breaker/Combiner/Short-Circuit Protection/Lightning Protector |
| Hybrid Inverter (On/Off Grid) |
5kw |
10kw |
15kw |
| WIFI Module Monitor |
1 set |
1 set |
1 set |
| Solar Battery |
Lithium Powerwall with BMS/GEL |
Lithium Powerwall with BMS/GEL |
Lithium Powerwall with BMS/GEL |
| PV Cable |
4/6mm² |
4/6mm² |
4/6mm² |
| Mounting Bracket |
Tile Roof/Ground |
Tile Roof/Ground |
Tile Roof/Ground |
| MC4 Connector |
10pcs |
20pcs |
30pcs |
| Installation Manual |
Yes |
Yes |
Yes |
Technical Specification

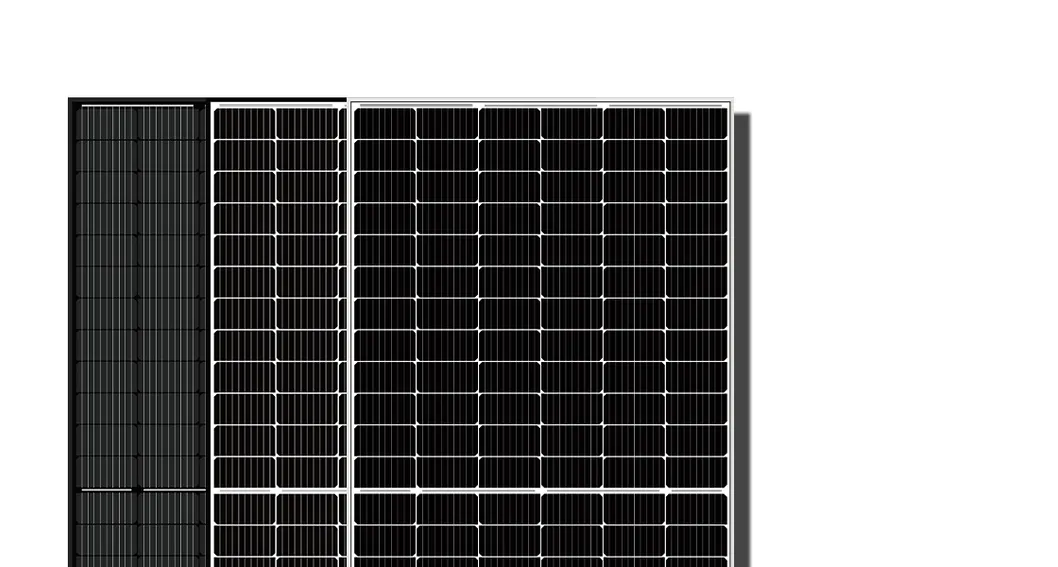

☀️ Solar Panels
✔ Optional Mono/Poly Blue/Black Panels
✔ High Efficiency with Half Cell PERC panels
✔ 9BB/10BB/12BB PV cell Mono 182mm/210mm
✔ Wind/Snow Load 2400Pa / 5400Pa
✔ Anti-PID Protection

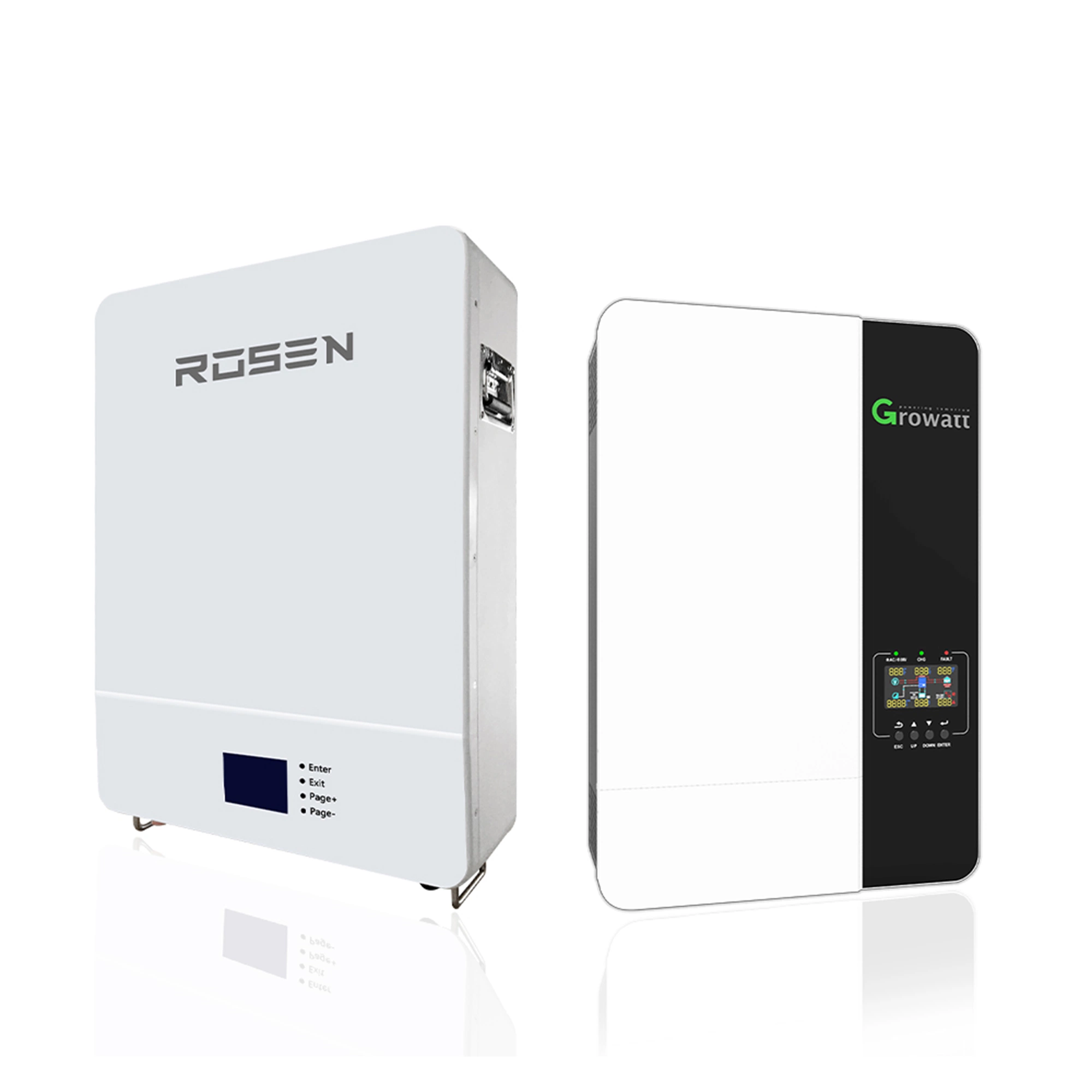

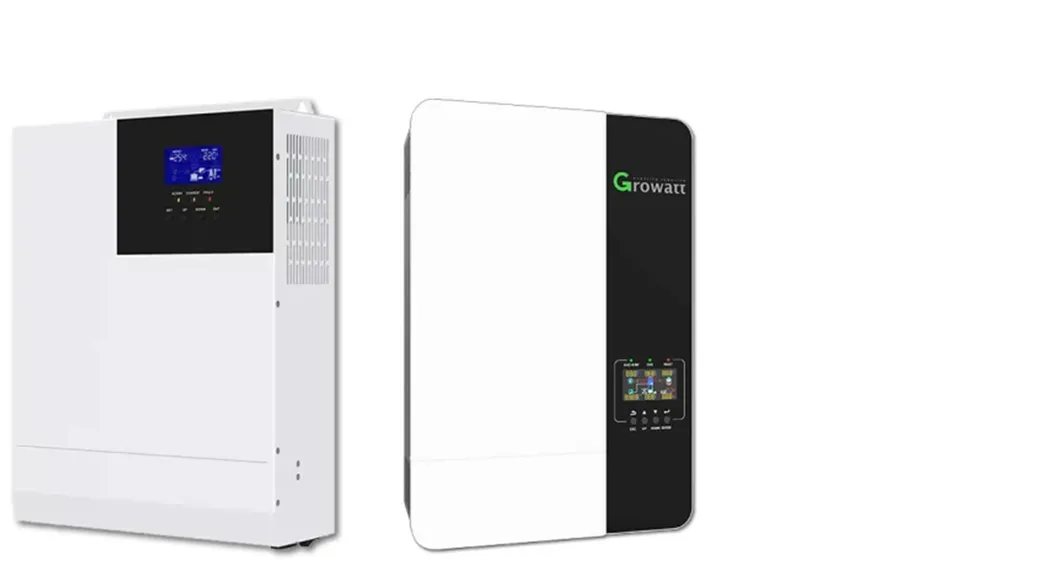

⚡ Hybrid Solar Inverter
✔ Single Phase/Three Phase AC Voltage
✔ Intelligent cloud platform monitoring
✔ One-key APP real-time monitoring
✔ Support RS232, RS485, GPRS, WIFI
✔ BMS communication for Lithium battery

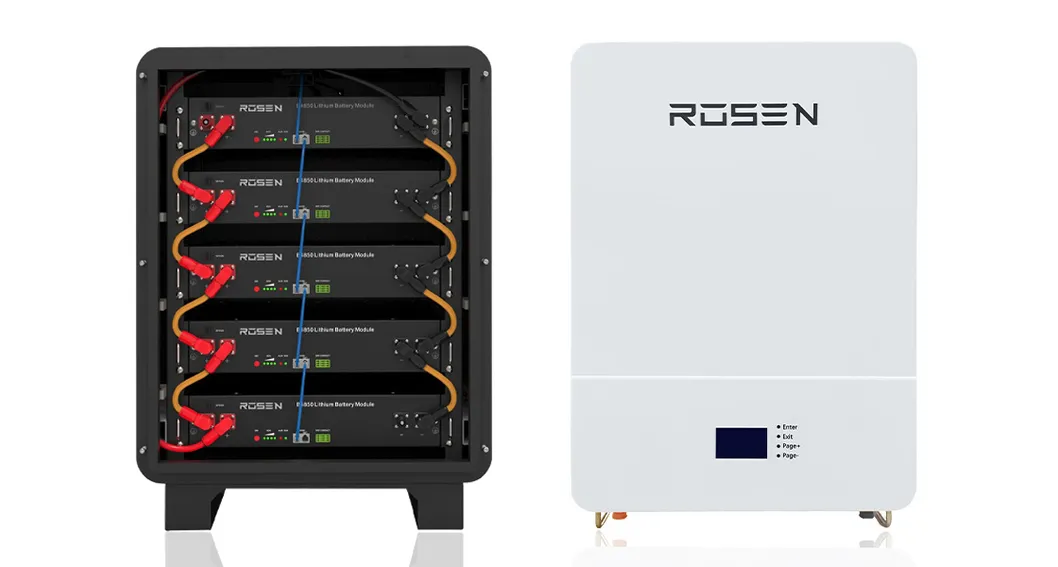

🔋 Solar Battery
✔ 48V LV Storage / 96V-384V HV Battery
✔ Lithium ion LifePO4 Module or Powerwall
✔ Matched BMS for hybrid inverters
✔ Lead Acid Deep Cycle Battery Storage

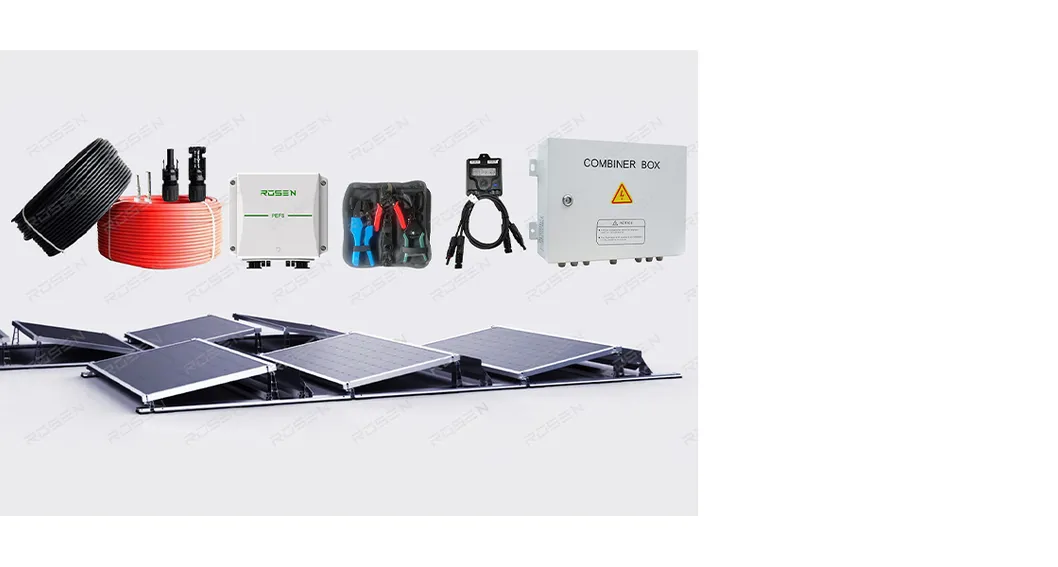

🛠️ EPC Accessories
✔ Tile/Color steel roof/ground installation
✔ DC Breaker/Combiner/Short-Circuit Protection
✔ Lightning Protector/Smart Switch
✔ DC Cable, MC4 Connector & Tool Box

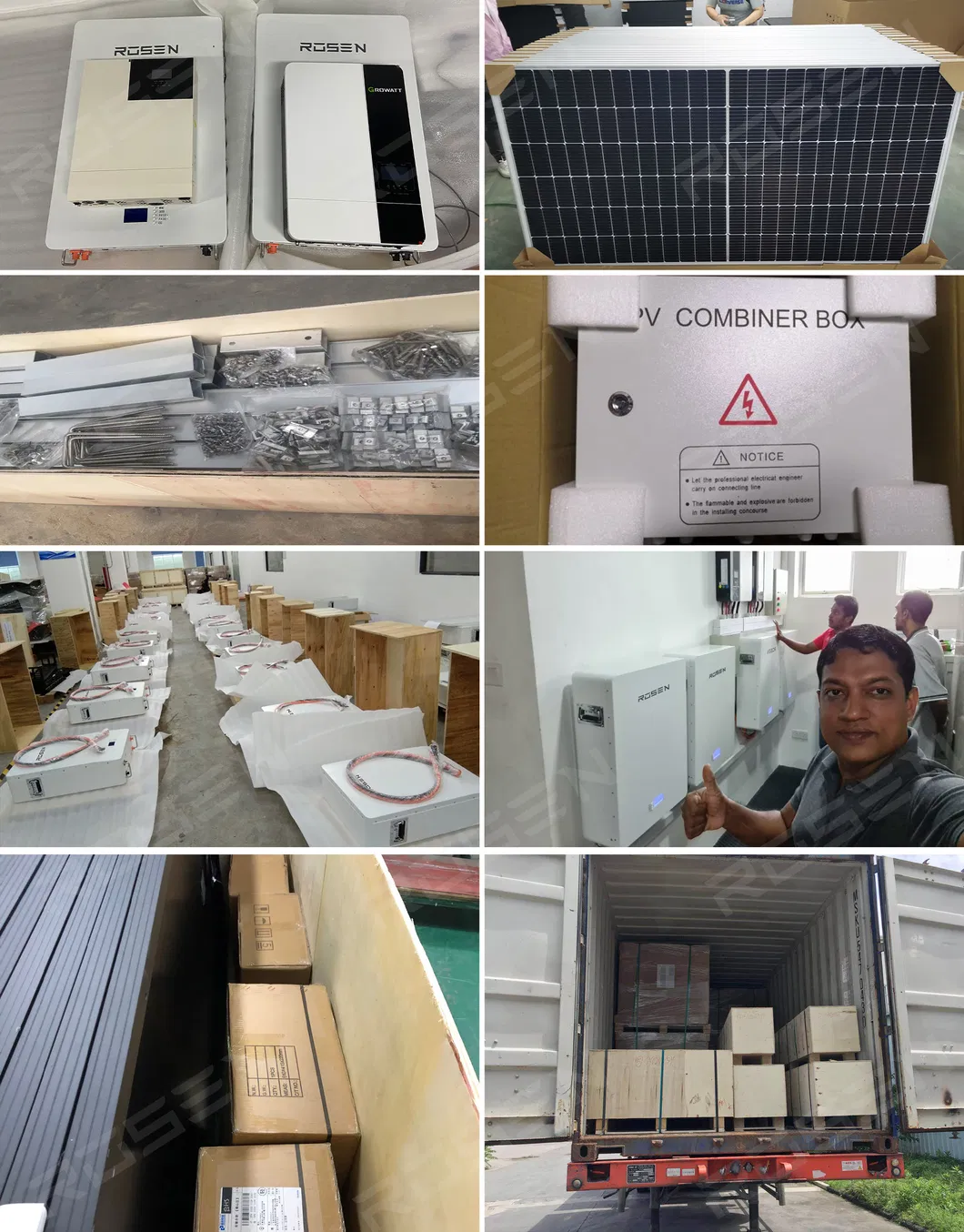

Packing & Delivery

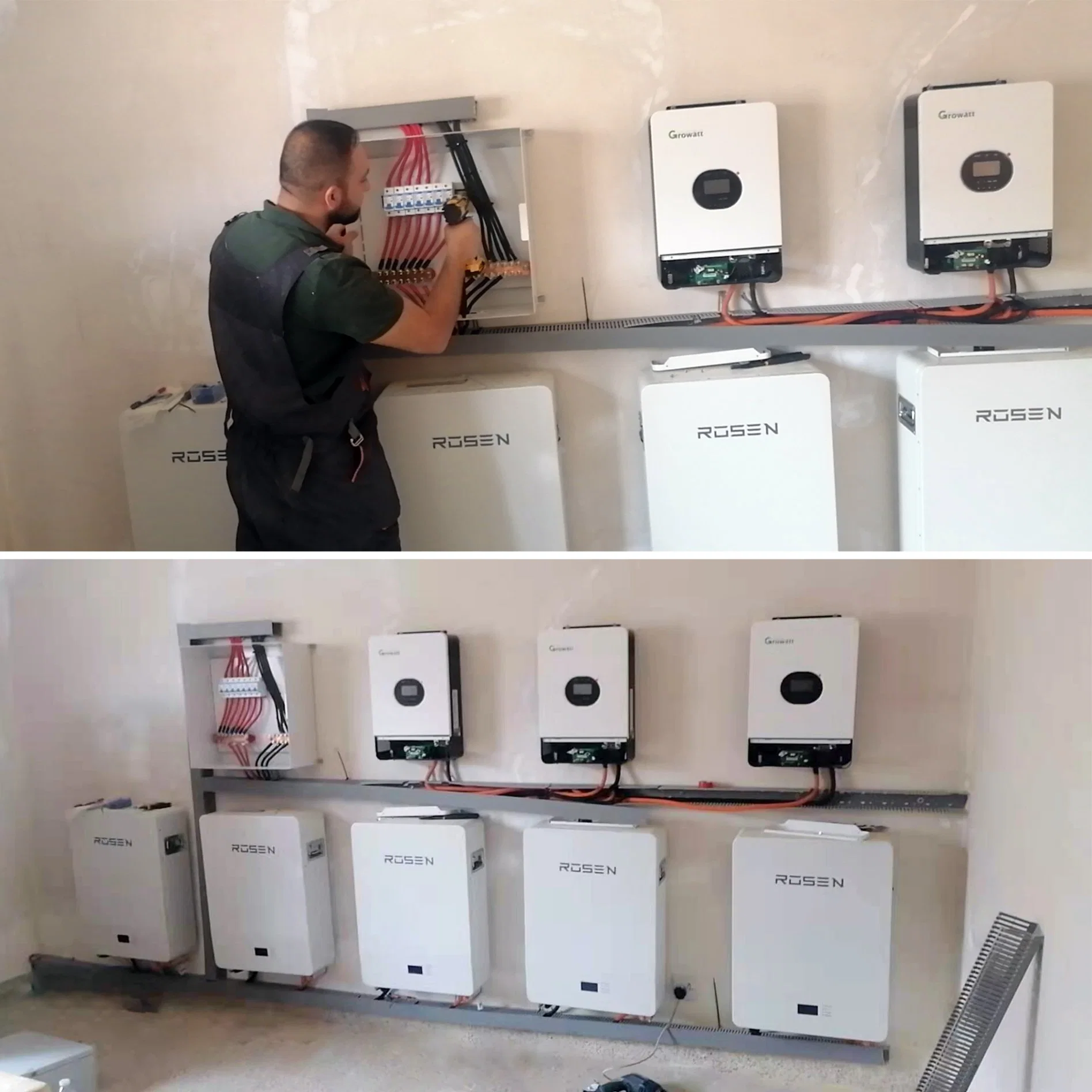

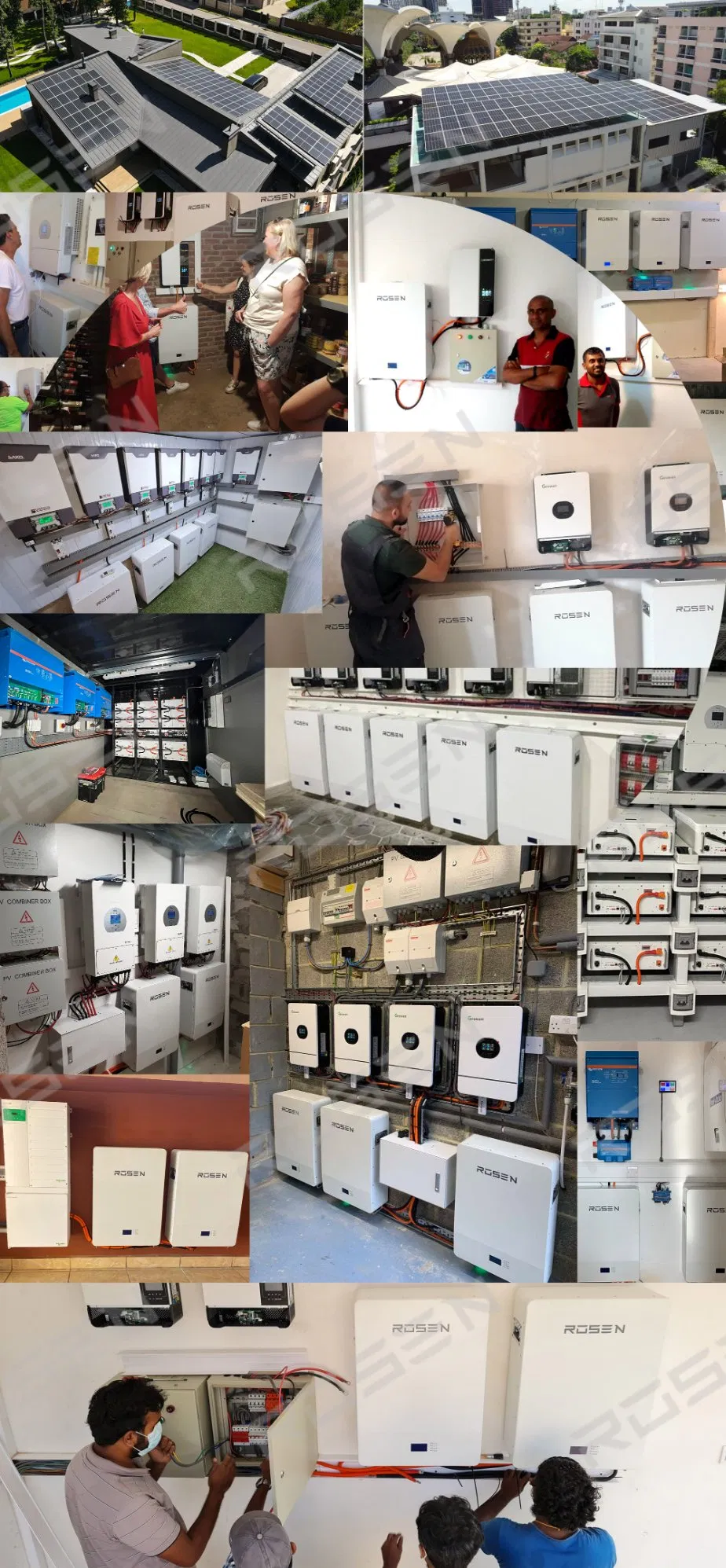

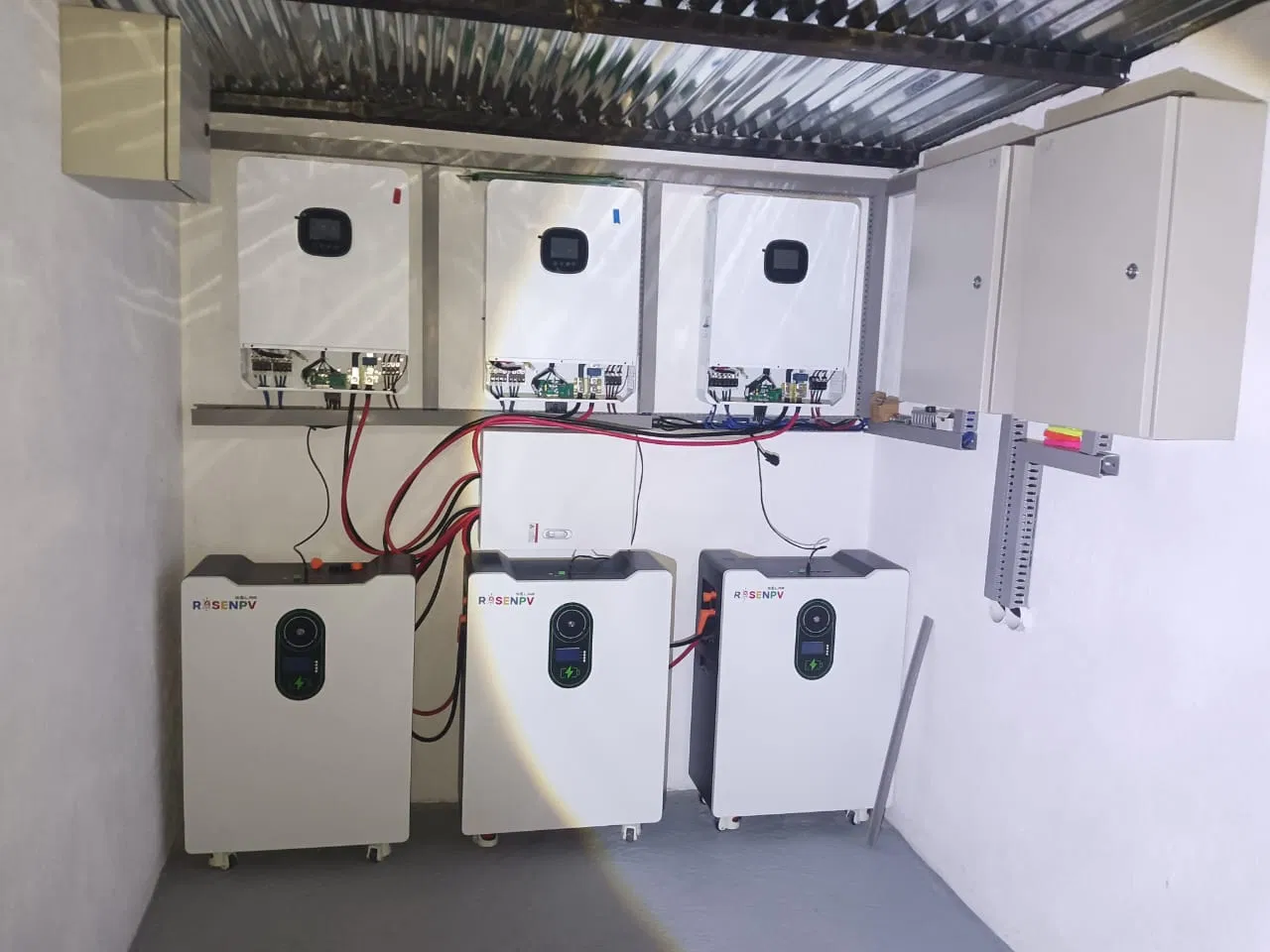

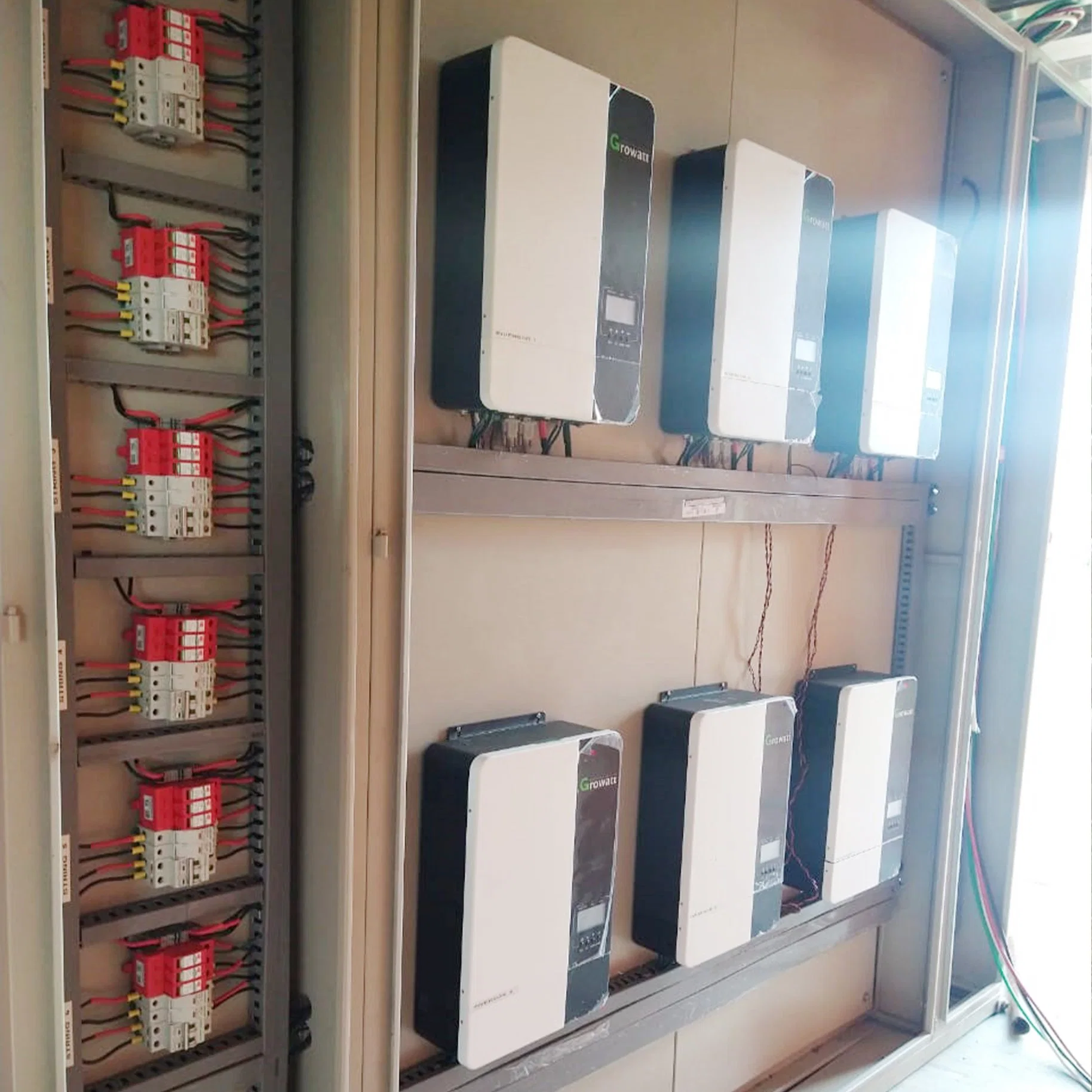

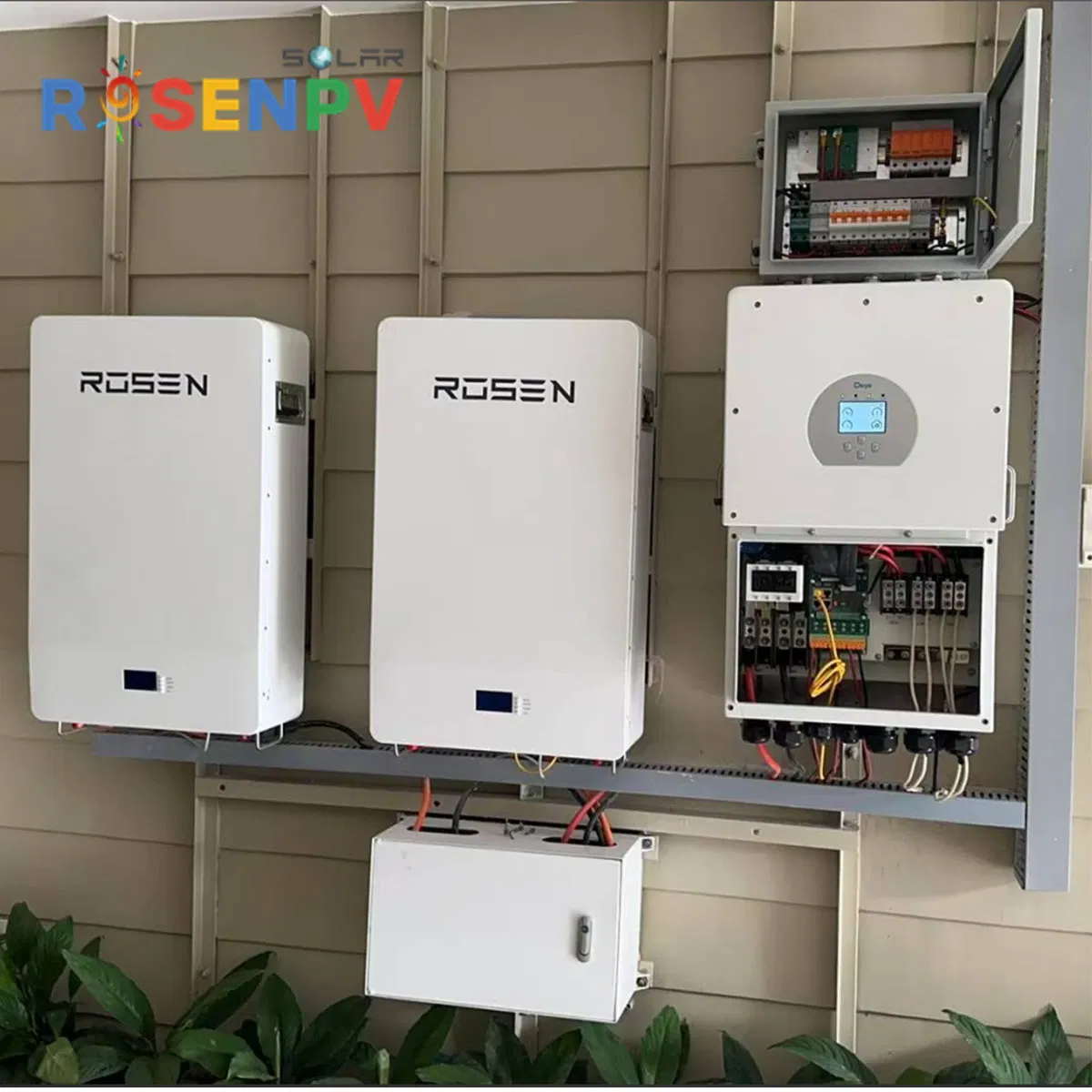

Project Showcase
Projects are installed around the world for home, commercial and industrial use. Home Lithium battery hybrid solar systems are more installed for roof mounting with solar panel power range 3kw, 5kw, 8kw, 10kw, 15kw, 20kw, 30kw etc, lithium batteries with power wall and rack mount types. Commercial projects are more On Grid systems like 50kw, 100kw, 150kw, 200kw, 300kw Grid tied for cement or soil ground mounting. Industrial projects for tender EPC like 1MW, 2.5MW, 3MW, 5MW, 10MW etc. Usually we have solar panels PERC, bifacial and black types in stock. Technicians will help with installation guidance, project design, commissioning, and aftersale service.
Frequently Asked Questions
1. What is a Hybrid Solar Battery System?
A hybrid solar system combines solar panels, a battery storage unit, and a hybrid inverter. It can operate both on-grid and off-grid, allowing you to store excess energy for night use or emergency backups.
2. Can the system be monitored remotely?
Yes, the system comes with a WiFi/GPRS module that connects to an intelligent cloud platform, enabling real-time monitoring via a mobile APP.
3. What is the difference between 5KW and 10KW systems?
The main difference lies in the number of solar panels (10 vs 20 pieces) and the inverter capacity, which determines the maximum electrical load the system can support at once.
4. Is the mounting hardware included?
Yes, the package includes mounting brackets suitable for tile roofs or ground installations, along with DC cables, MC4 connectors, and an installation tool box.
5. What battery types are supported?
The system is highly flexible and supports Lithium-ion (LiFePO4) Powerwalls, as well as AGM and Gel deep-cycle batteries.
6. How durable are the solar panels?
The panels are designed for harsh environments, featuring Anti-PID technology and a wind/snow load rating of 2400Pa to 5400Pa.
