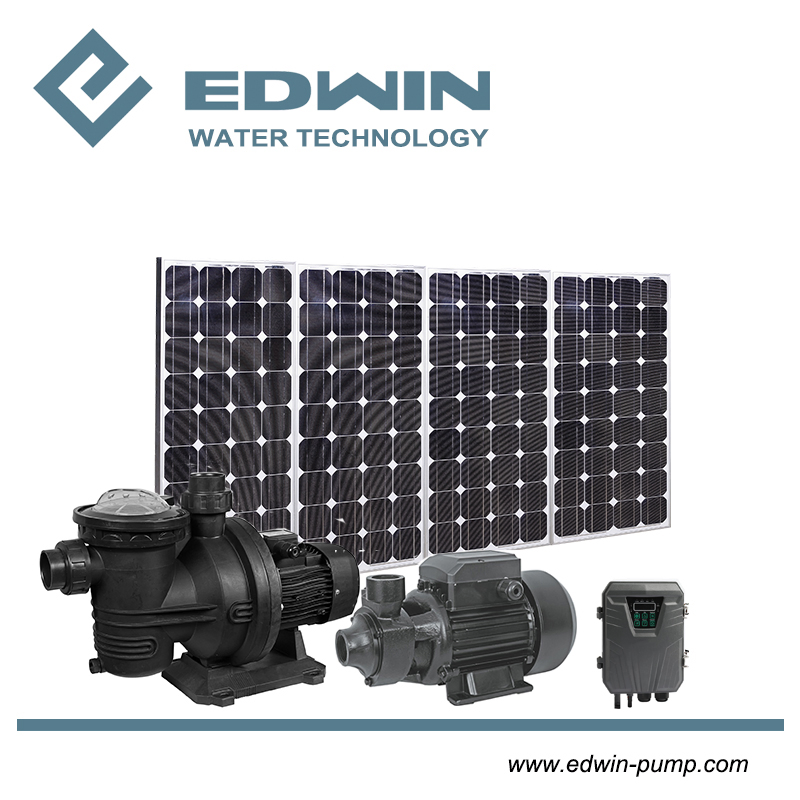

AC/DC Wholesale Stainless Steel Solar Borehole Deep Well Water Pump

1 / 5

AC/DC Wholesale Stainless Steel Solar Borehole Deep Well Water Pump

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

AC/DC solar pump

Max.Head

>150m

Max.Capacity

>400 L/min

Driving Type

Motor

Material

Stainless Steel

Structure

Single-stage Pump

Power Source

Electric / Solar

Media

Clean Water

Impeller

POM/Screw/Stainless Steel

Voltage

24V/48V/72V/110V/380V

Product Advantages

High Efficiency Motor Permanent magnet AC/DC brushless synchronous motor improves efficiency by 15%-20% and reduces solar panel consumption.

Durable Construction Equipped with 304 S/S pump shaft, Japanese NSK bearings, and alloy mechanical seals for a longer working life.

Intelligent Protection Built-in water shortage protection stops the pump when the well is dry and restarts automatically after 30 minutes.

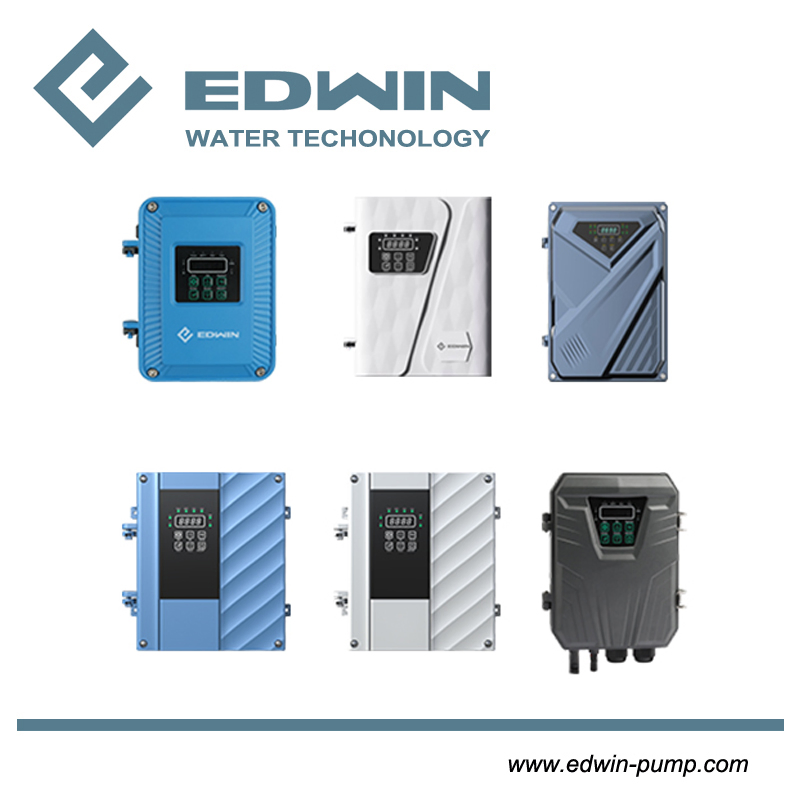

Smart Controller (IP65) Features MPPT function, automatic charging, frequency conversion, and soft start to protect the motor.

LED Data Display Real-time monitoring of power, voltage, current, speed, and error codes.

Visual Presentation

Technical Parameters

ITEM	(AC) Voltage	(DC) Voltage	Power	Flow	Head	Outlet	Solar Panel Required
ITEM	(AC) Voltage	(DC) Voltage	Power	Flow	Head	Outlet	VOC	Power
3ADPC3.8-95-72-750	85V-280V	100V-350V	750W	3.8m³/h	95m	1.25"	<430V	≥1.3*Pump
3ADPC3.8-180-200-1500	85V-280V	110V-350V	1500W	3.8m³/h	180m	1.25"	<430V	≥1.3*Pump
4ADPC9-85-110-1500	85V-280V	110V-350V	1500W	9m³/h	85m	2"	<430V	≥1.3*Pump
4ADSC11-339-380/520-7500	AC380V	DC520V	7500W	11m³/h	339m	2"	<780V	≥1.3*Pump

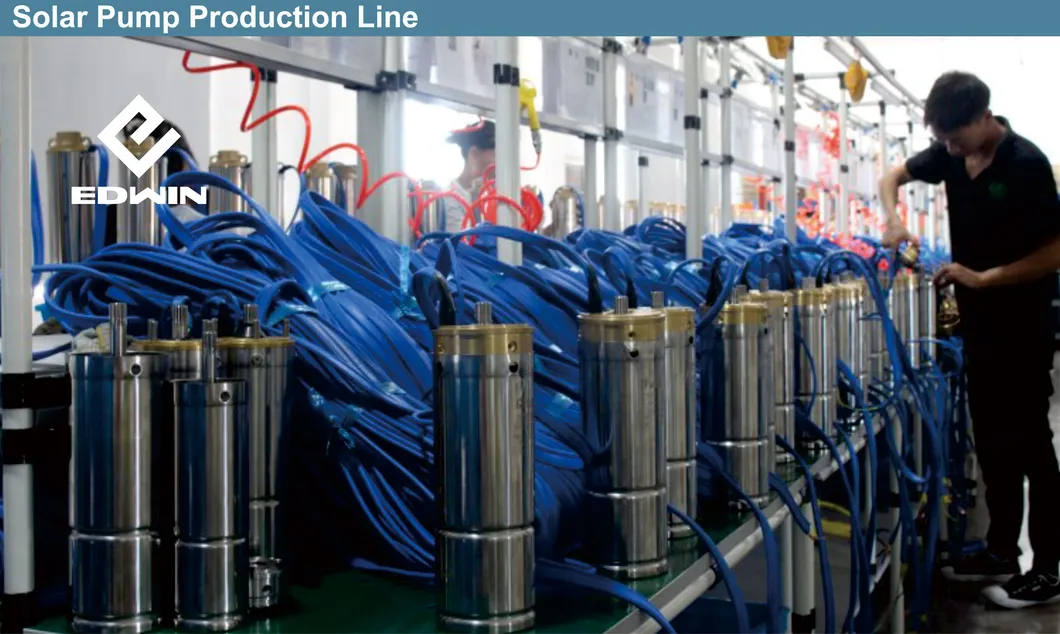

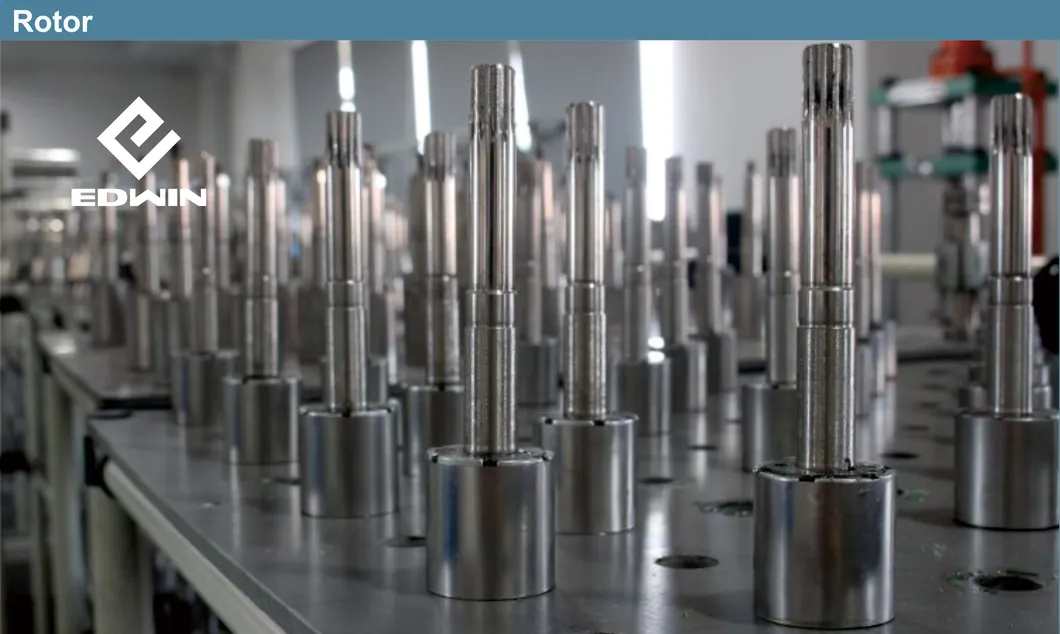

Detailed Photos & Certifications

Frequently Asked Questions

What is the typical delivery time?

Samples can be sent within 10-15 days. Batch orders are typically shipped within 35-45 days after receiving the deposit payment.

What information is needed for an accurate quote?

Please provide the required pump flow rate, total head, material preference (copper or aluminum wire), voltage, and frequency.

What are the payment terms?

Our standard payment term is 30% in advance and the remaining 70% balance upon presentation of the B/L or via T/T.

Does the product come with a warranty?

Yes, we offer a 1-year product life guarantee and a comprehensive 1-year warranty starting from the BL date.

How do you ensure the pump is leak-proof?

We use high-quality pump casings and O-rings with perfect fitment. All pump heads are 100% tested for long durations to ensure zero leakage.

Can you provide customized products or OEM?

Yes, we accept customized orders based on specific requirements and can provide OEM services for orders reaching qualifying quantities.
