📋 Product Description

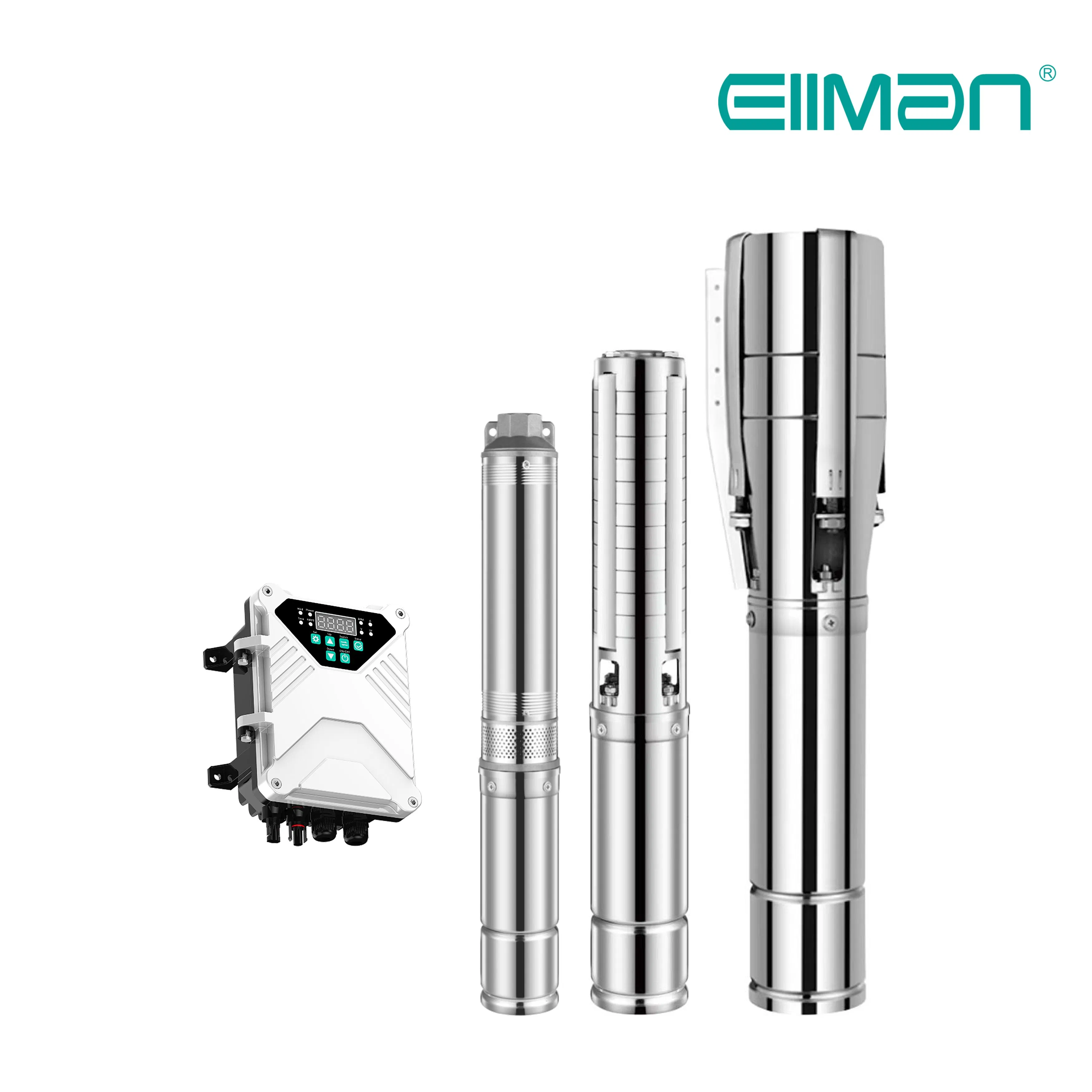

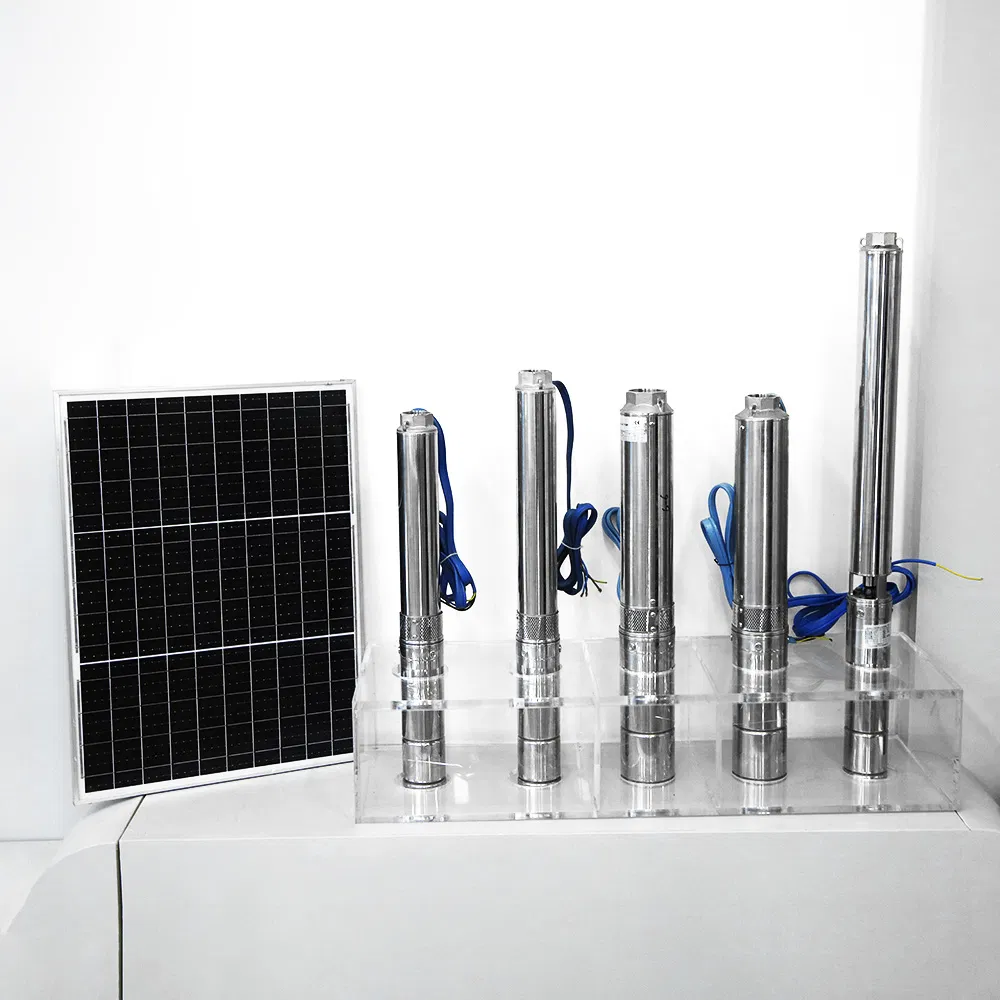

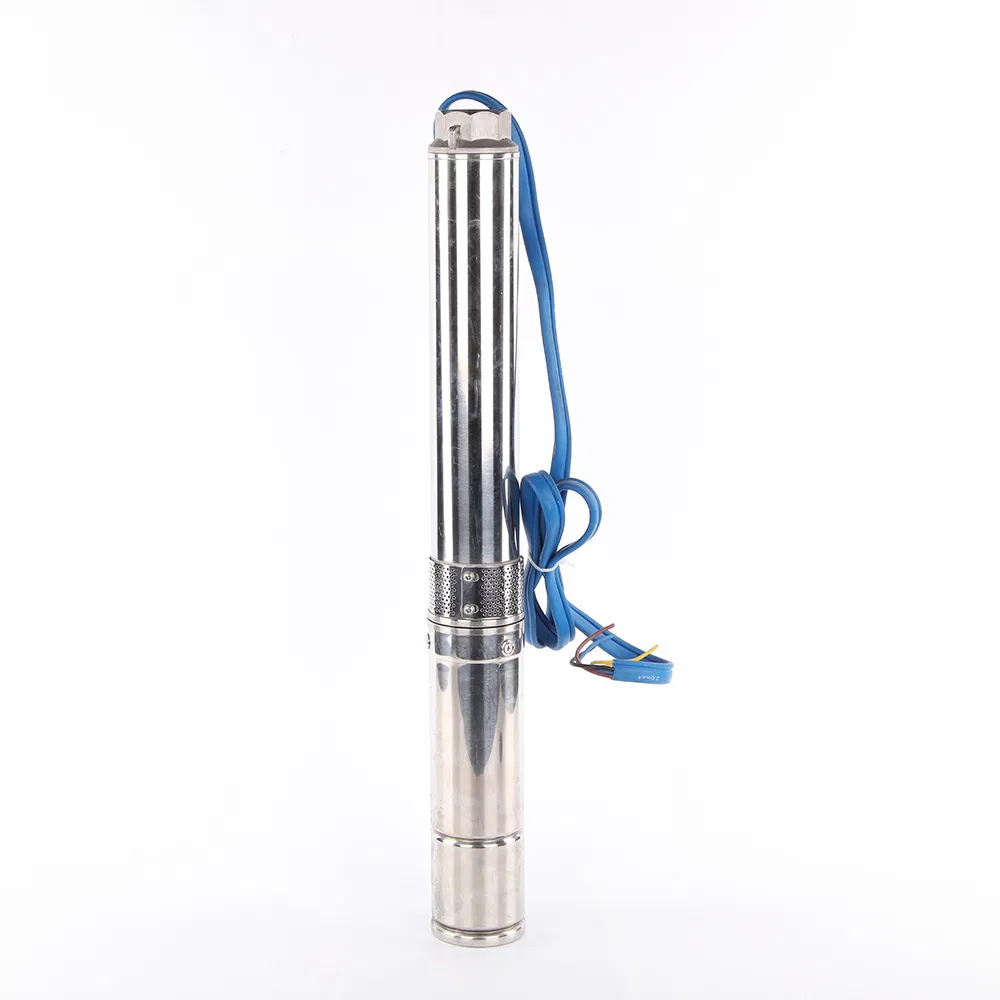

Solar Submersible Borehole Pump Specifications
| Model |
Power (W) |
Voltage (DC) |
Optimal Voltage (DC) |
Open Circuit Voltage |
Flow (m³/h) |
Head (m) |
Outlet (inch) |
| 4DSP5/55-48/600 | 600 | 48 | 48-90 | <110V | 5 | 55 | 1.25" |
| 4DSP5/85-72/600 | 600 | 72 | 72-120 | <160V | 5 | 55 | 1.25" |
| 4DSP5/85-72/900 | 900 | 72 | 72-120 | <160V | 5 | 85 | 1.25" |
| 4DSP5/105-72/1100 | 1100 | 72 | 72-120 | <160V | 5 | 105 | 1.25" |
| 4DSP5/105-110/1100 | 1100 | 110 | 110-160 | <210V | 5 | 105 | 1.25" |
| 4DSP5/125-110/1300 | 1300 | 110 | 110-160 | <210V | 5 | 125 | 1.25" |
| 4DSP5/142-110/1500 | 1500 | 110 | 110-160 | <210V | 5 | 142 | 1.25" |
| 4DSP6.5/42-48/600 | 600 | 48 | 48-90 | <110V | 6.5 | 42 | 1.25" |
| 4DSP6.5/70-72/900 | 900 | 72 | 72-120 | <160V | 6.5 | 70 | 1.25" |
| 4DSP6.5/86-72/1100 | 1100 | 72 | 72-120 | <160V | 6.5 | 86 | 1.25" |
| 4DSP6.5/115-110/1500 | 1500 | 110 | 110-160 | <210V | 6.5 | 115 | 1.25" |
| 4DSP9/50-72/900 | 900 | 72 | 72-120 | <160V | 9 | 50 | 1.25" |
| 4DSP9/85-110/1500 | 1500 | 110 | 110-160 | <210V | 9 | 85 | 2" |
| 4DSP13/60-110/1500 | 1500 | 110 | 110-160 | <210V | 13 | 60 | 2" |
Our company is a modern technology enterprise that integrates research and development, production and sales. As a national high-tech enterprise, we adhere to the corporate culture of "specialization, innovation and professionalism", implementing the business philosophy of "AI empowerment and intelligent manufacturing of the future". We are committed to promoting the development and application of permanent magnet frequency conversion technology to contribute to the overall industrial upgrading of the water pump industry. We will continue to increase research and development input to launch more innovative and competitive products, providing global customers with high-quality permanent magnet inverter technical services.
❓ Frequently Asked Questions

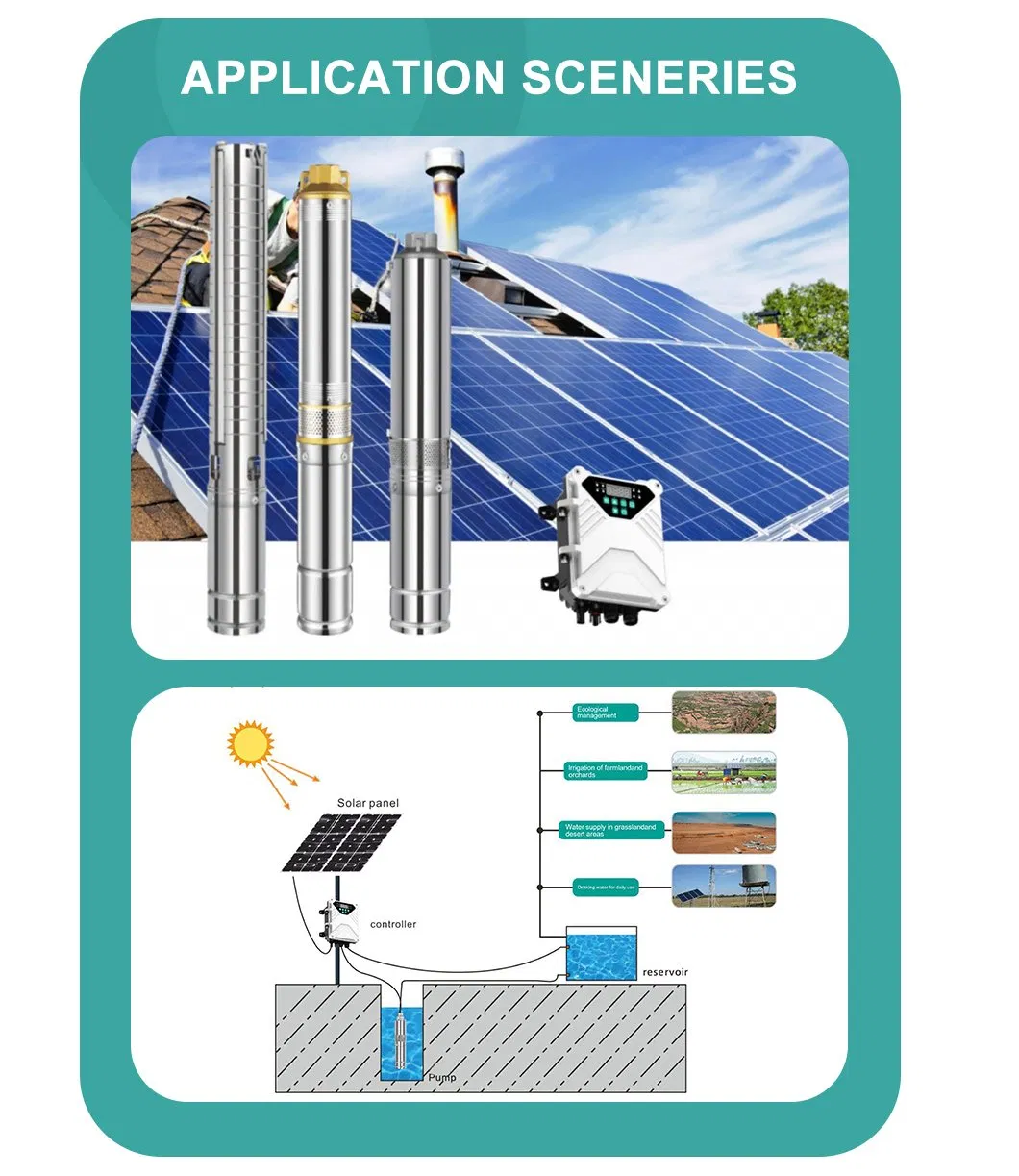

Q: In which scenarios are the permanent magnet variable frequency pumps mainly applied?
A: They are suitable for scenarios such as domestic water supply, commercial circulation systems, agricultural irrigation, industrial cooling, etc. Specific models can be selected according to the requirements of flow rate and head.
Q: What are the advantages of permanent magnet variable frequency pumps compared to traditional pumps?
A: They can save 30% to 50% of energy, have lower noise, intelligent speed regulation, a longer service life, and support remote monitoring for selected models.
Q: What precautions should be taken when installing the water pump?
A: 1. Ensure the foundation is flat and stable; 2. Install a filter at the water inlet to prevent impurities; 3. The motor shaft must be placed horizontally; 4. Verify power supply voltage matches wiring requirements.
Q: What materials and structure are used in these solar pumps?
A: These pumps feature a multistage structure and are primarily constructed from high-quality cast iron, designed for durability in submersible clean water applications.
Q: What is the maximum performance capability of this series?
A: Certain models in this series can reach a maximum head of over 150 meters with a capacity range between 50-100 L/min, ensuring reliable performance for deep well requirements.
Q: Are these pumps environmentally friendly and efficient?
A: Yes, they are powered by solar energy and utilize permanent magnet frequency conversion technology, which significantly promotes energy efficiency and reduces the carbon footprint of water pumping operations.
