Basic Info
Model NO.
3JSE1.0-30-D24/80
Driving Type
Brushless DC Drive
Application
Agricultural Irrigation
Product Description

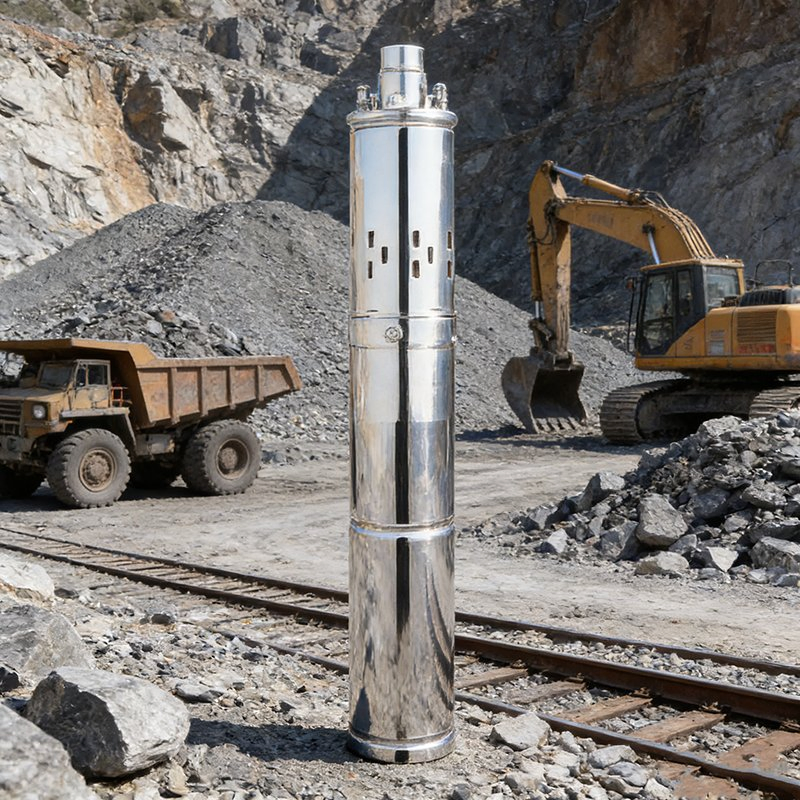

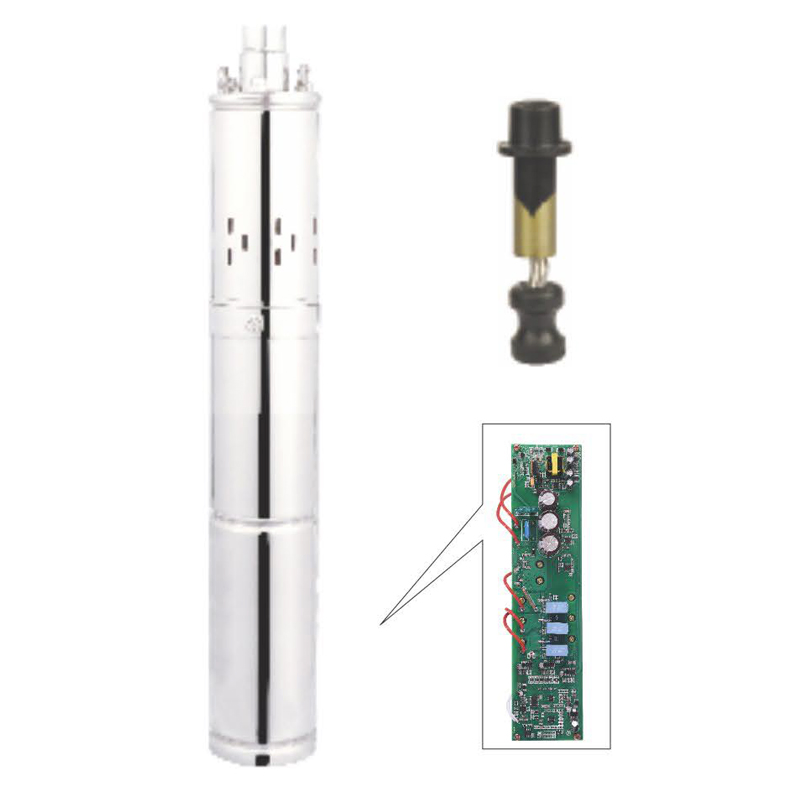

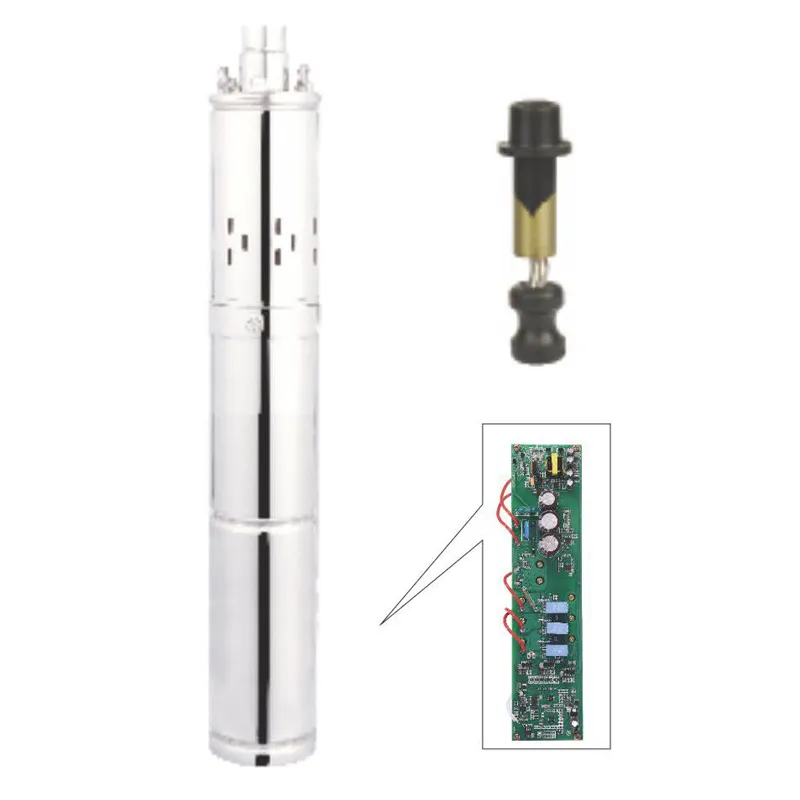

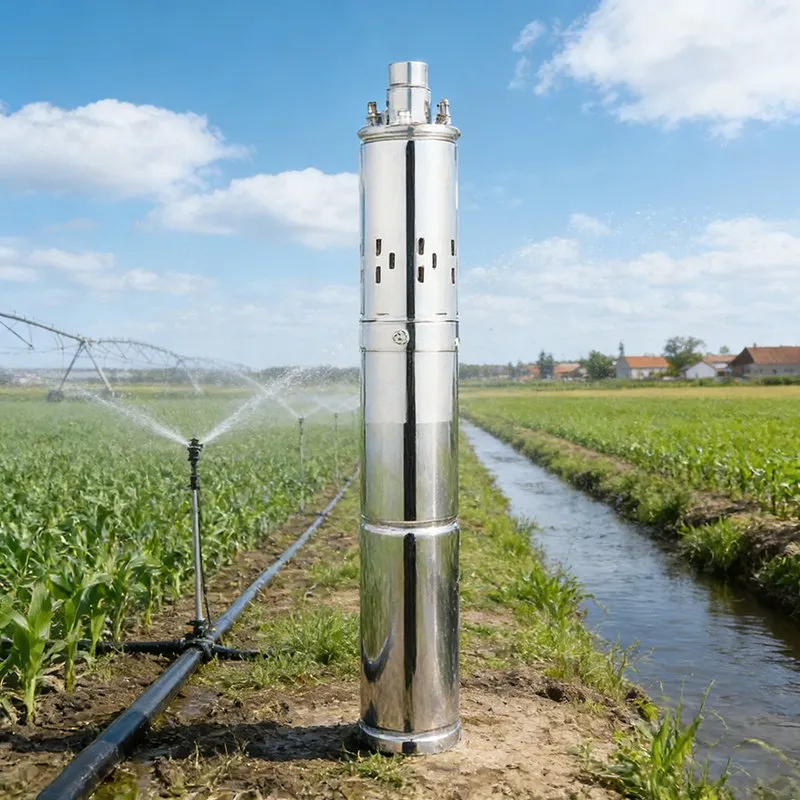

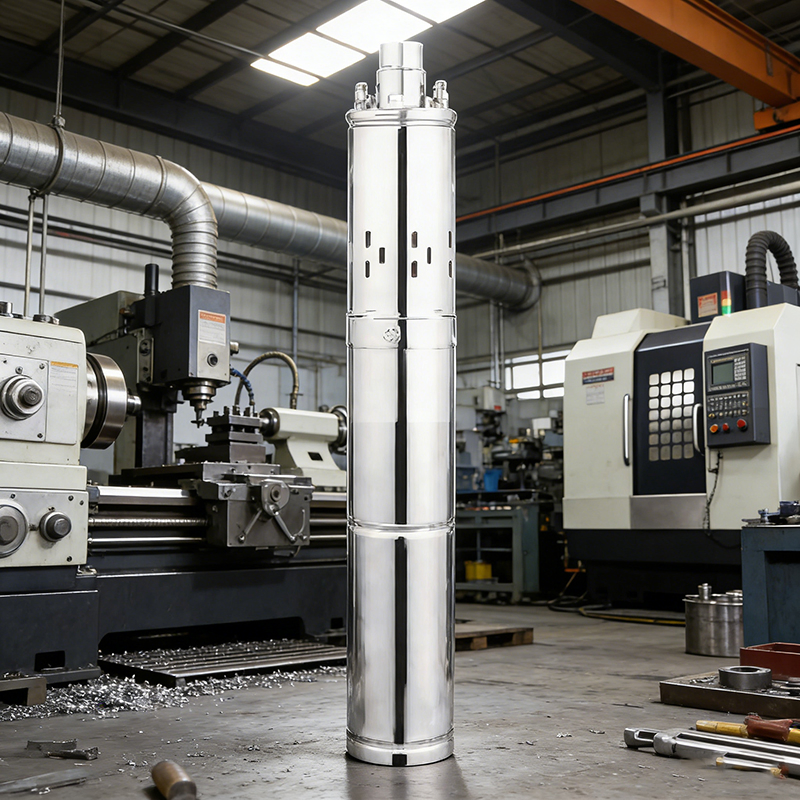

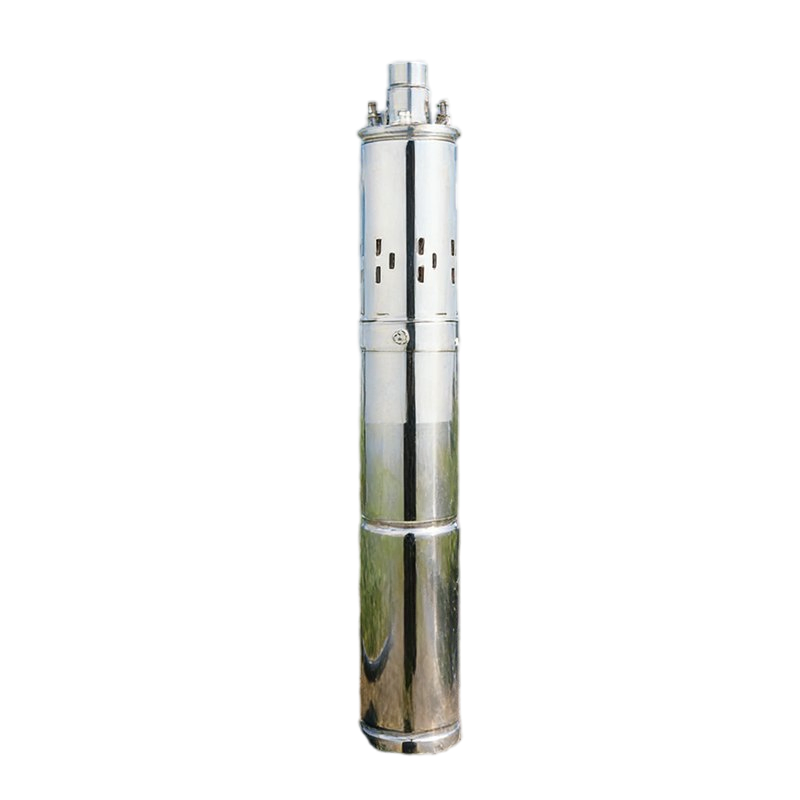

Advanced 3JSE Solar Water Pump for Sustainable Farming Practices
Solar Pump: Eco-Power for Smart Water Solutions
✓
Energy-Saving & High-Efficiency: 85% motor efficiency + MPPT tech, beats traditional AC pumps by 18-22%.
✓
Durable & Low-Maintenance: Stainless steel build, corrosion-resistant, no frequent upkeep.
✓
Versatile Applications: Perfect for deep well extraction, garden irrigation, fountain supply.
✓
Safe & Reliable: IP65 waterproof + multi-protection (under-voltage/overload/waterless).

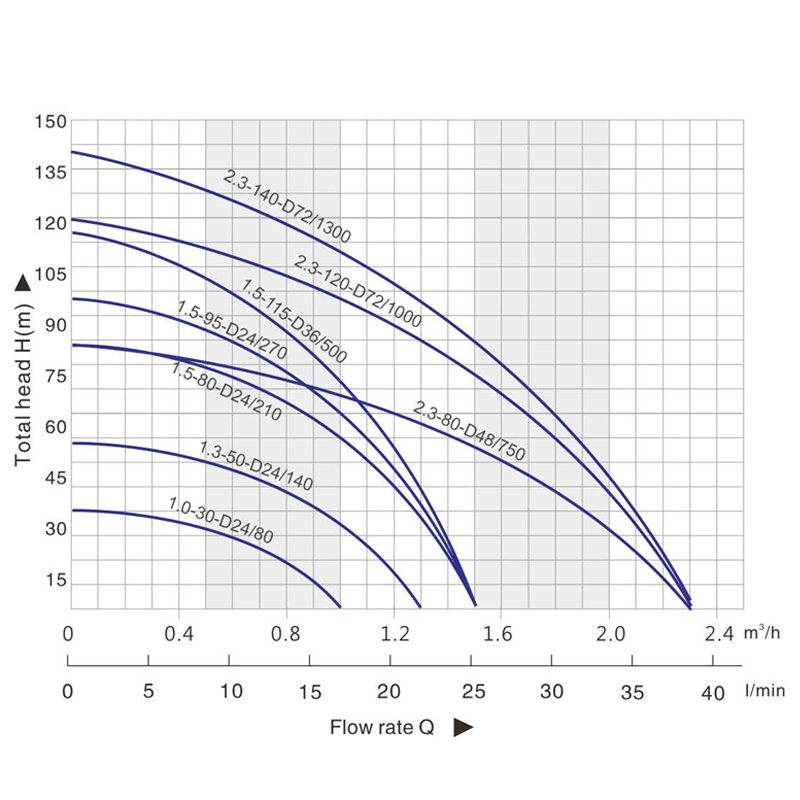

| Model |
Impeller |
Solar Array (V) |
Power (W) |
Input Voltage (DC) |
Max Flow (m²/h) |
Max Head (m) |
Outlet (inch) |
VOC |
| 3JSE1.0-30-D24/80 | Screw | 36 | 110 | 30-48 | 1 | 30 | 0.75” | <100V |
| 3JSE1.3-50-D24/140 | 36 | 180 | 30-48 | 1.3 | 50 | 0.75" | <100V |
| 3JSE1.5-80-D24/210 | 36 | 280 | 30-48 | 1.5 | 80 | 0.75” | <100V |
| 3JSE1.5-95-D24/300 | 36 | 440 | 30-48 | 1.5 | 95 | 0.75" | <100V |
| 3JSE1.5-115-D24/400 | 36 | 600 | 30-48 | 1.8 | 115 | 0.75" | <100V |
| 3JSE2.3-80-D48/750 | 72 | 1125 | 60-90 | 2.3 | 80 | 0.75” | <100V |
| 3JSE2.3-120-D72/1000 | 108 | 1320 | 90-120 | 2.3 | 120 | 0.75" | <150V |
| 3JSE2.3-140-D72/1300 | 108 | 1680 | 90-120 | 2.3 | 140 | 0.75” | <150V |
Manufacturing & Quality Control
Frequently Asked Questions
Do solar water pumps require grid power or batteries to operate?
We offer two types: direct-drive models (operate solely on sunlight, no grid or battery needed) and hybrid models (equipped with batteries for continuous operation on cloudy days or at night).
What application scenarios are solar water pumps suitable for?
They are widely used in agricultural irrigation, rural water supply, desertification control, and landscape water circulation, especially ideal for remote off-grid areas.
How to select the right solar water pump model for my irrigation project?
You can provide key parameters such as water flow demand, lift height, and solar irradiance in your area, and we will recommend the most suitable model and matching solar panel configuration.
What is the warranty period and maintenance requirement?
The pump body typically has a 24-month warranty. Our pumps are designed for low maintenance—regular cleaning of solar panels and checking for pipe blockages are the primary tasks.
How do you package and transport the pumps to ensure product safety?
Pumps are wrapped in waterproof films and packed in sturdy wooden cases; solar panels are packaged in anti-scratch cartons to ensure safe delivery to your location.
Can the pump be used in deep wells?
Yes, these submersible screw pumps are specifically designed for deep well extraction and can handle various head heights as specified in the technical datasheet.
