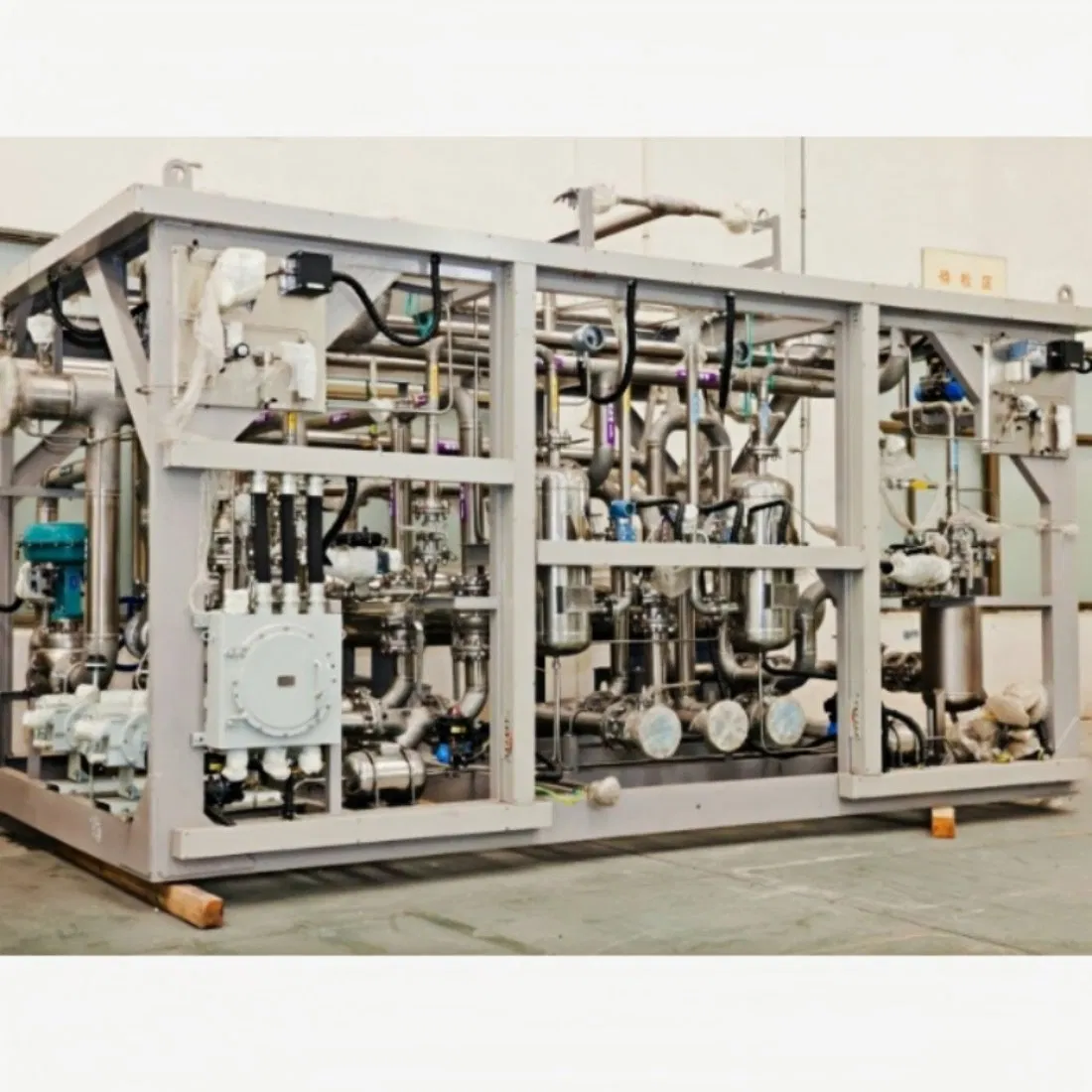

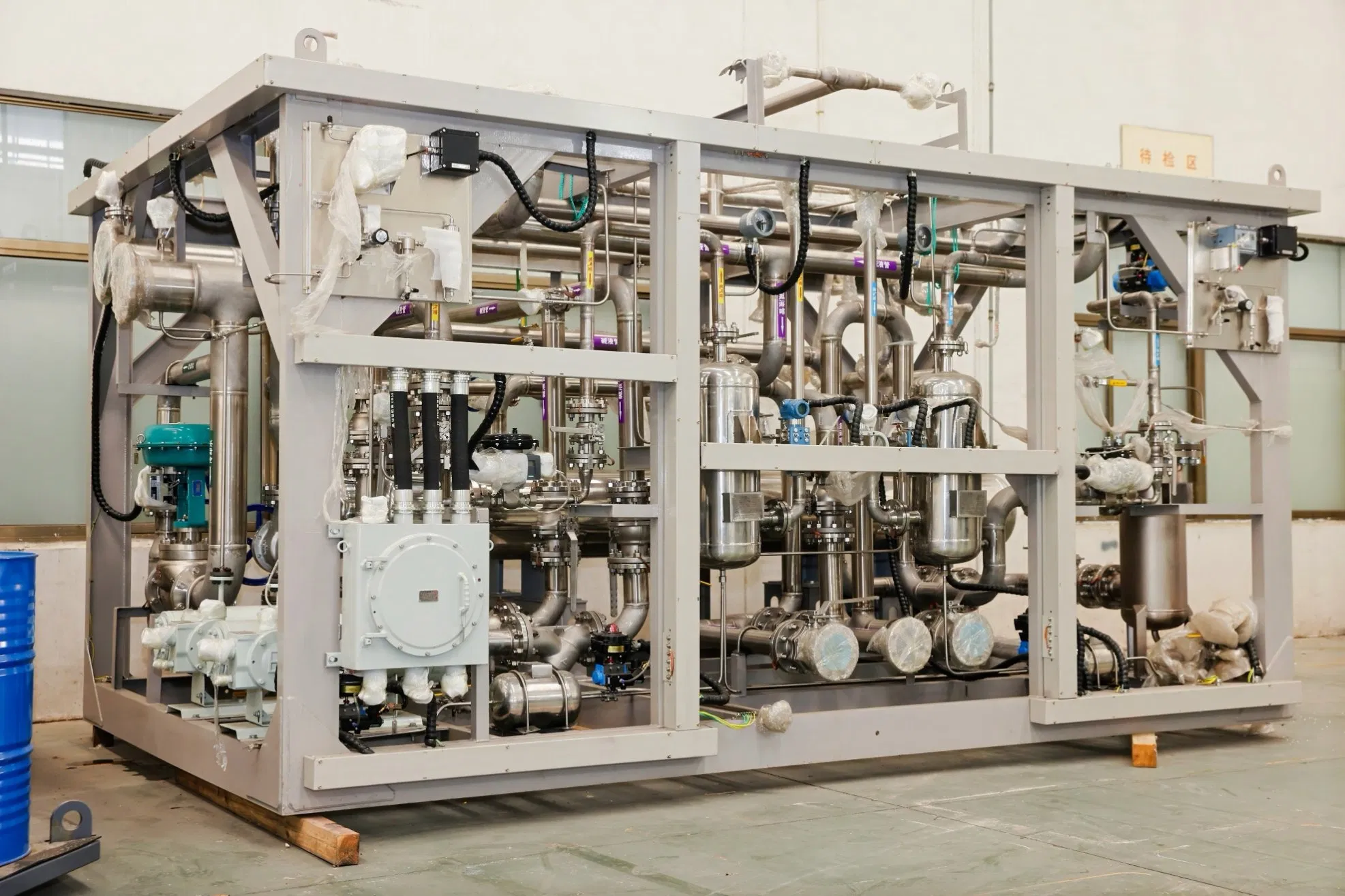

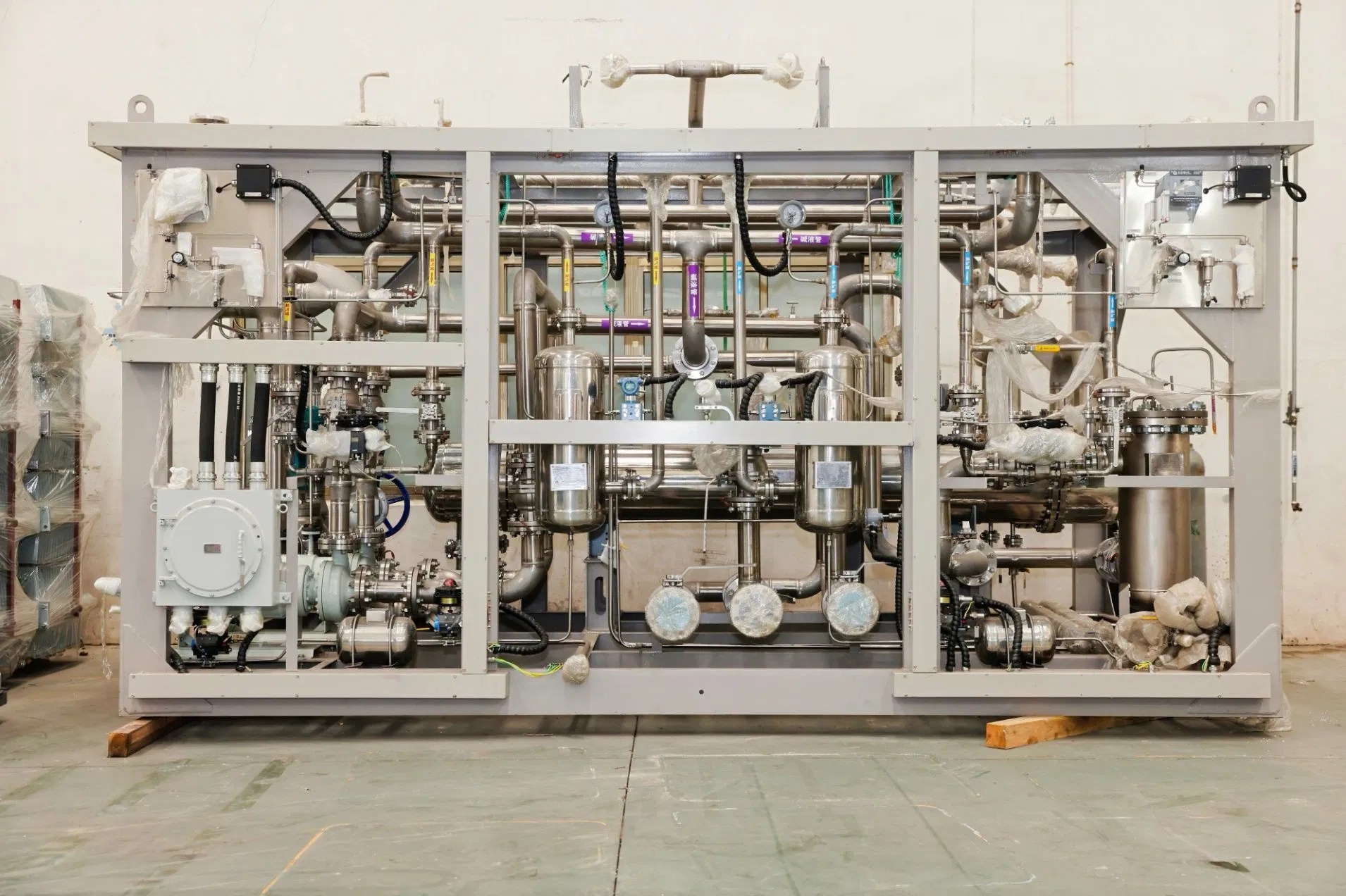

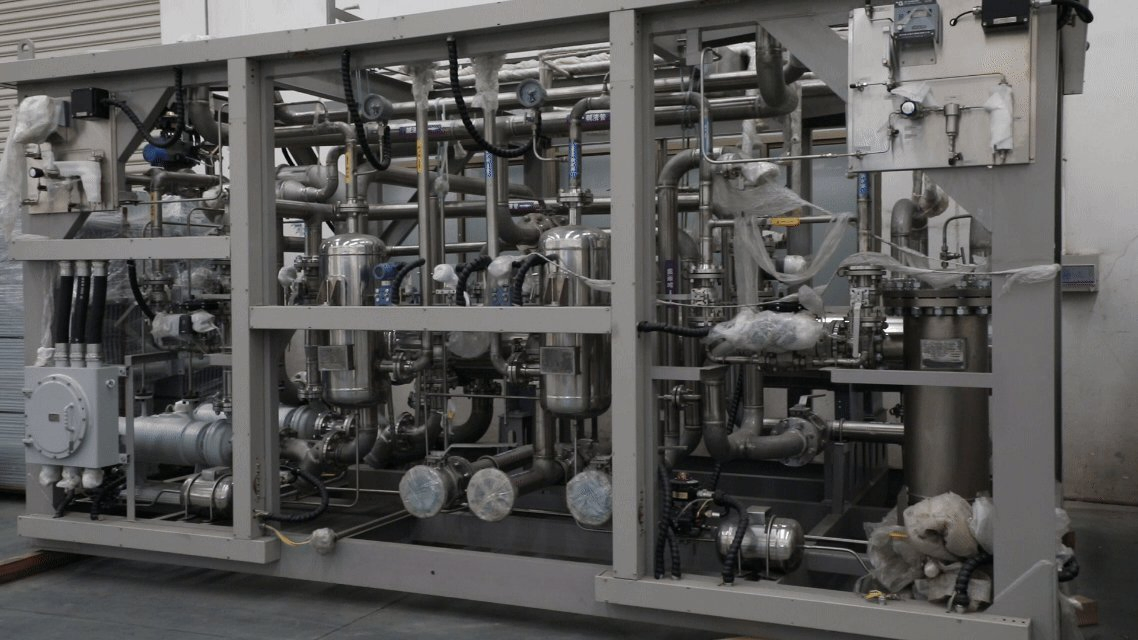

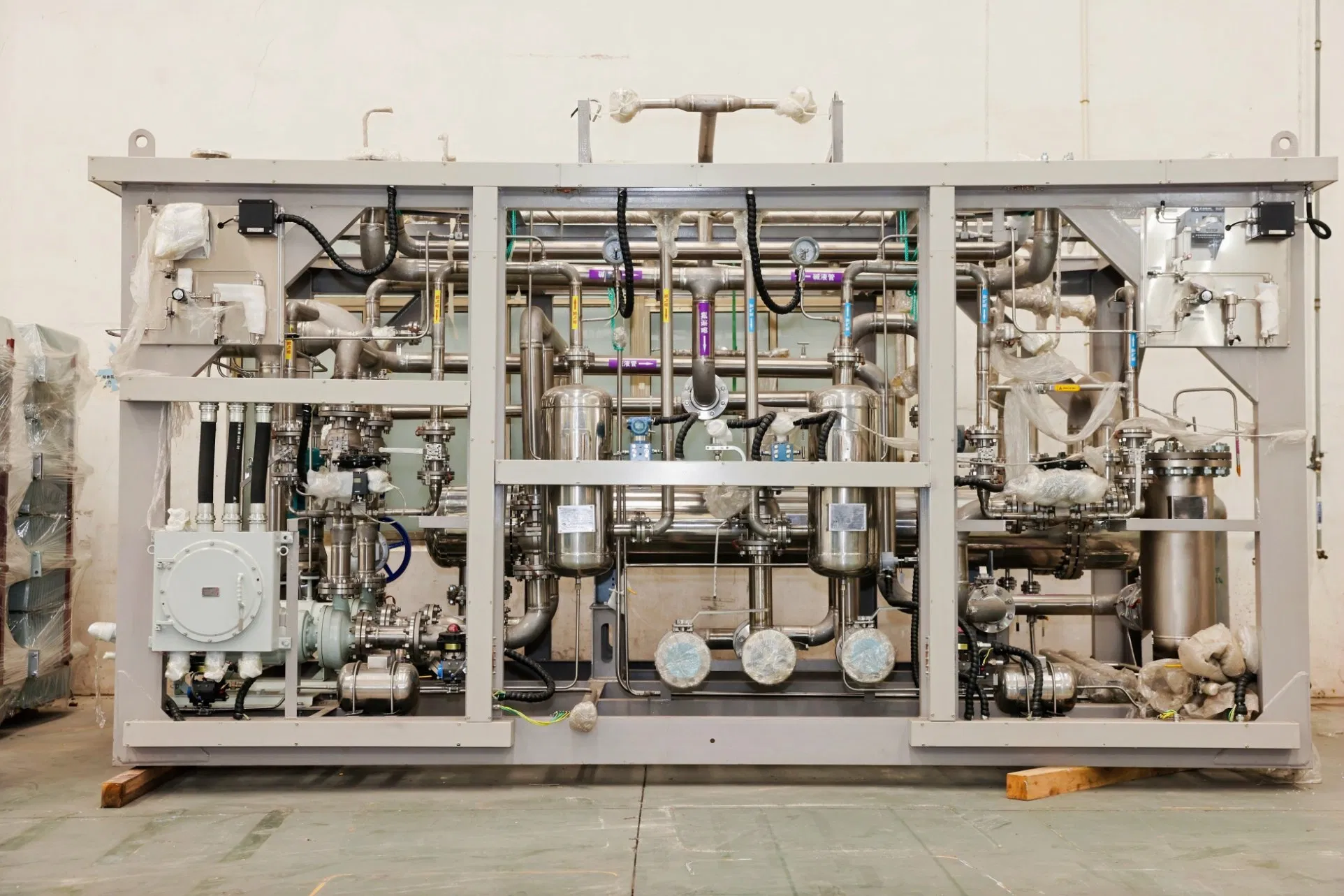

Advanced Hydrogen Purification System for High Purity Separation

Customization:	Available
Application Fields:	Chemical, Electronic, Food, Medical, New Energy, Petroleum, Pharmaceutical, Transportation
Condition:	New

Send Inquiry

Product Description

Basic Specifications

Model NO.AGII-QP1500

Noise LevelLow

PurposeGas Separation

TypesHydrogen separation

Rated Capacity (Nm3/h)1500

Hydrogen Purity(%)≥99.8

Hydrogen Outlet Temp≤40℃

Oxygen Purity(%)≥98.5

Purified H2 Purity≥99.999%

Hydrogen Dew Point-70 °C

📦

Packaging & Delivery

Package Size500cm * 200cm * 230cm

Package Gross Weight8000.00kg

PLC + touch screen control, fully automatic unmanned operation.
Nickel-coated alloy pressure vessels resist corrosion and stress.
Reliable safety and sealing design for high equipment security.
0.5 μm stainless steel filter element for ultrafine dust.
Modular and compact systematic configuration for easy maintenance.

Palladium-based catalysts with oxygen content < 1 ppm.
High-efficiency molecular sieves with 3.0 MPa pressure capacity.
Optional regeneration of raw/product gas with zero hydrogen loss.
Advanced purification to reach 99.999% purity levels.
Systematic configuration designed for efficient adsorption.

📊

Technical Parameters

Product Model	AGII-Q200	AGII-Q500	AGII-Q1000	AGII-Q1500	AGII-Q2000
H2 Capacity (Nm3/h)	200	500	1000	1500	2000
Hydrogen Purity (%)	≥99.8	≥99.8	≥99.8	≥99.8	≥99.8
Outlet Temp (ºC)	≤40	≤40	≤40	≤40	≤40
Oxygen Purity (%)	≥98.5	≥98.5	≥98.5	≥98.5	≥98.5

Purification Model	AGII-P200	AGII-P500	AGII-P1000	AGII-P1500	AGII-P2000
Gas Treatment (Nm3/h)	220	550	1100	1650	2200
Final H2 Purity (%)	≥99.999	≥99.999	≥99.999	≥99.999	≥99.999
Dew Point (°C)	-70	-70	-70	-70	-70

Frequently Asked Questions

What is the standard process for placing an order?

The process includes confirming specifications/quantity, formal quotation, contract signing with payment arrangement, production with quality inspection, and final delivery with after-sales support.

How is the pricing determined for hydrogen equipment?

Pricing is based on specific equipment parameters, production costs, customization requirements, and total order volume. Please contact sales for a tailored quote.

What certifications do your hydrogen products hold?

Our equipment is ISO9001:2015 certified and has been tested by DEKRA. We also hold the "Hydrogen Energy Leader Action" certificate.

How do you ensure the quality of the machinery?

We implement strict control via raw material inspection, multi-stage in-process monitoring during assembly, and comprehensive pre-shipment functional testing.

What kind of after-sales support do you provide?

We offer a one-year warranty for quality issues, prompt original spare parts supply, and a 24-hour response mechanism for technical solutions.

Do you provide technical support for installation?

Yes, we provide detailed operation manuals and technical guidance to ensure smooth equipment setup and operation.
