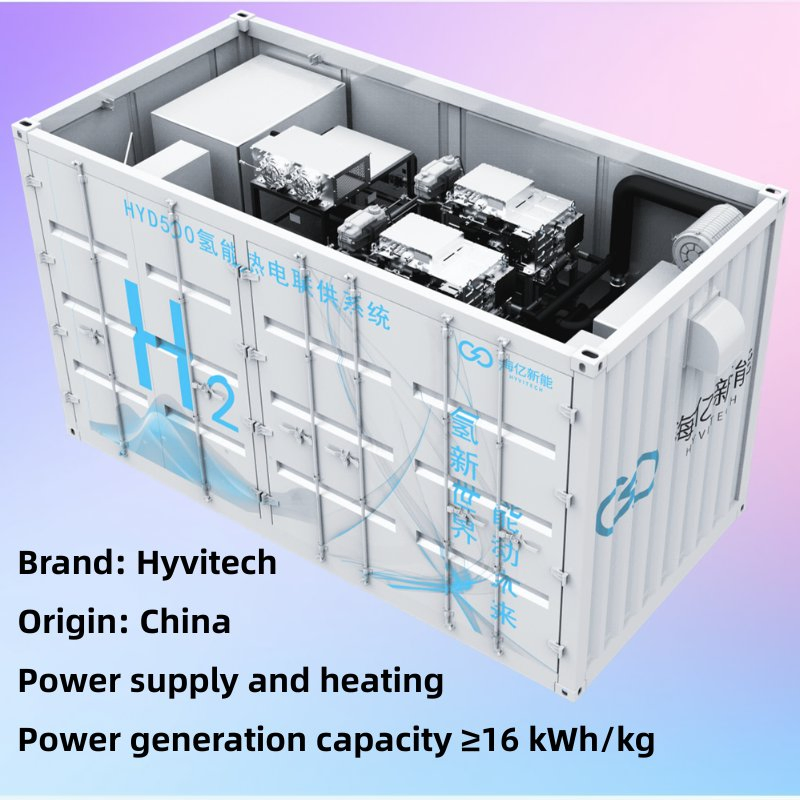

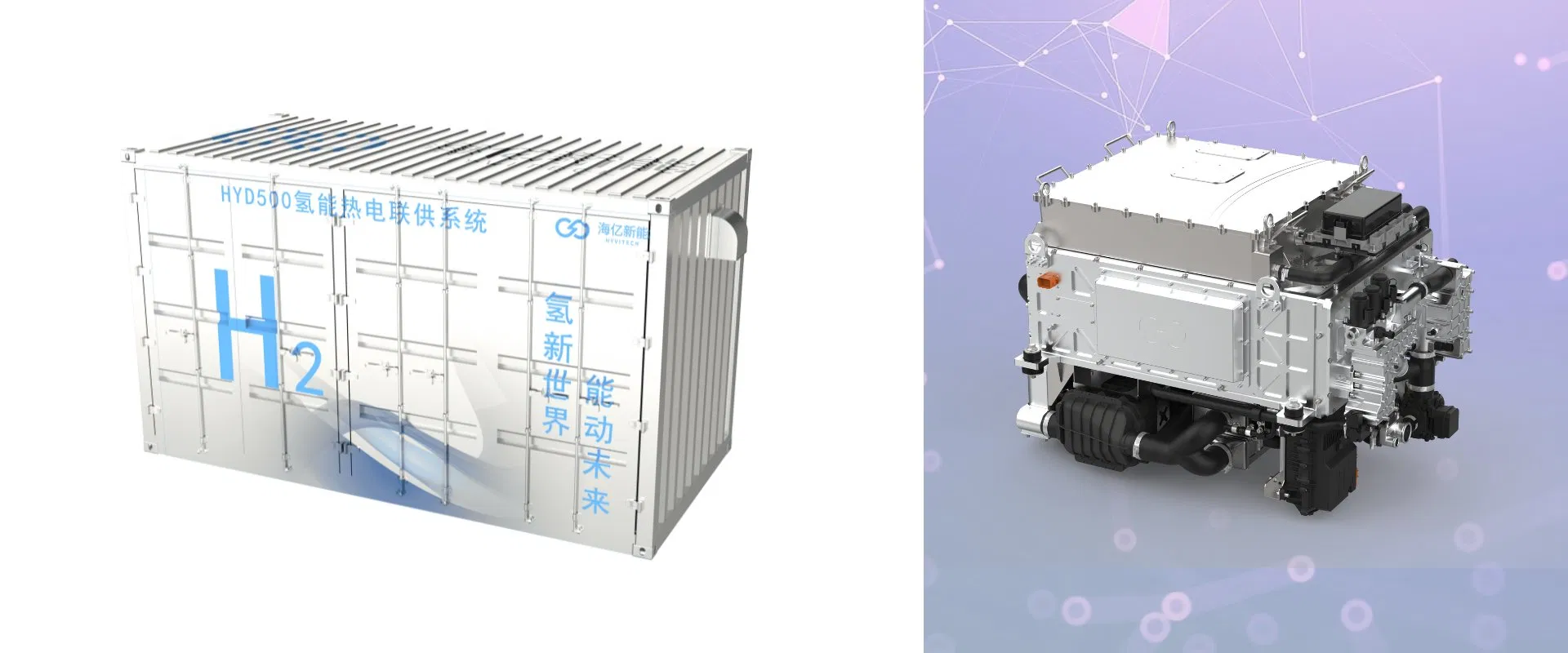

Basic Specifications
Output Quality
400VAC/10kvac (50Hz)
Operation Mode
On-Grid and Off-Grid Capable
Technical Features
- ⚡Dual energy supply system for both power and heat
- 🤖Intelligent electronic control system with unmanned operation capability
- ⏱️Millisecond-level power switching, seamless transition between modes
- 🌿Efficient utilization of gray/blue/green hydrogen resources
- 🛠️Customizable designs from 30kW to 2000kW power levels
High SafetyHydrogen Safety / IP Rating / Explosion-proof
High EfficiencyCogeneration Efficiency ≥90%

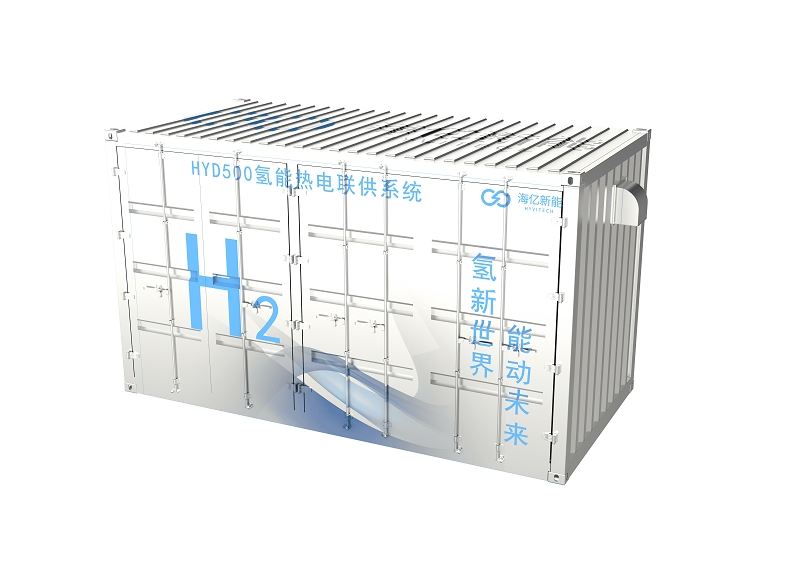

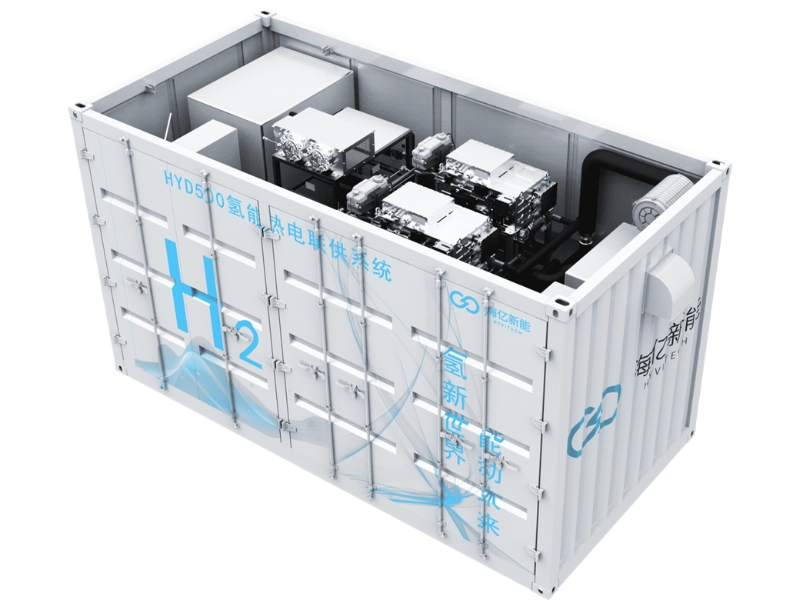

High IntegrationModular Maintenance | Standard Container Design
Adaptability-30ºC~50ºC | 2km Altitude

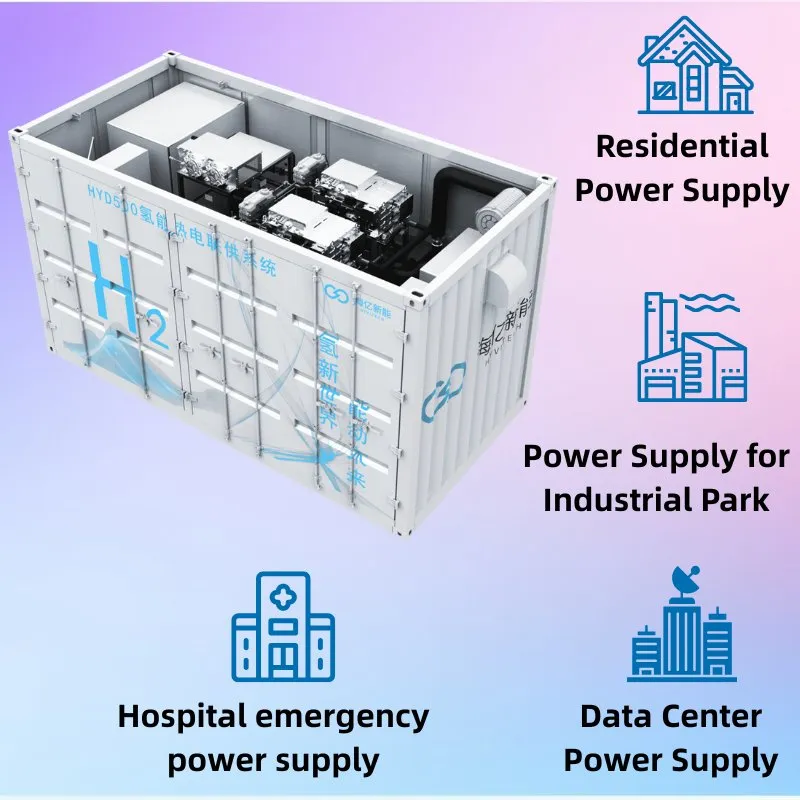

Application Scenarios
- 🏠 Residential Areas
- 🚨 Emergency Backup
- 🔌 Off-grid Power
- 🏭 Industrial Parks
Technical Data Comparison
| Model | HYD100 | HYD500 | HYD1000 |
| Gross Power | 236kW | 1180kW | 2450kW |
| Rated Power (Net) | 104kW | 520kW | 1038kW |
| Output Quality | 400VAC/10kVAC (50Hz) |
| Operation Mode & Switching | On-grid and off-grid capable / 20ms |
| Peak Efficiency | ≥90% |
| Hydrogen Flow Rate | 1212.7slpm | 6063.6slpm | 12733.5slpm |
| Hot Water Output (20°C inlet) | 1.44t/h | 7.21t/h | 15.6t/h |
| Hot Water Output (50°C inlet) | 3.17t/h | 15.86t/h | 34.33t/h |
| Ambient Temp. Range | -30ºC to 50ºC |
| Lifespan | ≥40000h |
| Dimensions (m) | 2.5*1.6*2.0 | 5.4*2.6*2.8 | 10.8*2.6*2.8 |
Frequently Asked Questions
What is the total efficiency of this hydrogen cogeneration system?
The system achieves a high peak cogeneration efficiency of ≥90% by providing both power and heat energy simultaneously.
How fast can the system switch between grid-connected and off-grid modes?
The system features millisecond-level power switching with a transition time of approximately 20ms, ensuring a seamless energy supply.
What is the expected operational lifespan of the equipment?
The system is designed for long-term durability with a verified lifespan of ≥40,000 hours of operation.
What environmental conditions can the system withstand?
It is highly adaptable to harsh environments, operating effectively in temperatures ranging from -30ºC to 50ºC and at altitudes up to 2km.
Are customizable power levels available for specific projects?
Yes, we offer customizable designs covering a wide range of power levels from 30kW to 2000kW to meet various industrial and residential application requirements.
What types of hydrogen can be used with this system?
The system is designed for the efficient utilization of gray, blue, and green hydrogen resources, making it both economical and energy-saving.
