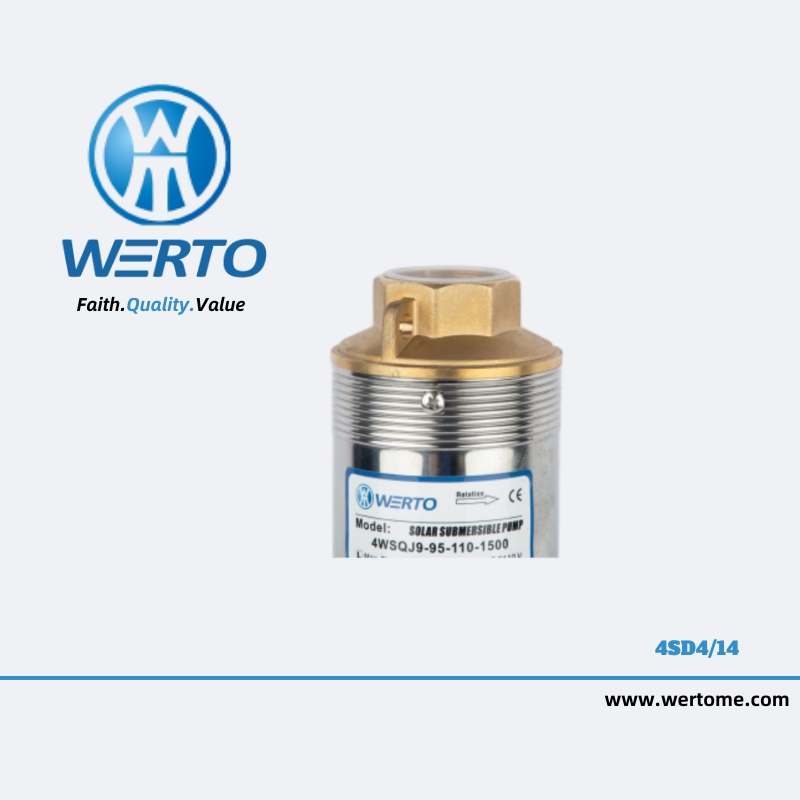

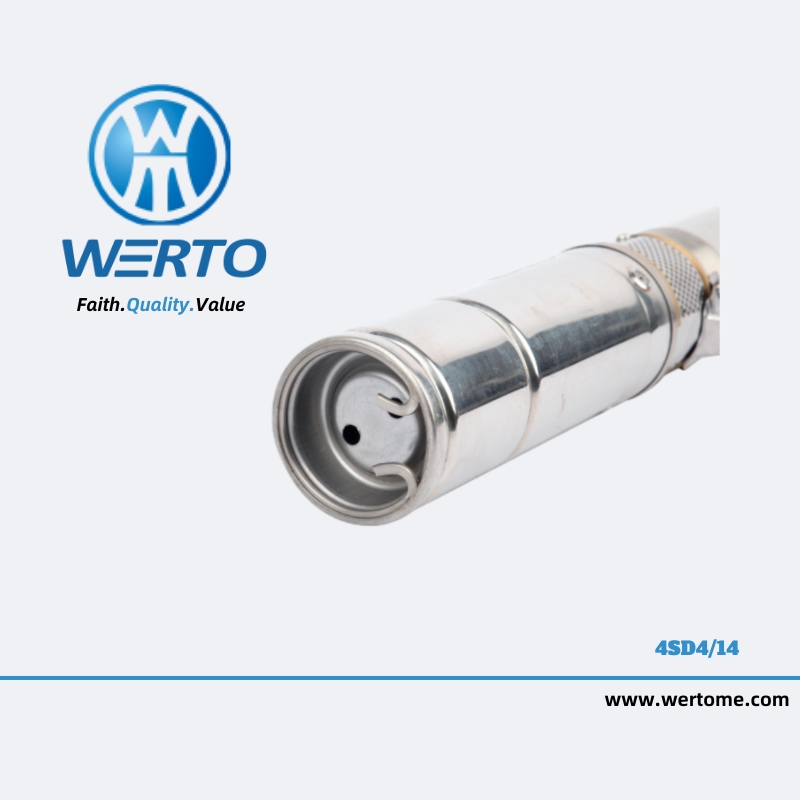

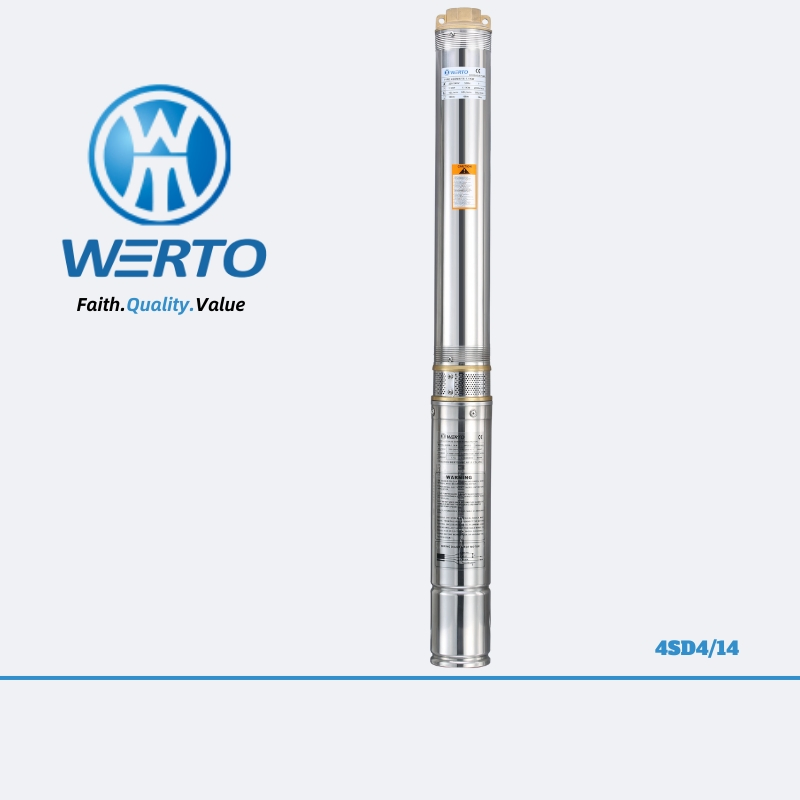

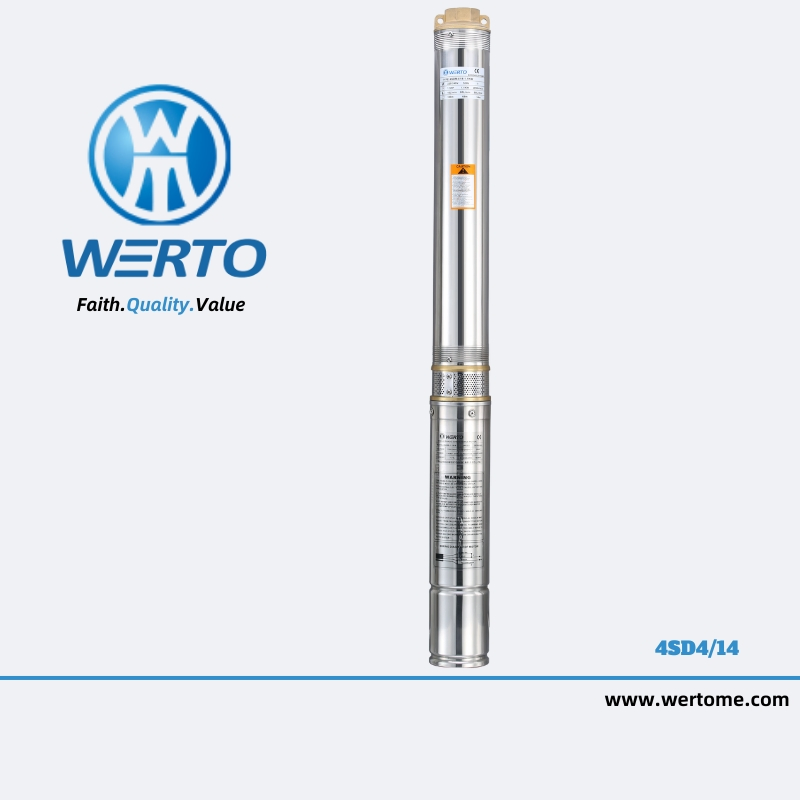

4SD4/14 Corrosion Resistant Solar Submersible Pump for Salt Water and Harsh Environments

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO. 4SD4/14 Max. Head >150m
Max. Capacity 50-100 L/min Driving Type Motor
Material Stainless Steel Structure Multistage Pump
Power Electric Assembly Liquid Pumps
Type Positive-Displacement Pump Application Submersible Pump
Industry Food Pumps Performance Automatic Pump
Origin China HS Code 8413709190

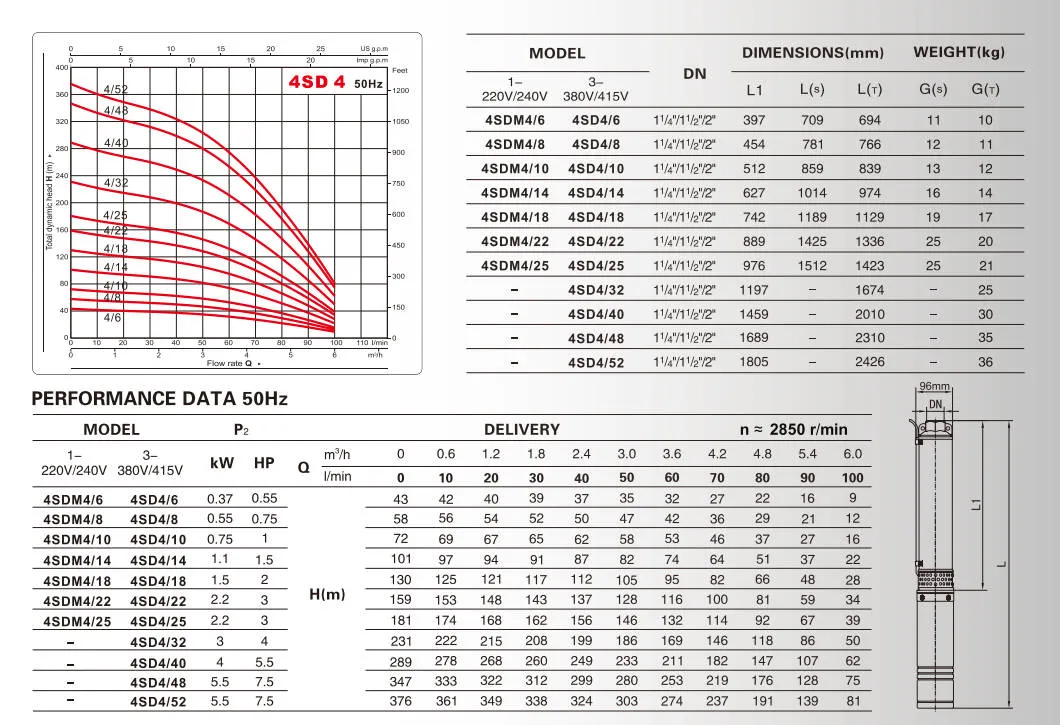

Product Description
Corrosion Resistant Solar Submersible Pump

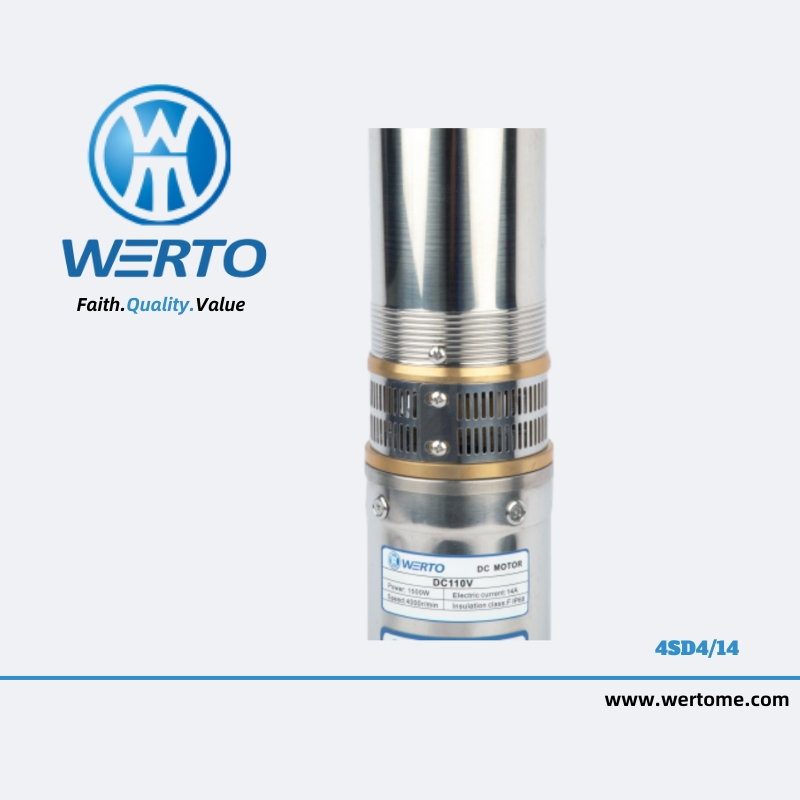

Motor Features
Motor Feature
  • Rewindable motor or Full obturated screen motor
  • Three-phase: 380V-415V / 50Hz
  • Single-phase: 220V-240V / 50Hz
  • Pumps are designed by casing stressed
  • Curve tolerance according to ISO 2548
Operating Conditions
Operating Condition
  • Maximum fluid temperature up to +35ºC
  • Maximum sand content: 0.25%
  • Maximum immersion depth: 80m
  • Minimum well diameter: 4"
Material Specifications
Components Material
Pump external casingAISI 304 SS
Delivery casingCast-Cu ASTM280
Suction lanternCast-Cu ASTM280
DiffuserPlastic.PC
ImpellerPlastic.POM
ShaftAISI 316 SS / AISI 304 SS
Shaft couplingAISI 316 SS / AISI 304 SS
Wear ringAISI 304 SS
Motor external casingAISI 304 SS
Mechanical sealSpecial seal for deep well (Carbon-SiC/TC)
BearingC&U
Seal lubricant oilOil for food machinery and pharmaceutic use
Applications & Advantages
Werto Applications
Our Advantages

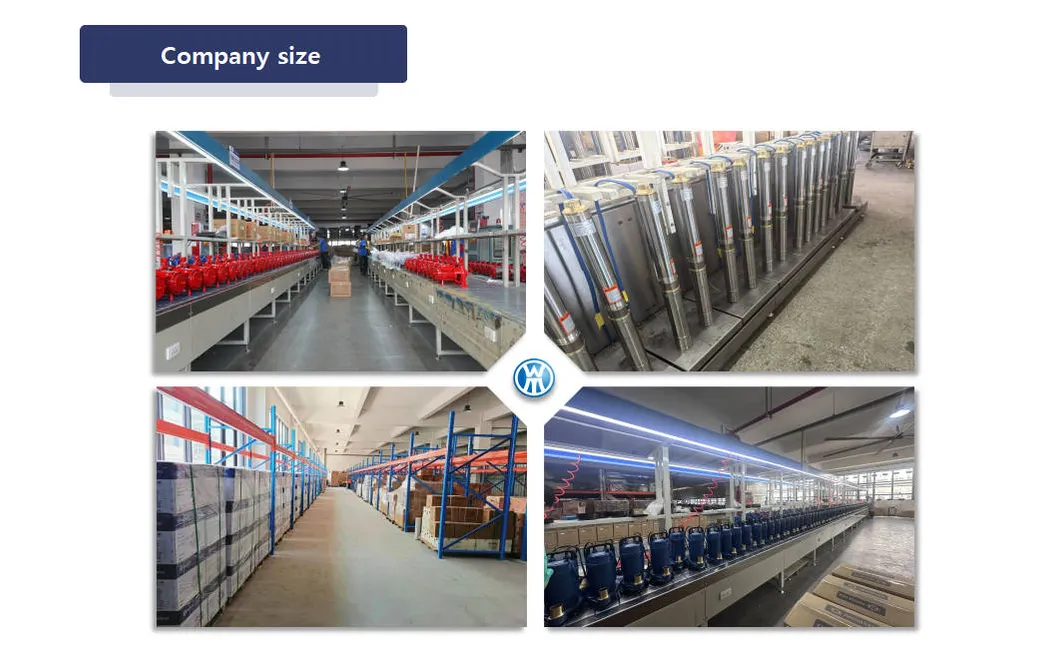

Factory Display

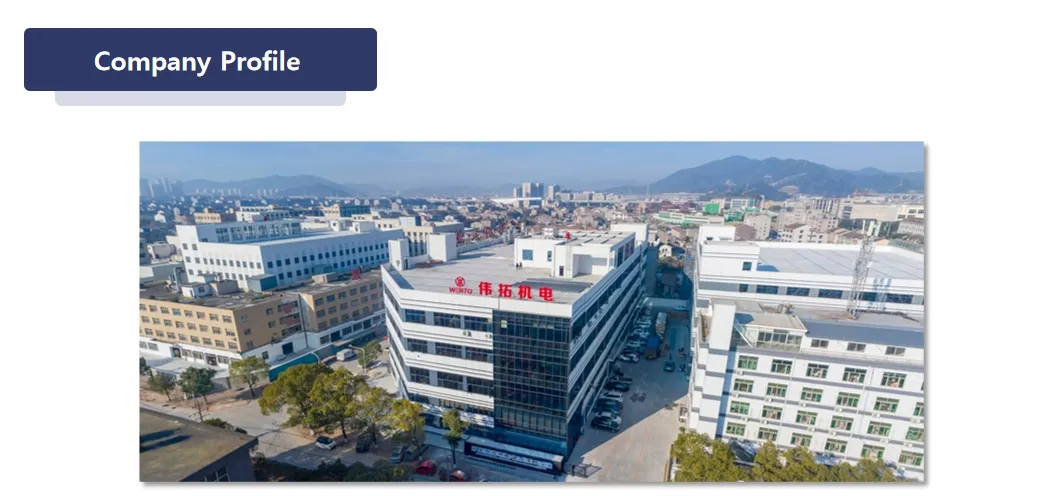

Production Line

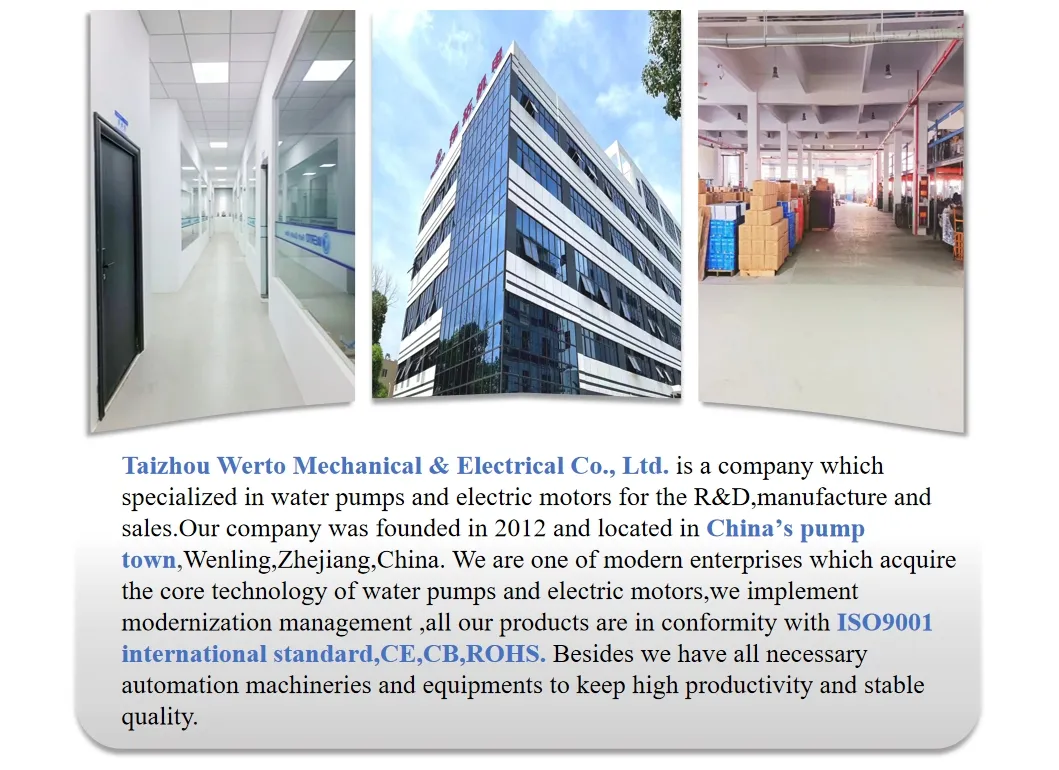

Facility
Quality Control
Warehouse
Packaging
Service
Certifications
Product Certifications
Frequently Asked Questions
1. Are you a manufacturer or a trading company?
We are a professional water pump manufacturer with extensive production experience in high-quality submersible pumps.
2. What is your Minimum Order Quantity (MOQ)?
Trial sample orders are accepted to help you test our quality and performance.
3. What are your accepted payment terms?
We support multiple payment methods including T/T, L/C, D/A, and D/P for your convenience.
4. What quality certifications do you hold?
Our products are certified by international standards including GS, TUV, CE, ROHS, and ISO9001.
5. How does the warranty policy work?
We provide a one-year warranty for surface and deep well pumps, and a two-year warranty for circulating pumps.
6. What is the standard delivery time?
Typical delivery time is between 25-30 days after the receipt of the deposit.
