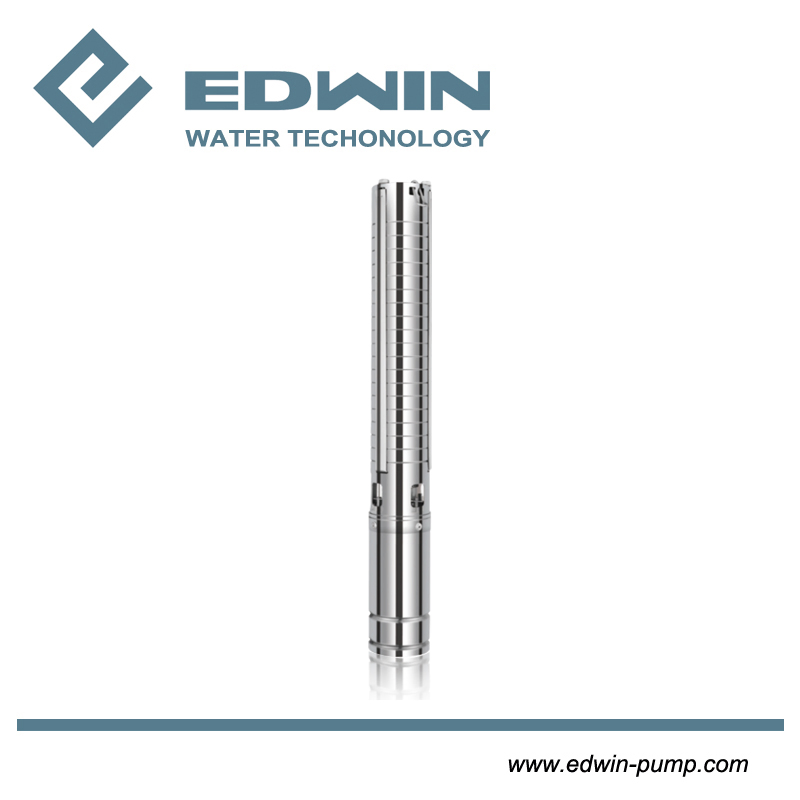

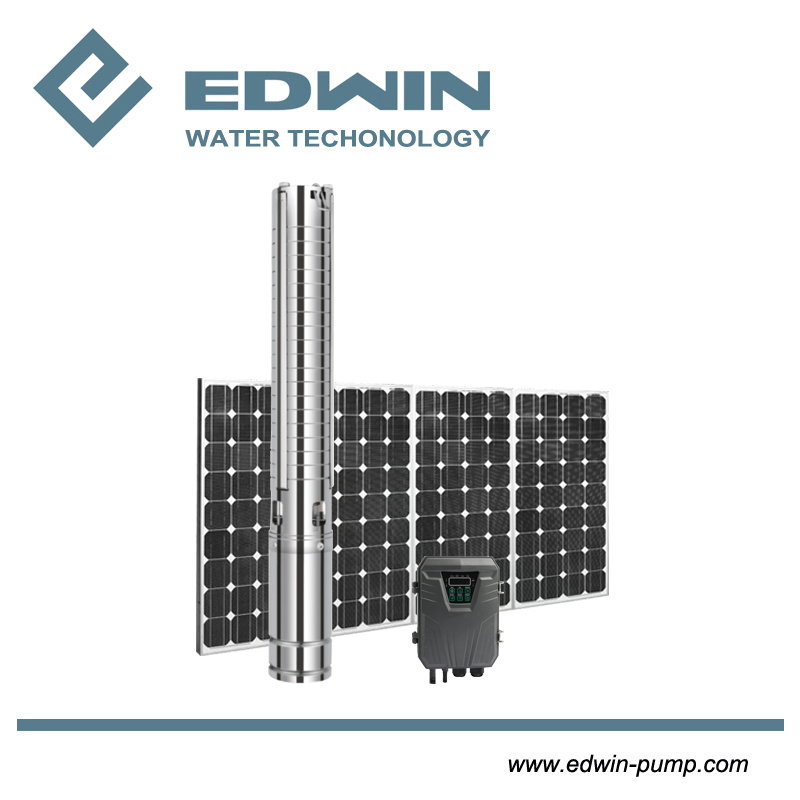

Energy-Saving Chinese Low Noise Vertical Solar Electric Submersible Water Pump Bomba De Agua Sumergible Solar

1 / 5

Energy-Saving Chinese Low Noise Vertical Solar Electric Submersible Water Pump Bomba De Agua Sumergible Solar

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

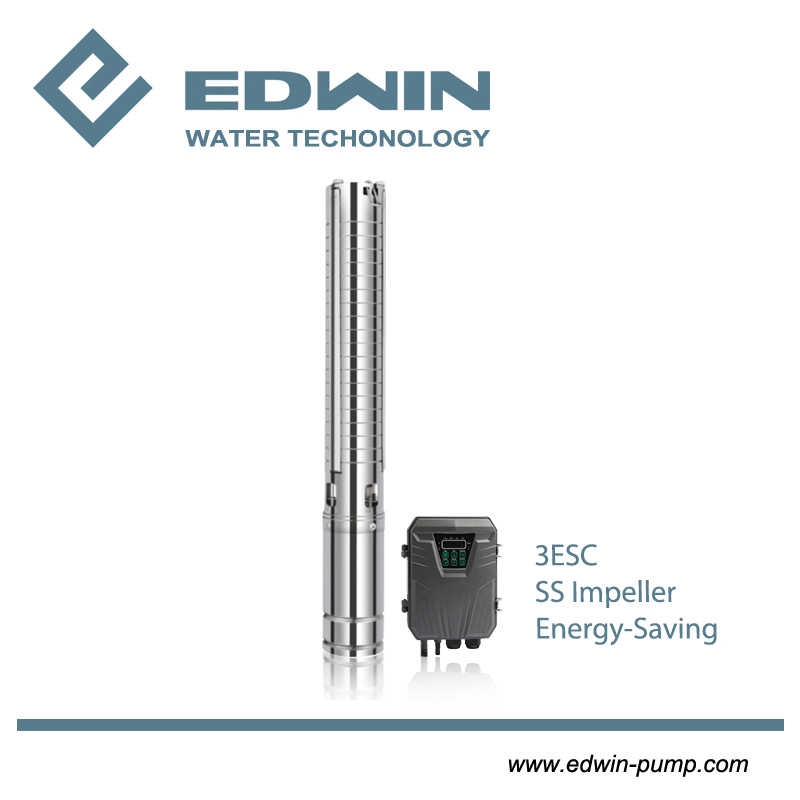

Model NO.:3ESC

Max. Capacity:>400 L/min

Driving Type:Motor

Material:Stainless Steel

Structure:Single-stage Pump

Assembly:Booster Pump

Power:Electric

Type:Jet Pump

Application:Submersible Pump

Media:Clean Water

Theory:Centrifugal Pump

Impeller:POM/Screw/Stainless Steel

Outlet:Copper or Stainless Steel

Certificate:CE, ISO 9001

Bearing:NSK

Specification:100% copper wire

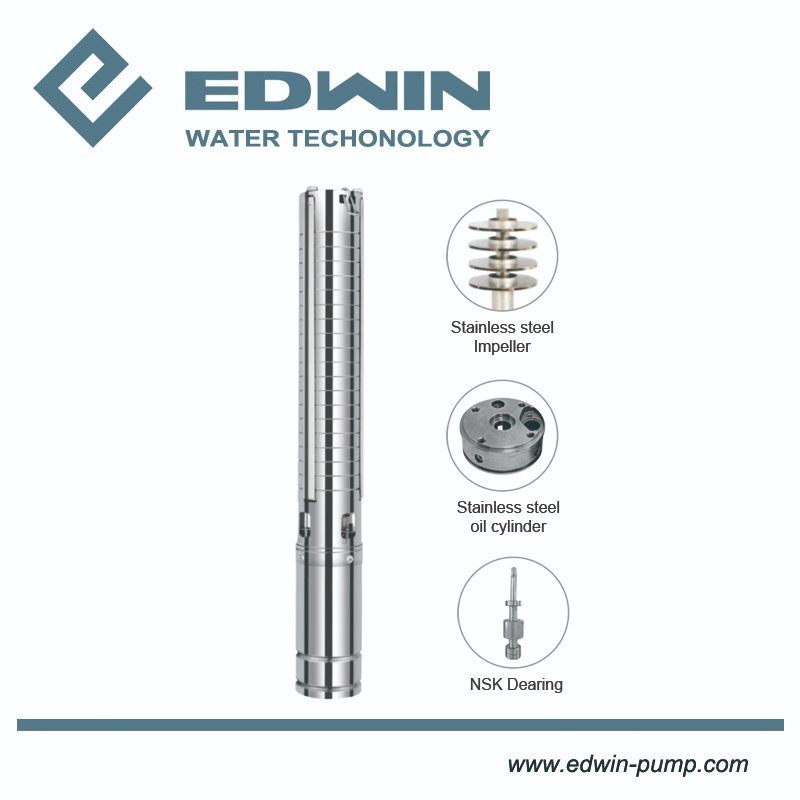

Advantages of DC Solar Pump

Permanent magnet DC brushless synchronous motor: Efficiency increased by 15%-20%.

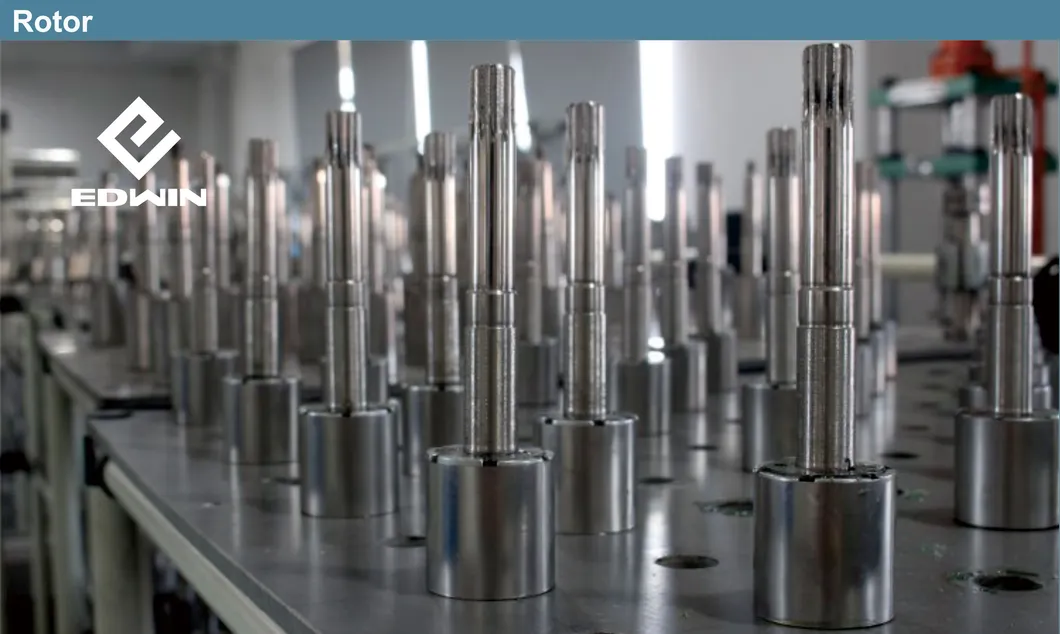

304 stainless steel rotor shaft to avoid breakage.
Japanese NSK bearing for longer working life.
Double bearing structure to withstand greater axial pressure.
Silicon carbide-impregnated graphite mechanical seal.

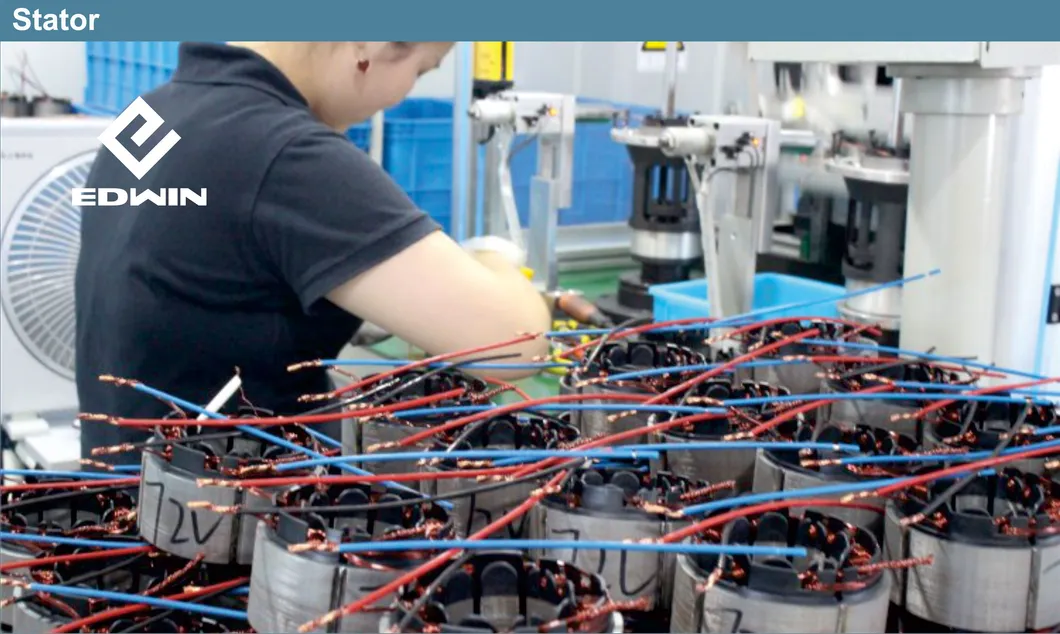

180°C high temperature resistant copper wire, insulation class F.

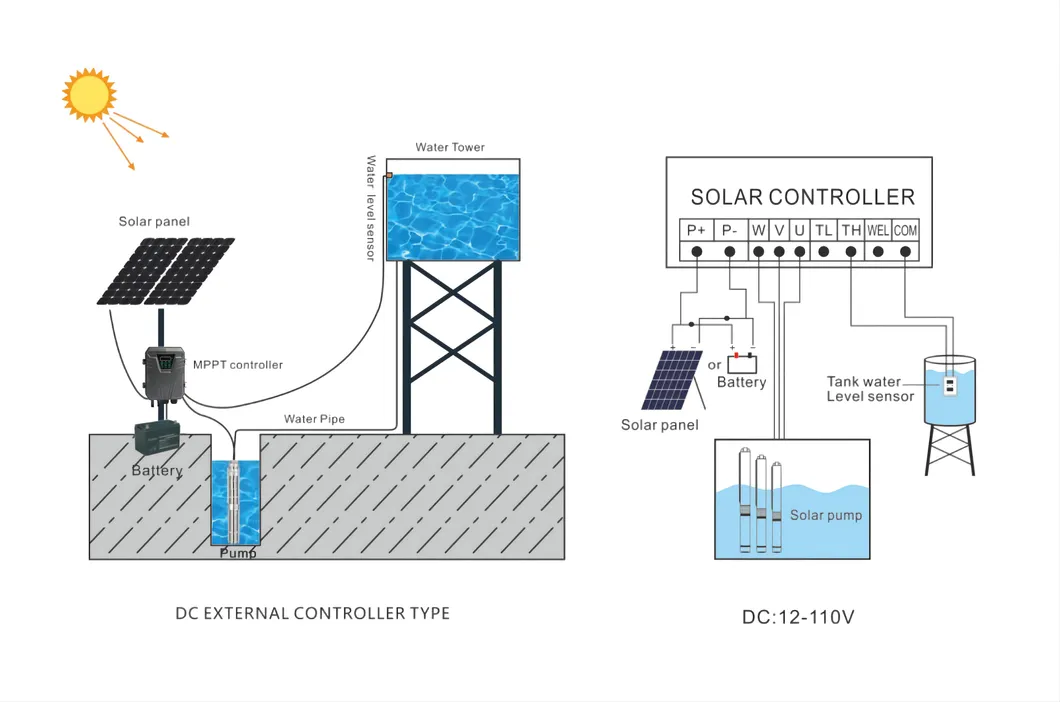

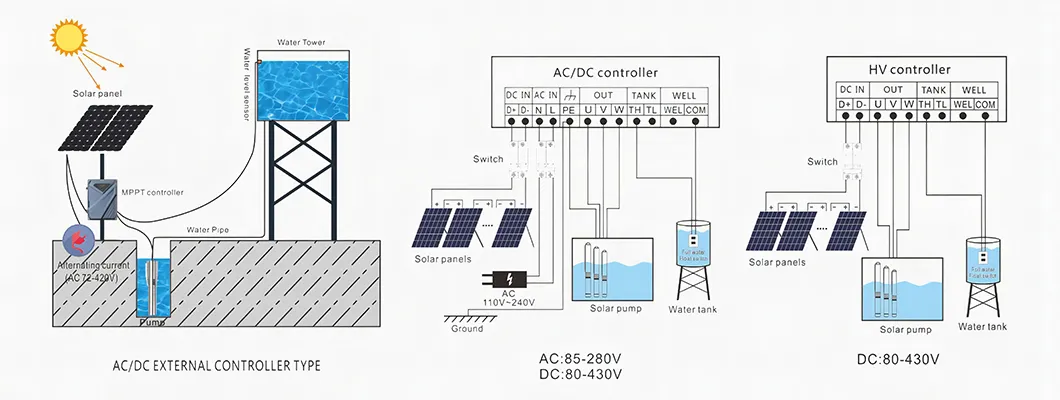

MPPT function for higher solar power utilization.
IP65 Waterproof controller with LED status display.
Full protection: Over-voltage, under-voltage, over-current, short circuit, and water shortage protection.

Technical Data for 3ESC

ITEM	Voltage	Best Input (DC)	Power	Max-Flow	Max-Head	Outlet	Solar Panel (Voc)
3ESC4-35-24-300	24V	30V-48V	300W	4.0m³/h	35m	1.25''	<55V
3ESC4-50-48-400	48V	60V-90V	400W	4.0m³/h	50m	1.25''	<105V
3ESC4-80-48-400	48V	60V-90V	600W	4.0m³/h	80m	1.25''	<105V
3ESC4.8-95-72-750	72V	90V-120V	750W	4.8m³/h	95m	1.25''	<160V
3ESC4.8-112-72-1100	72V	90V-120V	1100W	4.8m³/h	112m	1.25''	<160V

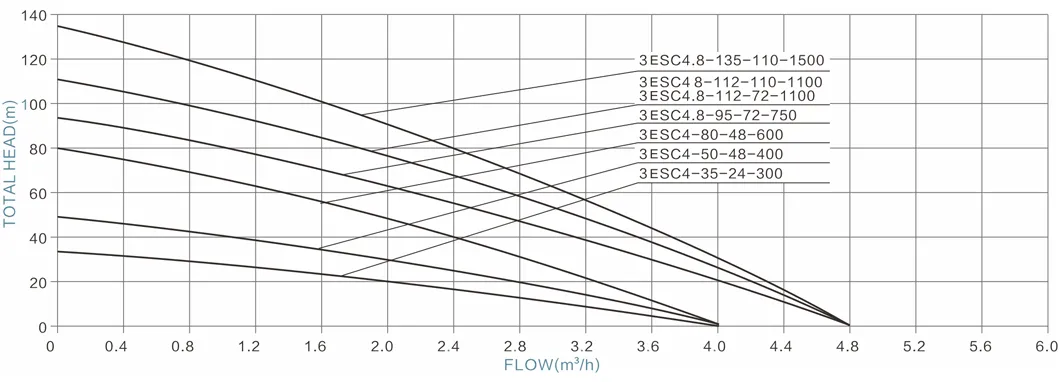

Performance & Material Details

Frequently Asked Questions

Q: What is the delivery time for samples and batch orders? A: Samples can be sent within 10-15 days. Batch orders are typically shipped within 35 days after receiving the deposit payment.

Q: What is the warranty period for the products? A: We offer a 1-year product life guarantee and a 1-year warranty on all purchases starting from the BL date.

Q: What information is needed for an accurate quote? A: Please provide the required pump flow, total head, material preferences (copper or aluminum wire), voltage, and frequency.

Q: Can you provide customized products? A: Yes, we accept specific orders based on your requirements for voltage, frequency, and other technical specifications.

Q: How do you ensure no leakage problems in your pumps? A: We use high-quality casing materials and O-rings that fit perfectly. We use 8 screws on the pump head for stability and perform 100% long-time testing to ensure zero leakage.

Q: Are spare parts available with the pumps? A: Yes, we can supply additional items such as tanks, flexible hoses, pressure switches, gauges, brass connectors, and cables.
