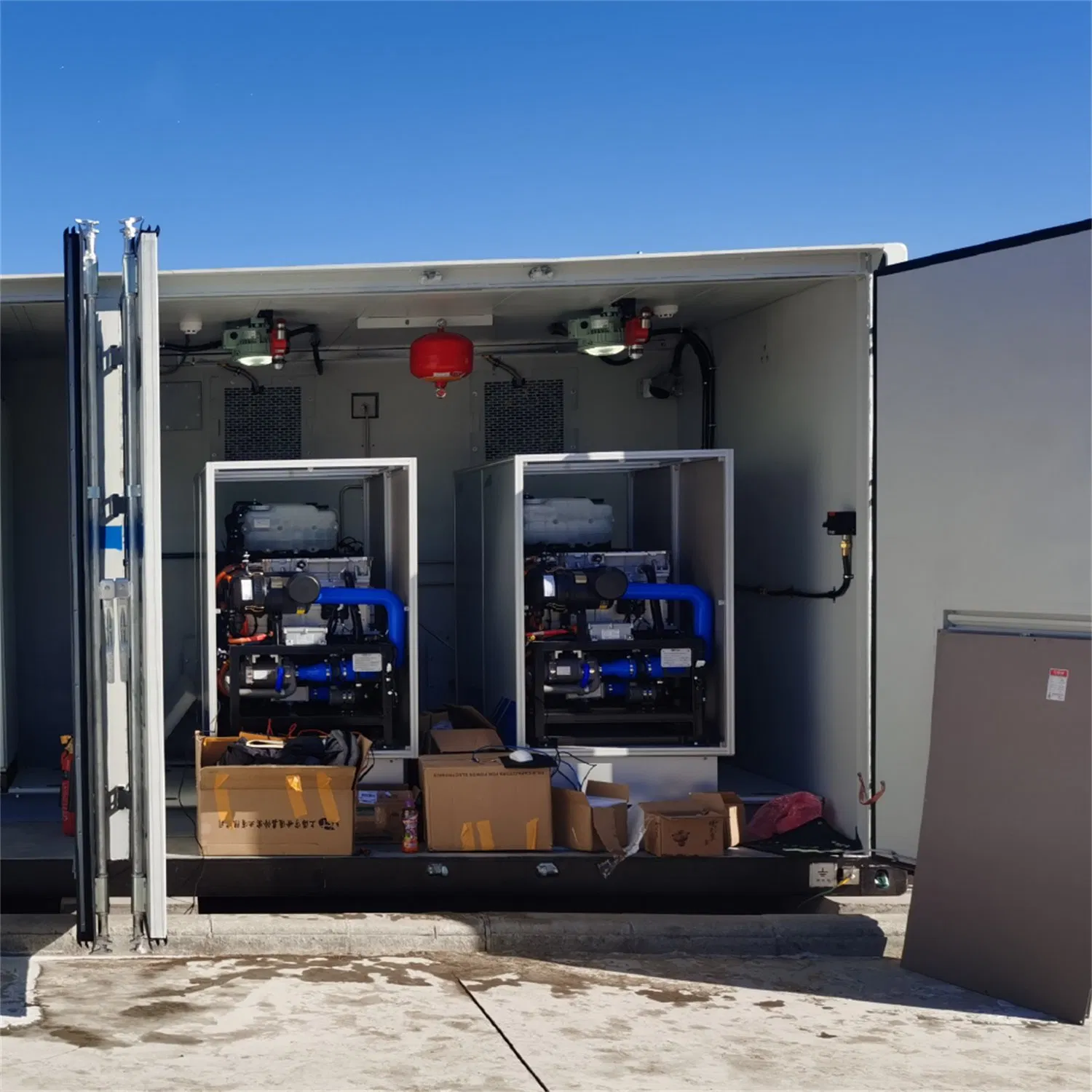

High power and high efficiency modular hydrogen energy storage power generation system

Customization: Available
Nominal Capacity: 1MW
Size: Containerized

Product Description

Basic Information
Warranty
1 Year
Output frequency
50HZ
Input voltage
380VAC
Work noise
≤80dB
Service life
≥30000h
Specification
CUSTOMED
Production Capacity
100units/Month
Product Description
Our Hydrogen Fuel Cell power stations adopt modular and hierarchical designs based on functional requirements, safety requirements and site conditions. Starting from functional requirements such as power generation, gas supply, energy distribution, and control, we carry out sub-system design. Through the analysis and comparison of the technical routes of the sub-systems, the final optimal implementation path is determined.
Power supply: Provide stable AC output
Output transformation: Adjust output power according to power demand
Early warning protection: Protection for fuel leakage, under-voltage, over-voltage, overload, over-temperature, and fault conditions.
Self-maintenance: Battery charging and automated maintenance
Grid-connected: Integrated grid-connected output capabilities
Typical parameters for 1MW Hydrogen Fuel Cell Power Station
Items Specific parameters Remark
Installed capacity1MW-
Grid-connected power796kWNet output
The output voltage10kVDesign on demand
Output current≤100ADesign on demand
Output frequency50HZ-
Input voltage380VAC-
Work noise≤80dB-
Working temperature-10ºC~+40ºCSelf heating
Storage limit temperature-25ºC~+45ºC-
Relative humidity≤95%40ºC
Service life≥30000h-
Covered area300m²Design on demand
Protection levelIP54-
Working altitude≤2000m-

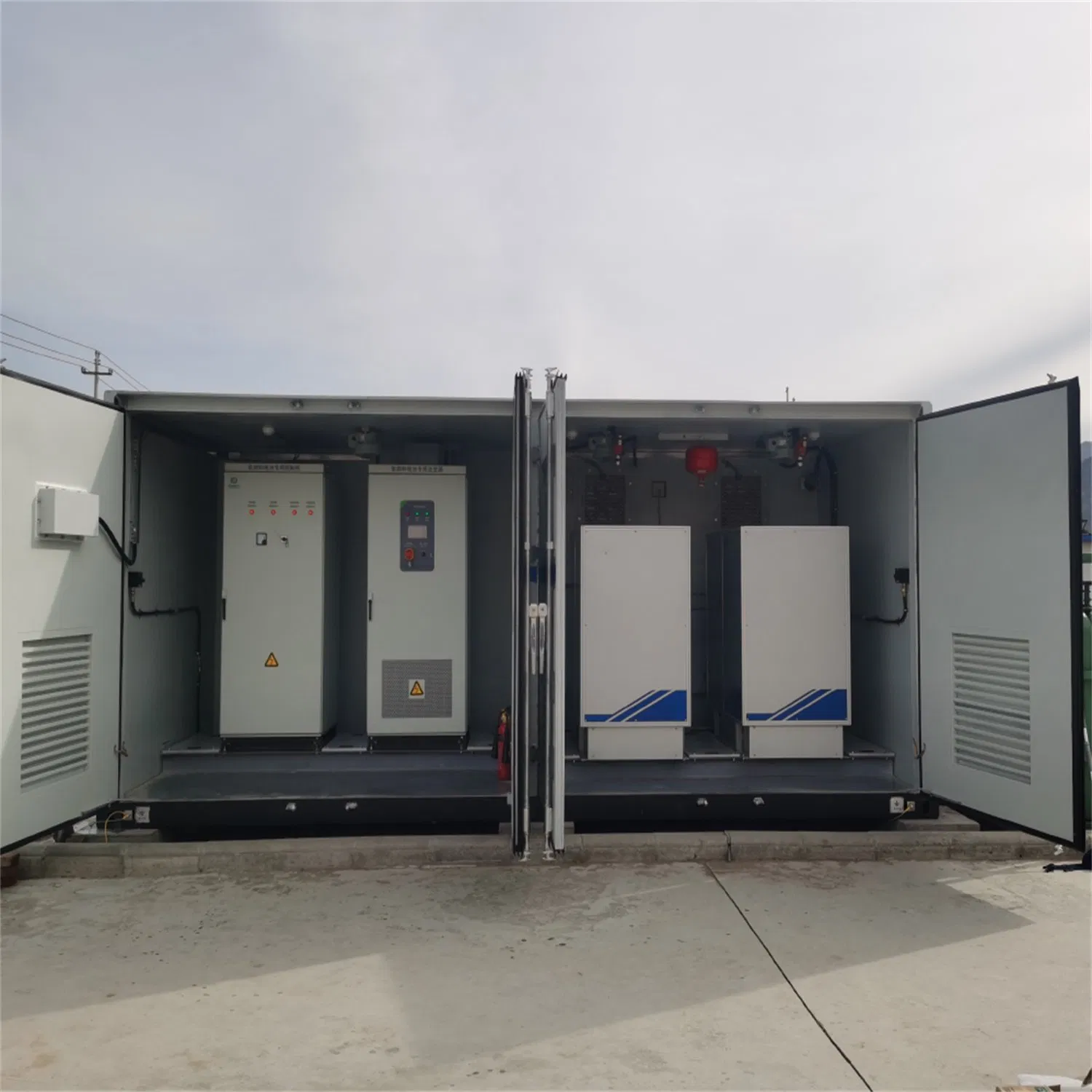

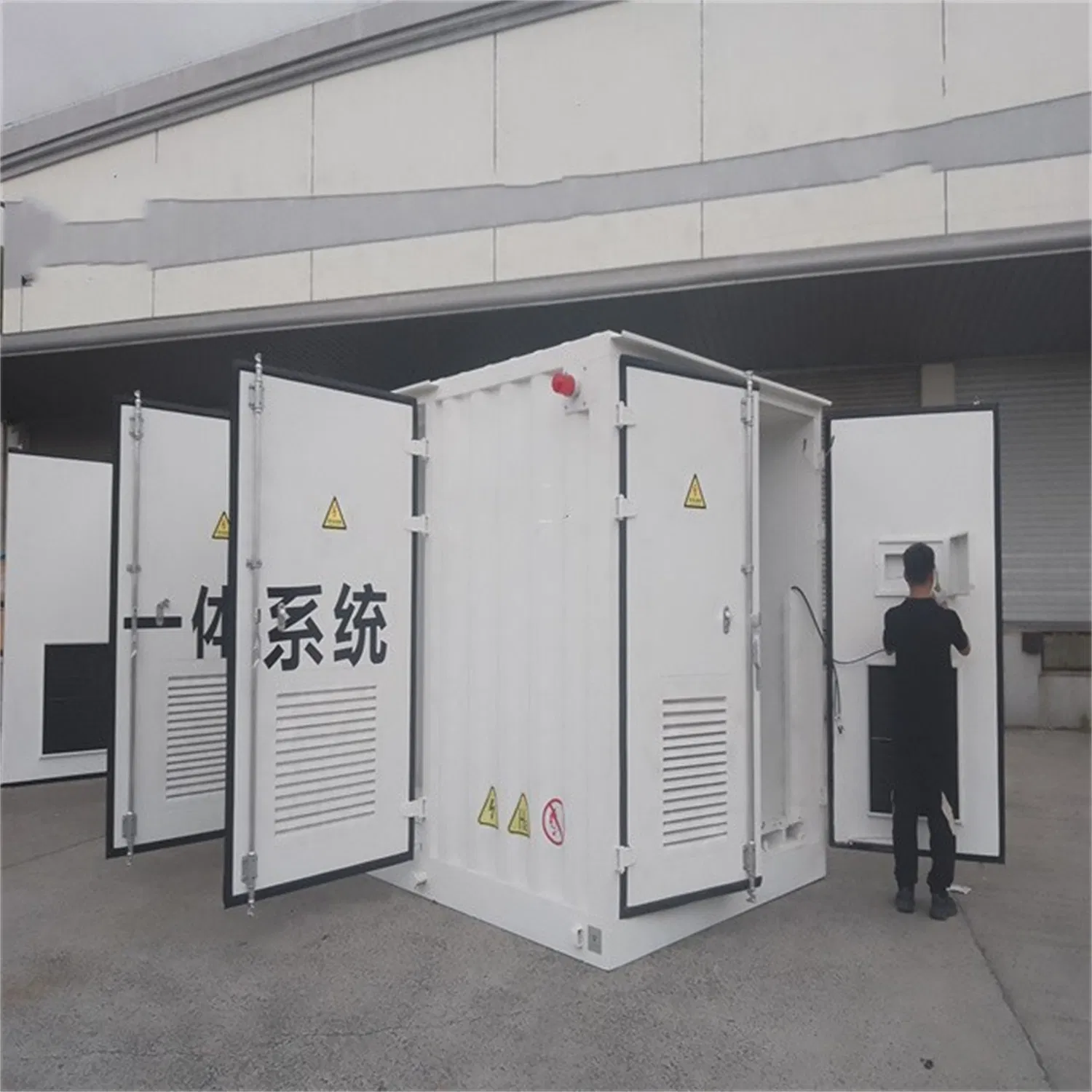

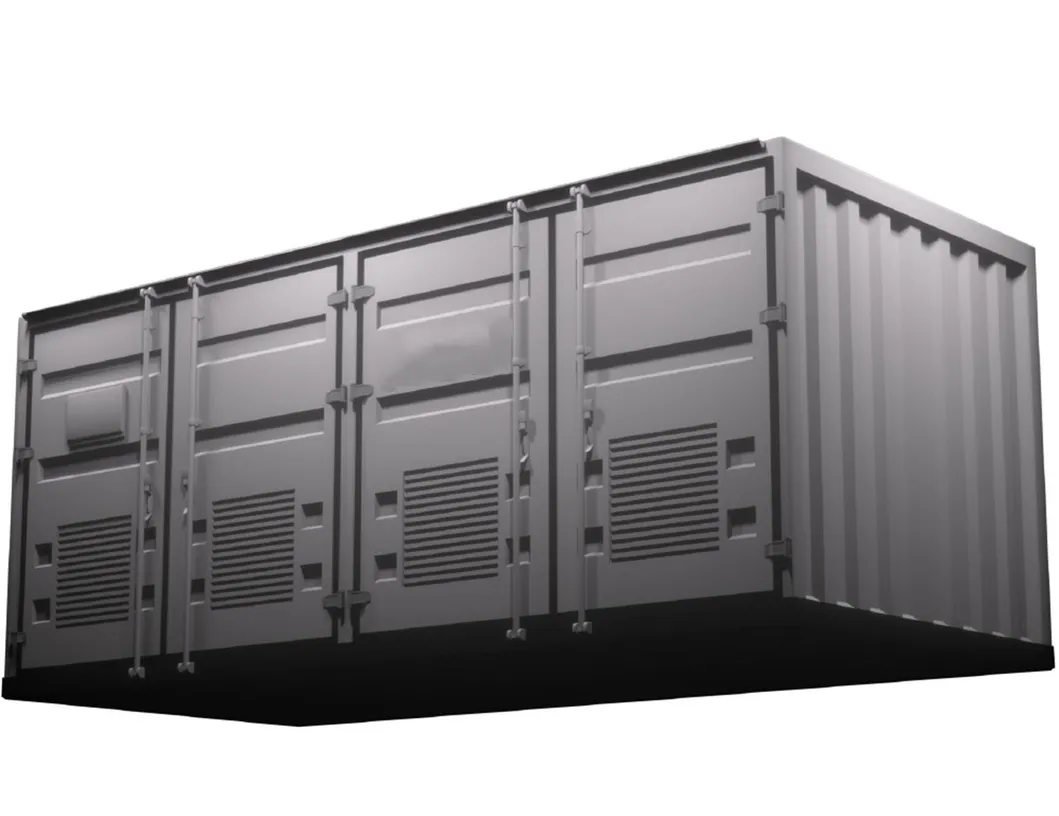

Modular hydrogen energy storage power generation system

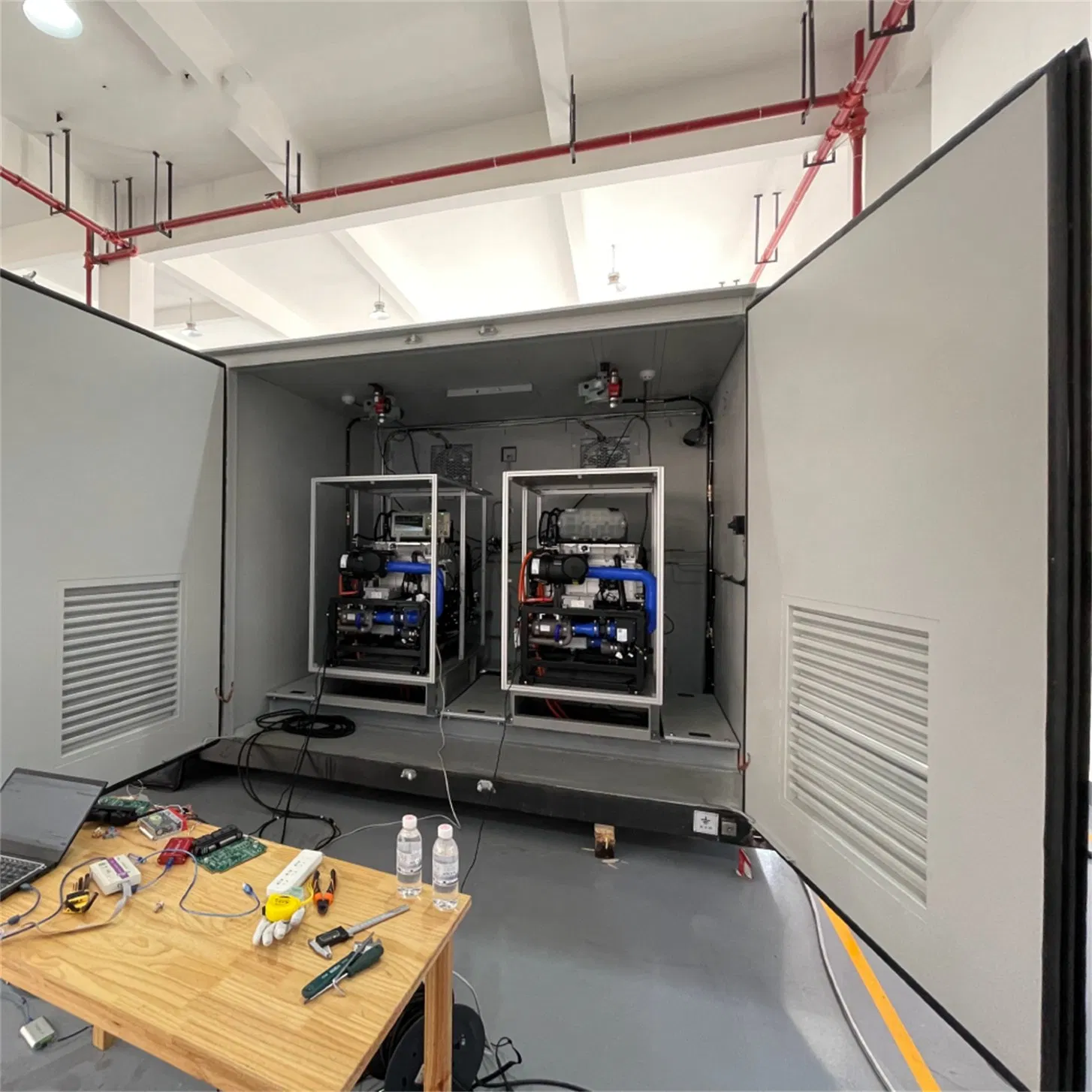

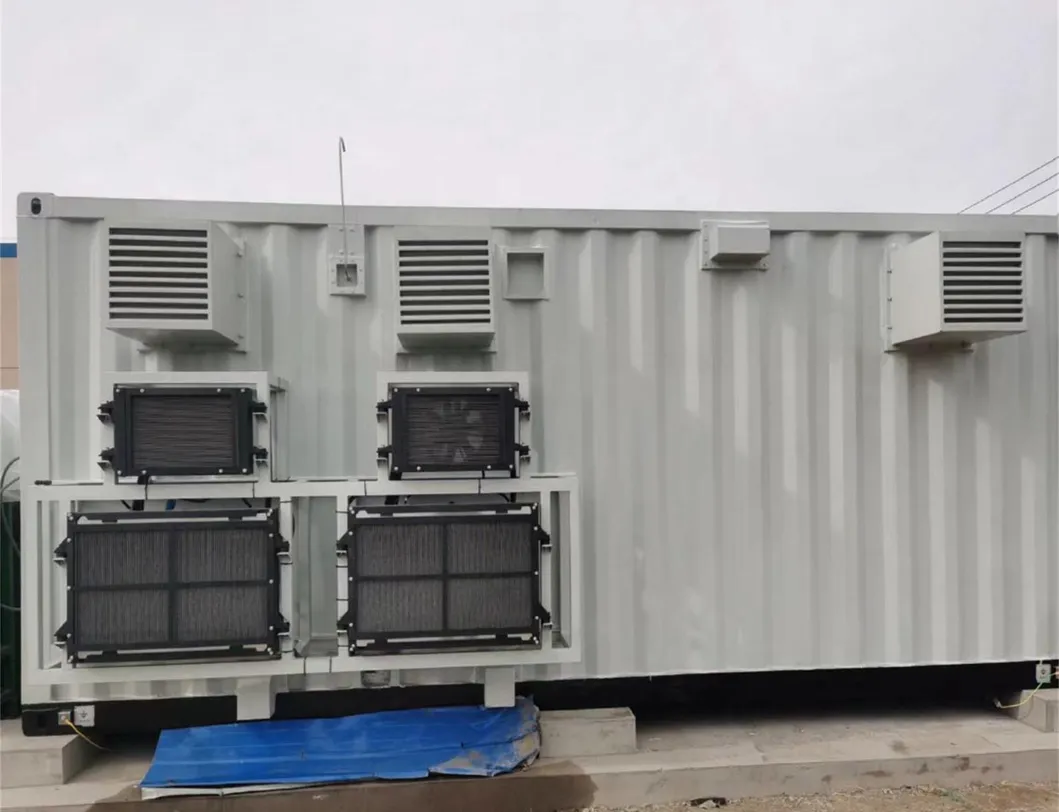

Hydrogen power system detail

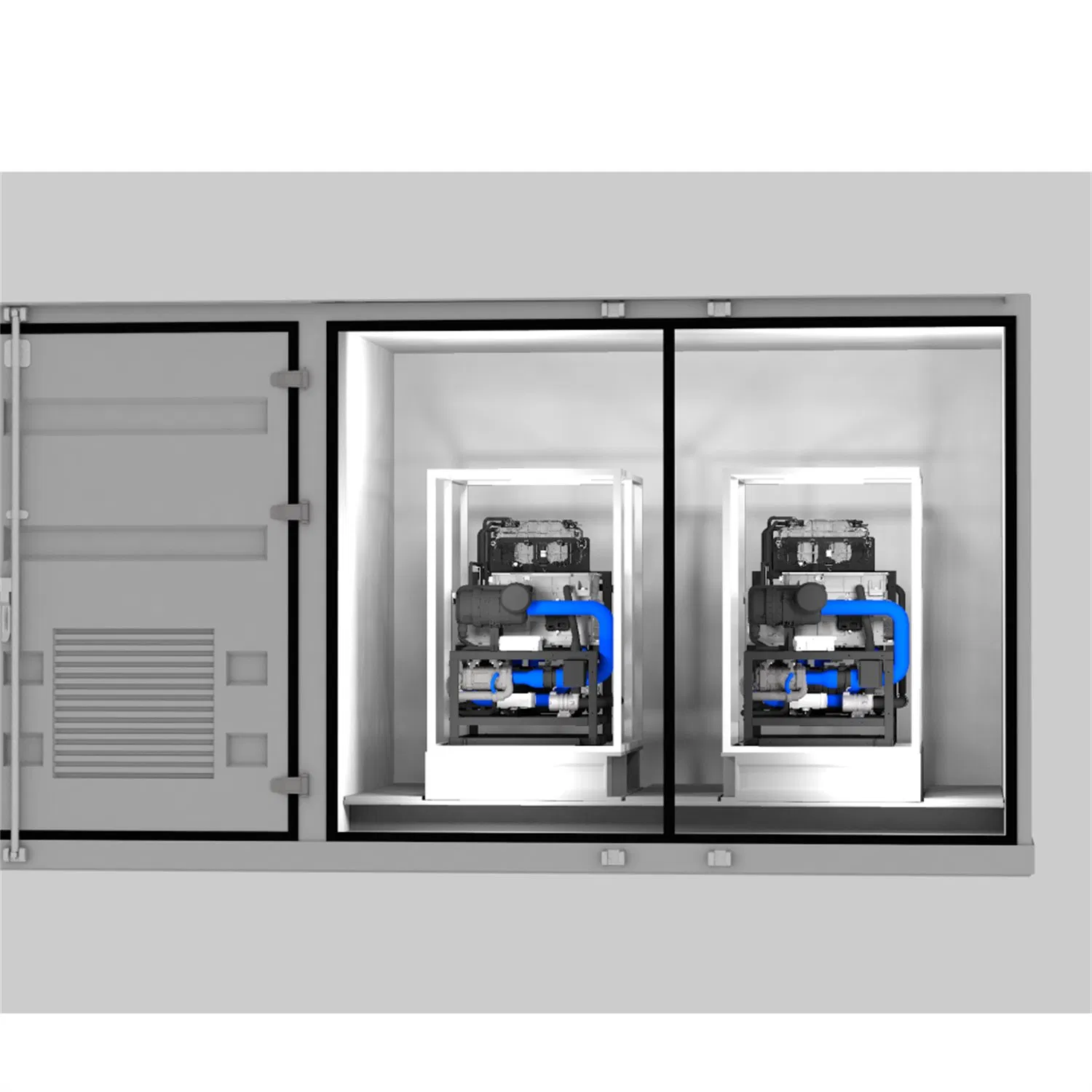

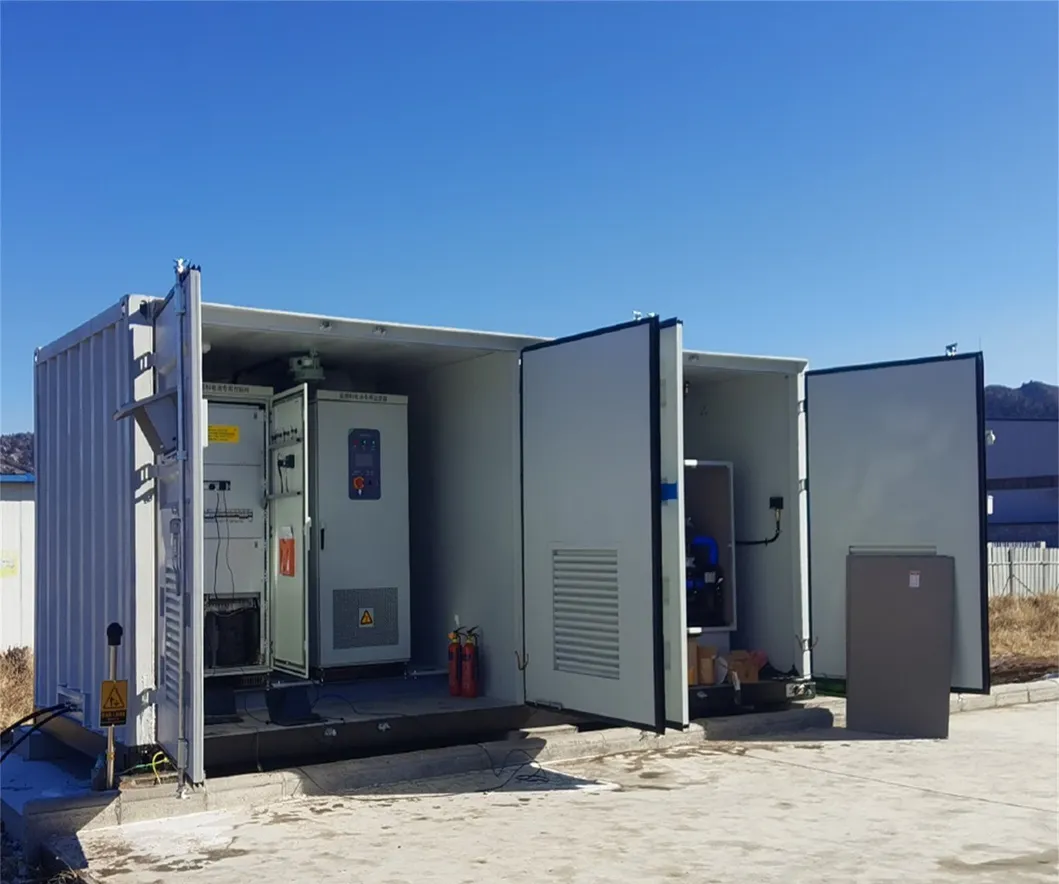

Industrial hydrogen fuel cell unit

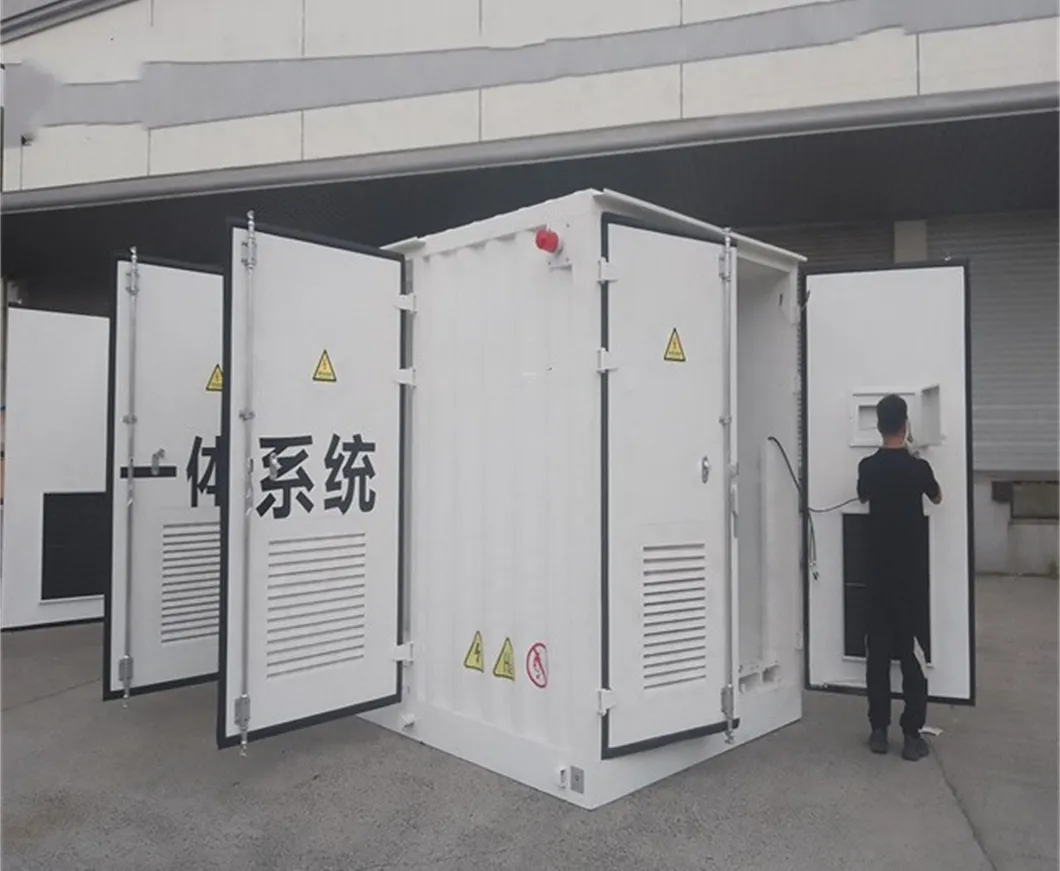

Power generation system overview
Requirements & Specifications
Hydrogen requirement
Medium Operation pressure (Mpa.g) Design pressure (Mpa.g) Operation temperature (ºC) Design temperature (ºC) Purity (%)
Hydrogen ≥1 1.3 Normal temperature 60 99.99
Cooling water requirement
Medium Operation pressure (Mpa.g) Design pressure (Mpa.g) Operation temperature (ºC) Design temperature (ºC)
Cooling water supply0.250.53250
Cooling water return0.10.53250
Customer Visits
Customer visiting facility
System demonstration
Company Profile

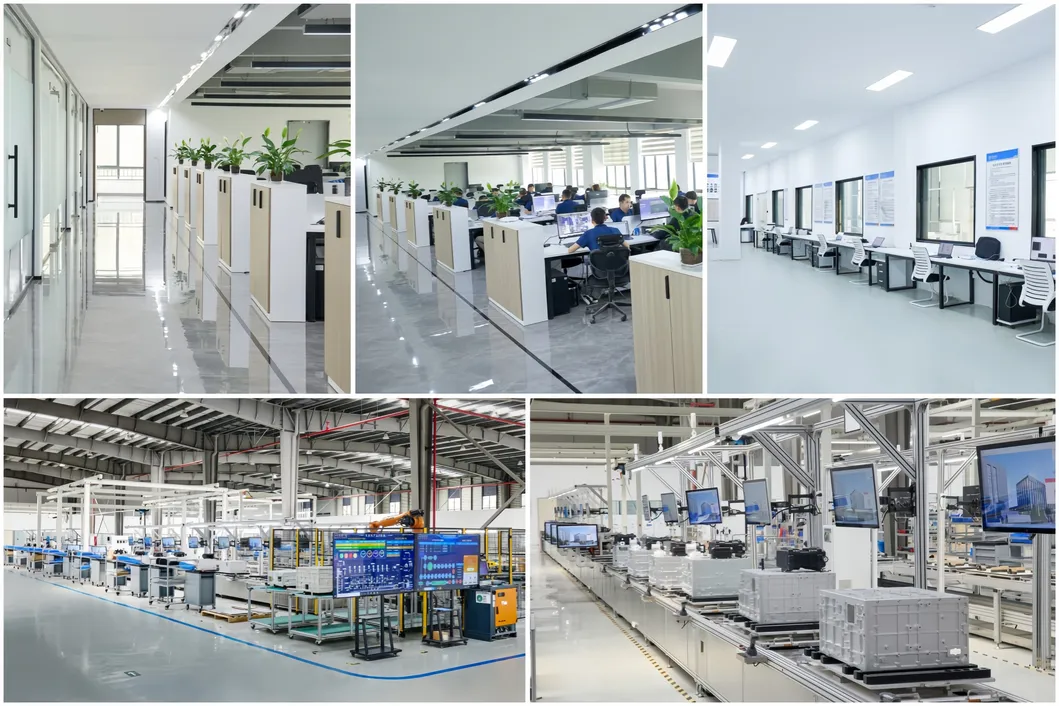

Manufacturing facility
Packaging & Shipping
Shipping logistics
Frequently Asked Questions
How is the product quality?
Our products are produced in accordance with international standards, and the production process has strict quality control and inspection procedures, and all products are qualified products.
Do the products have relevant certification?
In accordance with international requirements, our products have passed relevant international certifications, such as: CE, DOT, etc.
Can it be customized according to customer requirements?
Yes, we can produce according to customized requirements.
Do the products have a warranty?
Yes, all our products have a certain warranty period, and different products have different warranty policies.
Is there any discount on the product?
Yes, we are committed to providing the best price with different discounts for different quantities.
What are the shipping methods of the product?
We can provide you with sea, air or land transportation services according to clients' needs.
