📊 Basic Specification
Certification
ISO, CE, 10years Warranty
Application
Home, Industrial, Commercial
Output Voltage
220V/380V Us 120/240V
Monitoring
WiFi/GPRS Device
Mounting Brackets
Roof/Ground Installation
Inverter Type
Pure Sine Wave Inverters
Solar Panel Type
Mono Panels
Production Capacity
60000 Pieces/Year
📦 Packaging & Delivery
Package Size
80.00cm * 50.00cm * 30.00cm
Package Type
Wooden Packages
📝 Product Description
INSTRUCTION OF SOLAR ENERGY SYSTEM:
5KW off grid solar system is widely used in the following applications:
▶ Mobile equipment such as motor homes and ships;
▶ Remote areas without electricity, such as plateaus, islands, pastoral areas, and border posts;
▶ Home rooftop grid-connected power generation systems;
▶ Photovoltaic water pumps for drinking and irrigation in deep wells;
▶ Transportation fields including beacon lights and signal lights;
▶ Communication fields such as microwave relay stations and optical cable maintenance stations.

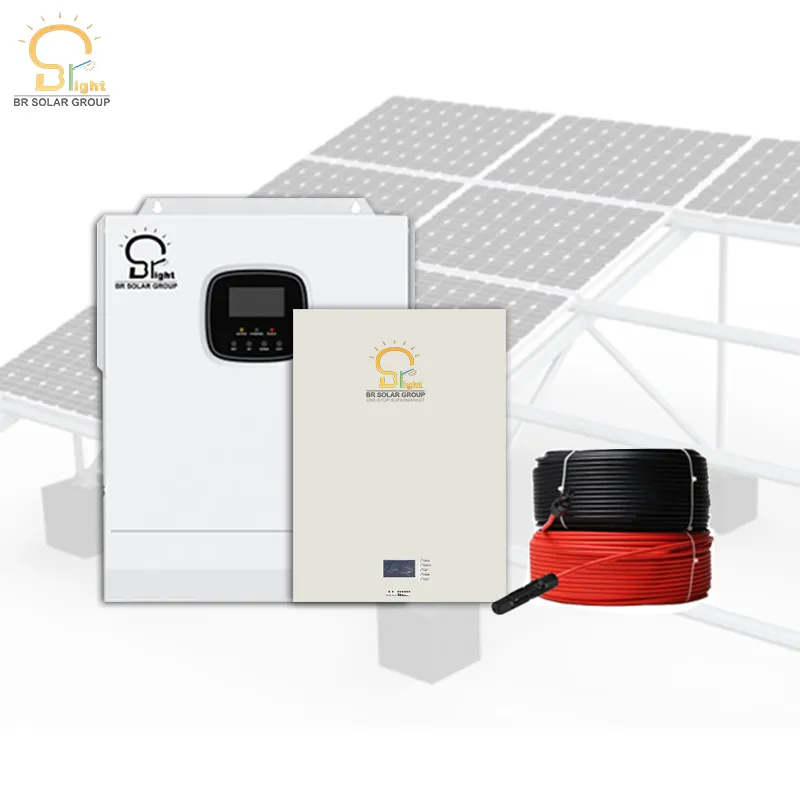

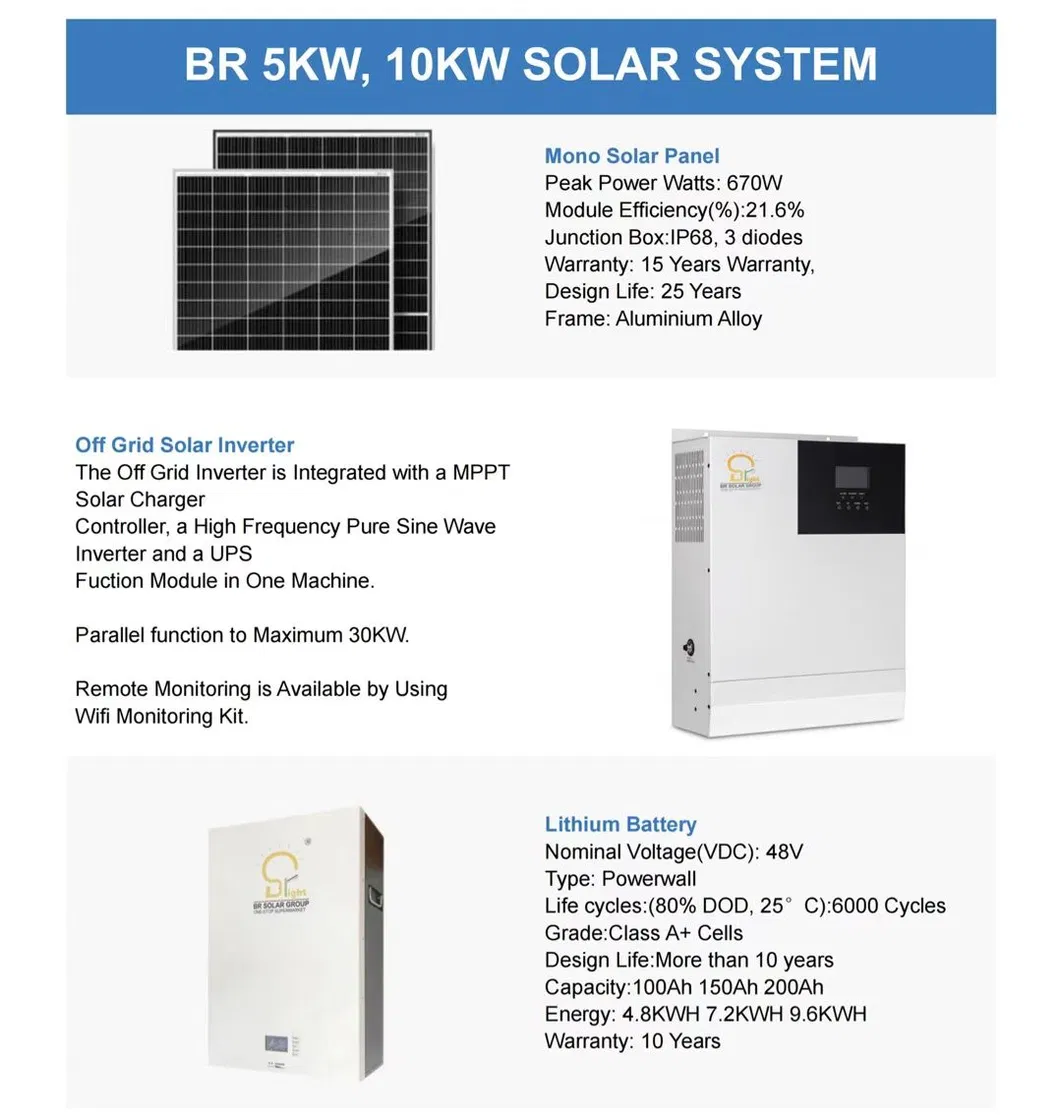

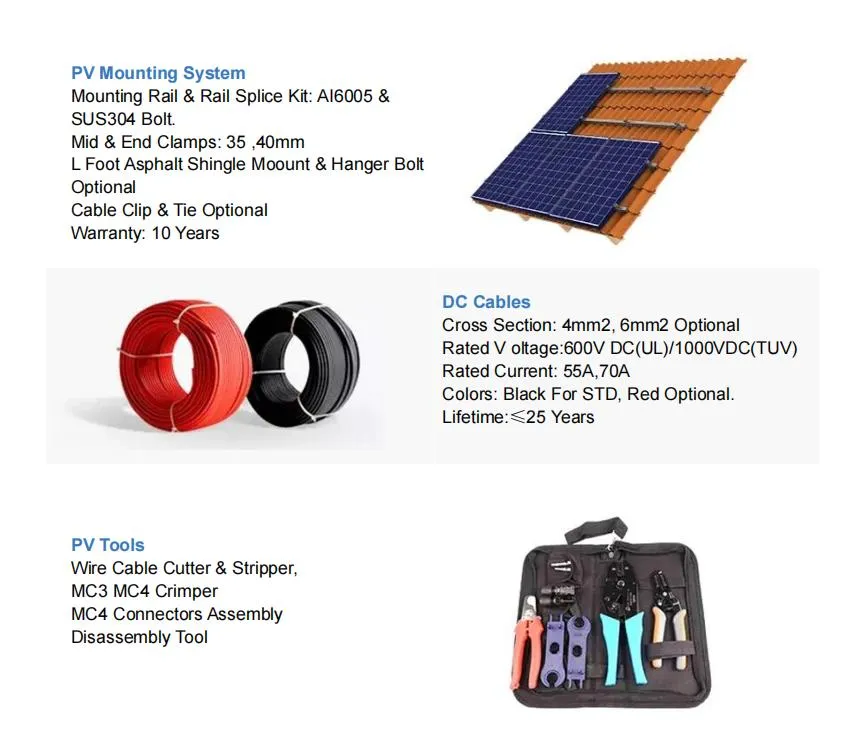

⚙️ Customized 5KW System Components
| Item |
Part |
Specification |
Qty |
Remarks |
| 1 |

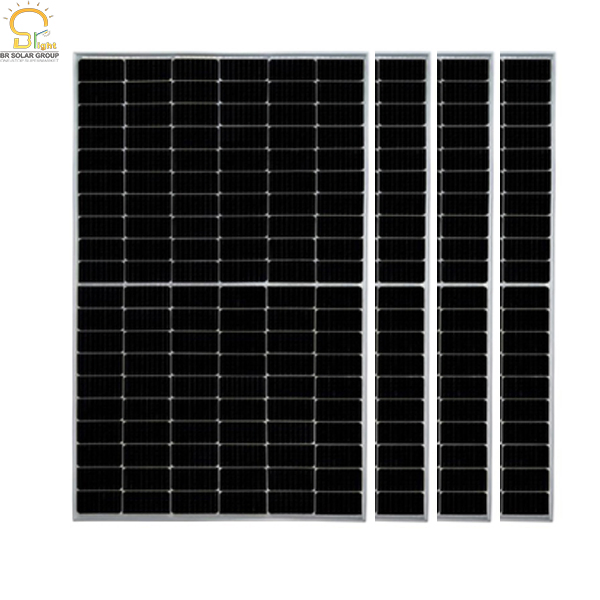

Solar panel |
Mono Half Cell 550W Class A+ |
4pcs |
25 Years Design Lifespan, TUV Certificate |
| 2 |
MC4 Connector |
Y-TYPE 2-1 |
1pc |
20 Years Design Lifespan |
| 3 |
Mounting Bracket |
Hot-dip Galvanized Rooftop |
1set |
Anti-Rust, Wind resistance≥160KW/H |
| 4 |

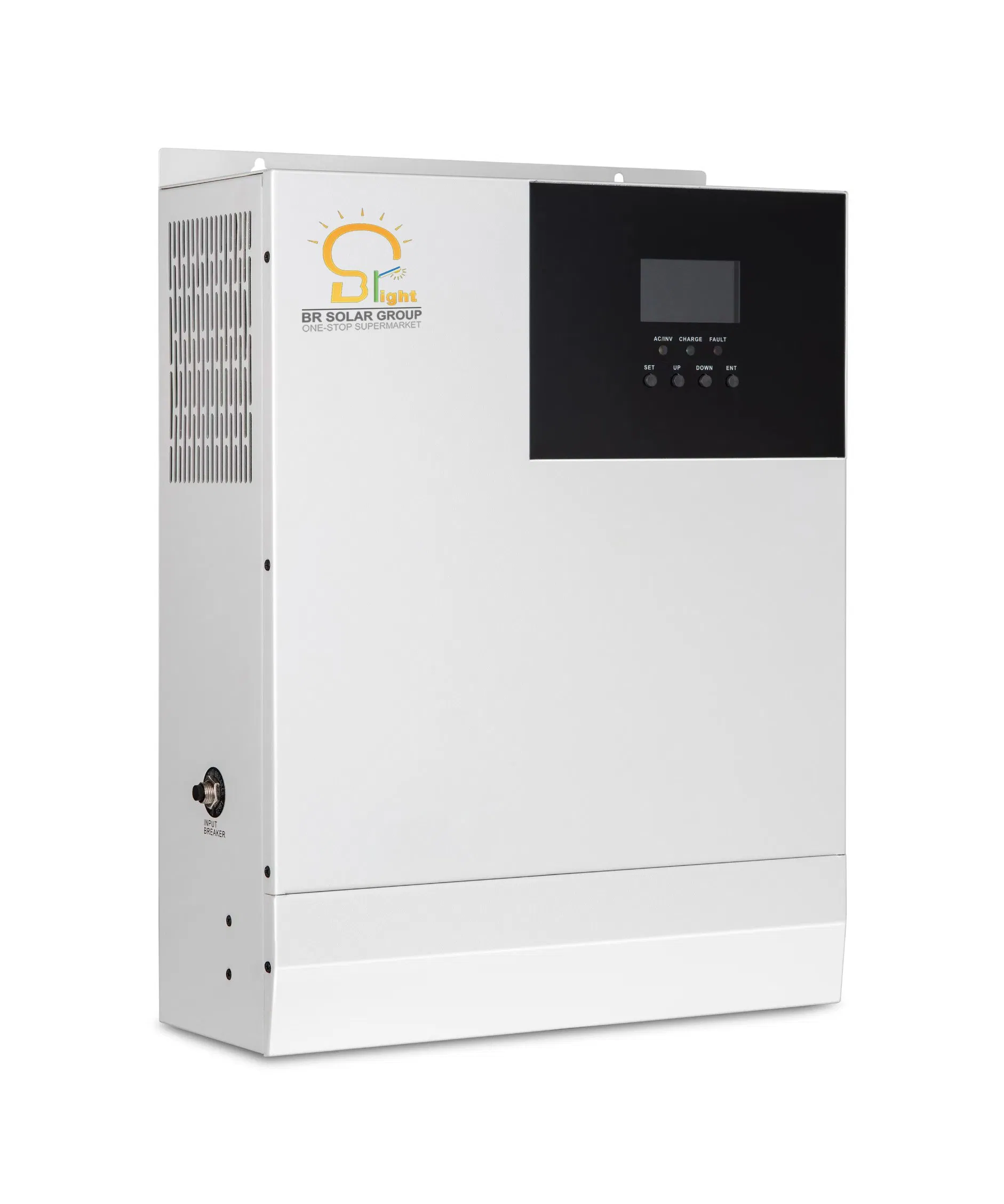

Inverter |
Bright Series All in one 48V/5kw |
1set |
Pure sine wave, Support grid/Diesel Input |
| 5 |
GEL Battery |
Deep Cycle 12V-200AH |
4pcs |
Total release power: 6.7KWH |
| 6-11 |
Cables |
PV 4mm2 / BVR 6-25mm2 |
Various |
Complete installation connection kits |
| 13-14 |
Accessories |
Installation Tools & Spare Parts |
1 Set |
Free Gifts for Installation |

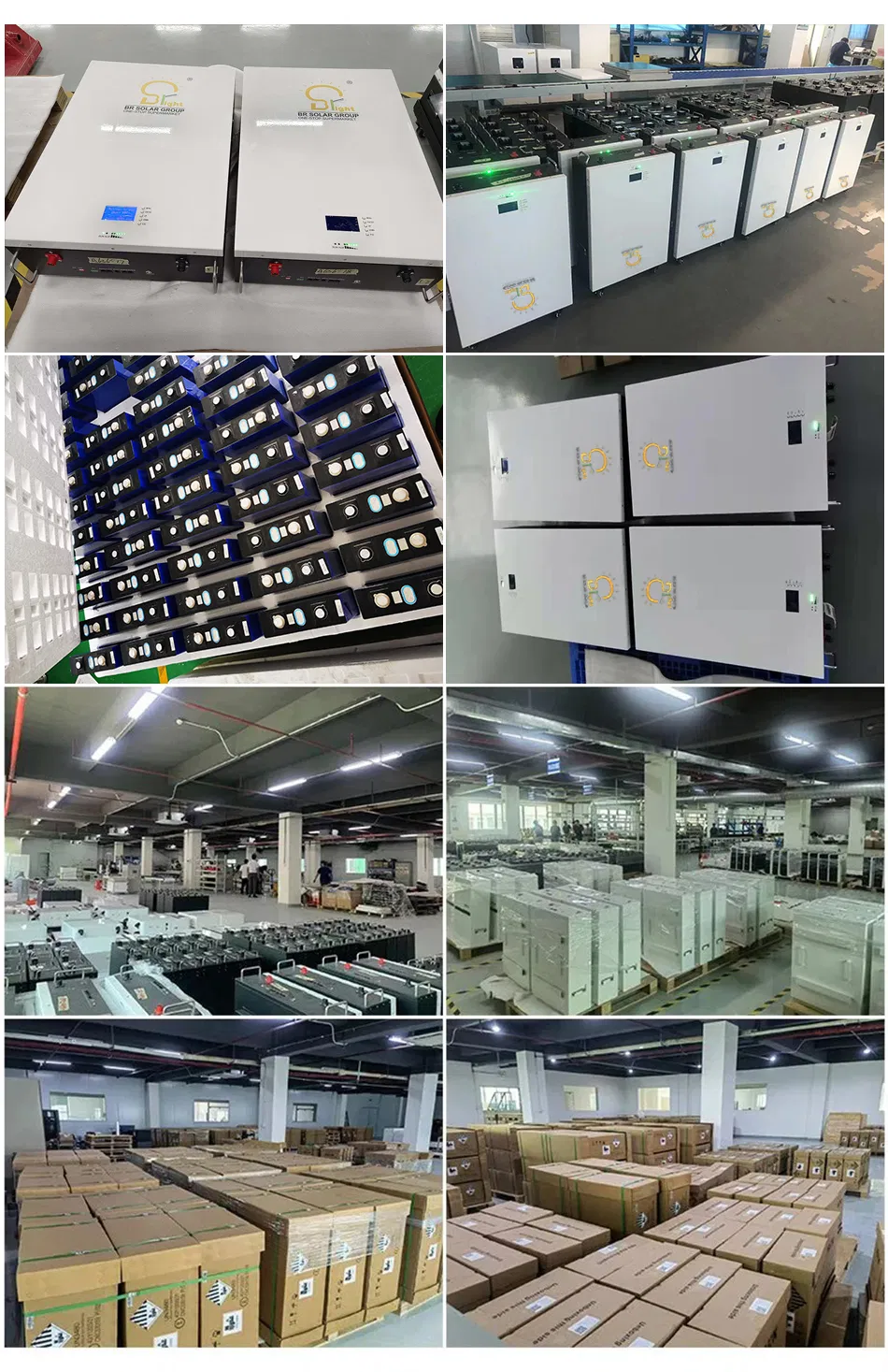

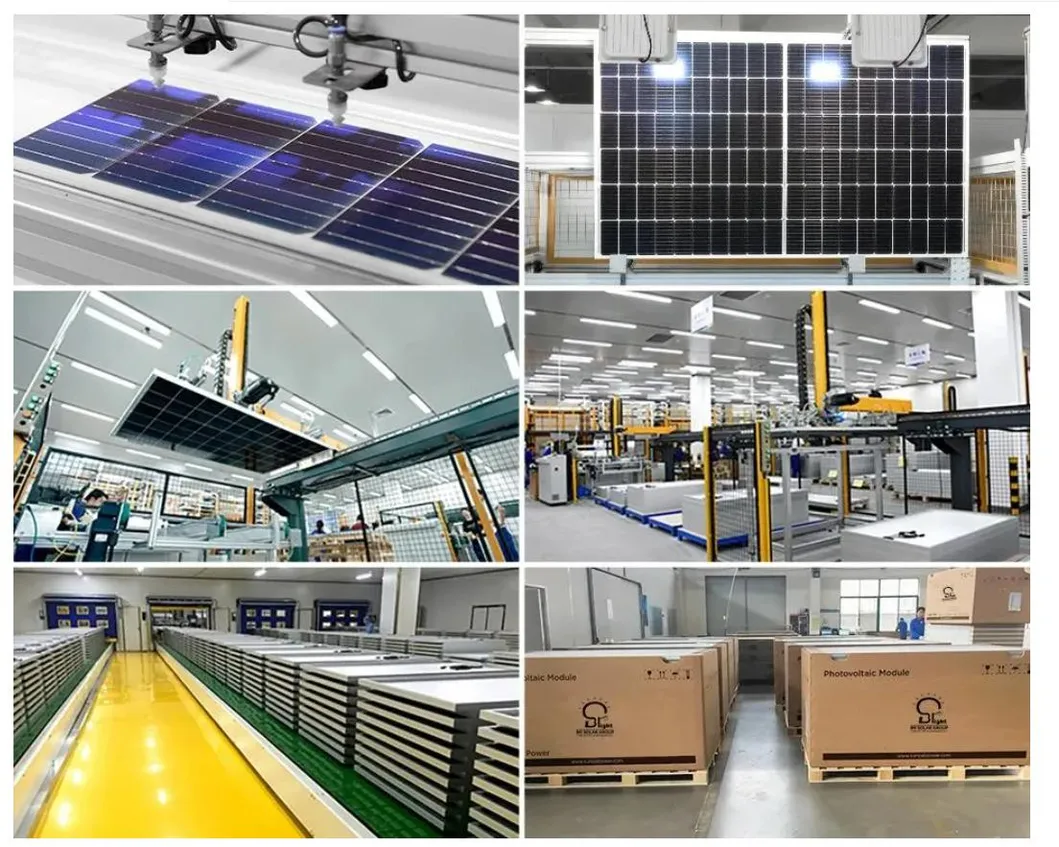

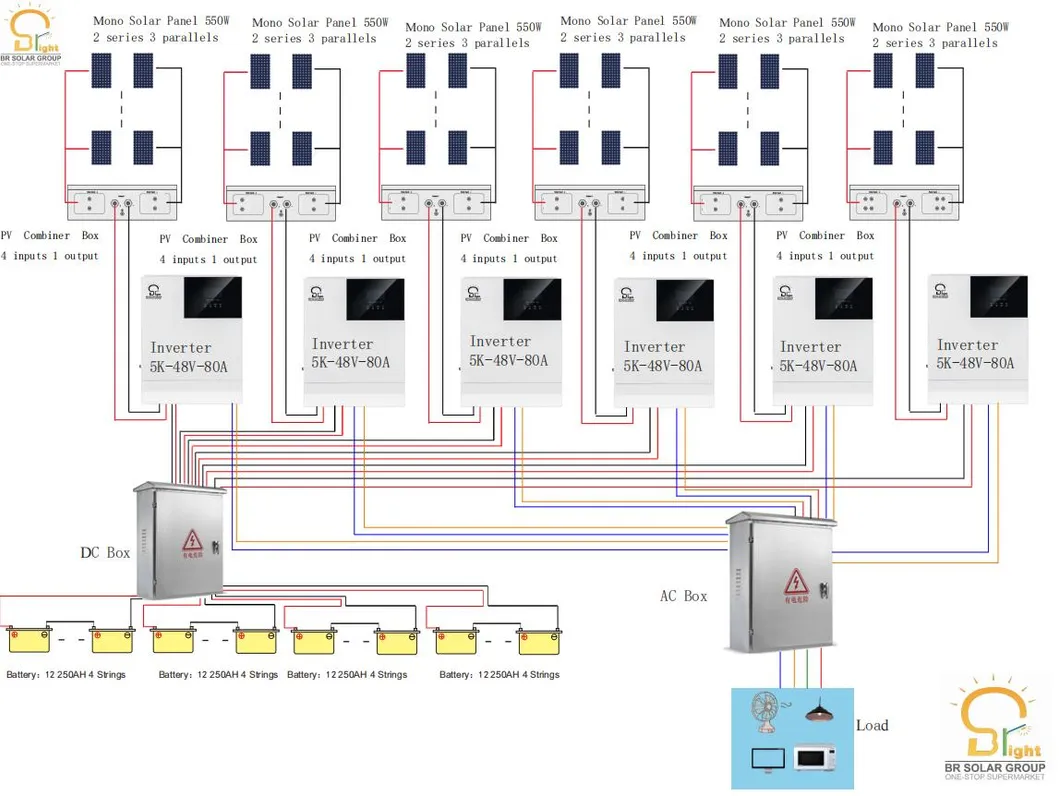

📐 System Diagram & Factory

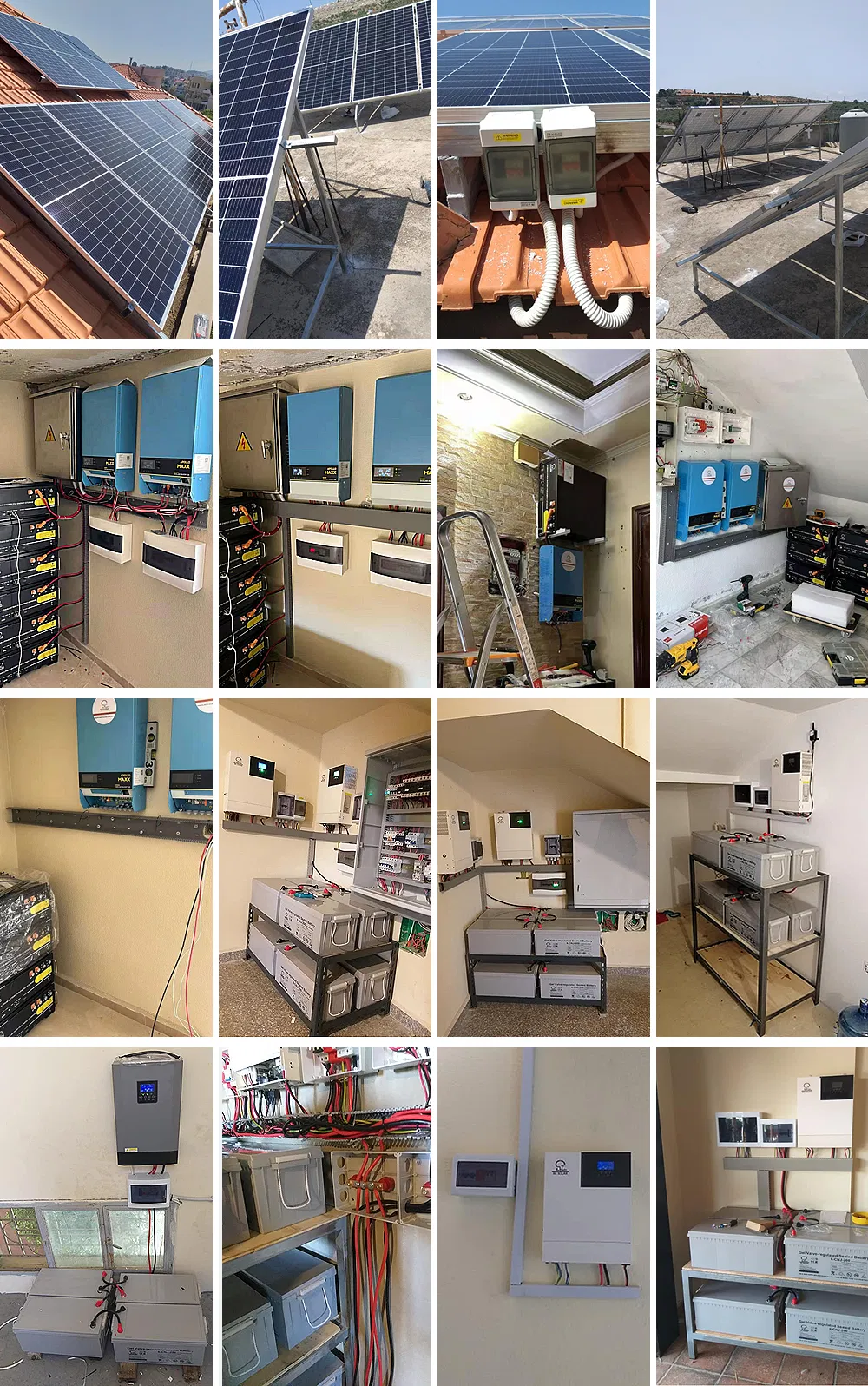

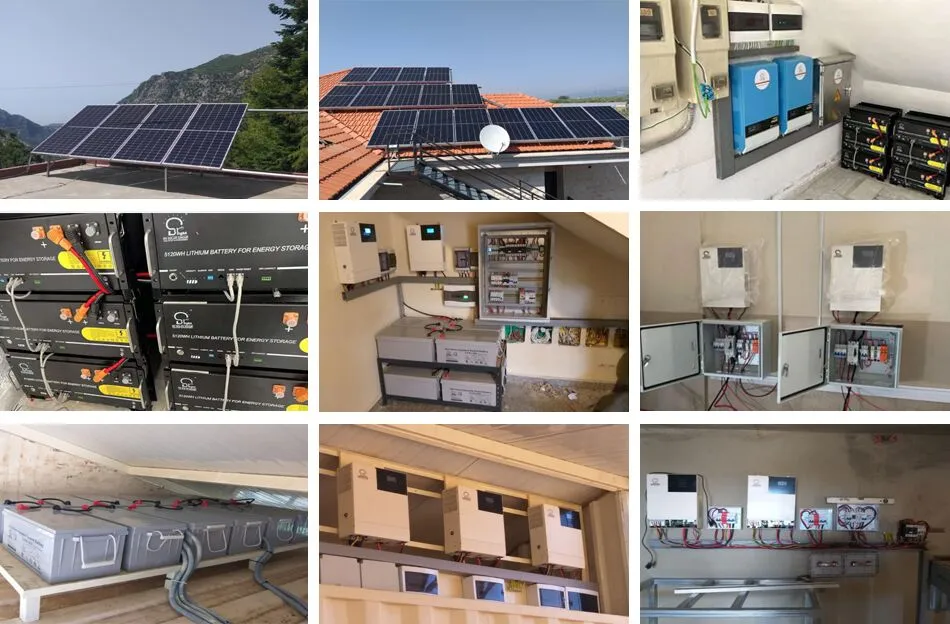

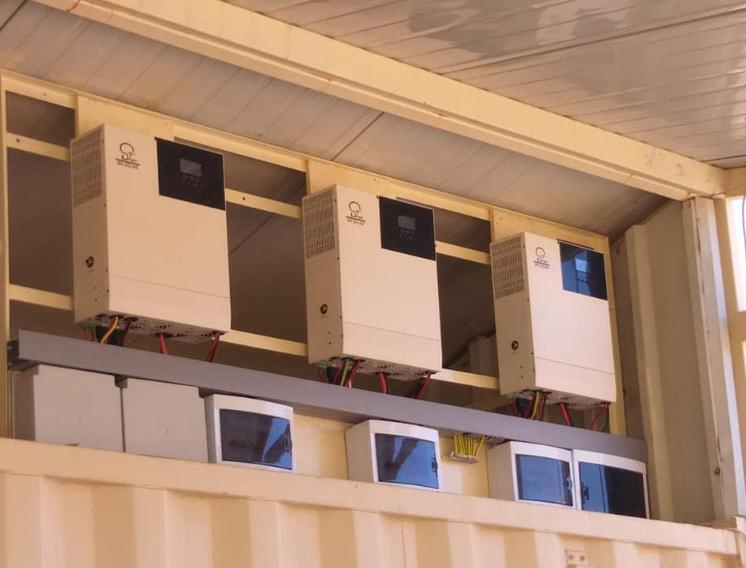

🌎 Global Projects
Our solar products have been successfully applied in more than 128 countries including UN projects and NGO projects.

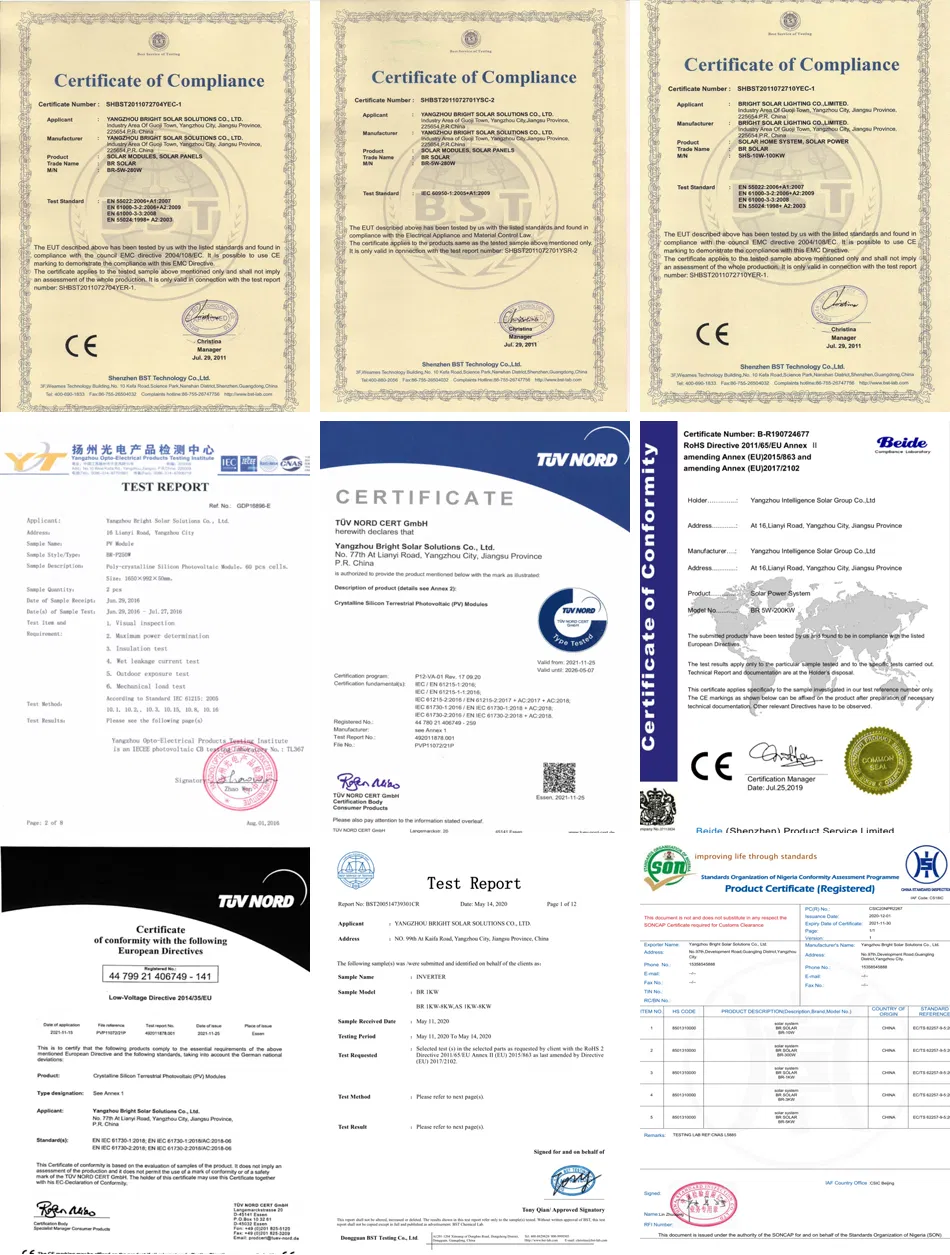

📜 Quality Certificates

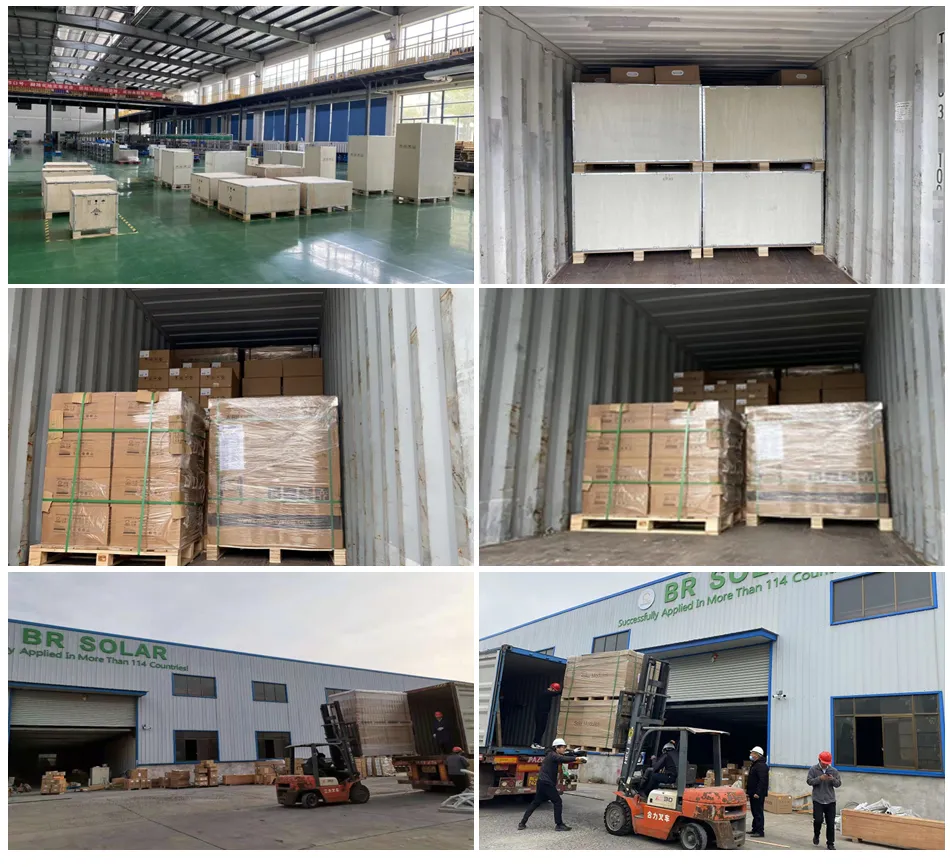

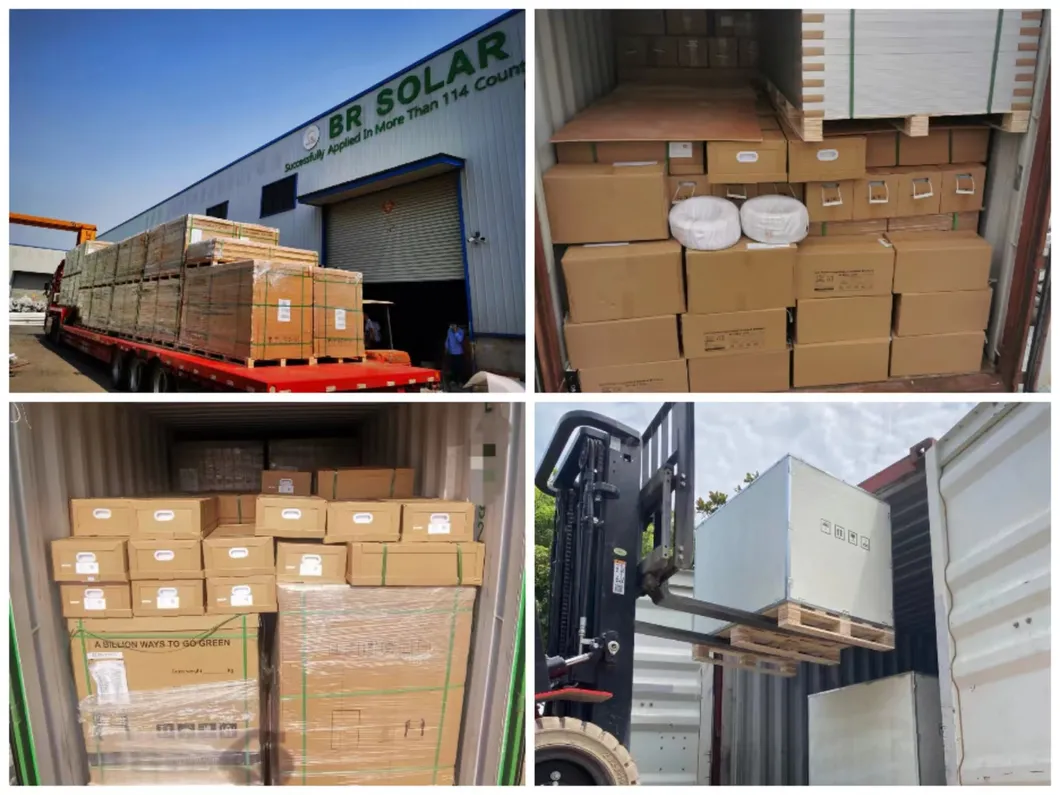

🚚 Loading & Shipping
❓ Frequently Asked Questions
Q1: Can I have a sample order for solar products?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2: What is the lead time for production?
Samples typically take 5-7 days. For mass production, the time depends on the specific order quantity.
Q3: Are you a factory or a trading company?
We are a factory with high production capacity and a wide range of solar products in China.
Q4: How do you ship the goods and how long does it take to arrive?
Samples are usually shipped via DHL, UPS, FedEx, or TNT and take 7-10 days. Airline and sea shipping options are also available for larger orders.
Q5: What is your warranty policy?
We offer a 3 to 5-year warranty for the entire system and provide free replacements in case of quality problems.
Q6: Do you provide installation guidance?
Yes, installing videos and site guiding installation services are available for container orders.
