Product Description

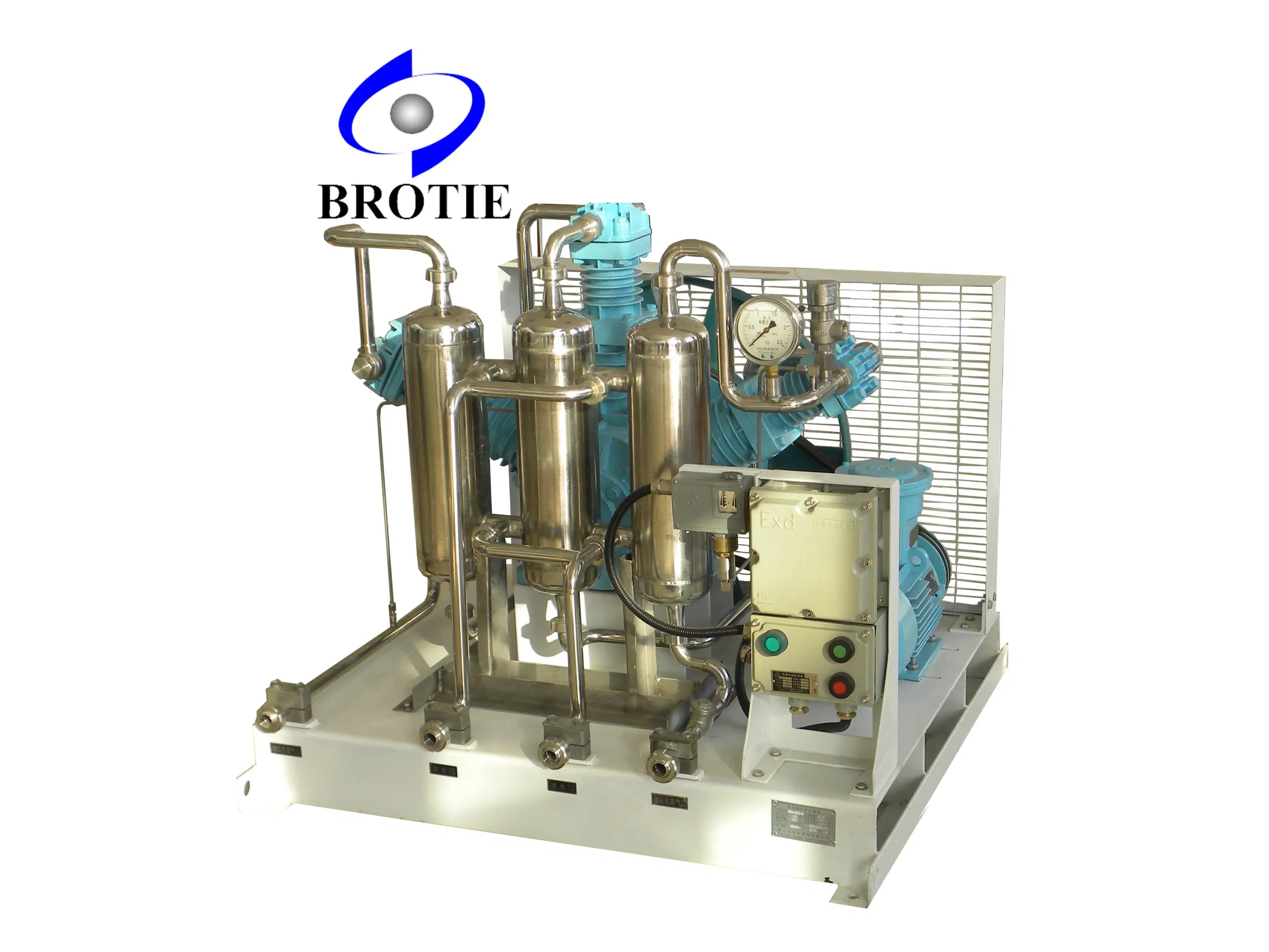

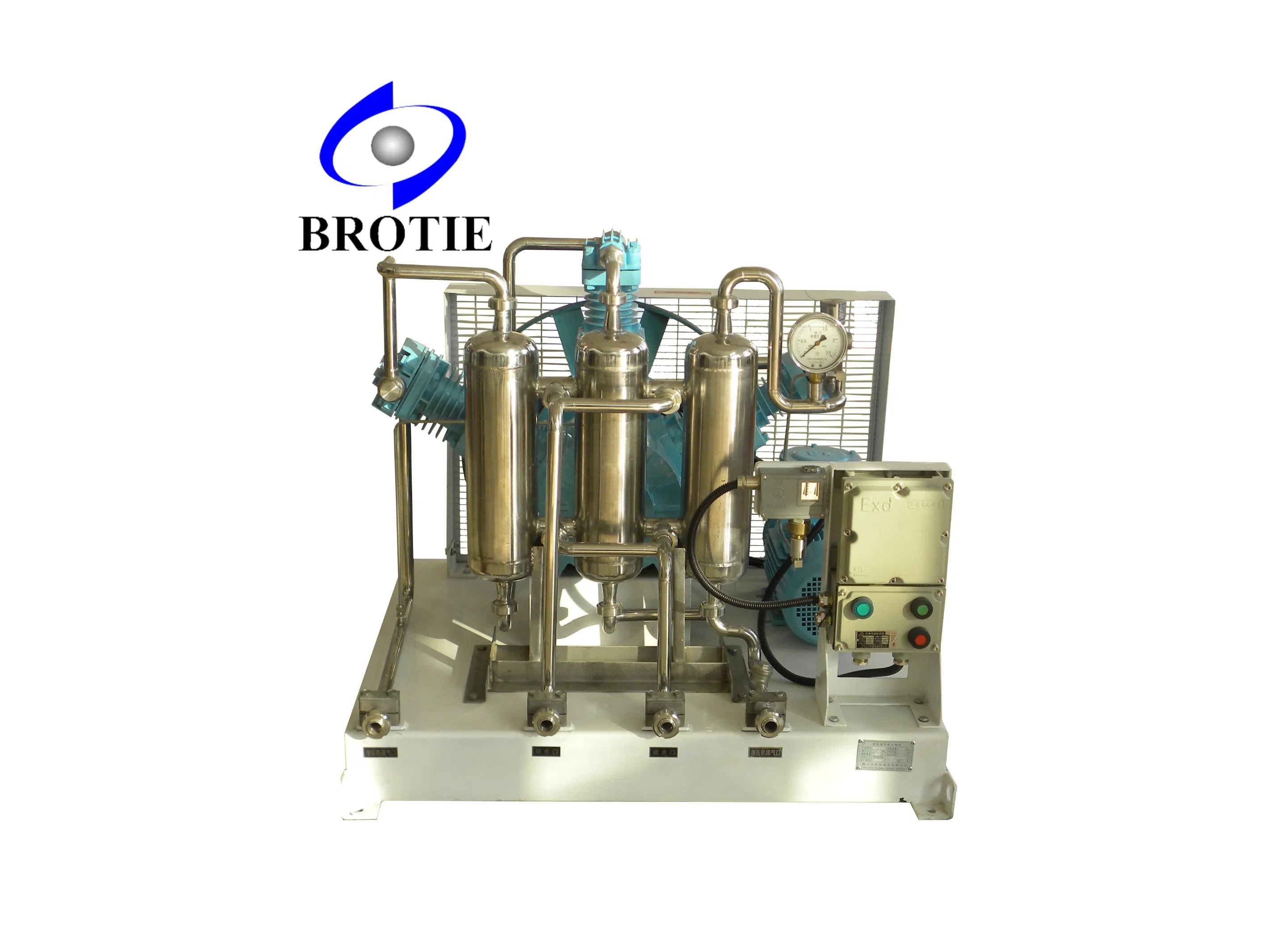

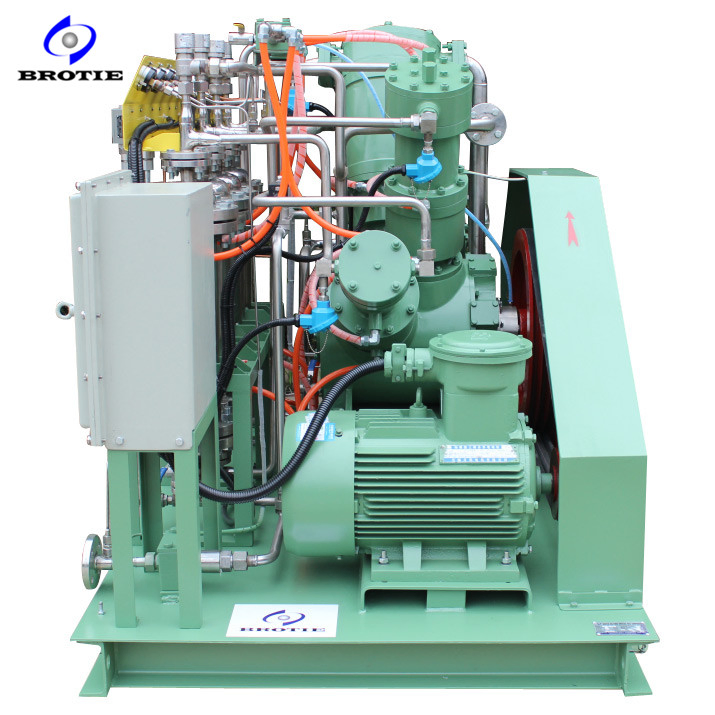

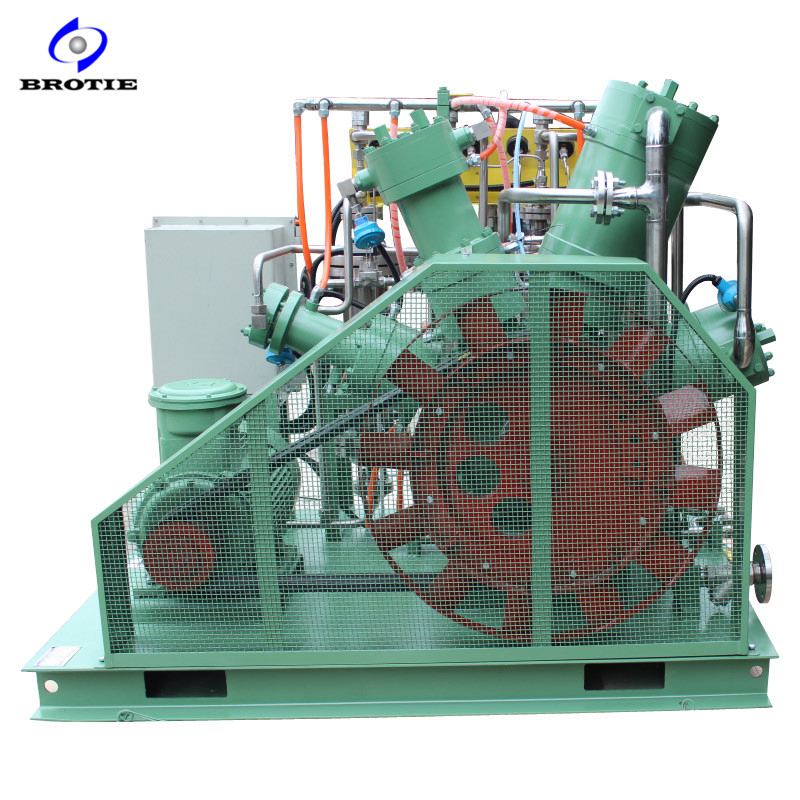

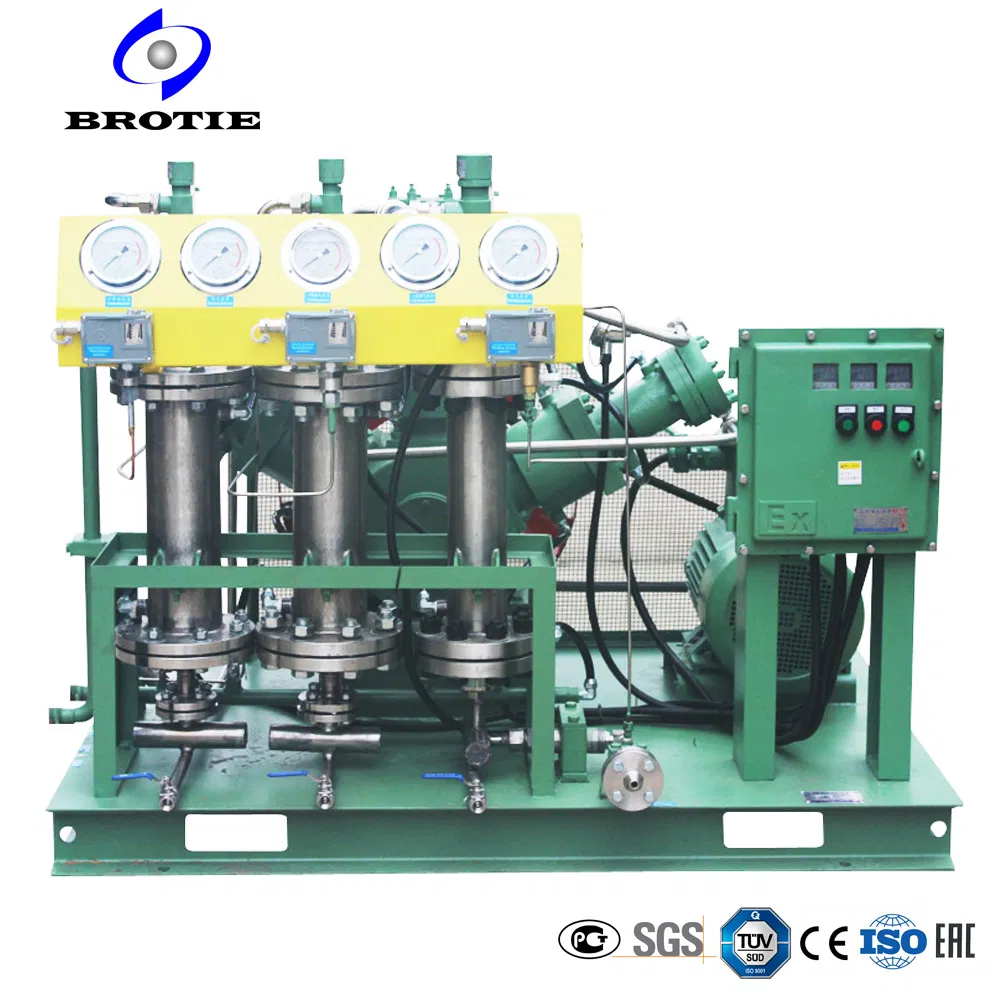

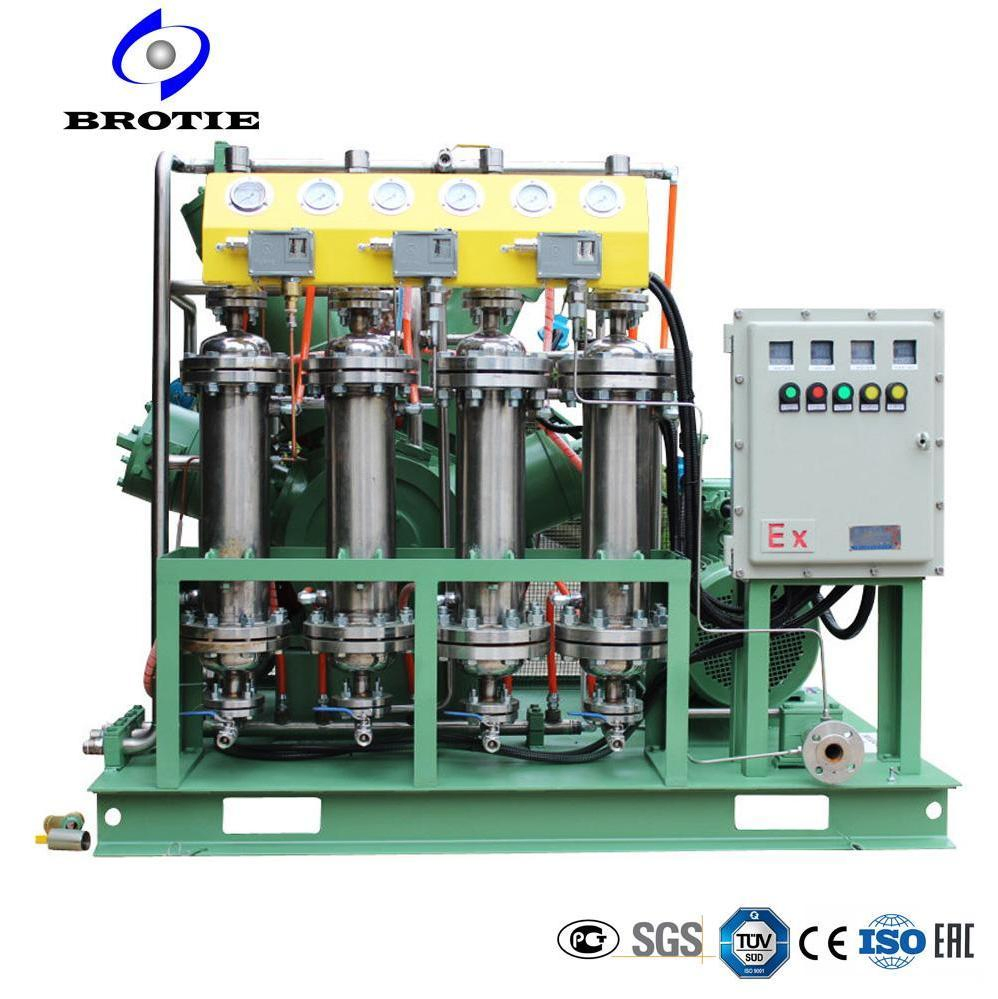

Totally Oil-free Hydrogen Compressor
This totally Oil-free Hydrogen compressor is a critical component for gas purification after separation and gas source recovery. Key features include high reliability, zero pollution, zero leakage, and simple, reliable operation.
| Working Principle | Oil-free lubrication reciprocating type compressor |
| Cooling Type | Wind or water cooling |
| Power Consumption | 1.5-45kw |
| RPM Range | 400-800rpm |
| Capacity Range | 2-400Nm3/h |
| Inlet Pressure | 0.05-10bar |
| Outlet Pressure | 2-200bar |
| Compressed Grade | 1-4 |
✓
Totally oil-free model: No oil lubrication used in the entire compressor system.
✓
Material Quality: All parts in contact with H2 gas are constructed from high-grade stainless steel.
✓
Custom Design: All models can be designed and manufactured according to specific requirements.
❓
Frequently Asked Questions
What are the advantages of a totally oil-free hydrogen compressor?
A totally oil-free design ensures that there is no oil contamination in the gas stream, maintaining the highest purity of hydrogen which is essential for fuel cells and sensitive industrial processes.
What cooling systems are available for these compressors?
We offer both wind (air) cooling and water cooling options depending on the site conditions and the specific power requirements of the unit.
What is the standard warranty period for the equipment?
The standard warranty period is 360 days from the date of completion of installation and commissioning.
Can the capacity and pressure be customized?
Yes, all models are designed and manufactured according to specific customer requirements, with capacity ranging from 2-400Nm3/h and outlet pressure up to 200bar.
What materials are used for hydrogen-contact parts?
To prevent hydrogen embrittlement and ensure long-term durability, all components that come into contact with hydrogen gas are made of high-quality stainless steel.
What is the typical lead time for delivery?
The typical delivery time is within 30 days from the date of order confirmation and initial payment.
