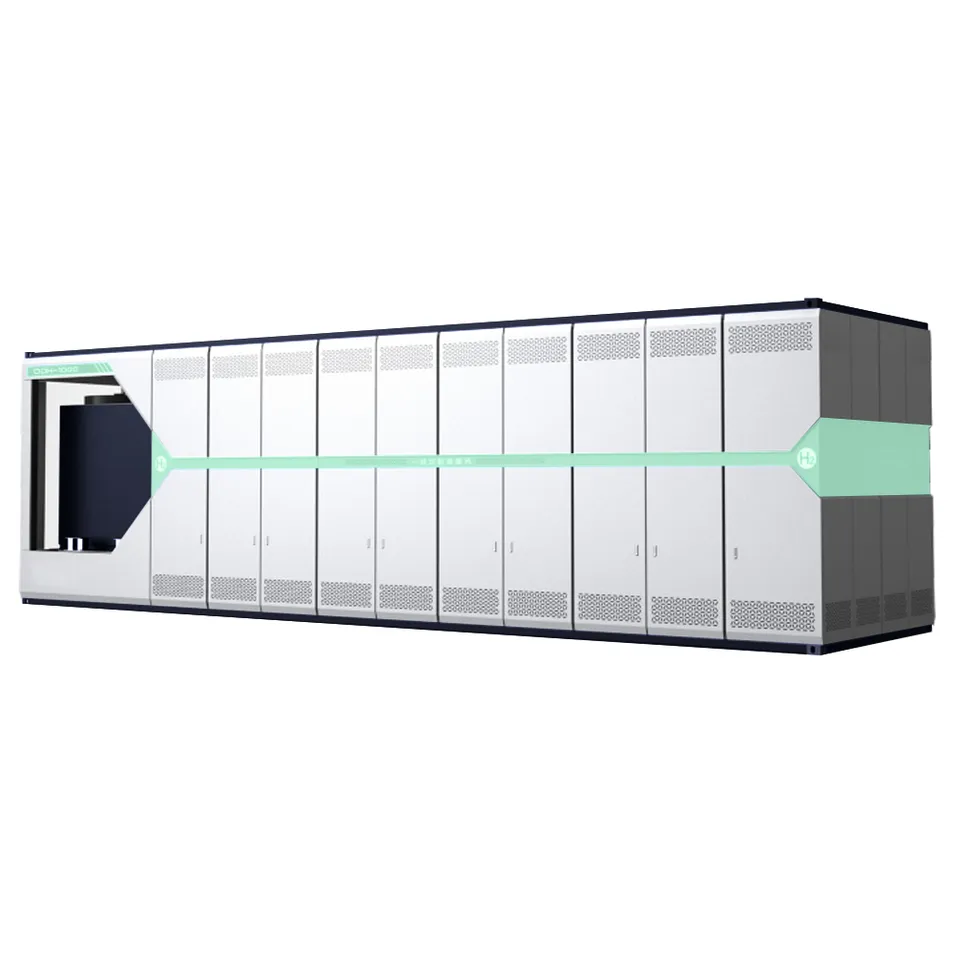

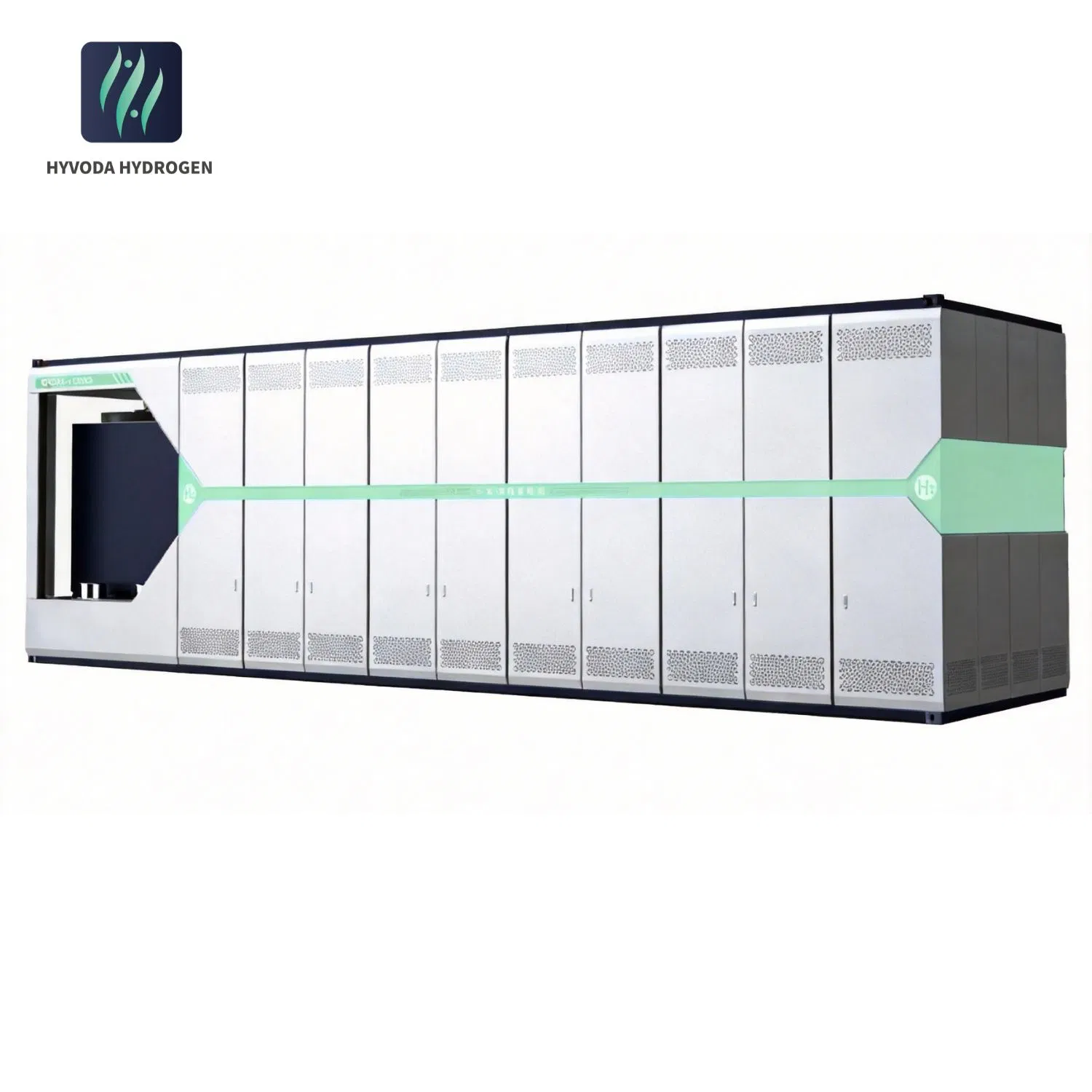

The ODH series intelligent hydrogen-rich gas generation system uses industrial heat transfer oil as the heating method. The hydrogen produced is mainly used for hydrogen blending in the natural gas part of the gate station or other large-scale hydrogen blending application scenarios. This system is based on the principle of hydrogen production through methanol cracking and can produce hydrogen-rich gas with a combustible gas proportion of over 95% for combustion. The hydrogen production capacity range of a single ODH series device is greater than 1000Nm³/h.
| Equipment Type | Methanol to produce crude hydrogen equipment | ||||||
| Series | Purity (vol%) | Pressure (MPaG) | Dew point (℃) | Hydrogen Temp (C) | Life (years) | Flow range (%) | Purification Mode |
| ODH Series | 65-75 | ≤0.40 | ≥-10 | ≤40 | 15 | 30-110 | No purification |
| Capacity (Nm³/h) | Methanol (kg/h) | Water (kg/h) | Operating Power | Installed Power | Instrument Gas | Size (L×W×Hmm) | |
| >1000 | Non-standard customized production according to user's requirements. | ||||||
| Descriptions: Methanol hydrogen production system EPC turnkey, including engineering design, supply, on-site installation, technical service, and on-site training. | |||||||
Produces hydrogen-rich gas at over 1000 Nm³/h for large-scale applications like city gas grid blending and industrial fuel replacement.
Uses industrial heat-transfer oil for stable high-temperature operation, reducing electrical power consumption in continuous production.
Provides fully customized solutions for gate station hydrogen blending and large-scale fuel switching projects.
Engineered with industrial-grade components for continuous operation in demanding environments.

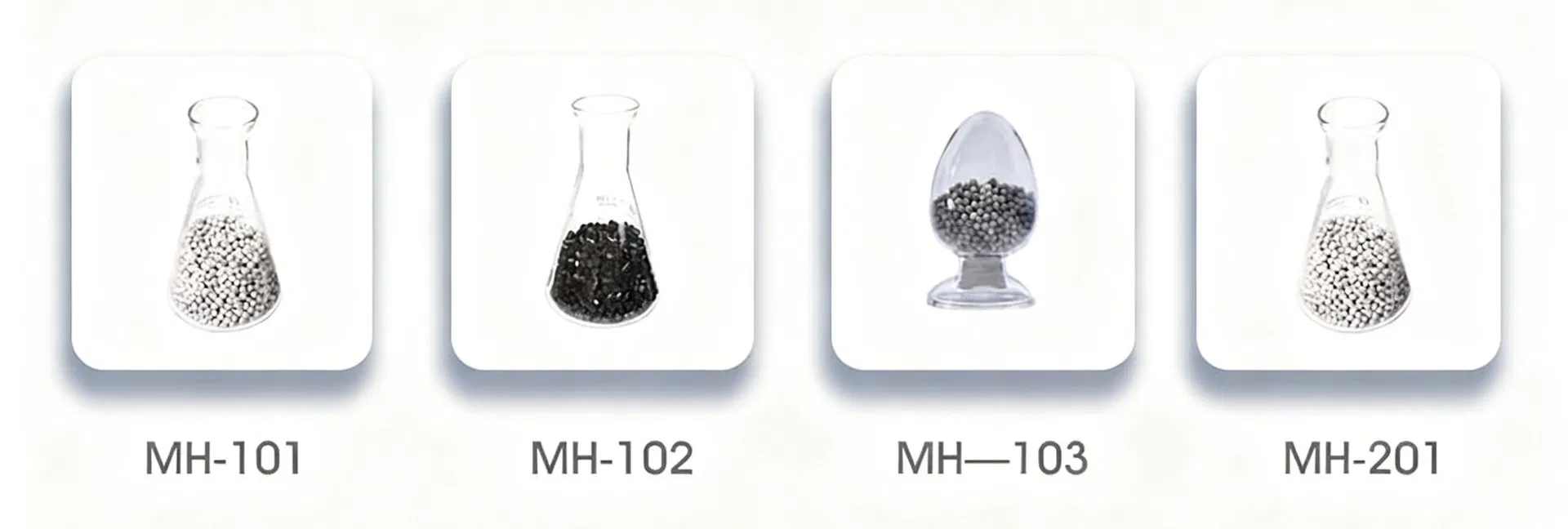

Methanol, a hydrogen-rich, low-carbon compound, is easily accessible, storable and transportable. To meet diverse market needs, we've developed a series of catalysts based on reaction temperatures: low-temperature MH-101 (180-230C), medium-temperature MH-102 (230-290C), and high-temperature MH-103 (300-600C).

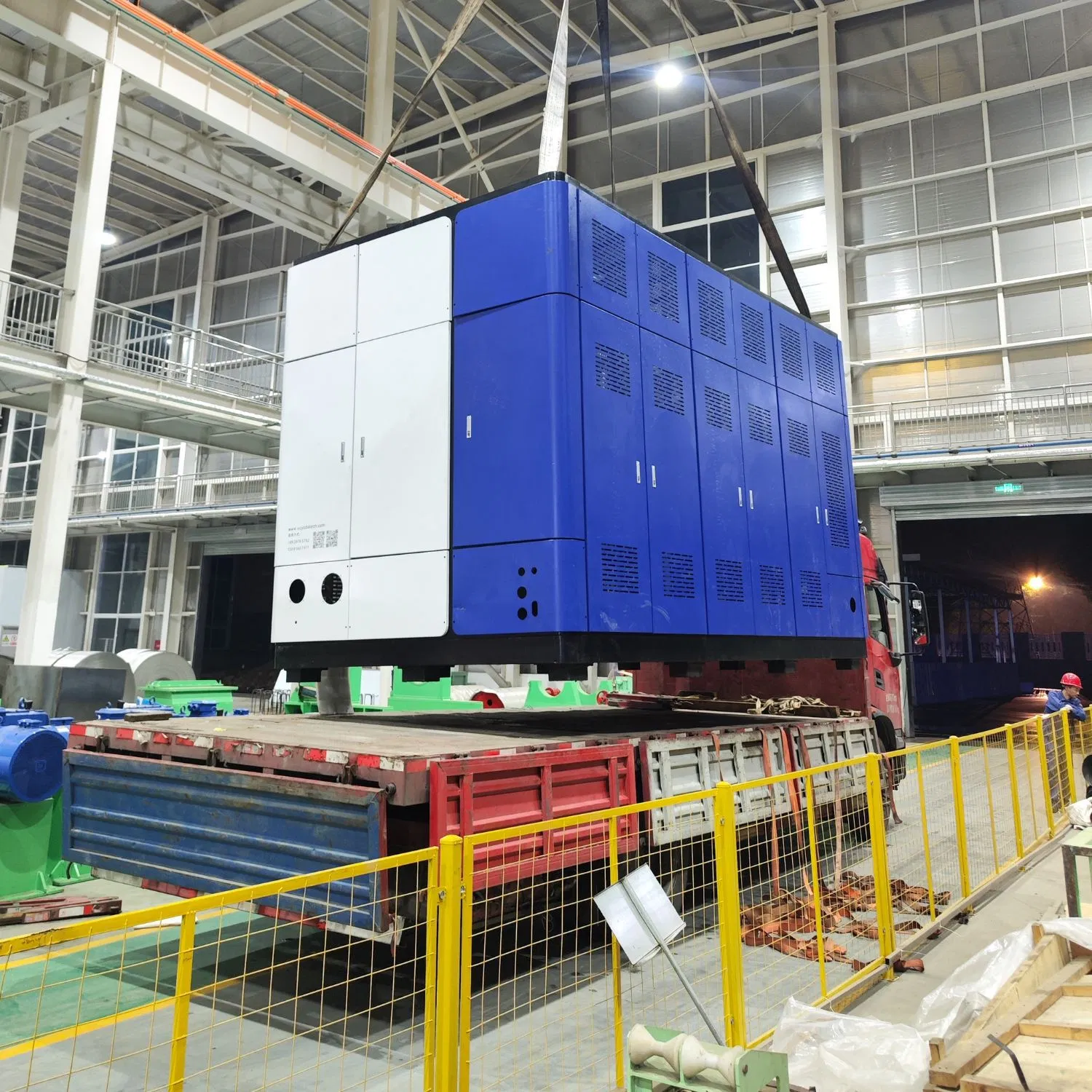

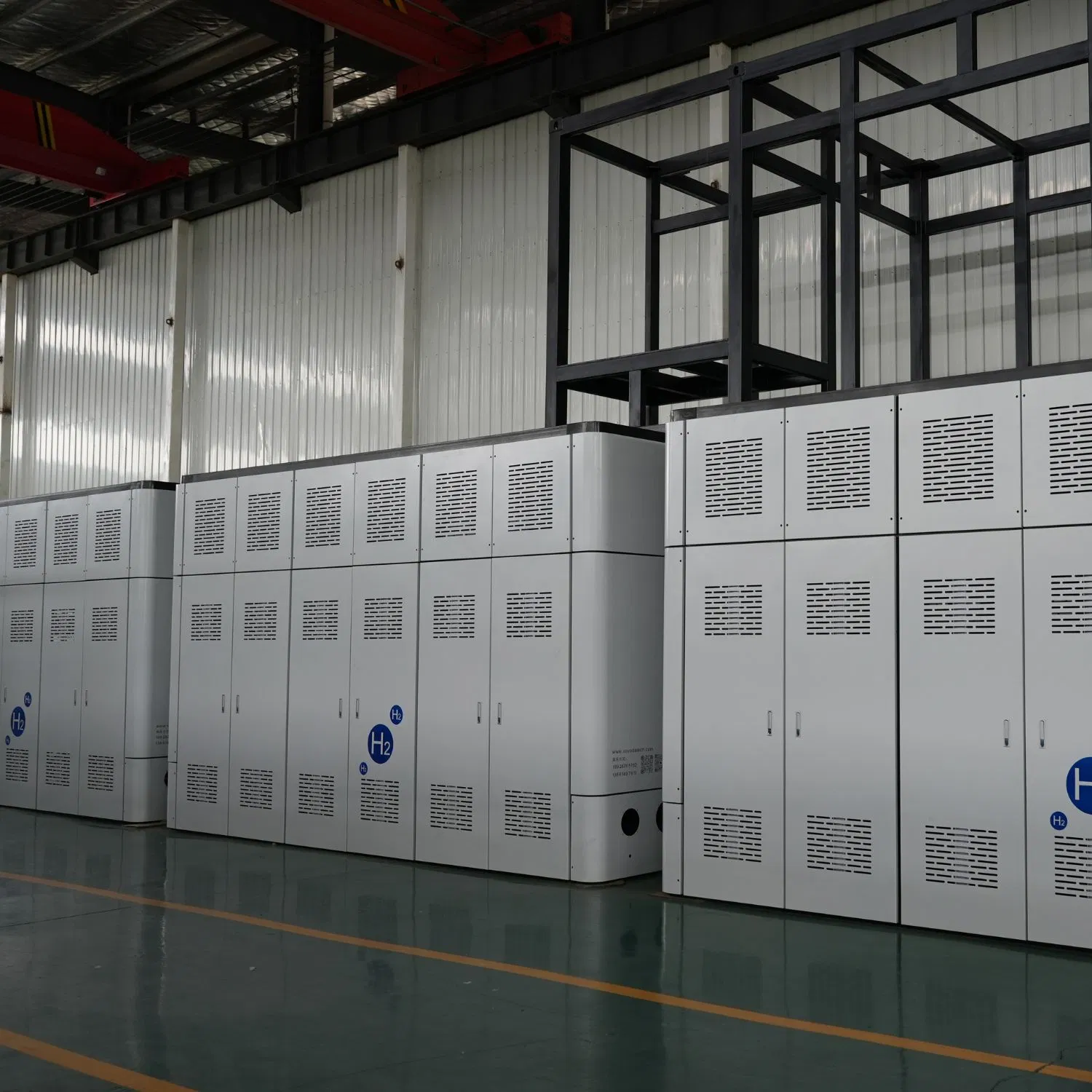

Skid-mounted design with a compact footprint for easy installation.
0.1–1000 Nm³/h supporting customized large-scale systems and flexible control.
Advanced heat-storage and waste-heat utilization boosting thermal efficiency to over 80%.
Fully explosion-proof, digital design enabling automatic and unattended operation.
