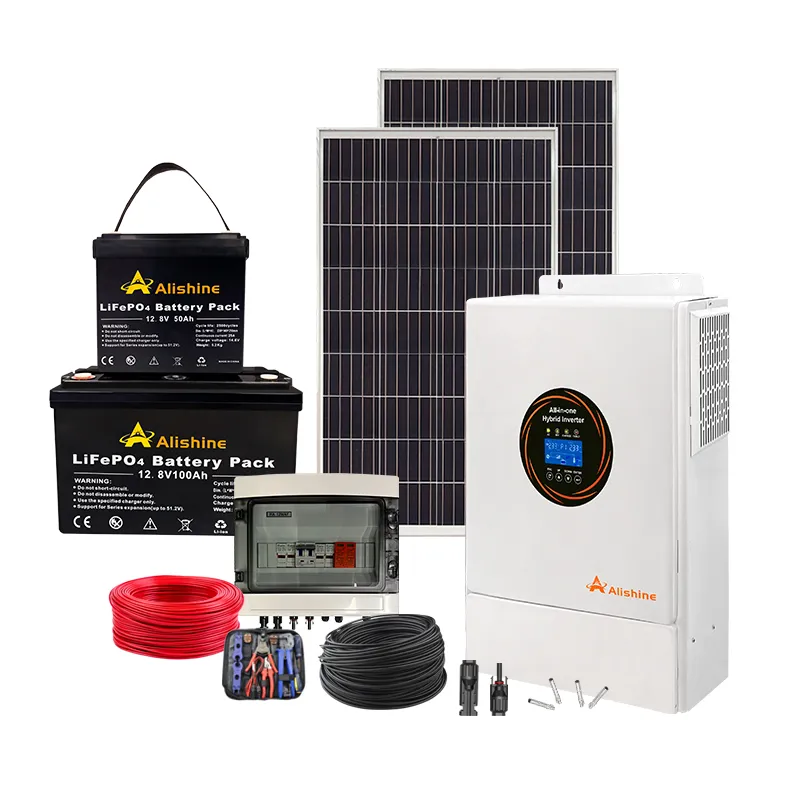

Complete 10kw Off Grid Solar Energy System Kit for Home and Commercial Power Solutions

1

Basic Information

Model NO.

15KW solar system

Phase

Single

Output Power

>1000W

Certification

CE, ROHS, ISO9001

Type

DC/AC Inverters

DC

48V/5.5kw

AC

230V

MPPT Current

Maximum 100A

PV Voltage

120-500V

Parallel

Supports 6 Parallel Machines

Origin

China

Power Source

Solar Power

Circuit Topologies

Push-pull Type

Capacity

50000

2

Packaging & Delivery

Package Size

200.00cm * 130.00cm * 50.00cm

Package Gross Weight

850.000kg

3

Product Description

Off Grid Home Hybrid Solar System 5KW 10KW Complete Parallel Solar Inverter

Product Advantages

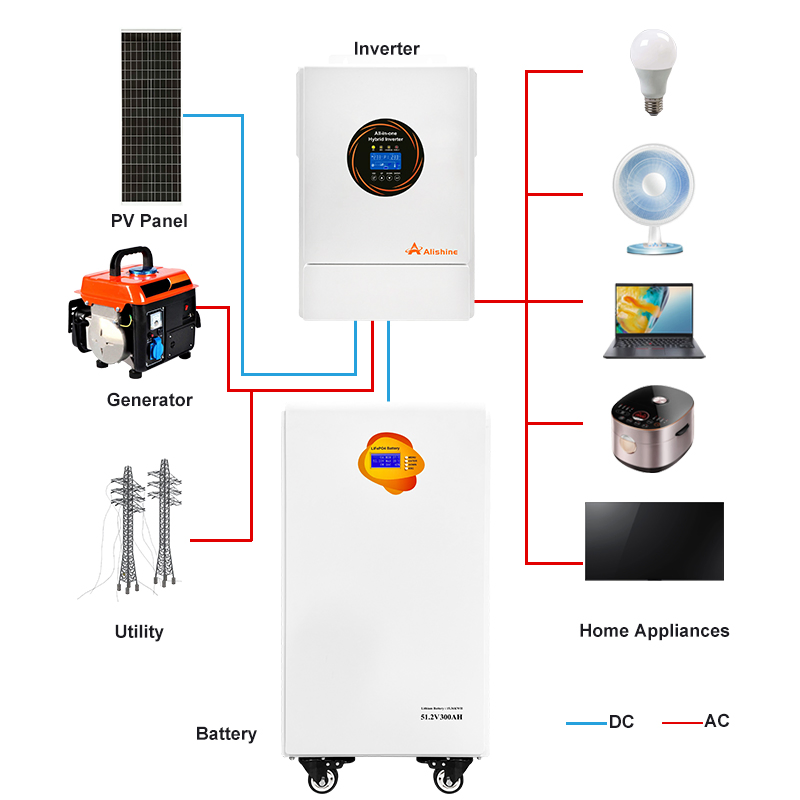

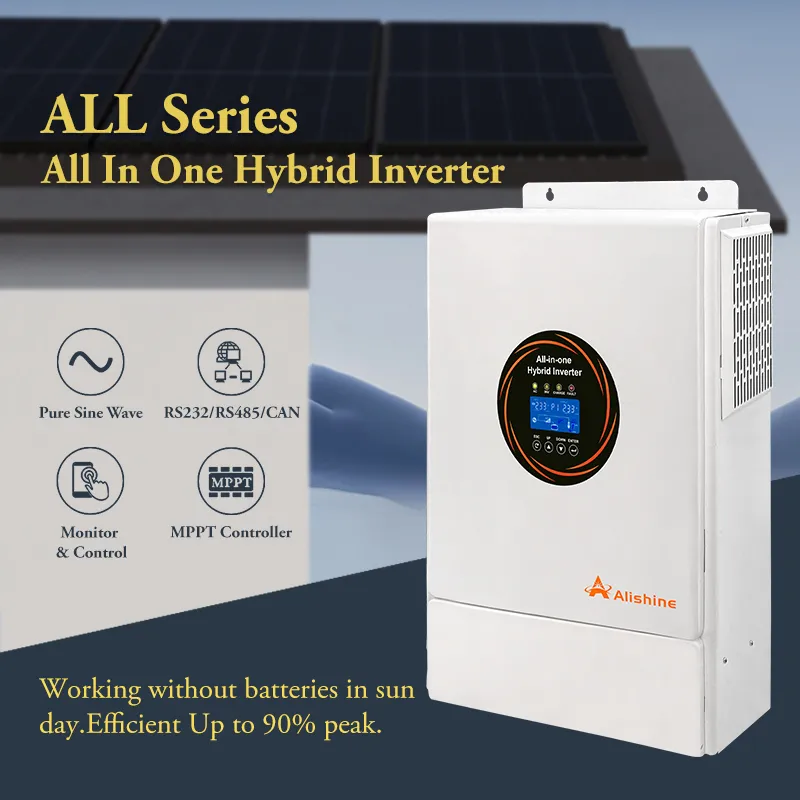

Off-grid hybrid solar inverter

3 in 1 design: Power Inverter + MPPT controller + Grid Charger

Working without battery during daytime

Support lithium activation wake-up and cold start function

Auto restart while AC is recovering

AC and PV charge voltage is adjustable

Adjustable Charge Current & Voltage (Lead acid / Lithium)

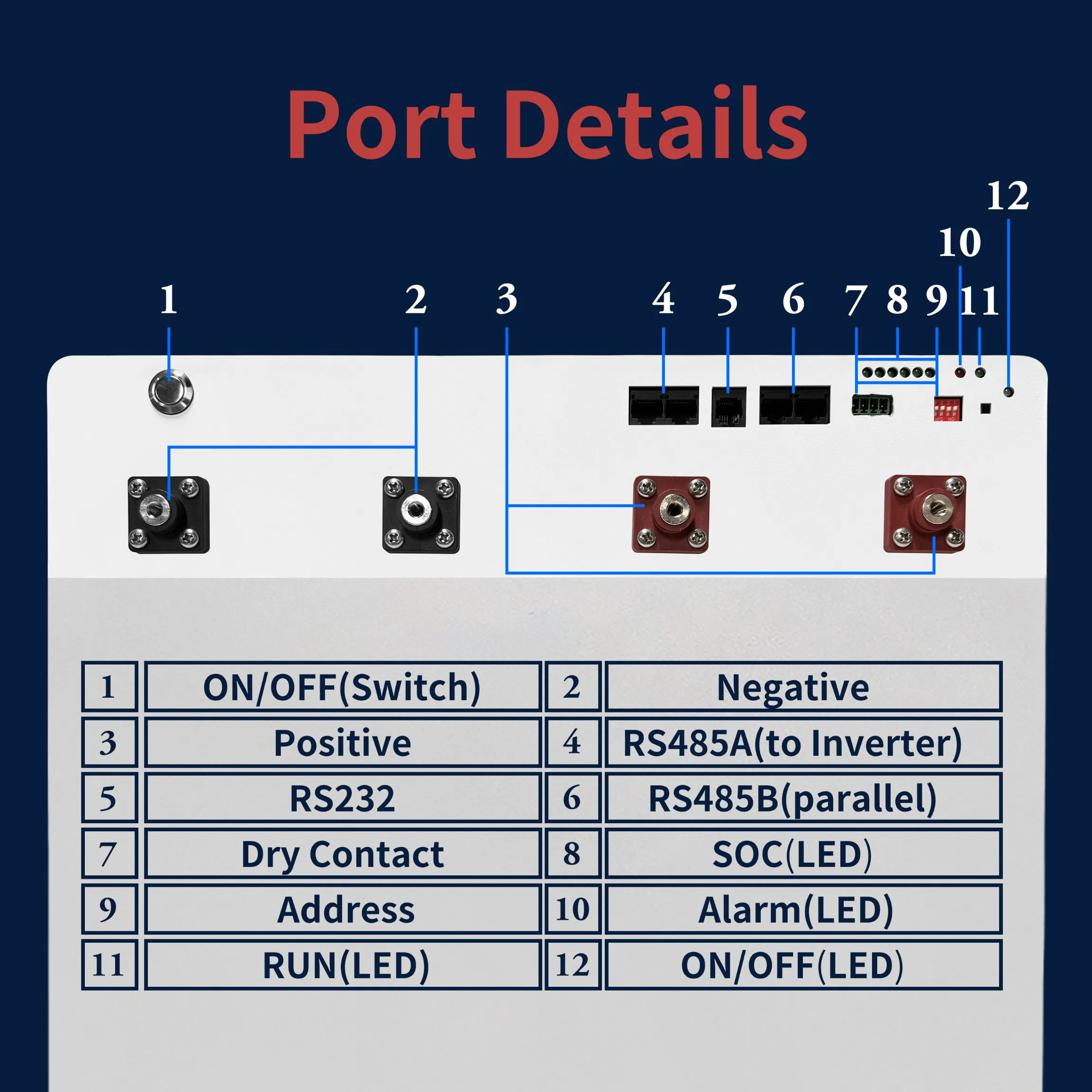

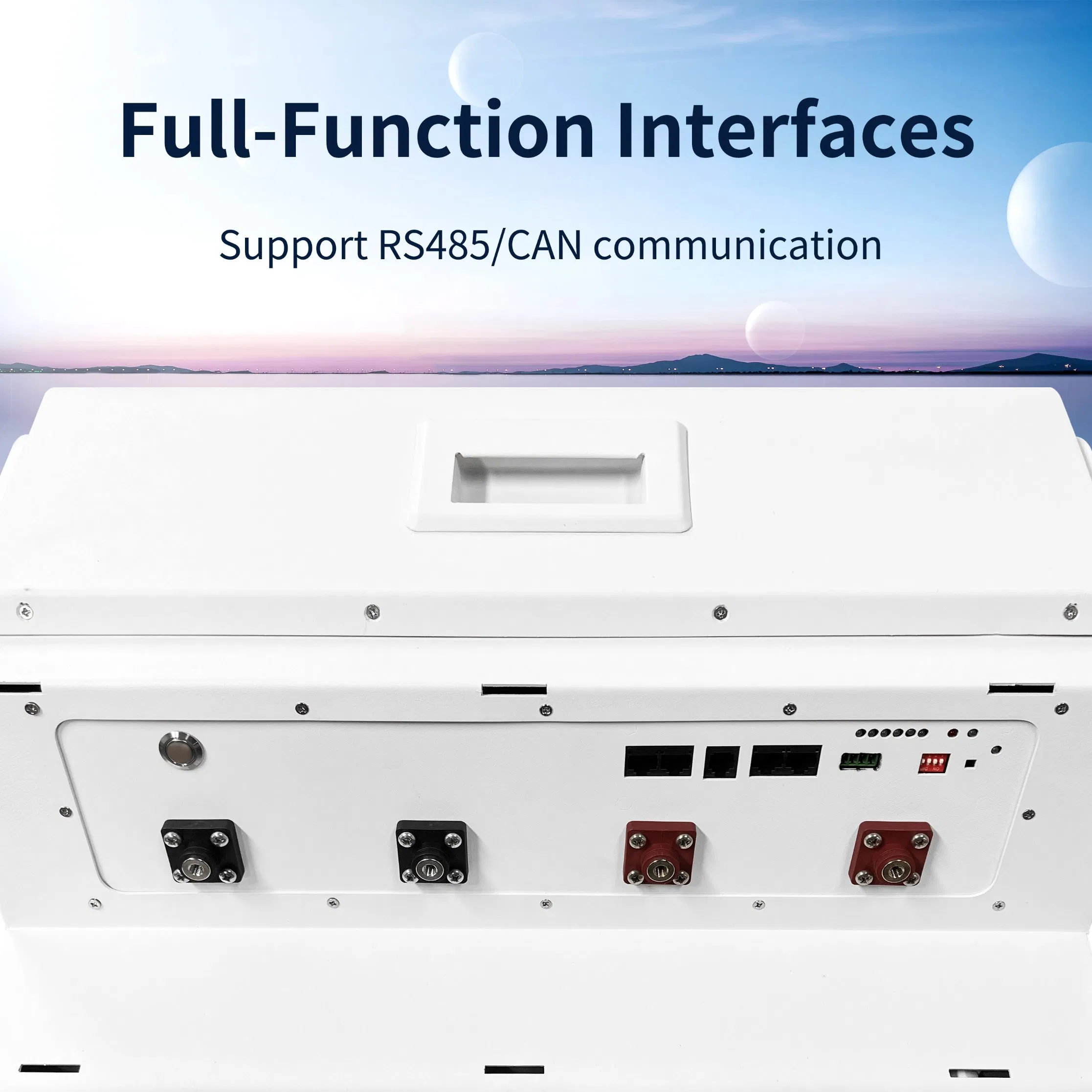

RS232, BMS/RS485, Dry Contact Communication

WiFi Plug or GPRS option for Mobile App

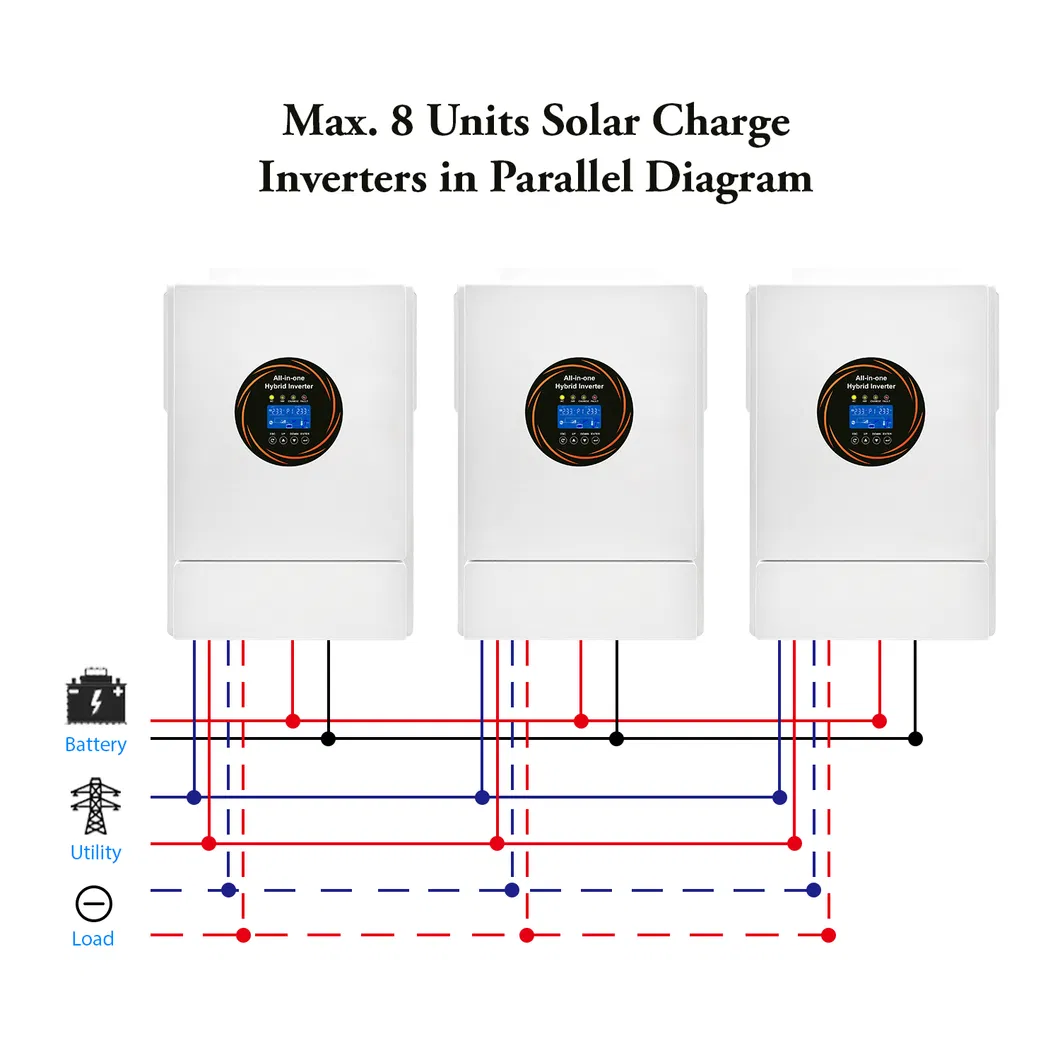

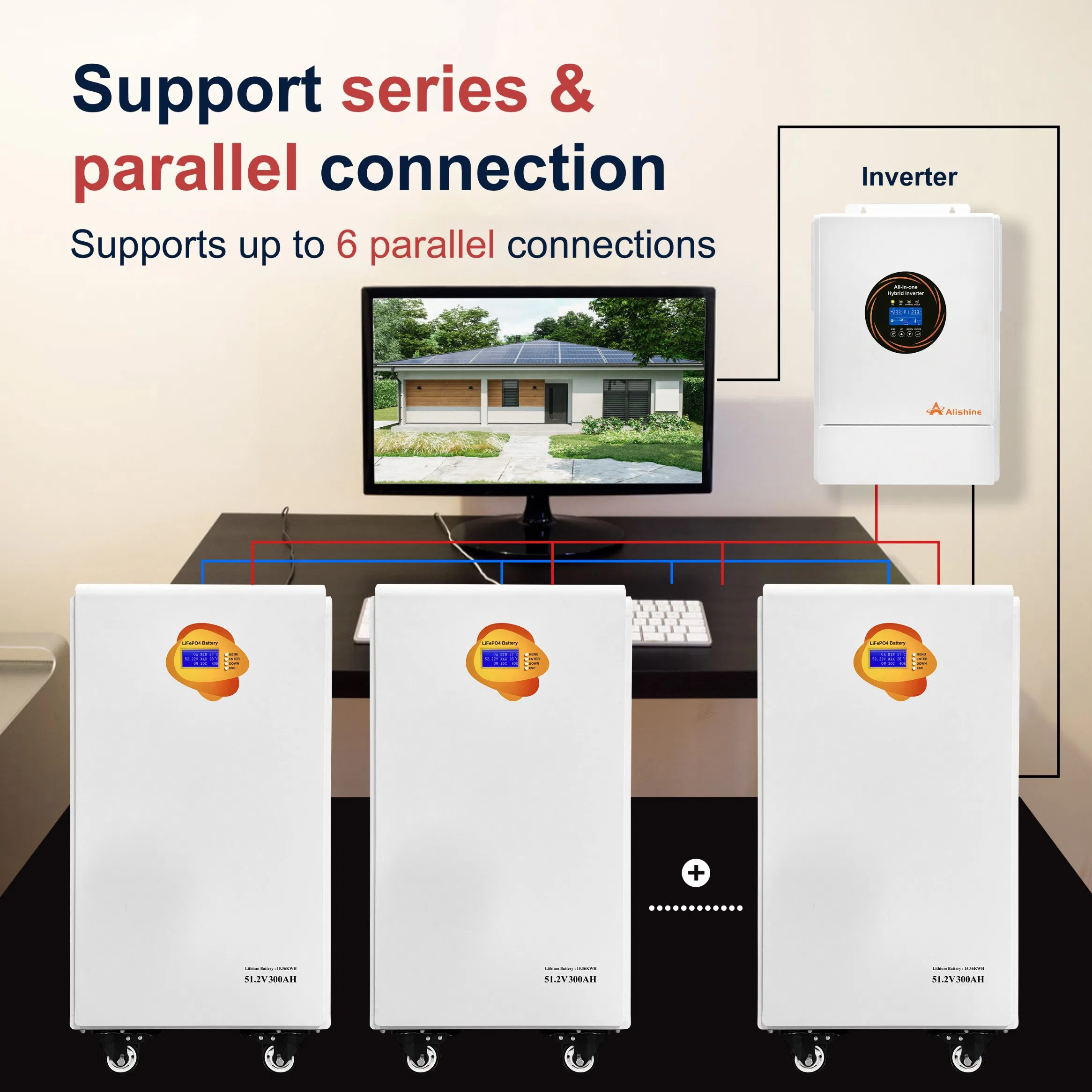

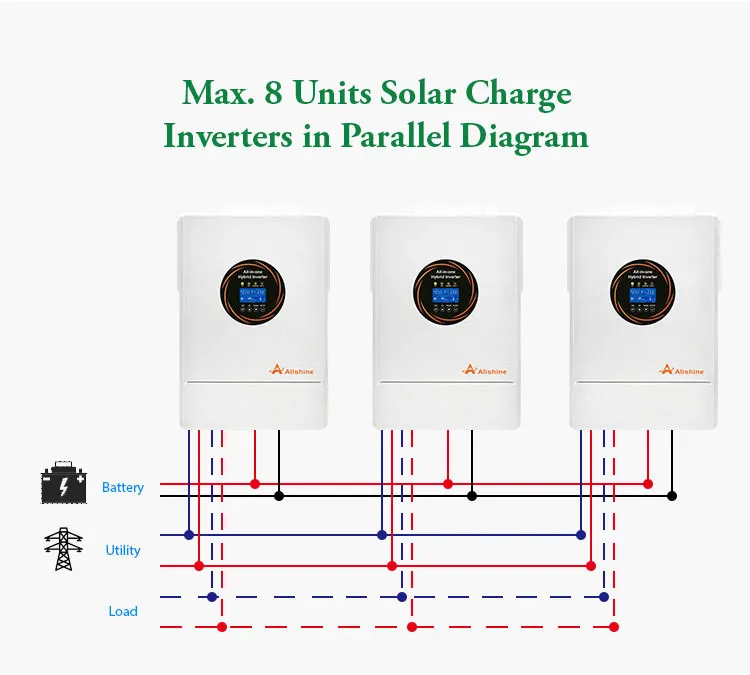

Parallel function, max can parallel 9 units

Pure sine wave output for different loads

Full protection: overload, over temp, short-circuit

4

Product Parameters

Product name	Parameters	Package / Features
AL-5.5KW	DC48V/5.5KW AC230V 50HZ/60HZ MPPT current: max 100A AC current: max 80A PV voltage: 120-500V	Stand-alone use Product: 536350135mm Package: 590435210mm
AL-5.5KWPro	DC48V/5.5KW AC230V 50HZ/60HZ MPPT current: max 100A AC current: max 80A PV voltage: 120-500V	With BMS communication Supports 9 parallel machines Product: 536350135mm
AL-11KW	DC 48V 11KW AC input/output: 220VAC Solar charging: MPPT Rated current: 150A MPPT input: 90V-500VDC Max PV power: 5500W * 2	Standard BMS & 232 communication Compatible with lithium/lead-acid Optional parallel operation Product: 570500148mm

5

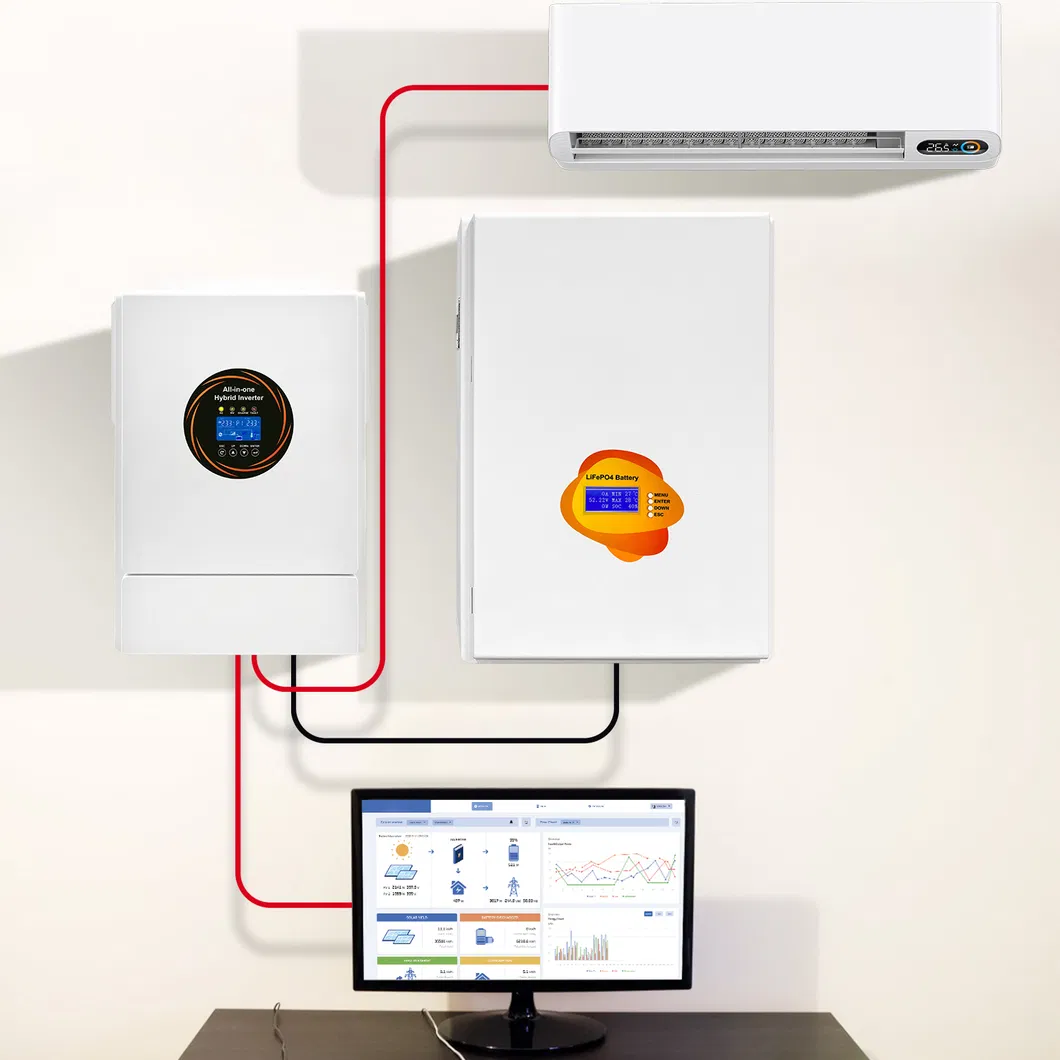

Installation Instructions

Do not mount the inverter on flammable construction materials. Mount on a solid surface.
The recommended installation position is to be adhered to the wall vertically.
Maintain distance from other objects to ensure adequate heat dissipation and room for wiring.

6

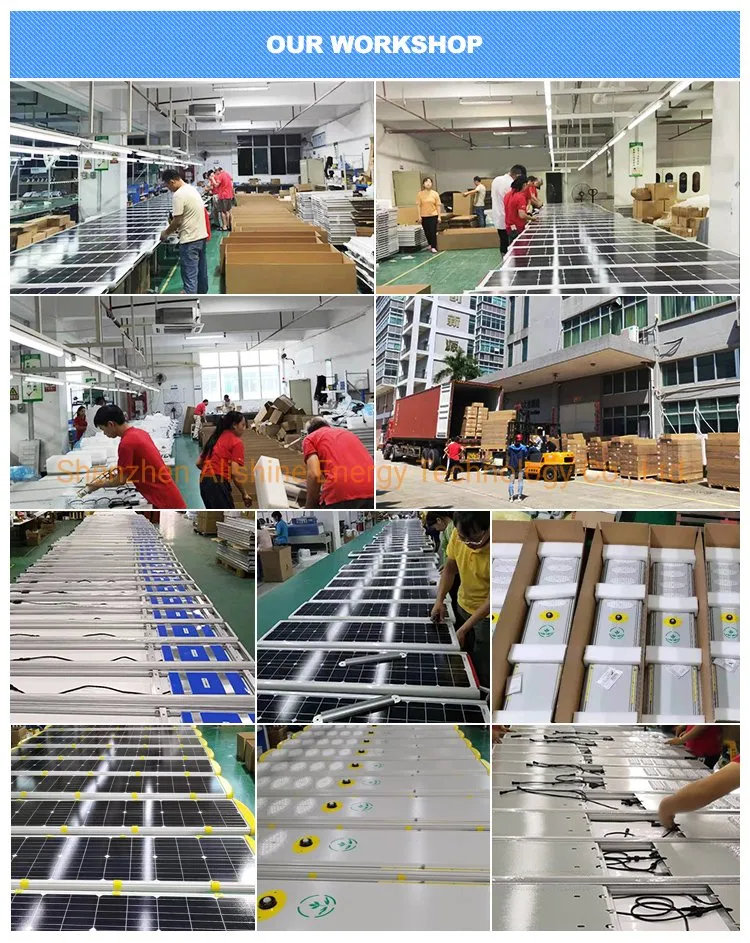

Factory Display

?

Frequently Asked Questions

Q1: What certificates do you have? A: We are a professional manufacturer with ISO9001, ISO14001, and ISO45001. All products have CE certificates, and other certifications can be customized for inspection.

Q2: Are you a factory or trading company? A: We are a professional battery manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients.

Q3: Can I take some samples to test before placing a bulk order? A: We provide our customers with sample products to test and evaluate their quality and performance. Please contact our sales team for more information.

Q4: How long is the delivery time? A: Sample orders are typically delivered within 7-10 days, and bulk production within 15-20 days.

Q5: Is the quality of your product guaranteed? A: In our 16 years of lithium battery production, safety and quality have always been our priority. No explosion or fire accidents have ever occurred.

Q6: What if I meet a problem during installation? A: We provide 24-hour online technical assistance and after-sales service to support you throughout the installation process.
