📋 Basic Specification
📦 Packaging & Delivery
Package Size
400.00cm * 350.00cm * 450.00cm
🚀 Product Description
| H2 Production |
2 ~ 20 Nm³/h H2 (Optional) |
DC Power Consumption |
4.1 or 4.3 kWh/Nm³ H2 (Optional) |
| Operation Temp |
65 ± 5 ºC |
Ambient Temp |
5 ~ 40 ºC |
| Initial H2 Purity |
Oxygen Content < 500 ppm, Water Saturated |
Outlet Pressure |
≤ 3.0 MPa (Optional) |
| Startup Time |
Cold: ≤ 20 min / Warm: 3 s |
Load Regulation Range |
10 % ~ 120 % |
| Design Lifetime |
≥ 80,000 h |
Warranty |
2 years |

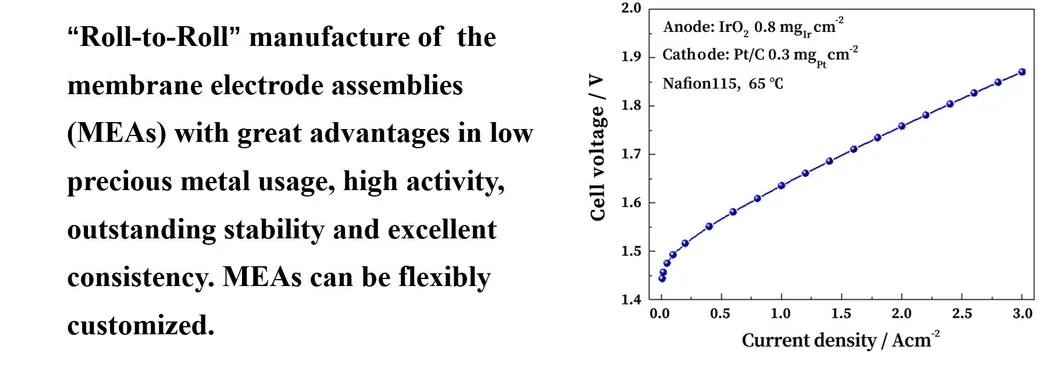

The team and technologies behind these systems are focused on the research and development of PEM water electrolysis technologies for more than twenty years. We produce high-quality PEM membrane electrode assembly (MEA), bipolar plates and coatings, fluid-dynamically optimized gas diffusion layer (GDL), and reliable sealing stacks. Ryzer PEM electrolyzer portfolios are in-house developed, manufactured, and tested according to ISO and ASME standards, CE mark, DEKRA, and TUV certification.
Ryzer® portfolios are designed for operation in any industrial environment with a focus on long-term economic viability. The entire system supports 24/7 operation, serviceability, and remote monitoring according to ISO22734, PED, ATEX, and CE standards.

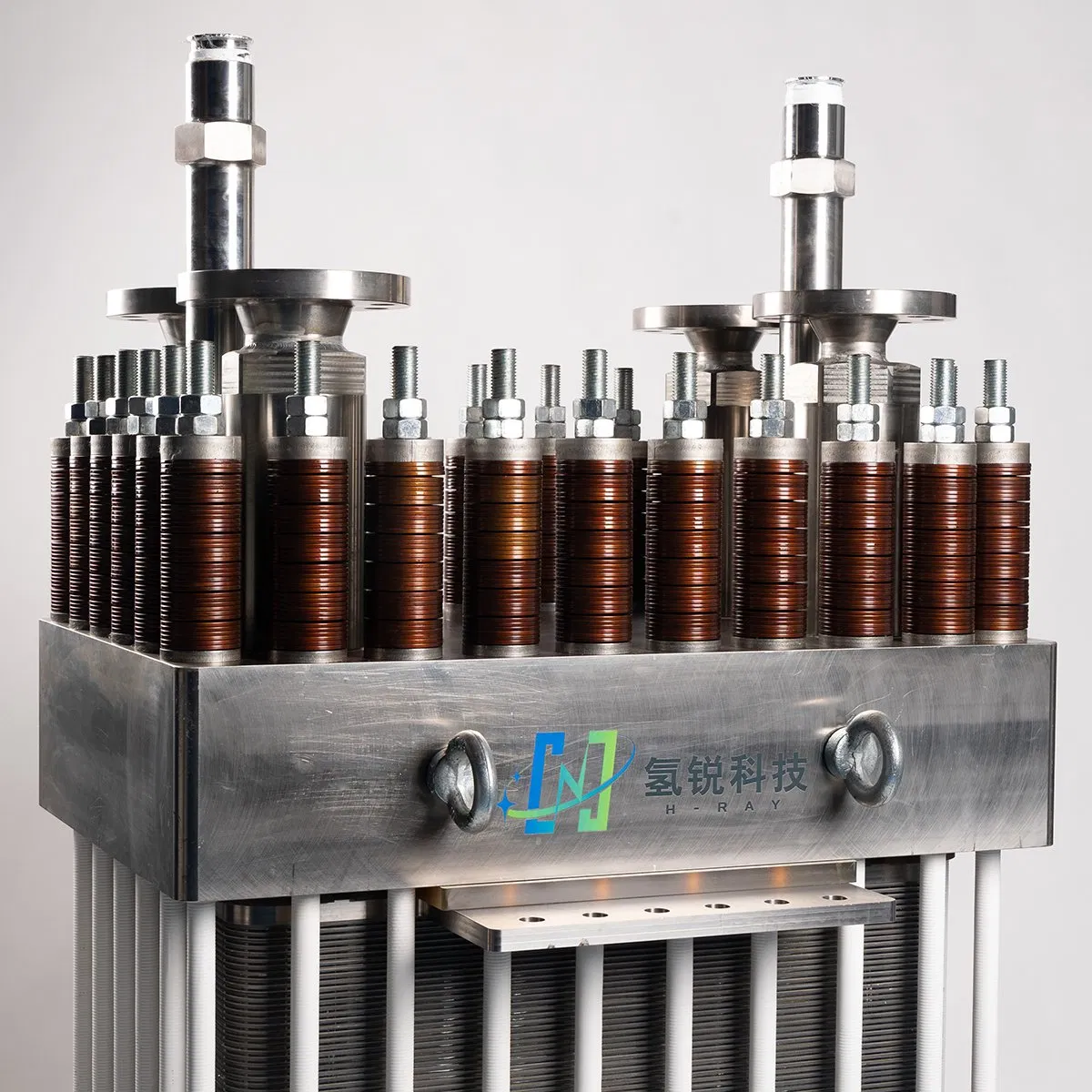

The PEM stack is engineered to operate for more than 80,000 hours or 10 years based on continuous full-load operation. The system and Balance of Plant (BOP) are designed for typical industrial lifetimes exceeding 20 years.

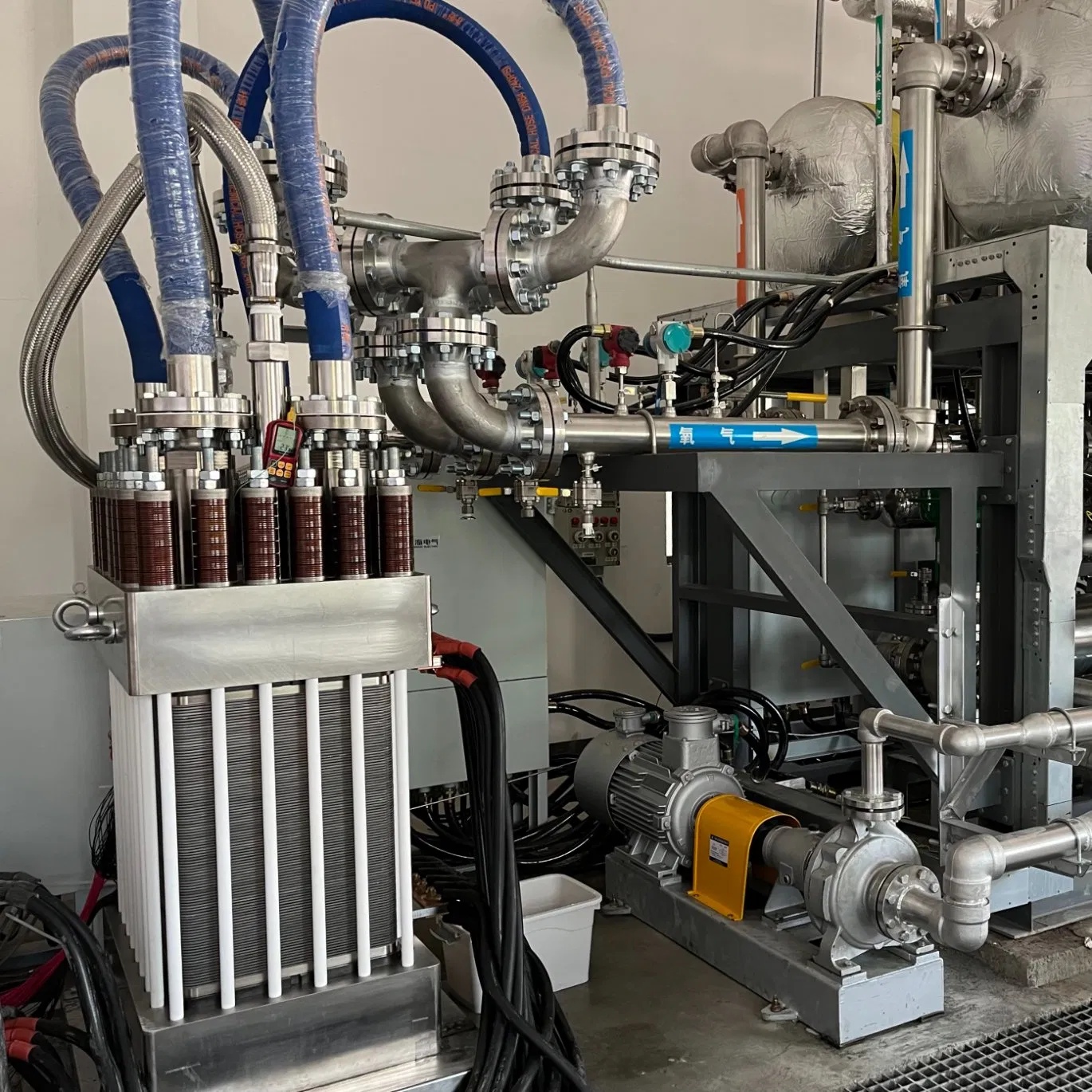

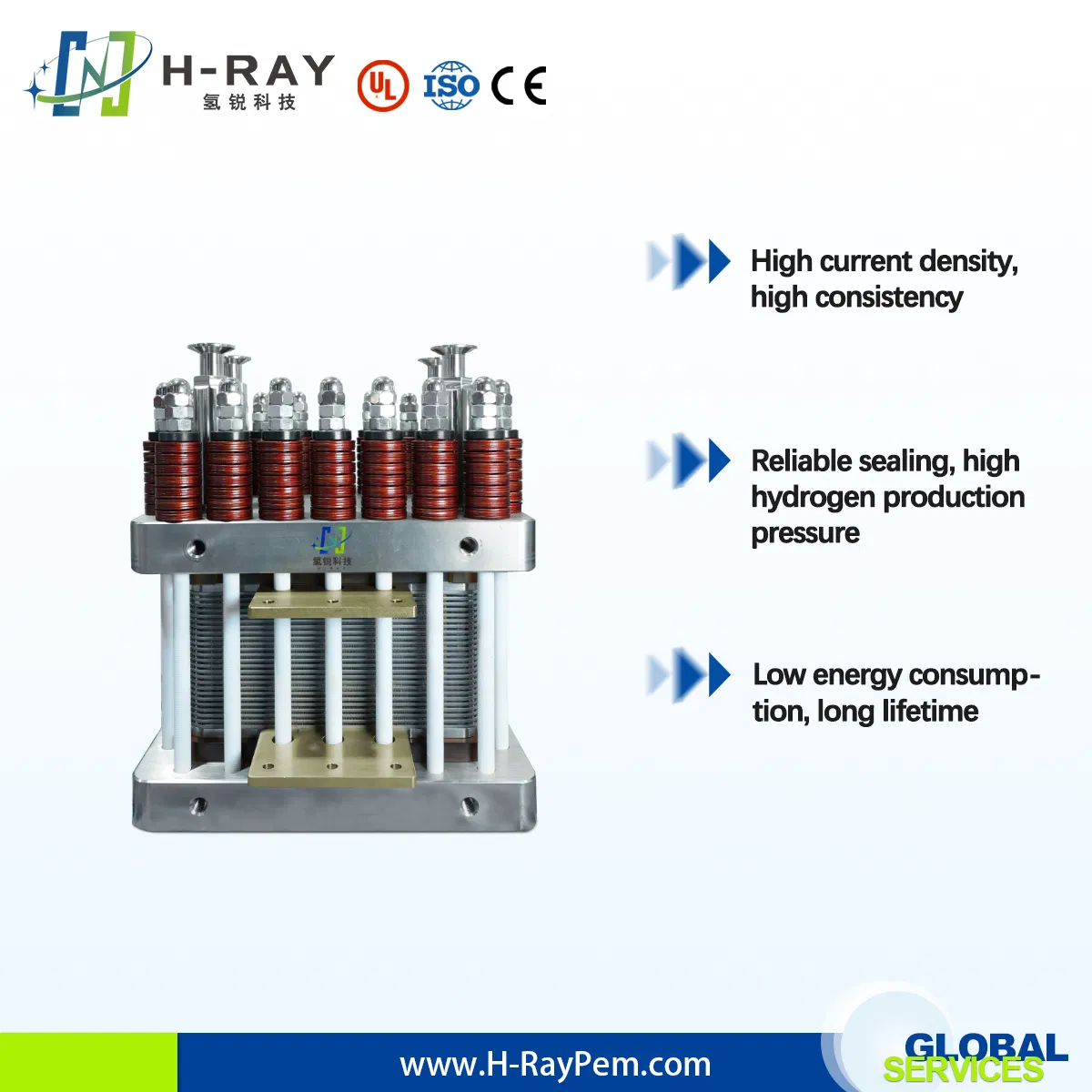

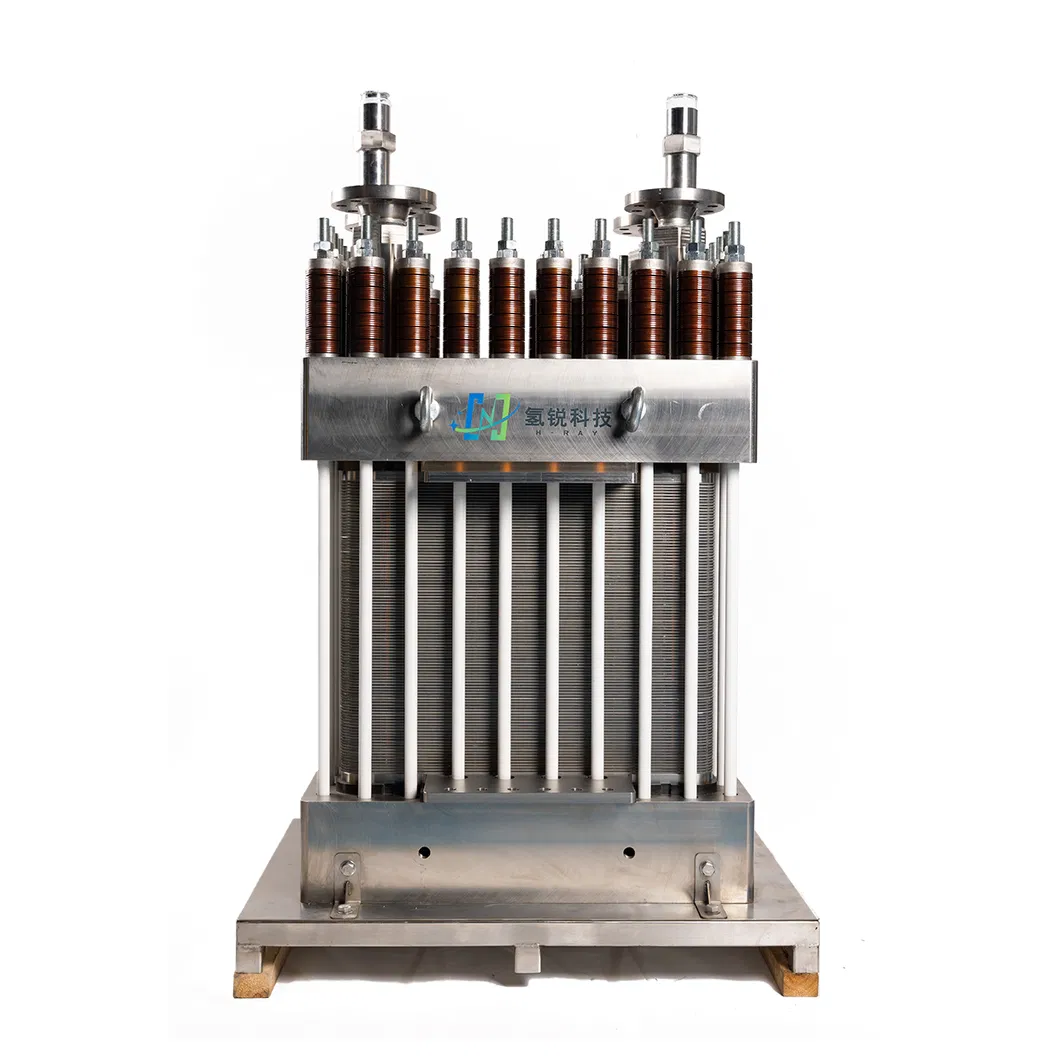

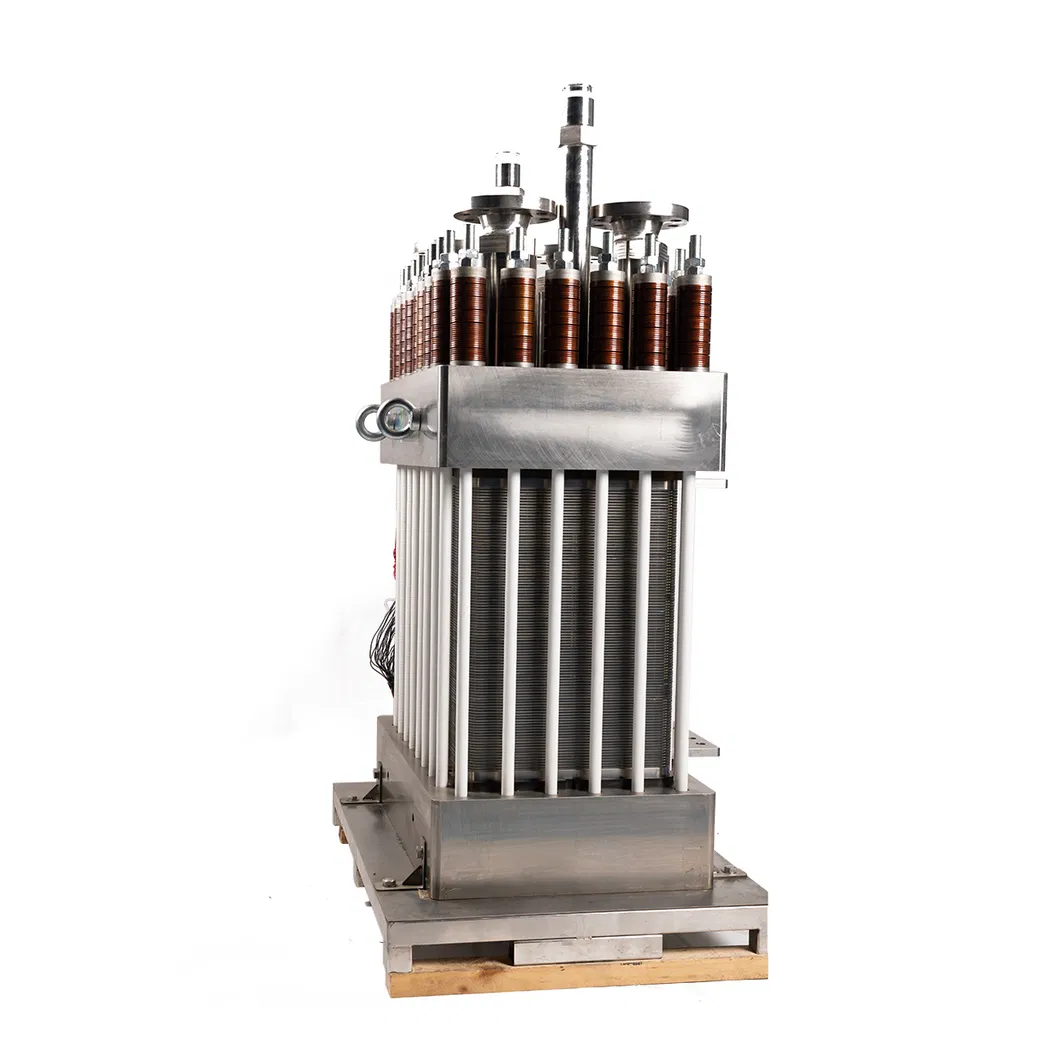

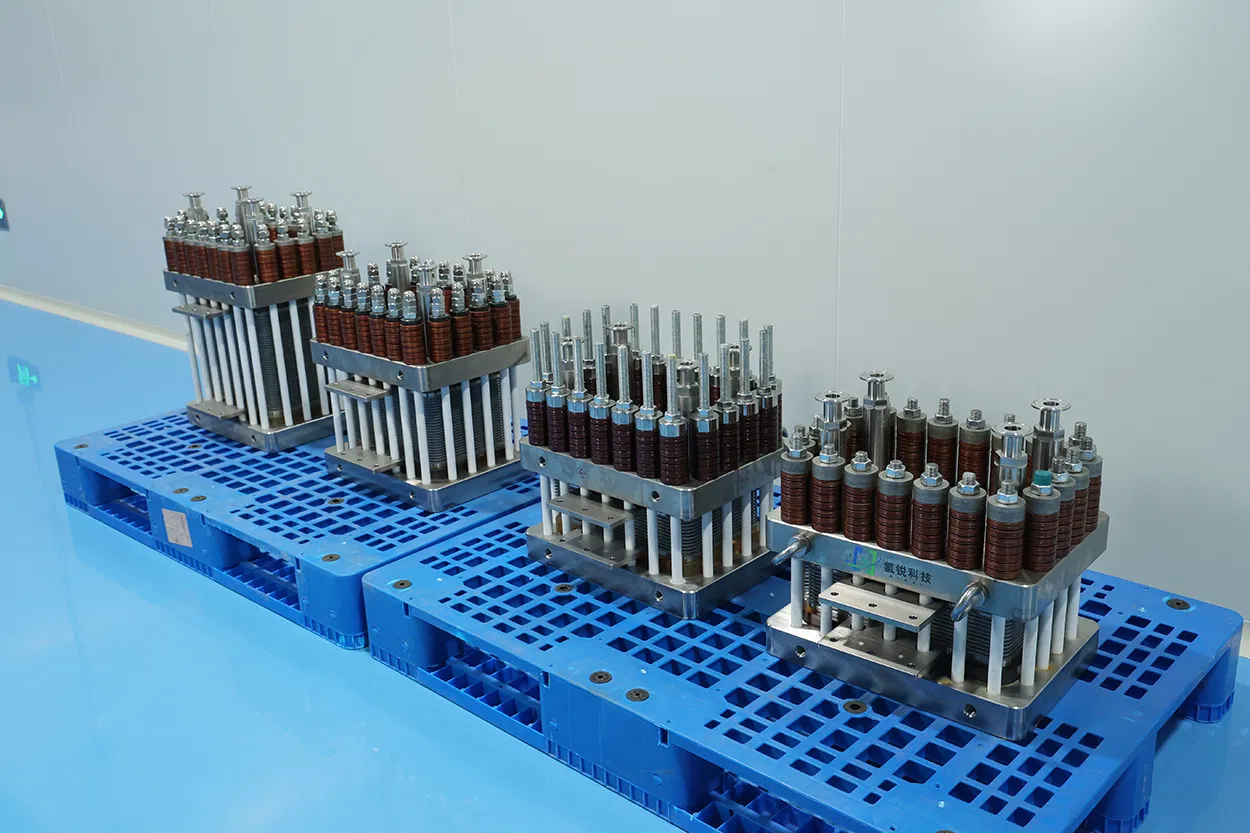

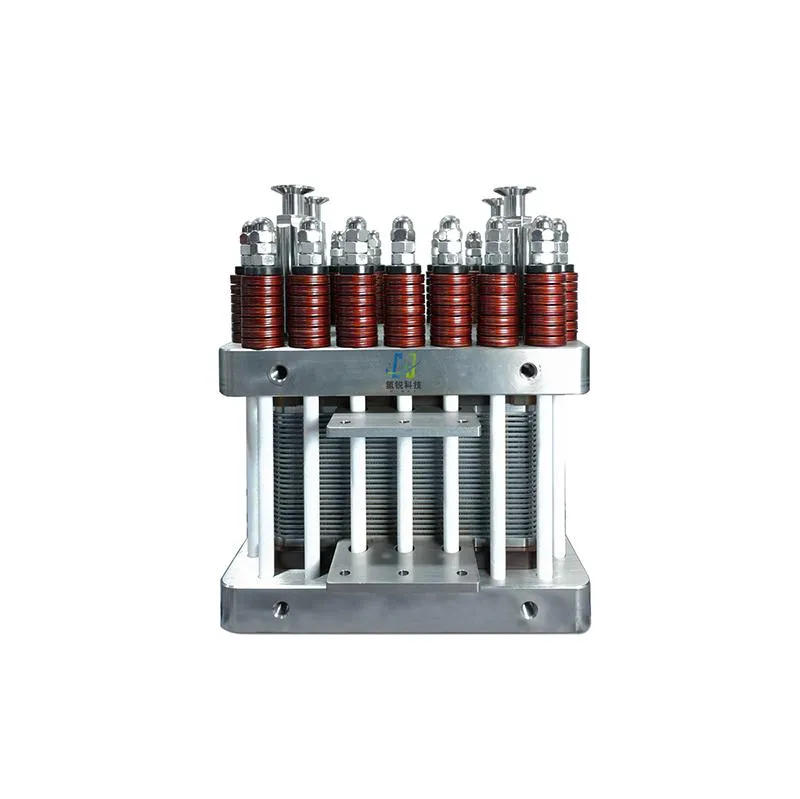

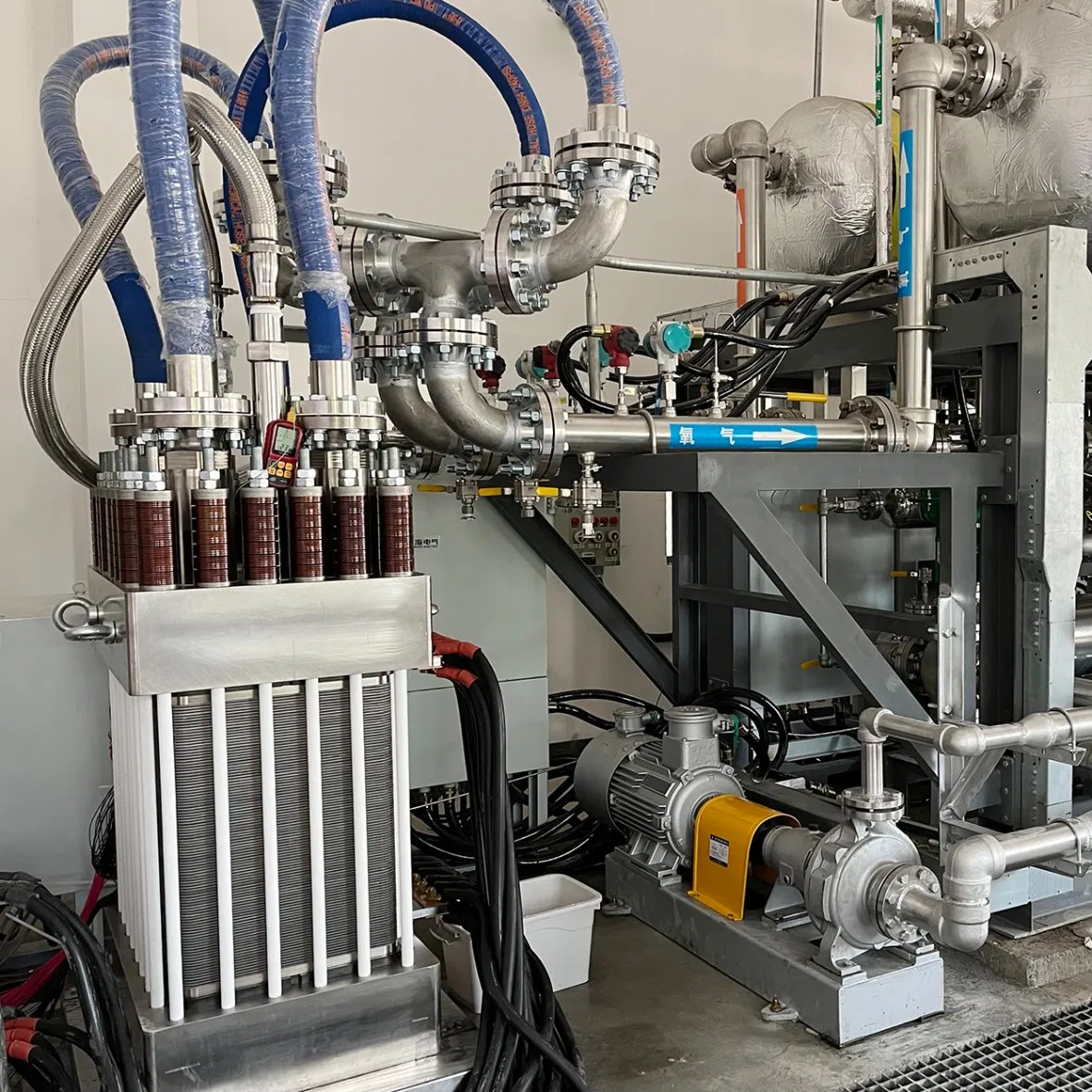

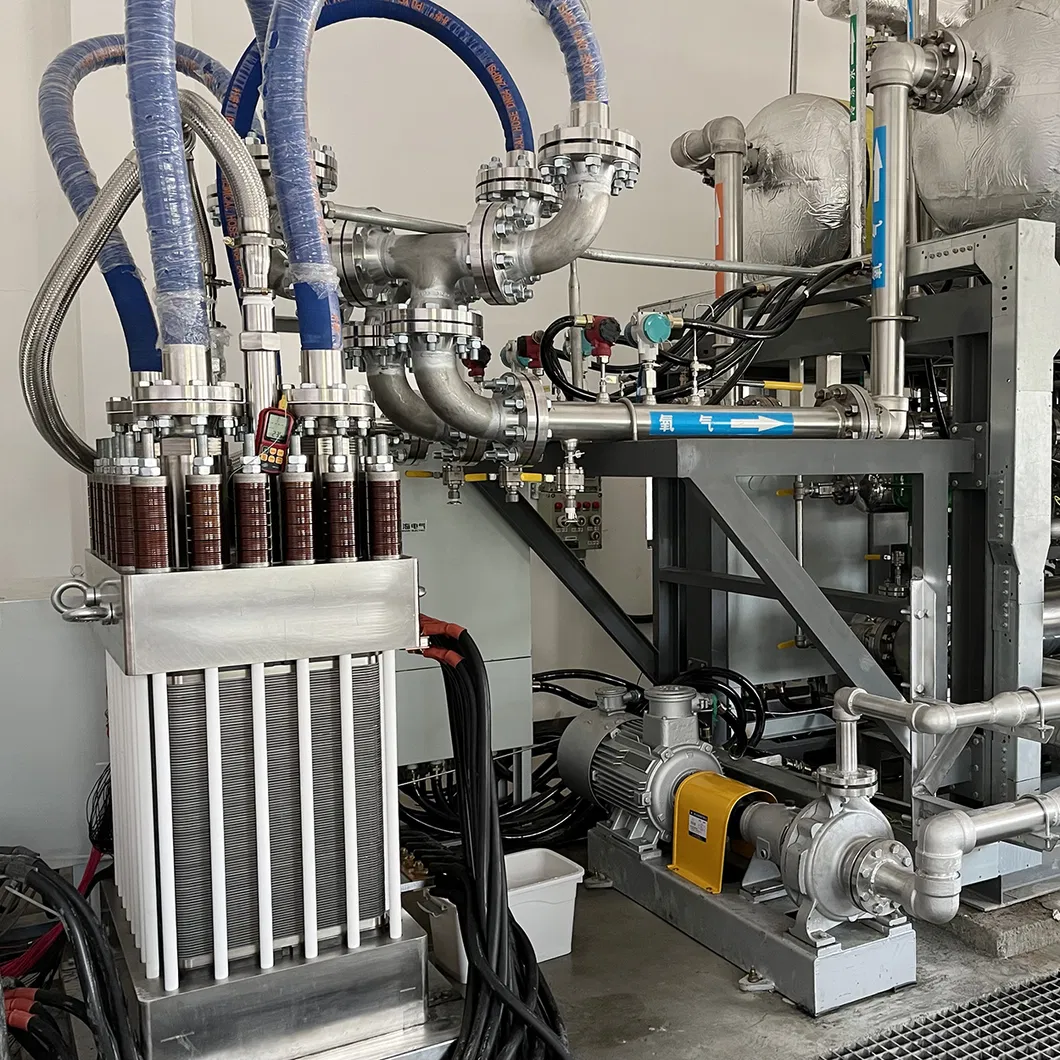

📷 Detailed Photos
❓ Frequently Asked Questions
What is the hydrogen production capacity of this system?
The system offers a production range from 2 to 20 Nm³/h H2, depending on the specific model selected.
What is the expected lifespan of the PEM stack?
The PEM stack is designed for a lifetime of ≥ 80,000 hours or approximately 10 years under continuous full-load operation.
What is the energy efficiency of the hydrogen production?
The DC power consumption is approximately 4.1 to 4.3 kWh/Nm³ of Hydrogen, making it an efficient solution for gas manufacturing.
What standards and certifications does the product comply with?
The products are manufactured and tested according to ISO and ASME standards, and carry CE mark, DEKRA, and TUV certifications. They also comply with ISO22734, PED, and ATEX.
How fast can the system start up?
The system features a cold startup time of ≤ 20 minutes and a warm startup time of only 3 seconds.
What is the maximum outlet pressure?
The system supports an optional outlet pressure of up to ≤ 3.0 MPa.
