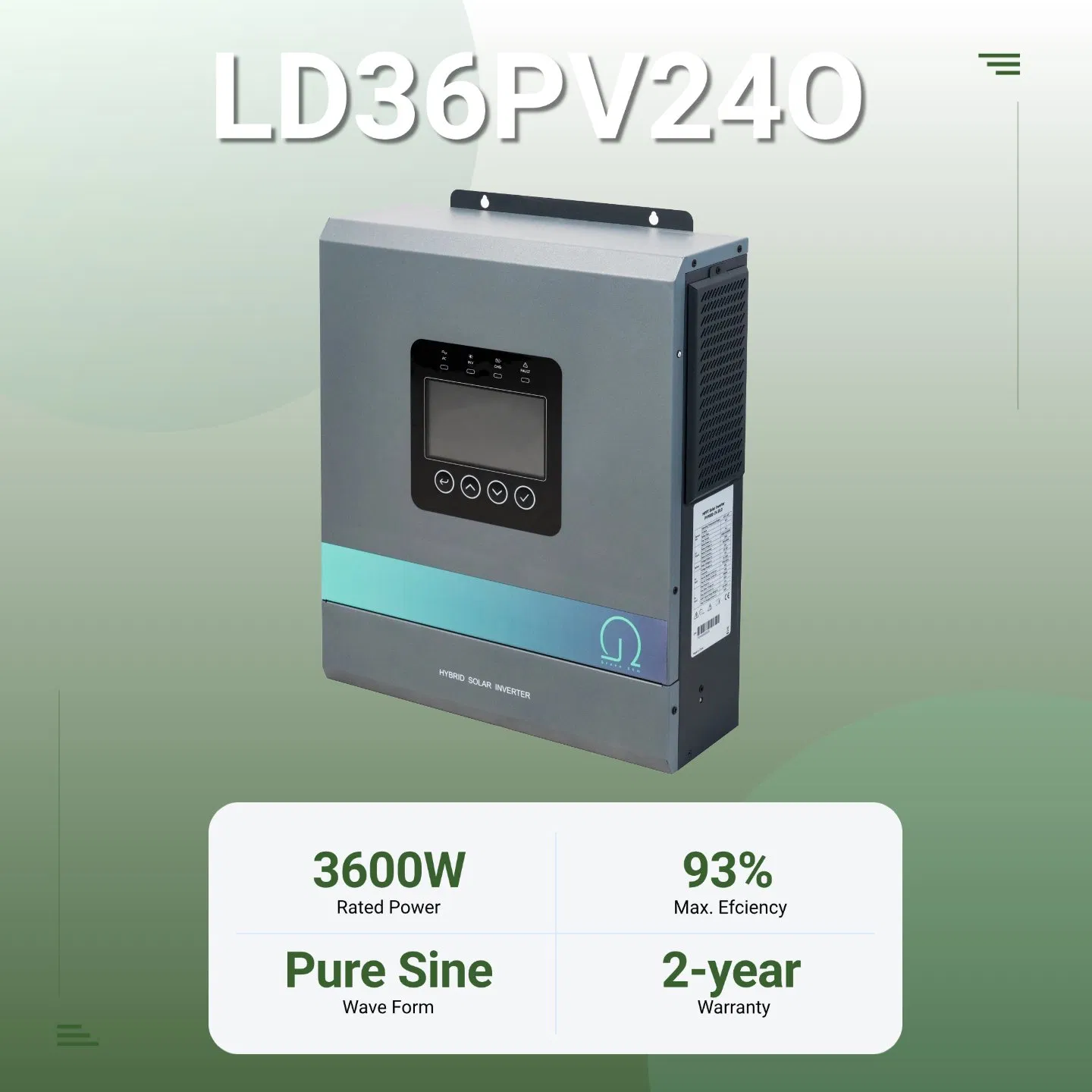

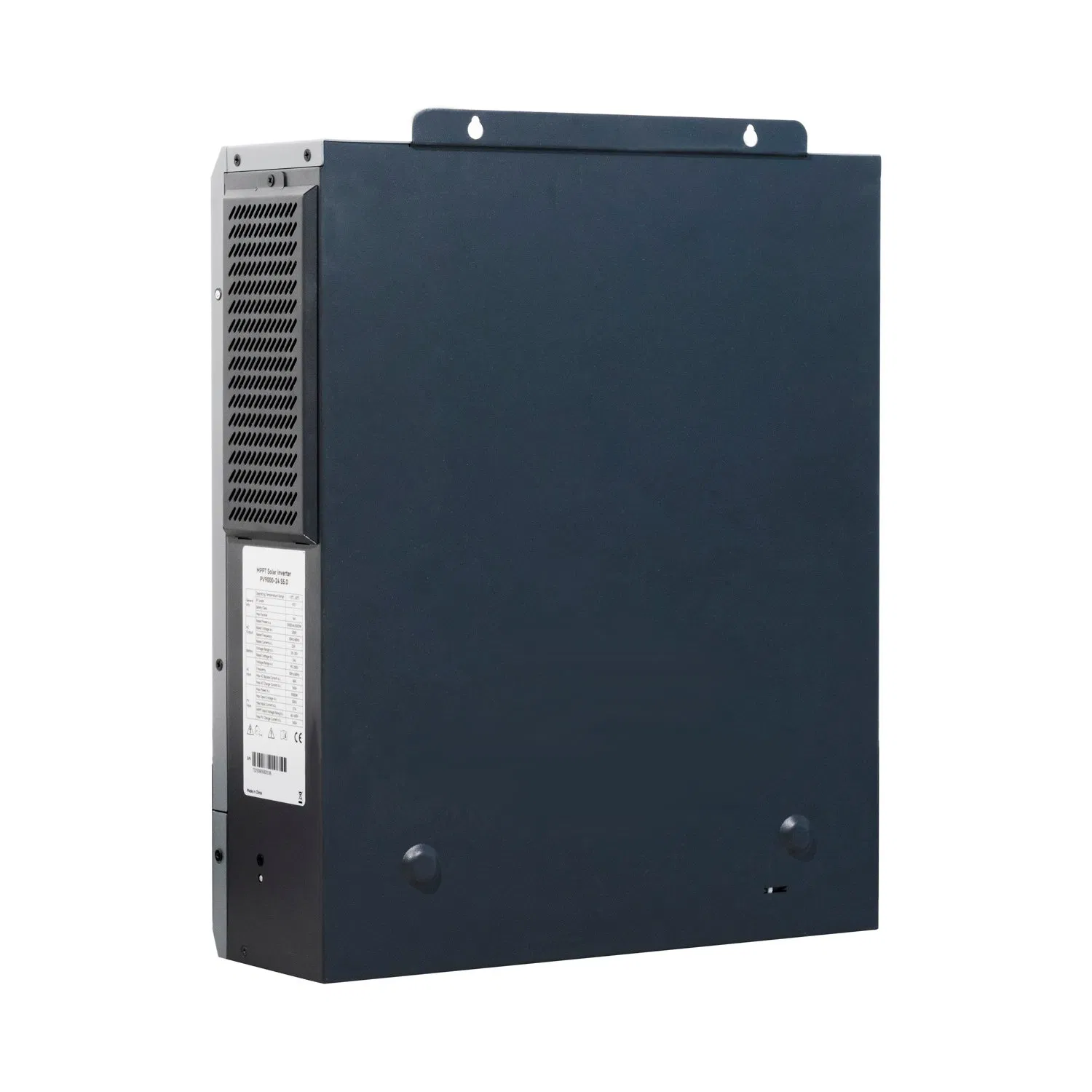

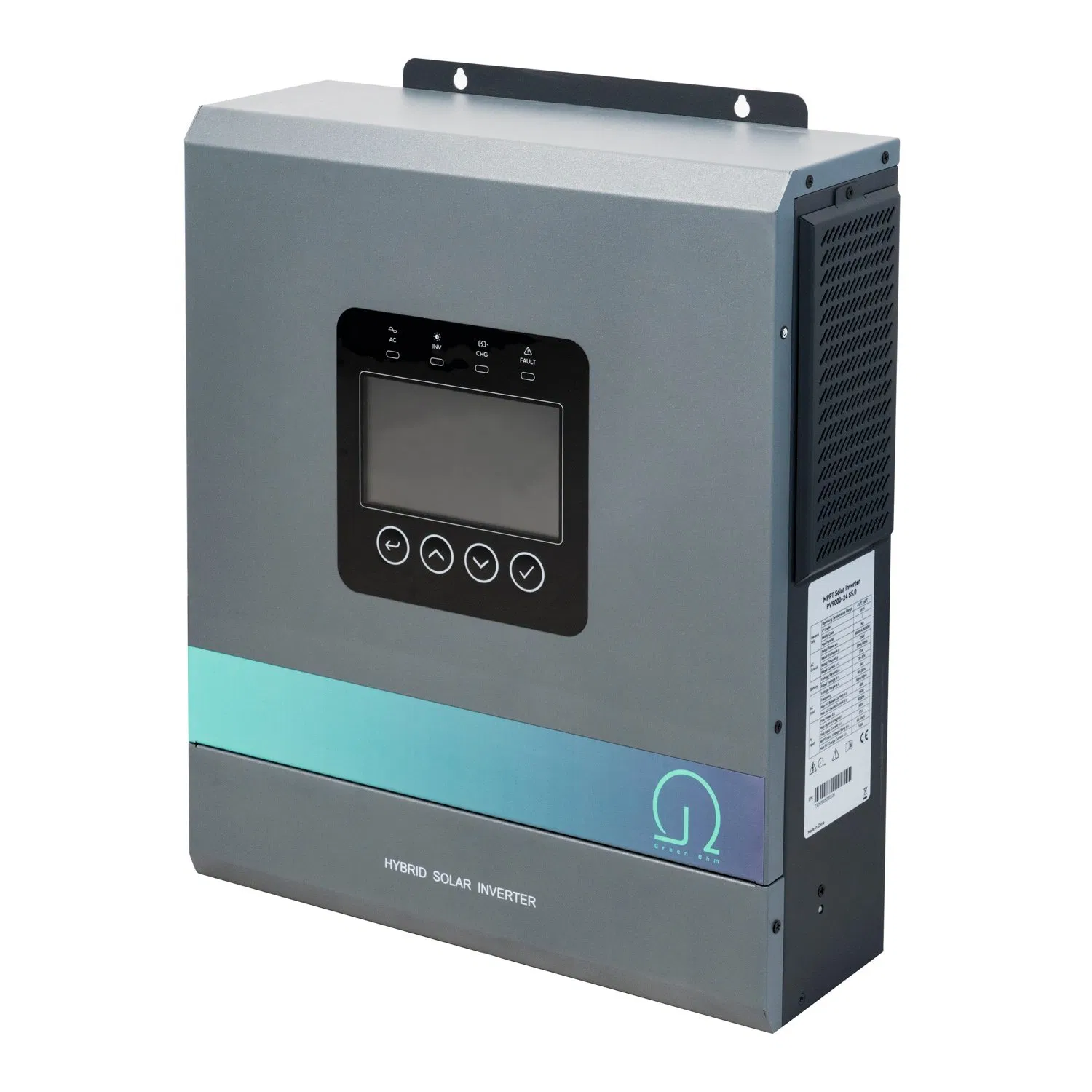

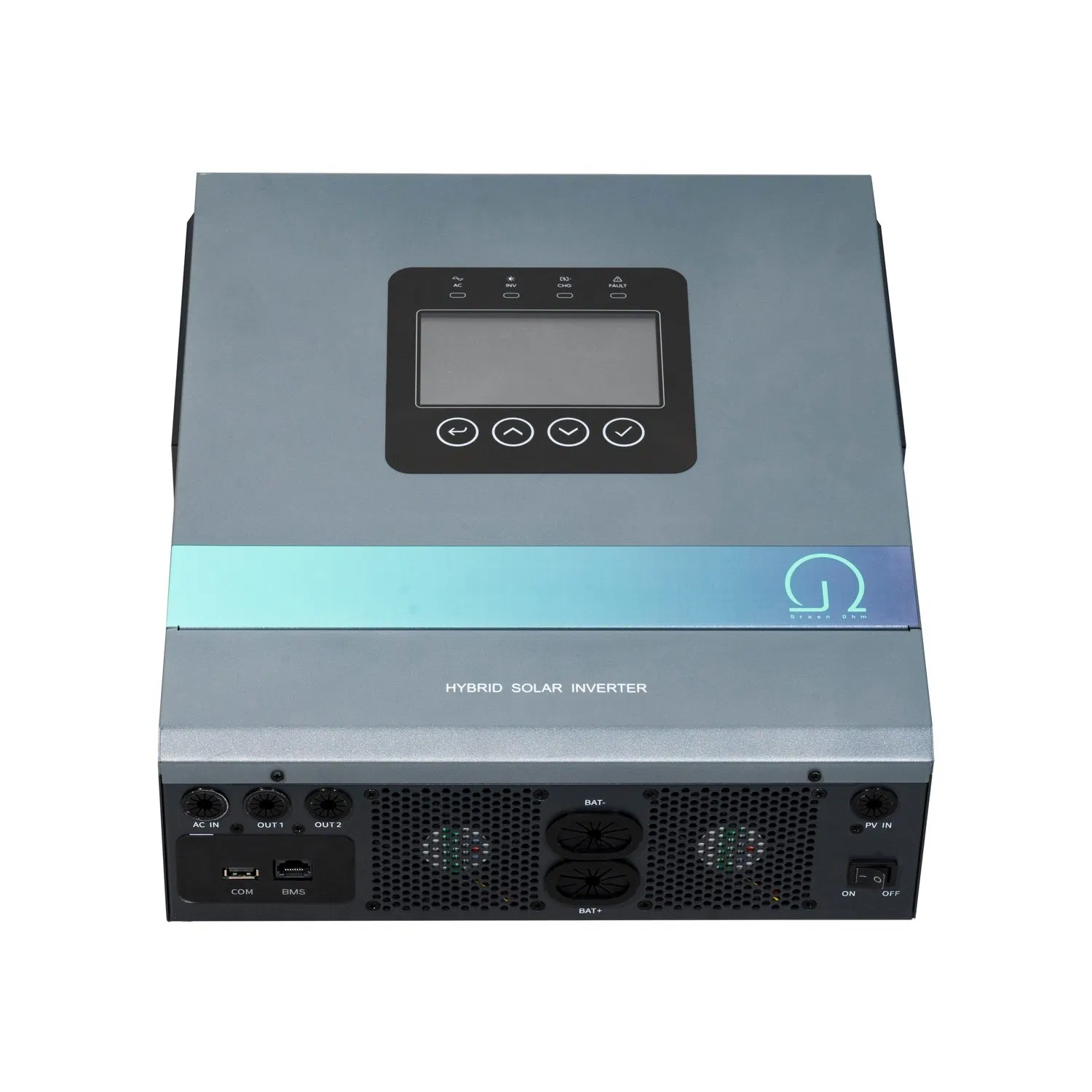

| Model: PV5000-24 S3.6D | |
|---|---|
| AC Input | |
| Rated Input Voltage (VAC) | 208 / 220 / 230 / 240; L + N + PE |
| Voltage Range (VAC) | 90~280±3 (Normal); 170~280±3 (UPS) |
| Frequency (Hz) | 50 / 60 (Auto Adaptive) |
| AC Output | |
| Rated Capacity (KW) | 3.6 |
| Surge Power (KVA) | 7.2 |
| Output Voltage (VAC) | 208 / 220 / 230 / 240 |
| Efficiency (Battery Mode) | 92.7% @ 24VDC |
| Solar & AC Charger | |
| Solar Charge Type | MPPT |
| Max PV Input Power | 5000W |
| MPPT Voltage Range | 40-450 VDC |
| Max PV Open Circuit Voltage | 500 VDC |
| Max Charge Current (PV+AC) | 100A |
| Battery Info | |
| Normal Voltage | 24 VDC |
| Battery Type | Lithium and Lead-acid |
| General Data | |
| Ingress Protection | IP 21 |
| Dimensions (H*W*D) | 420 * 284 * 94mm |
| Net Weight | 6.2 Kg |
