1HP, 2HP, 3HP, 5HP Solar Powered DC Submersible Deep Well Water Pumps

1 / 5

1HP, 2HP, 3HP, 5HP Solar Powered DC Submersible Deep Well Water Pumps

Customization:	Available
After-sales Service:	3 Years
Warranty:	3 Years

Send Inquiry

Product Description

Basic Specifications

Model NO.

JS, JC, JCS, JQB, JP, JETS

Max.Head

>150m

Max.Capacity

>400 L/min

Driving Type

Motor

Material

Stainless Steel

Structure

Multistage Pump

Assembly

Pipeline Pump

Power

Solar Energy

Start Up

Solar Pump

Theory

Centrifugal Pump

Certificate

CE, ISO9001

Voltage

24V to 540VDC

Motor Power

100W to 30kw

Pump Diameter

2", 3", 4", 5", 6"

Solar Powered DC Submersible Water Pump

0.5HP to 40HP Solar Submersible Borehole Water Pump with 1-60m3/hour

Warranty Policy

Solar water pump: 3 years
MPPT controller: 3 years
Solar panels: 25 years

If the controller or motor is damaged within 3 years, we will send a new one for replacement with free shipping. Impellers are also covered for 3 years with free spare parts.

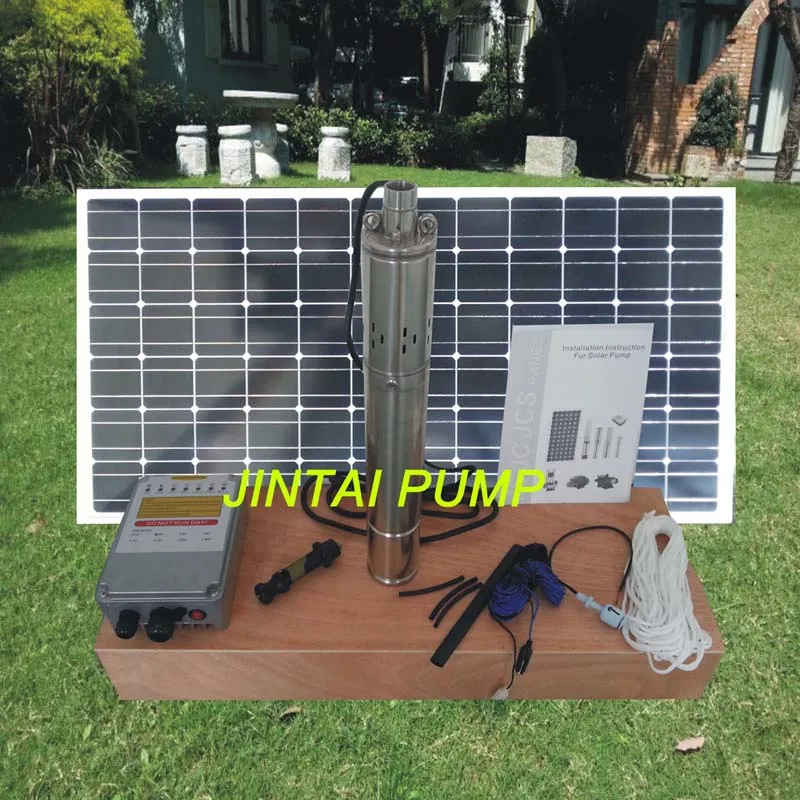

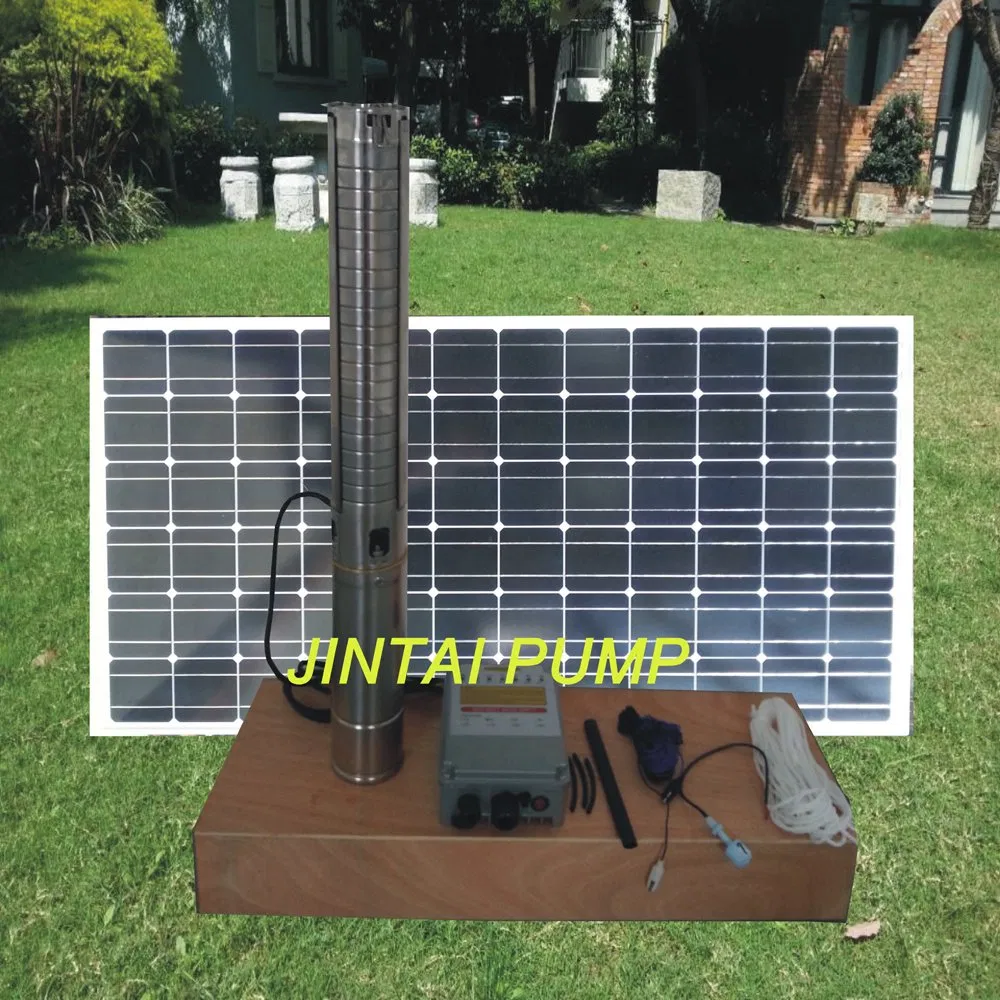

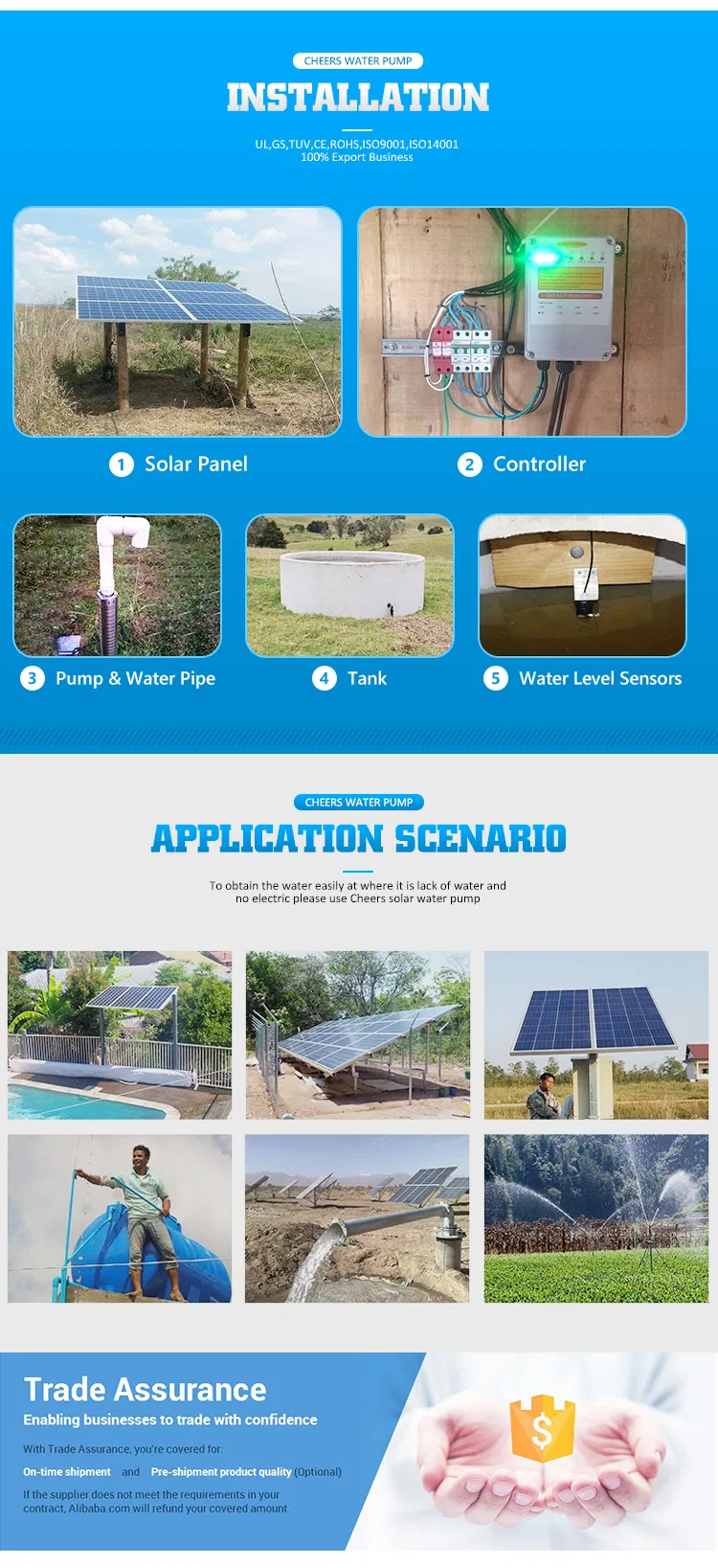

Solar Water Pump System Complete Set

Solar pump: with 3m cable (longer cables available)
Controller: MPPT Intelligent Control
Water level sensor/float switch: 10-meter cable included
Solar panel cable: 6m included
Cable connector: Industrial grade
Solar panels: Optional addition
Installation Manual: Comprehensive guide

Product Applications

Irrigation of agriculture

Drinking water and living water

Remote areas and farming

Fountains and landscaping

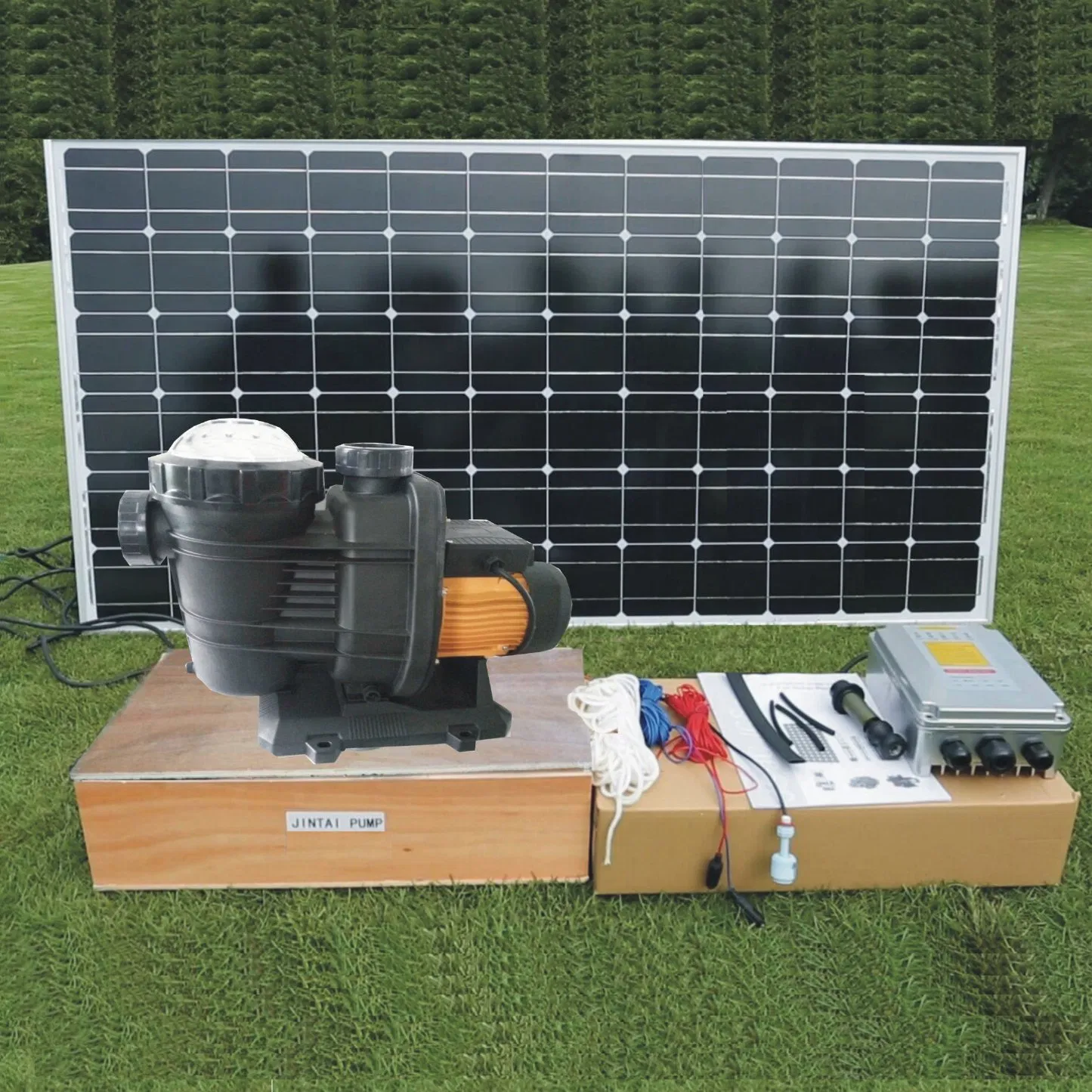

Swimming pool circulation and filtration

Material & Advanced Technology

Premium Materials:

Outlet: Brass or stainless steel
Pump/Motor body: Stainless steel
Screw/Impeller: Stainless steel or Plastic PPO
Bearing: NSK (High Precision)

Key Innovations:

25% Efficiency Improvement: Permanent magnetism, DC brushless, non-sensor motor.
Enhanced Insulation: Double plastic package for rotor/stator (≥300MΩ).
Oil Filling Structure: Convenient installation and environmental protection.

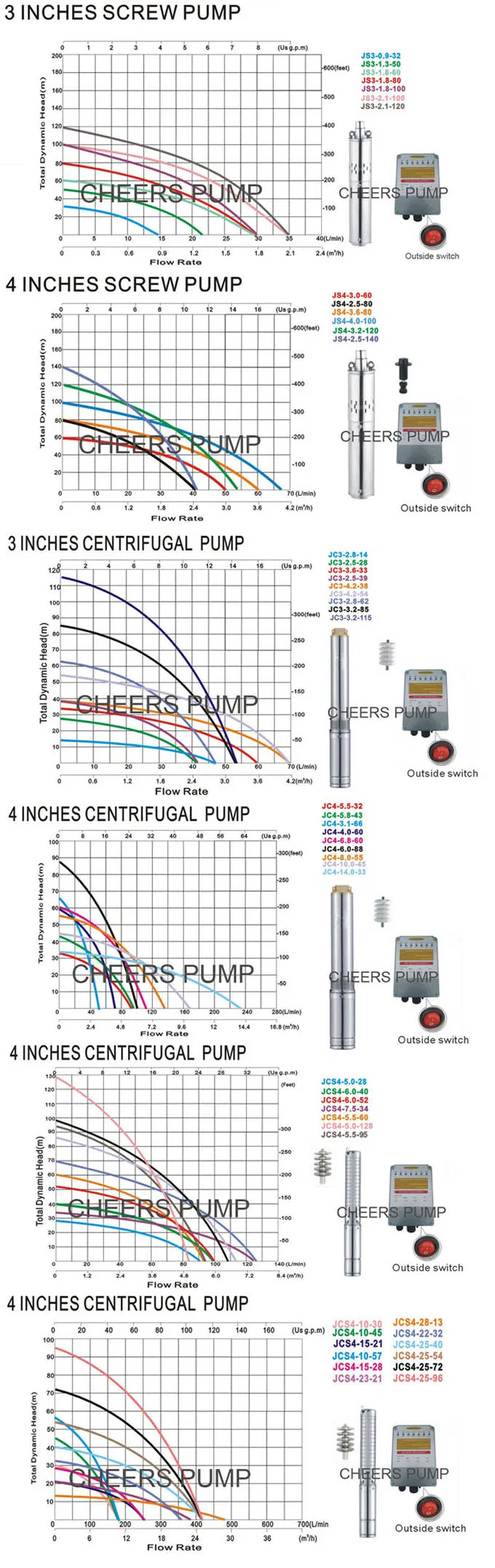

Performance Data Table

Please select the appropriate pump model based on your requirements (Voltage, Power, Flow, and Head):

TYPE	VOLTAGE (V)	RATE POWER (W)	MAX FLOW (m3/h)	MAX HEAD (M)	OUTLET SIZE (in)	PUMP DIA (mm)
JS3-0.9-32	24	100	0.9	32	3/4"	76
JS3-1.8-60	24	180	1.8	60	3/4"	76
JS3-2.1-120	48	540	2.1	120	3/4"	76
JC3-4.2-54	48	600	4.2	54	1"	76
JS4-4.0-100	72	1000	4	100	1"	100
JC4-14.0-33	72	1000	14	33	2"	100
JCS4-25-54	288	2200	25	54	2"	100
JCS6-30-65	288V	4000	30	65	3"	150
JCS6-70-33	288V	4000	70	33	4"	150

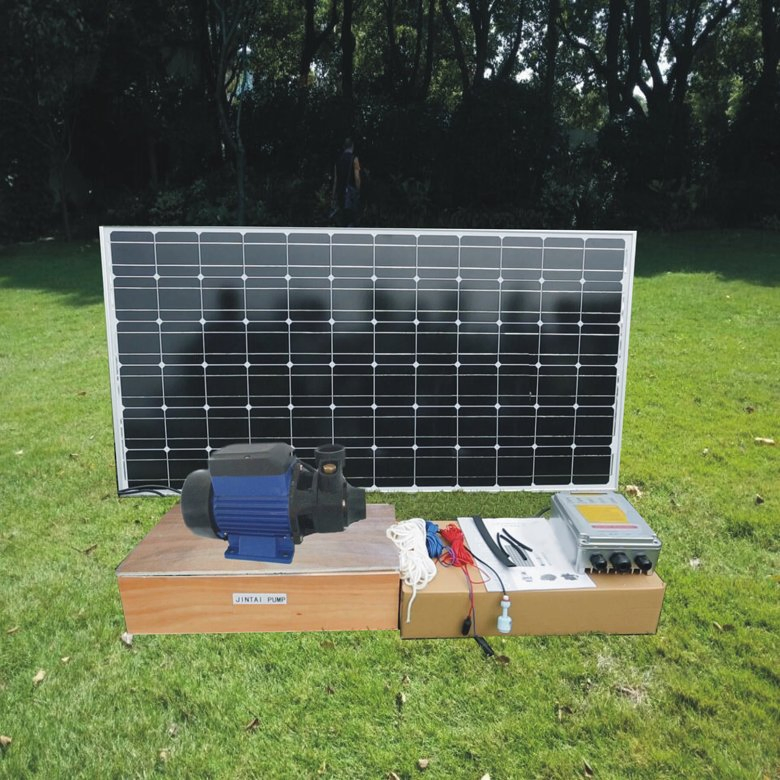

JQB-2.2-35	36	210	2.2	35	1"*1"	Surface

Frequently Asked Questions (FAQ)

What is the warranty period for the solar pump system?

The solar water pump and MPPT controller both come with a 3-year warranty. Solar panels have a long-term performance warranty of 25 years.

What happens if the motor or controller fails during the warranty?

If the motor or controller is damaged within the 3-year warranty period, we provide a new unit for replacement with free shipping included.

What are the primary applications for these pumps?

These pumps are ideal for agricultural irrigation, livestock watering, remote drinking water supply, fountains, and swimming pool filtration.

How much more efficient is the brushless DC motor?

Our advanced permanent magnetism brushless DC motors provide up to 25% higher efficiency compared to traditional AC motors.

How do I choose the correct solar pump model?

Selection depends on your daily water requirement (m3/h), the depth of your borehole, and the total vertical/horizontal distance the water needs to travel.

Is the motor environment-friendly?

Yes, our motors utilize an oil-filling structure which ensures both convenient installation and high levels of environmental protection.
