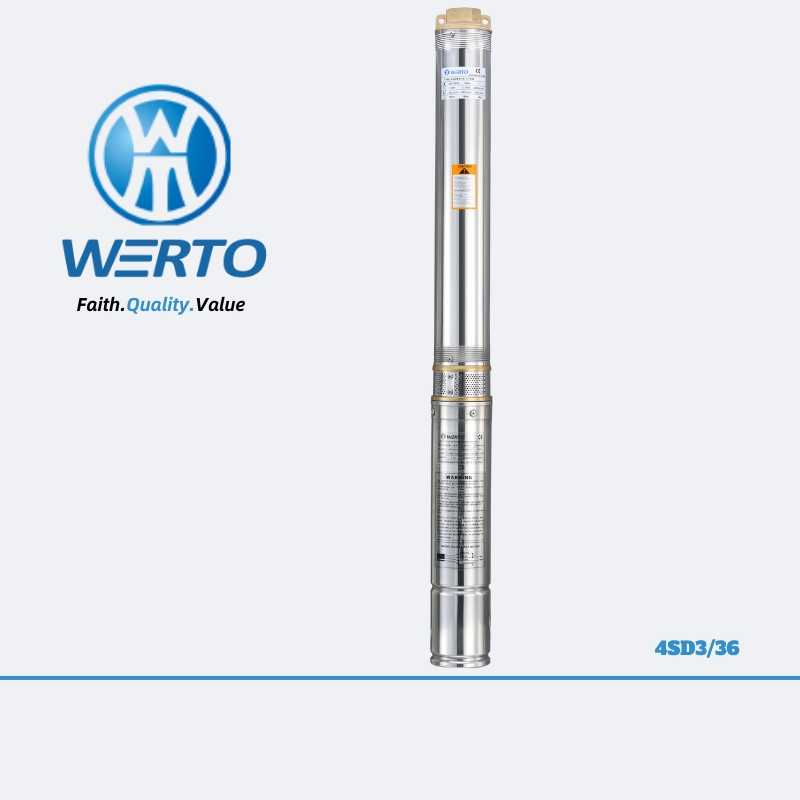

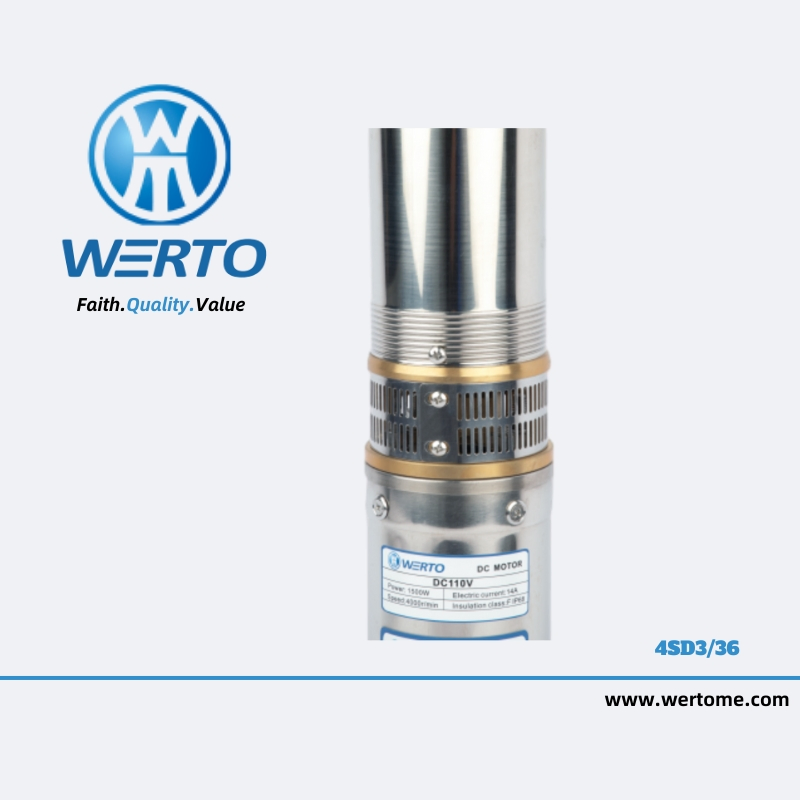

4SD3/36 Durable Deep Well Submersible Pump Solar Powered for Fresh Water Applications

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

4SD3/36

Max.Head

>150m

Max.Capacity

50-100 L/min

Driving Type

Motor

Material

Stainless Steel

Structure

Multistage Pump

Power

Electric

Application

Submersible Pump

Pump External Casing

AISI 304 Ss

Impeller

Plastic.POM

Bearing

C&U

Origin

China

Product Description

Motor Features

Operating Conditions

Components	Material
Pump external casing	AISI 304 SS
Delivery casing	Cast-Cu ASTM280
Suction lantern	Cast-Cu ASTM280
Diffuser	Plastic.PC
Impeller	Plastic.POM
Shaft	AISI 316 SS / AISI 304 SS
Wear ring	AISI 304 SS
Motor external casing	AISI 304 SS
Mechanical seal	Special seal for deep well (Carbon-SlC/TC)
Bearing	C&U
