HYBO Energy
HYBO Energy

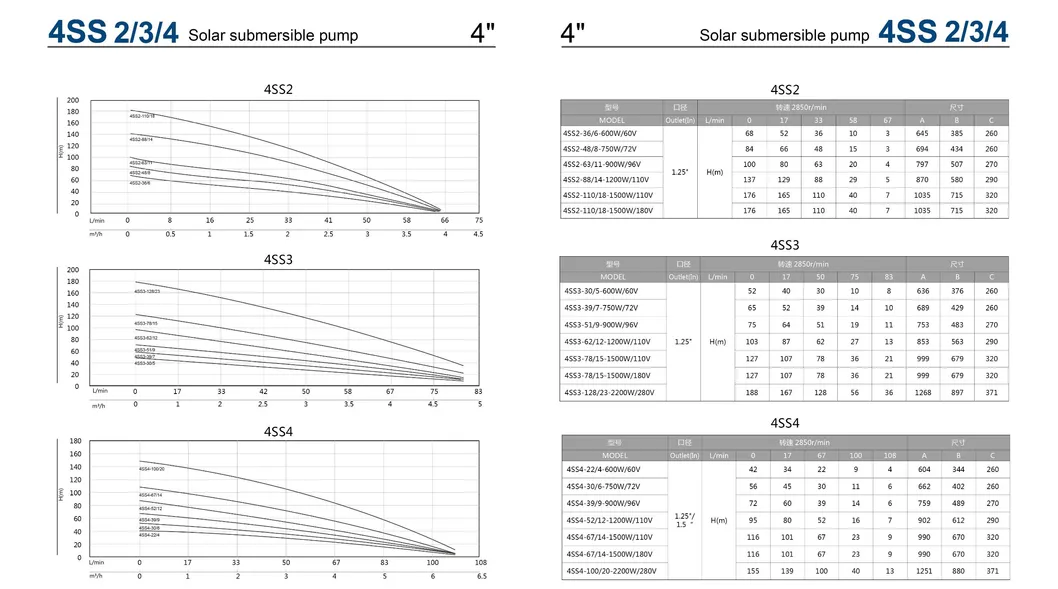

| Model NO. | 4SS 2/3/4 |
| Max. Head | 30-50m |
| Max. Capacity | 50-100 L/min |
| Material | Stainless Steel |
| Power | Electric / Solar |
| Application | Submersible Pump, Clarified Water Pump, Water Supply, Domestic Use, Garden Use, Irrigation |
| Voltage / Frequency | 220V / 50Hz |
| Customized Support | OEM, ODM |
| Package Size | 89.50cm * 24.00cm * 13.50cm |
| Gross Weight | 11.600kg |
| Production Capacity | 5000 Pieces/Month |

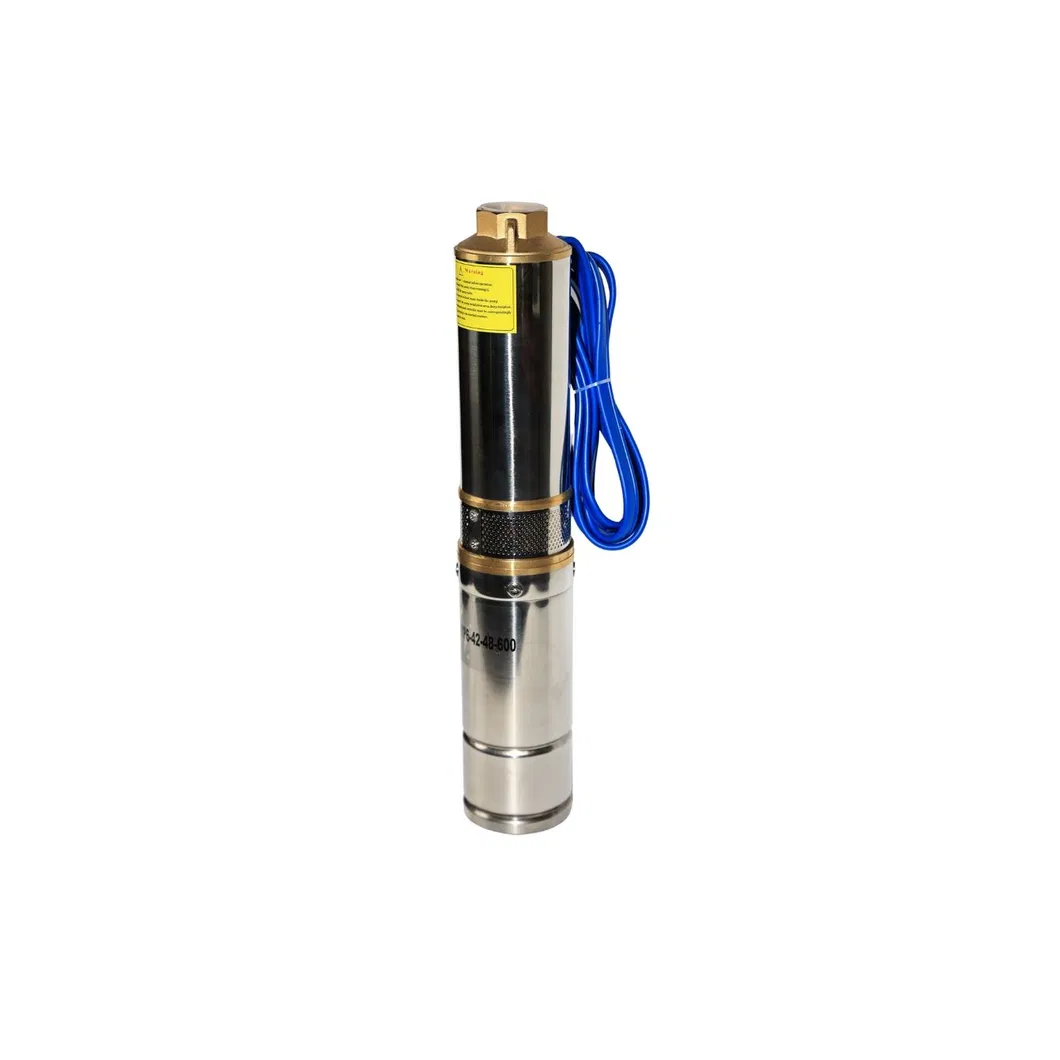

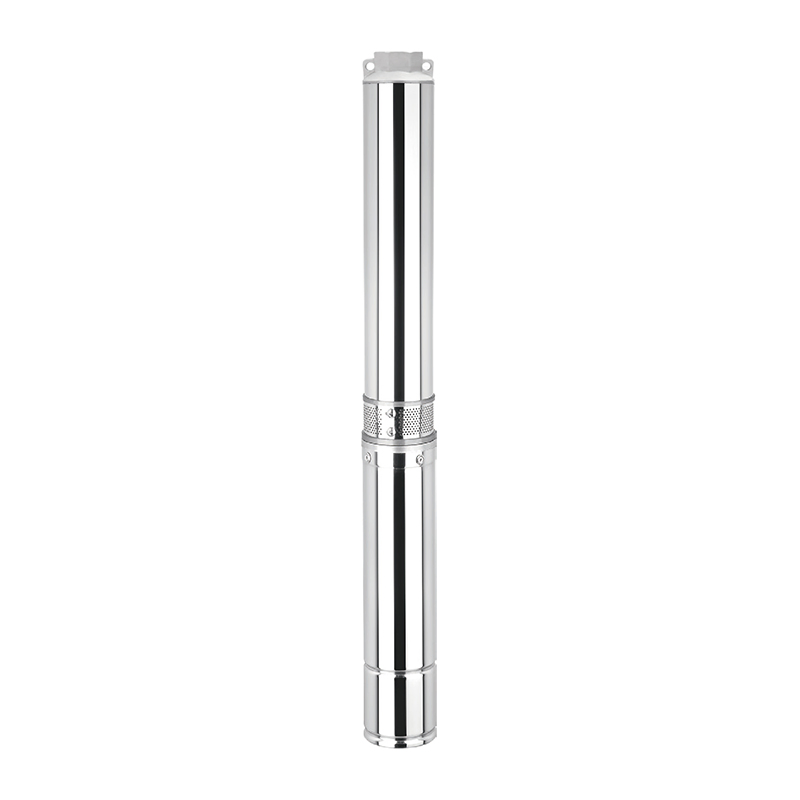

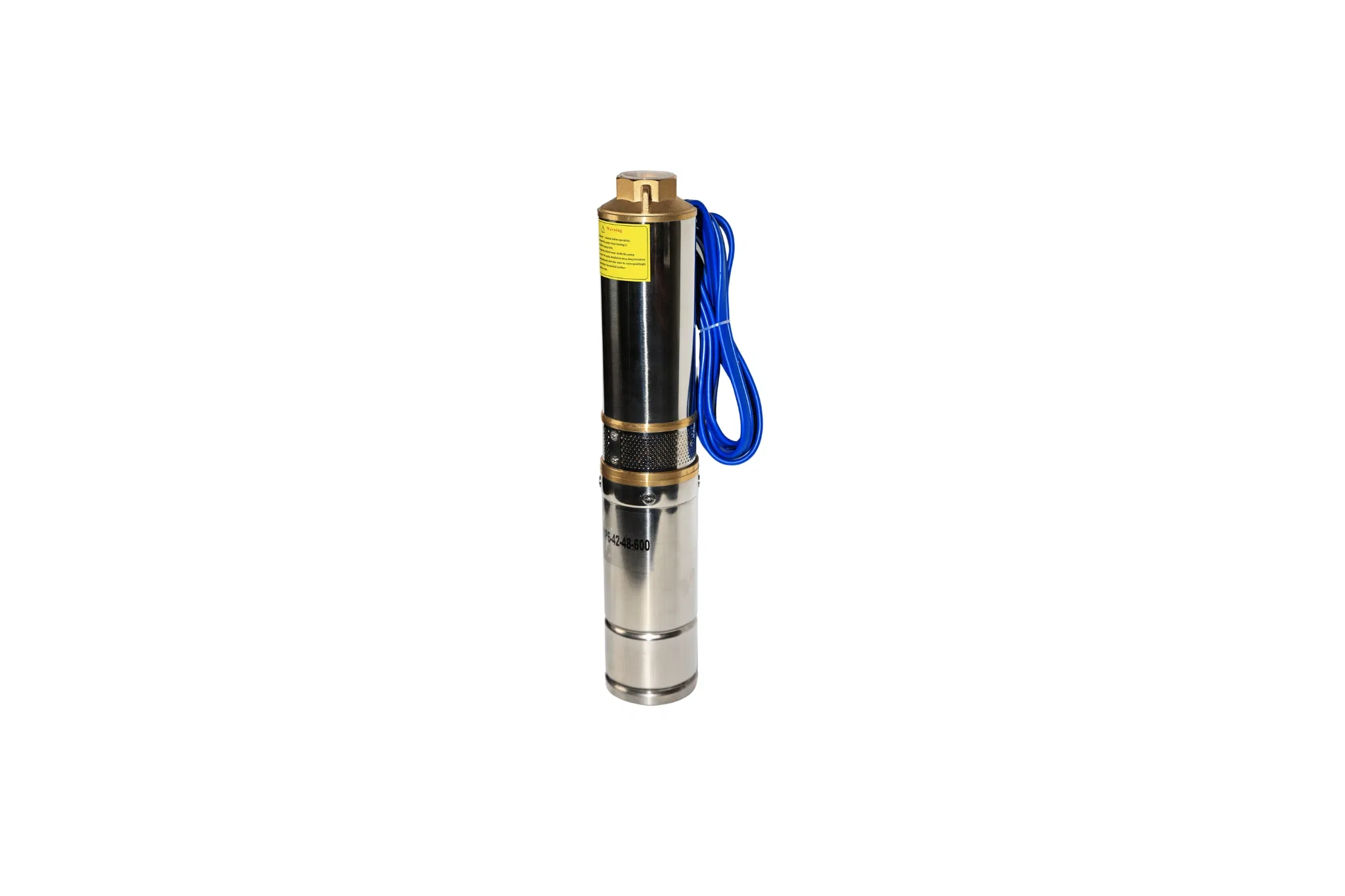

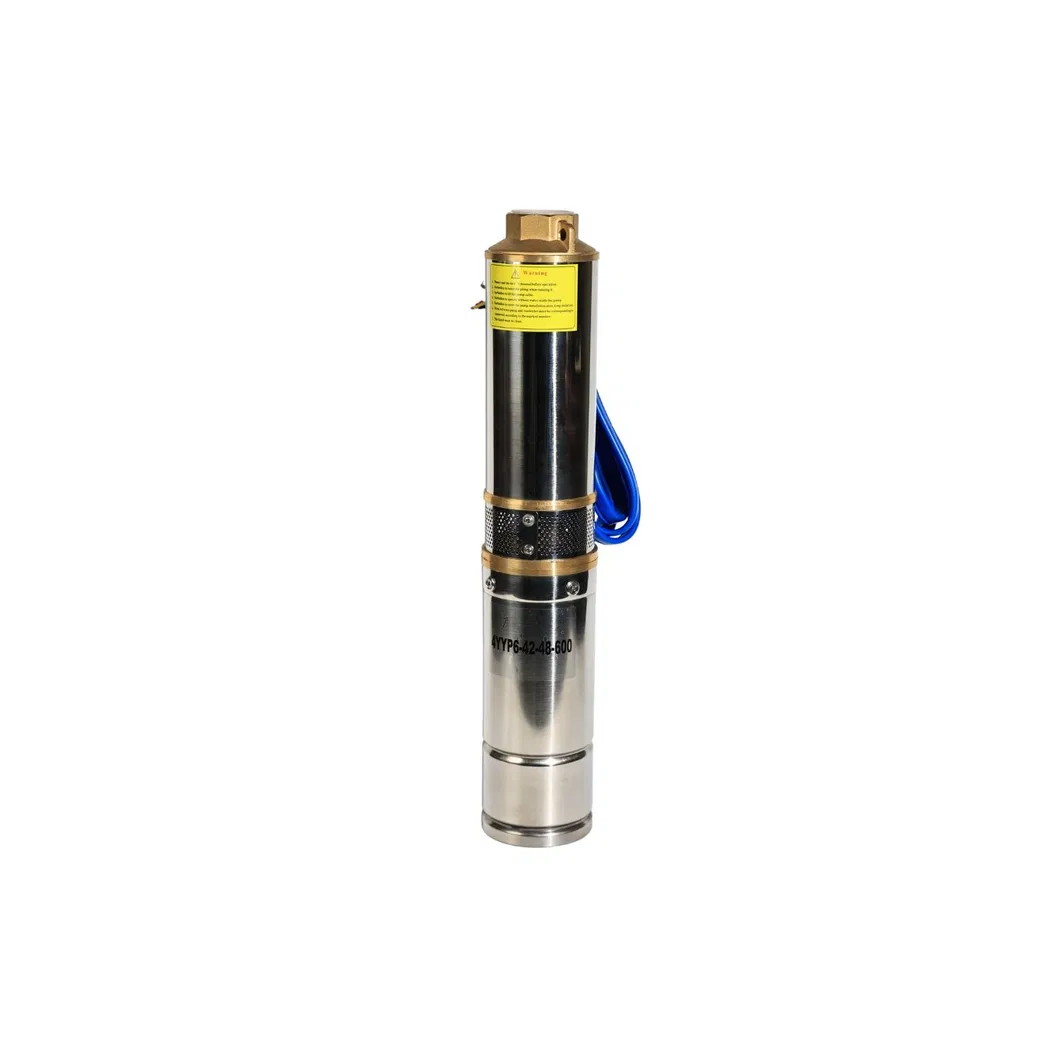

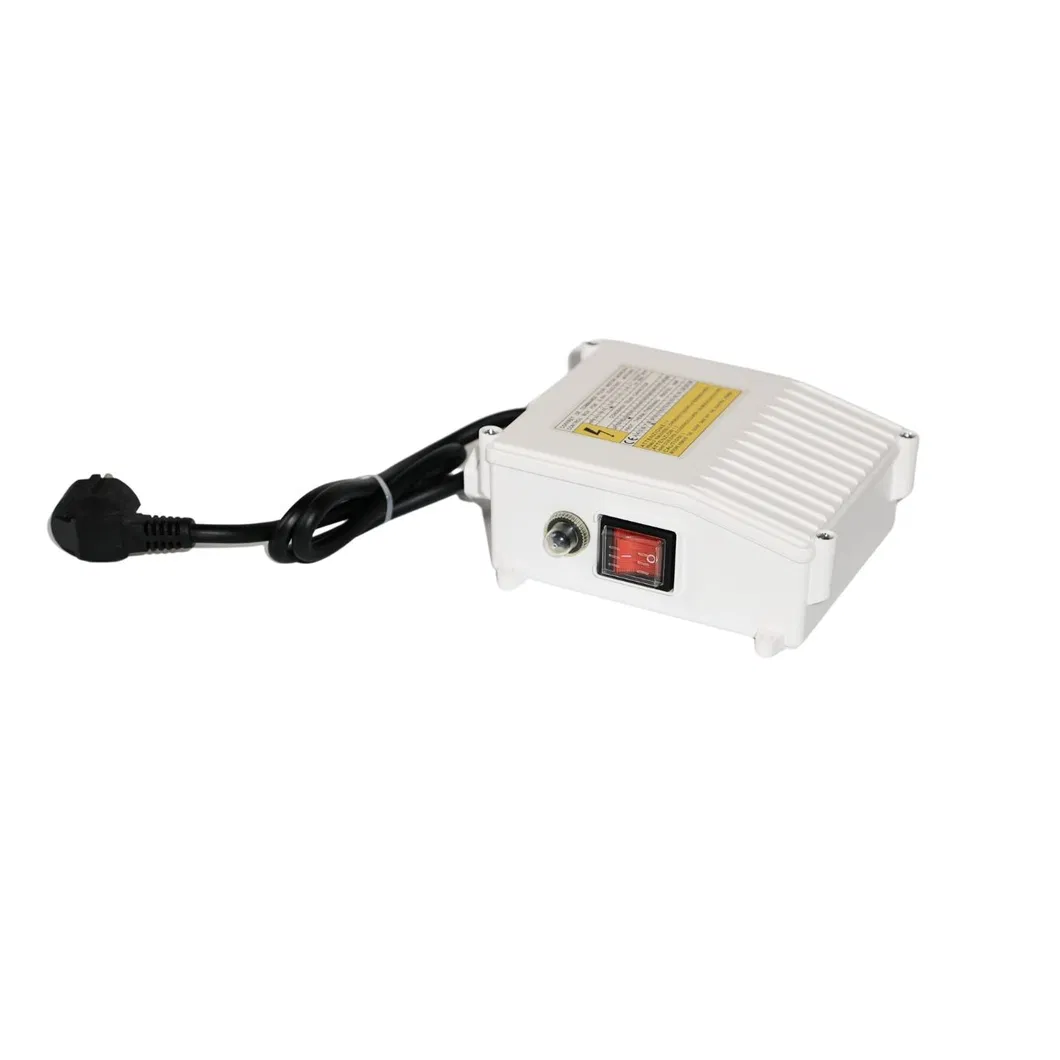

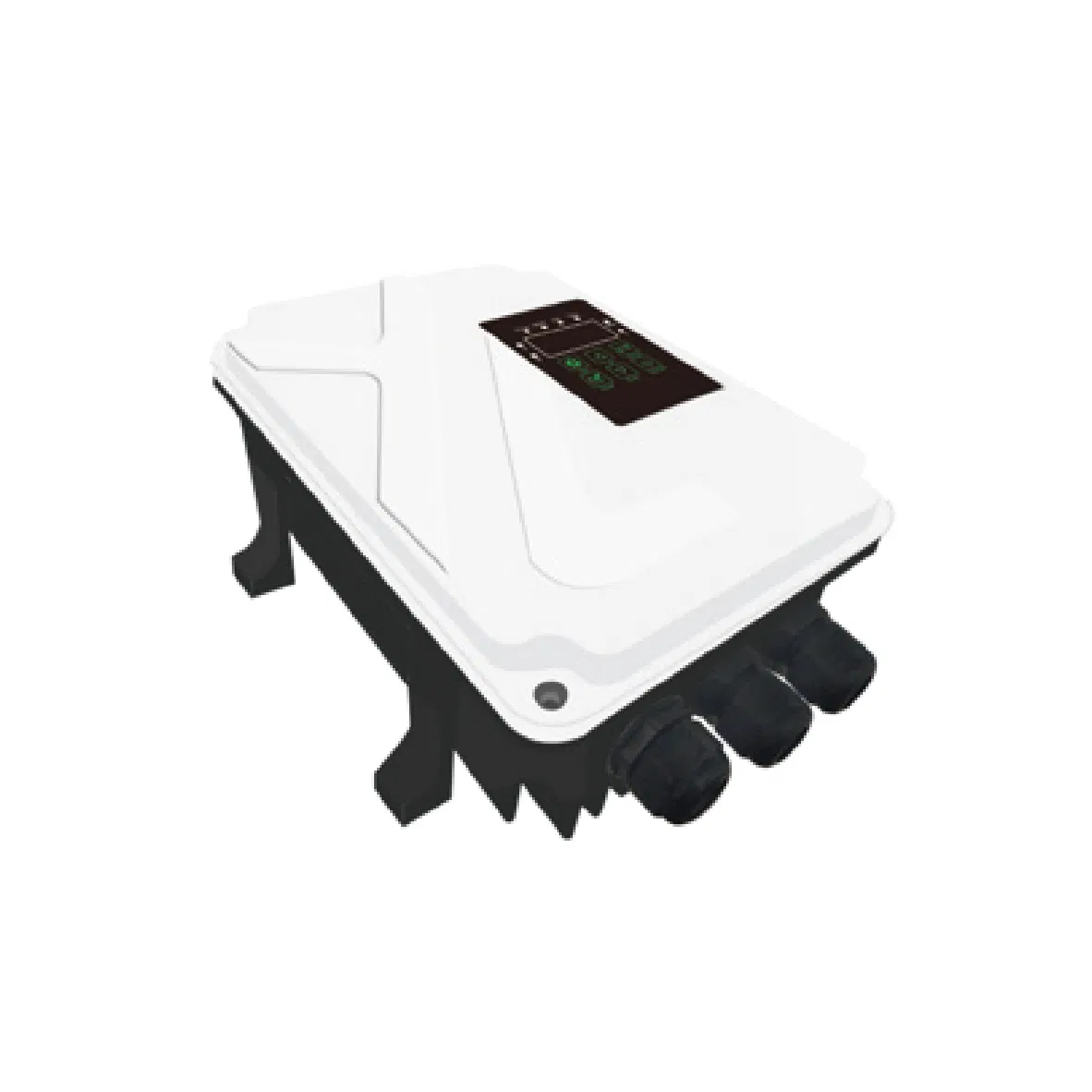

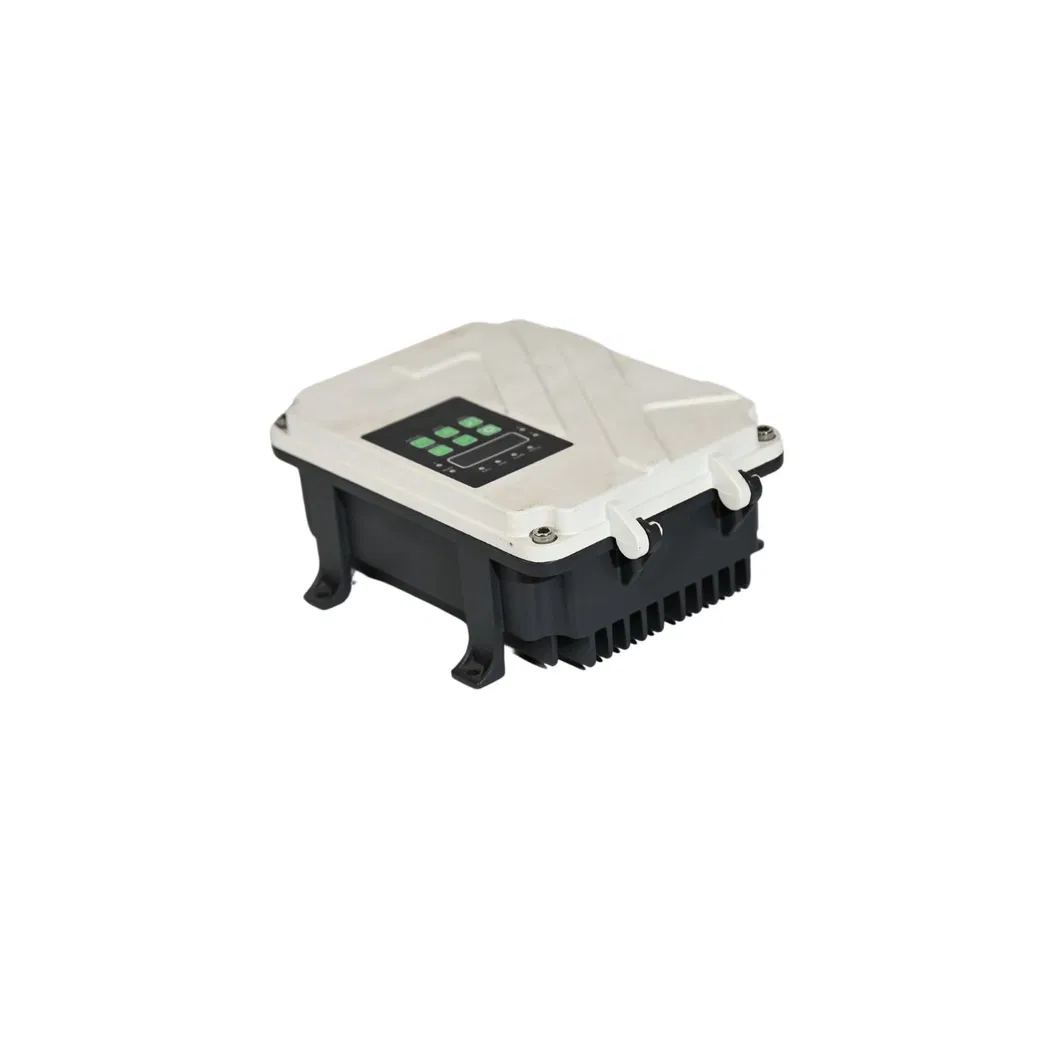

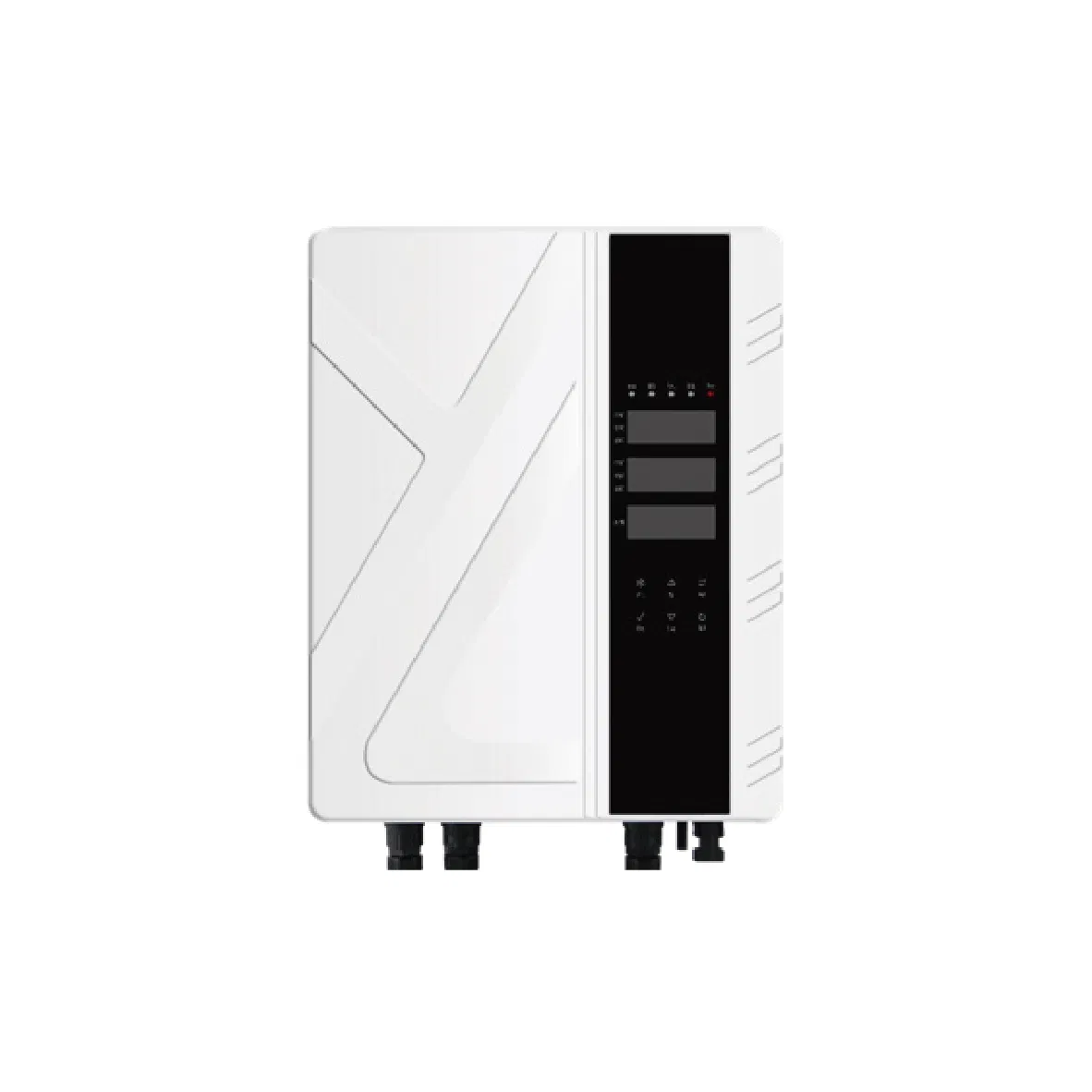

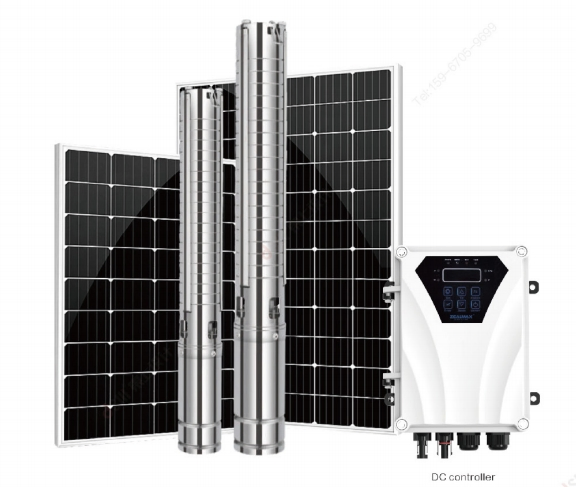

This solar-powered submersible pump features a maximum outer diameter of 98mm, making it ideal for 4-inch deep wells. It is designed to primarily utilize solar energy with single-phase power grid support as an auxiliary source. The system can be equipped with an automatic switching and hybrid controller for maximum energy efficiency. Driven by a DC brushless motor and an MPPT controller for sine wave start commutation, the entire machine is constructed from rust and corrosion-resistant materials, including stainless steel components and rubber sleeves. It offers high efficiency, reliable operation, and zero pollution.
| Diving Depth | 1-100m |
| Maximum Flow | 14m³/h |
| Maximum Lift | 188m |
| Liquid Conditions | Non-corrosive; PH 5-10; Sediment concentration ≤ 2% |

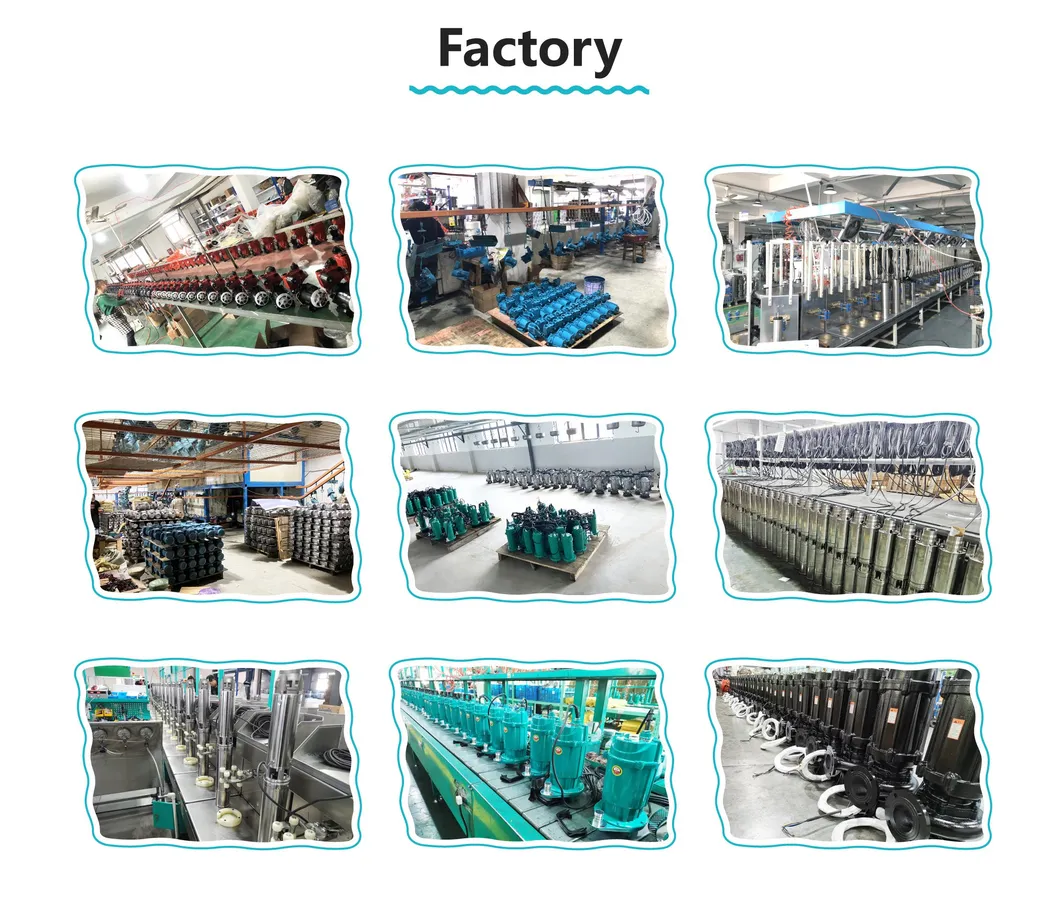

We provide comprehensive solutions for aqueous fluid management. Our operations include independent manufacturing facilities and a stable supply chain team. We specialize in the development of pumps, motors, and related accessories, supported by rigorous technical testing standards and cost-effective material sourcing. Our expertise extends to injection mold services, including product design optimization, DFM reports, and material verification.
