Product Description

📊

Basic Information

Model NO.

SR-30/50/100/150/250/500KW-HY

Condition

New

Certification

ISO, CB, CE

Application

Commercial

Type

Commercial Solar Energy Storage System

Battery

Gel/ LiFePO4 Battery

System Type

Hybrid Solar PV System

Solar Panel

Monocrystalline 400-700W

Grid Type

3W+N+PE

Battery Capacity

230kwh/Customized

Origin

China

Production Capacity

50000 Piece/Year

💡

Product Description

Model No.	SR-30KW-HY	SR-50KW-HY	SR-100KW-HY	SR-150KW-HY	SR-250KW-HY	SR-500KW-HY
AC Rated Power	30KW	50KW	100KW	150KW	250KW	500KW
Grid Voltage	380/400VAC
Solar Panel Qty	60PCS	90PCS	180PCS	270PCS	450PCS	900PCS
Panel Model	SR72P-580N (N-Type Topcon)
Total PV Power	34.8KW	52.2KW	104.4KW	156.6KW	261KW	522KW
Battery Capacity	40.96KWH	100.352KWH	202.752KWH	304.128KWH	473.088KWH	946.176KWH

🛠️

Product Parameters & Components

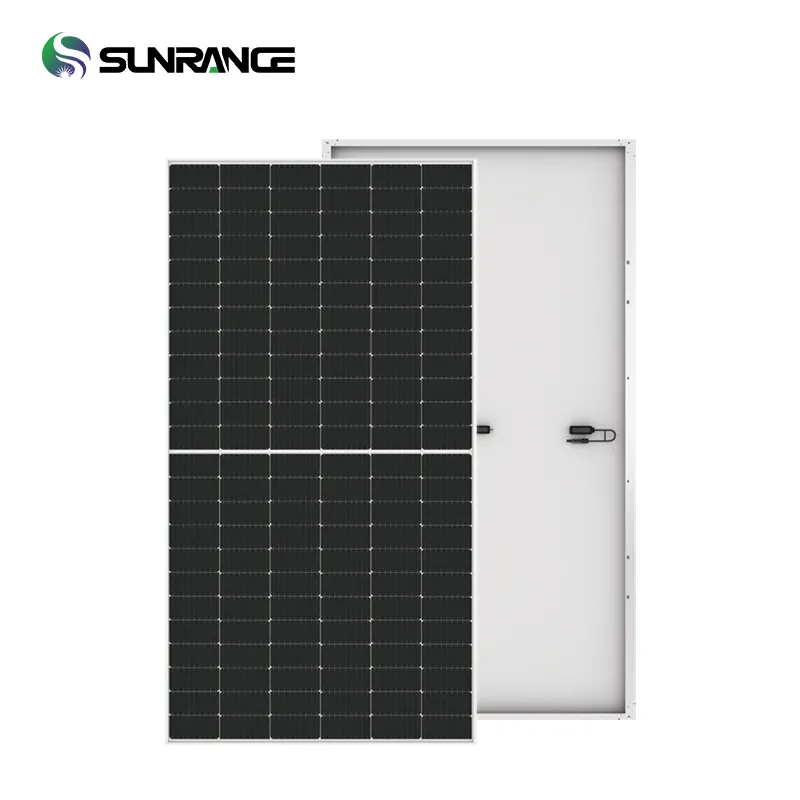

N-Type Topcon Solar Panel

Model: SR72P-580N
Maximum Power (Pmax): 580W
Efficiency: 22.44%
Voc: 51.57V | Isc: 14.33A
Vmpp: 43.09V | Impp: 13.46A

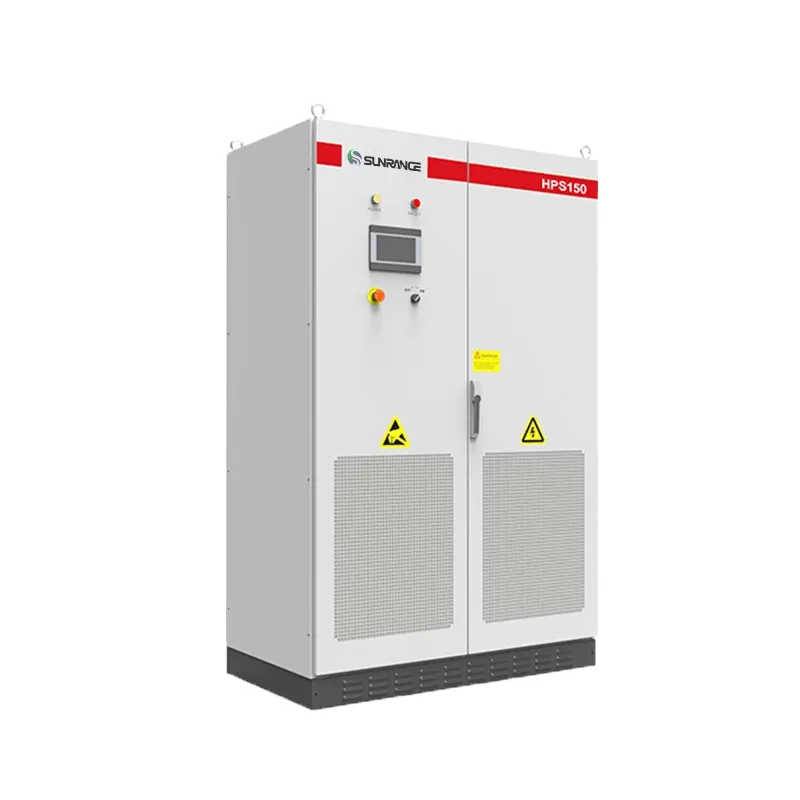

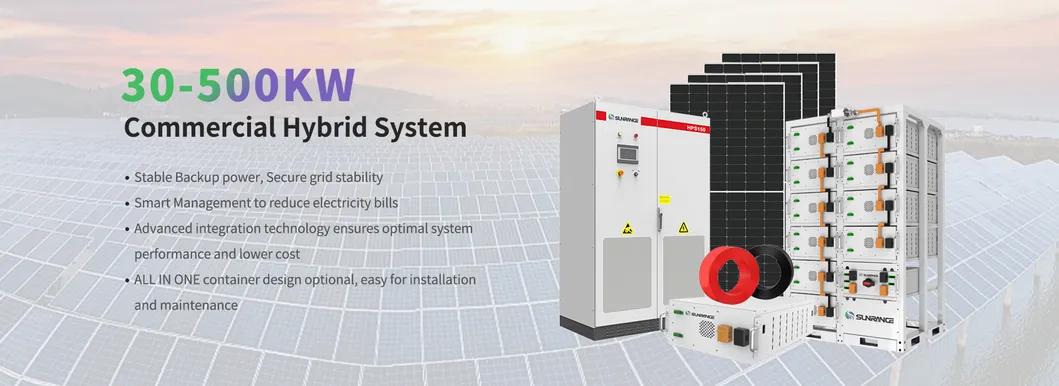

All-in-One Hybrid Inverter

Supports PV, battery, DG, grid, and load connections.
Easily expandable system capacity.
Dynamic power distribution for load demands.
Seamless switch within 6ms via SCR.

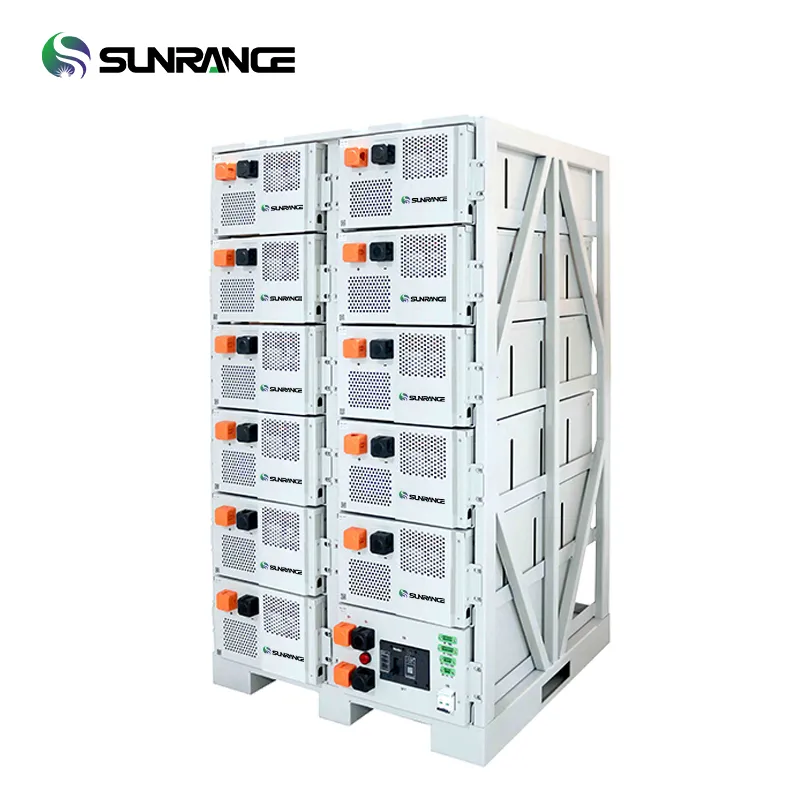

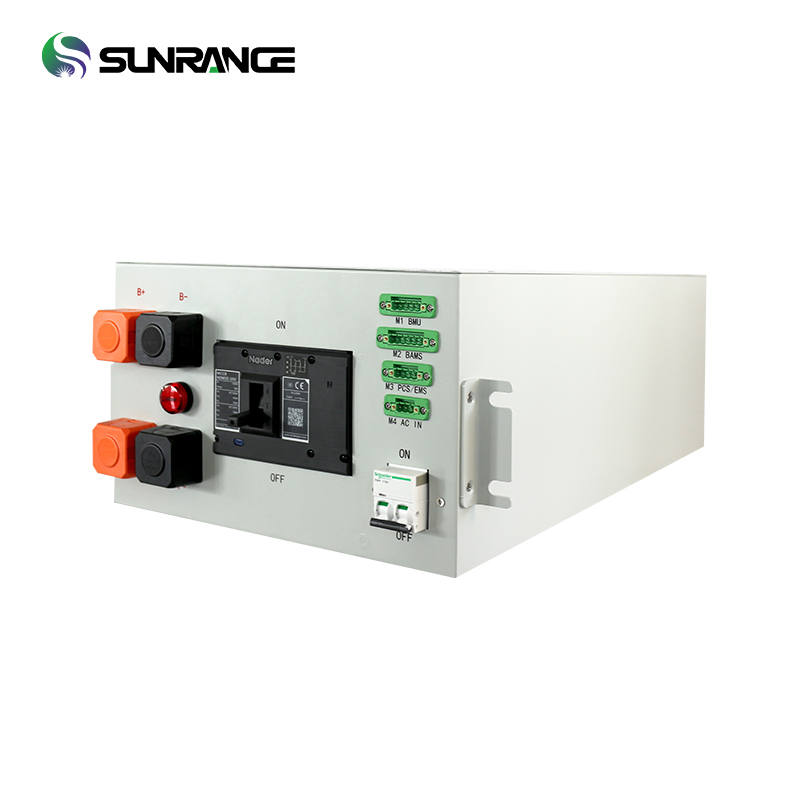

Solar Battery Packs

Rack-mounted Deep Cycle batteries with long lifespan. High discharge performance and maintenance-free. Available in GEL or LiFePO4 types.
Lifespan: More than 6000 cycles, up to 90% DOD.

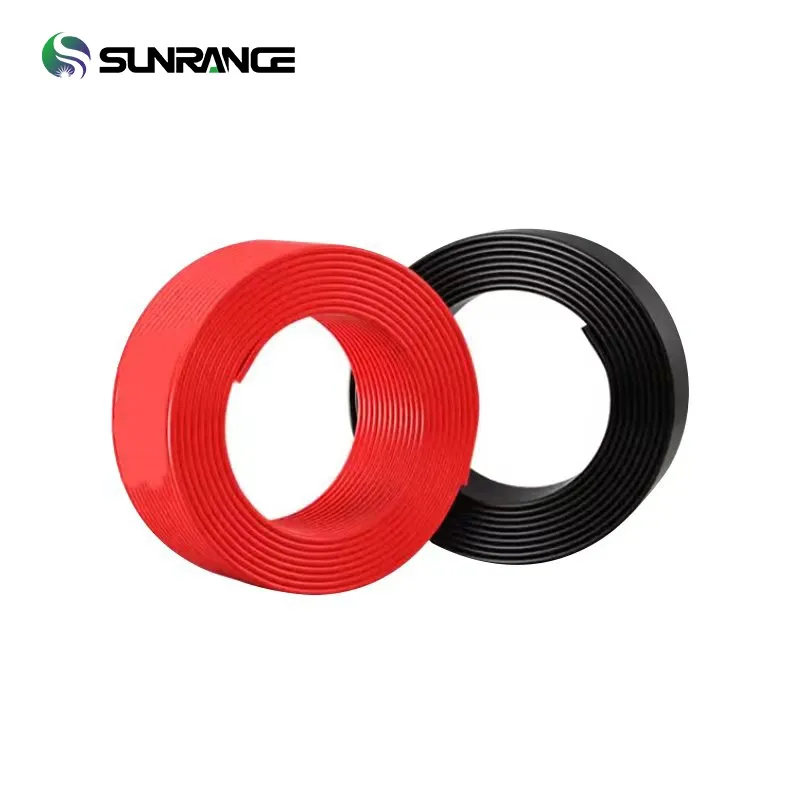

DC Cable & MC4 Connectors
TUV rated, 25-year lifetime.

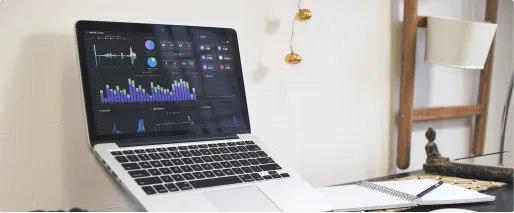

Online Monitoring
Real-time data and remote dispatch.

🏗️

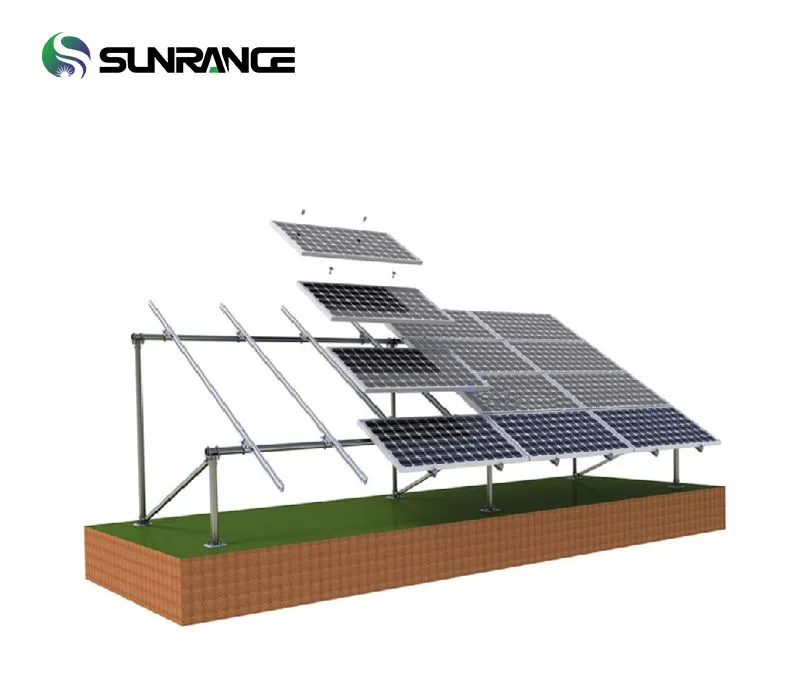

PV Mounting System

Mounting Rail & Splice Kit: Ai6005 & Sus304
Mid & End Clamps: 30, 35, 40mm
L Foot & Hanger Bolt options
Ground Clips & Lugs included

📦

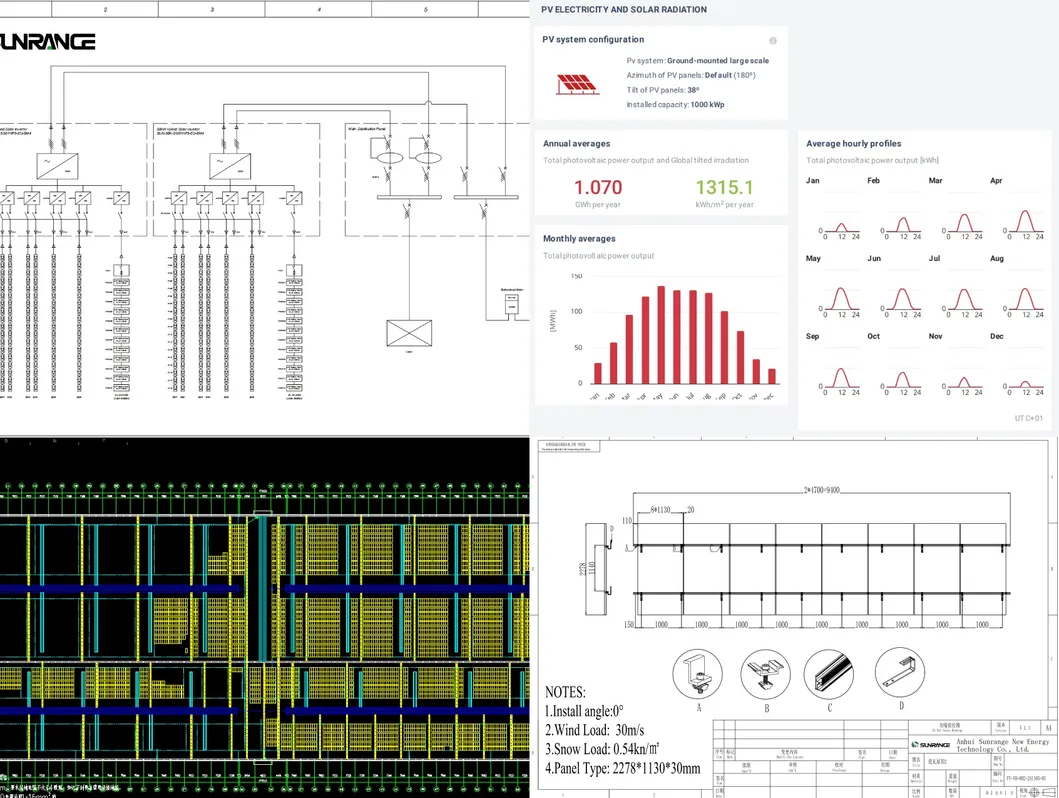

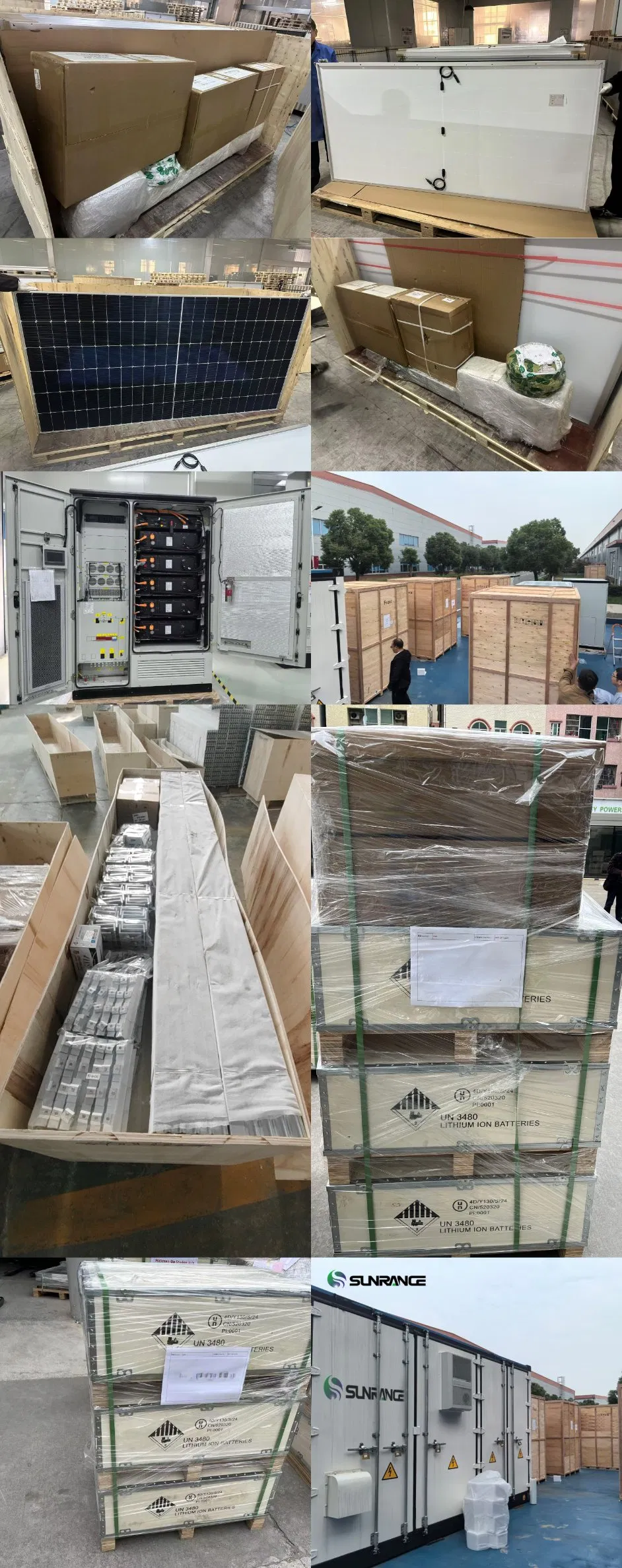

Technical Support & Logistics

🏢

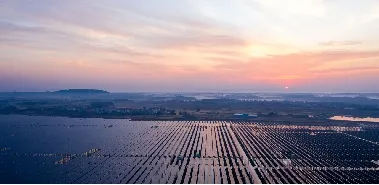

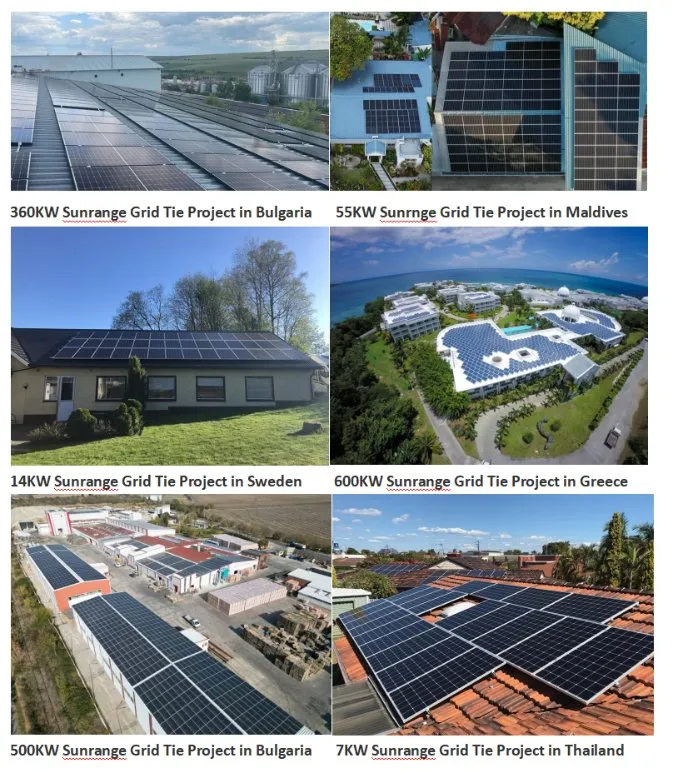

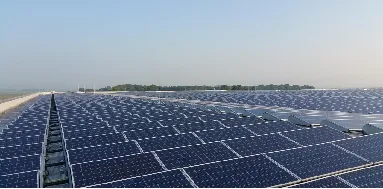

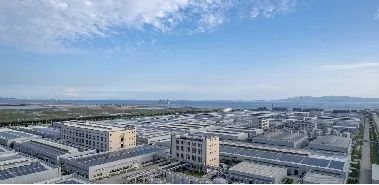

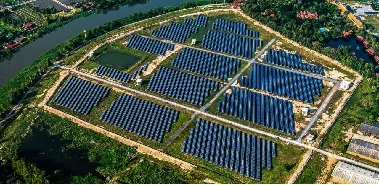

Project Cases

📜

Certifications

Frequently Asked Questions

What battery types are compatible with this system?

The system supports both high-quality GEL and LiFePO4 (Lithium Iron Phosphate) batteries, offering flexibility based on your budget and cycle life requirements.

How long does it take for the system to switch during a power outage?

The hybrid system features seamless switching within 6ms, ensuring that critical commercial loads remain operational without interruption.

Is the system capacity expandable for future needs?

Yes, the system is designed with modularity in mind. Capacity can be easily expanded by adding more inverters or battery packs to meet growing energy demands.

What is the expected lifespan of the solar panels and cables?

The N-Type Topcon solar panels and specialized DC cables are designed for a long service life, typically up to or exceeding 25 years under standard operating conditions.

Can I monitor the system performance remotely?

Absolutely. The system includes an online monitoring platform that supports one-click registration and provides real-time data tracking, traceable logs, and lifecycle security.

Are these systems certified for international markets?

Yes, our systems carry major international certifications including ISO, CB, and CE, ensuring they meet rigorous safety and quality standards for commercial use.
