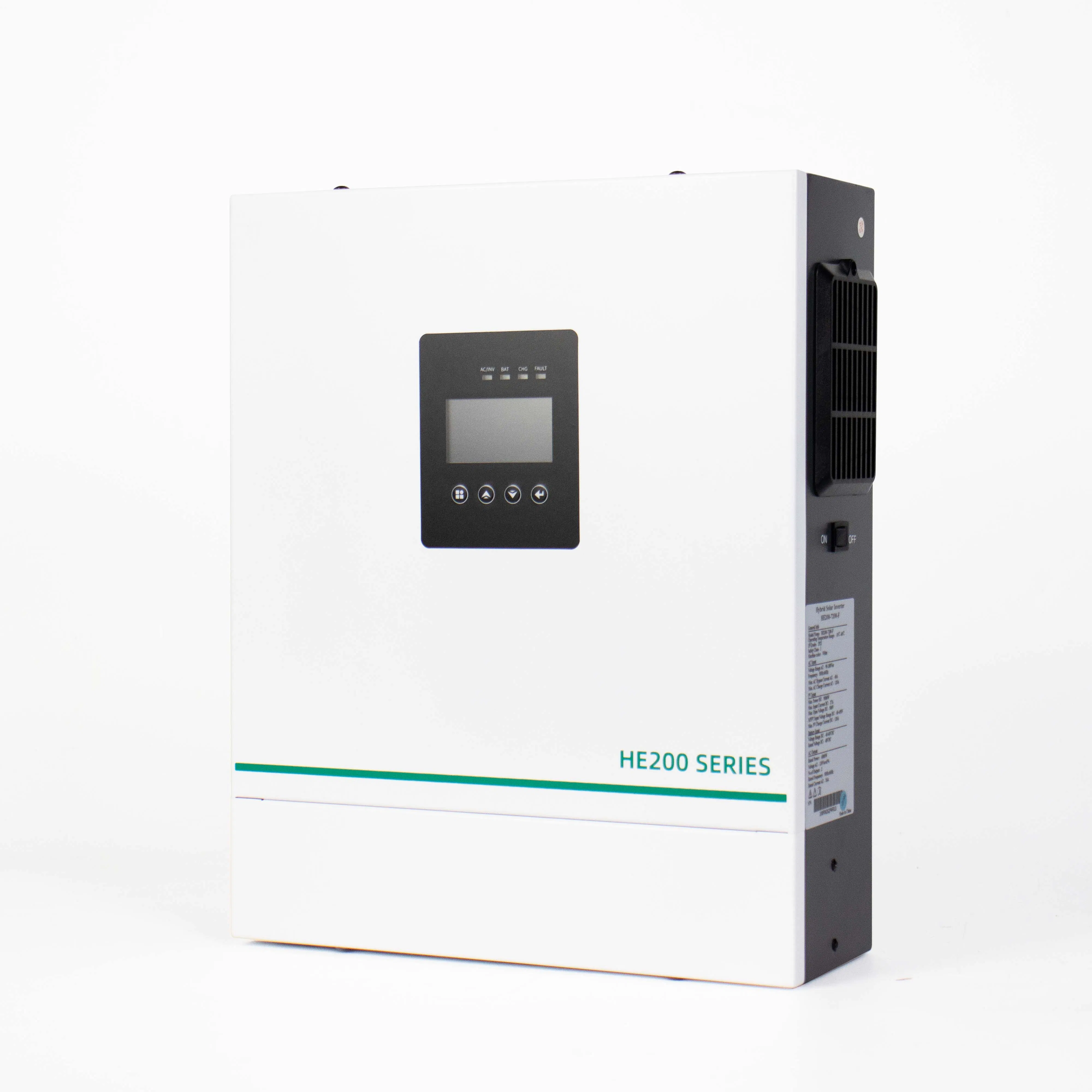

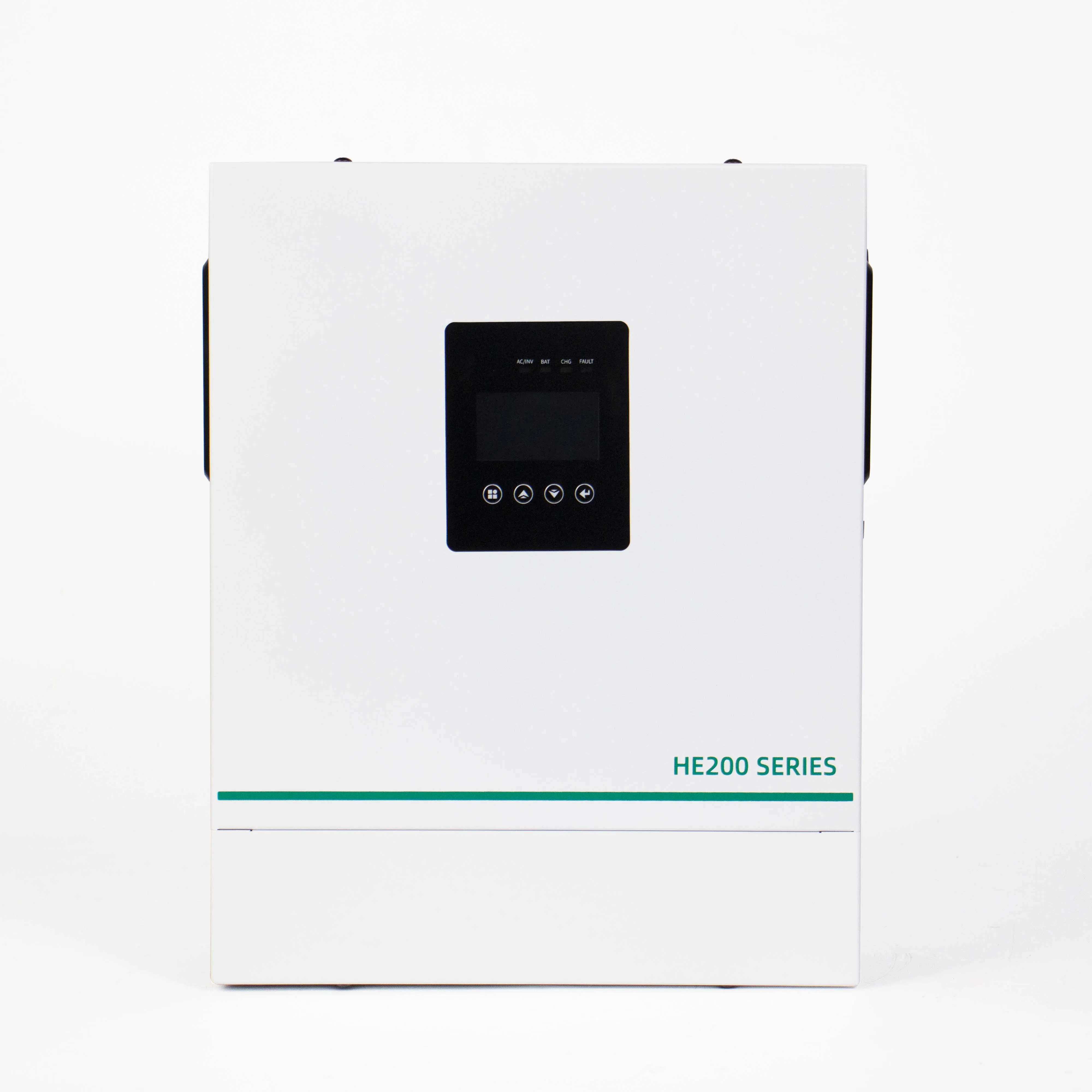

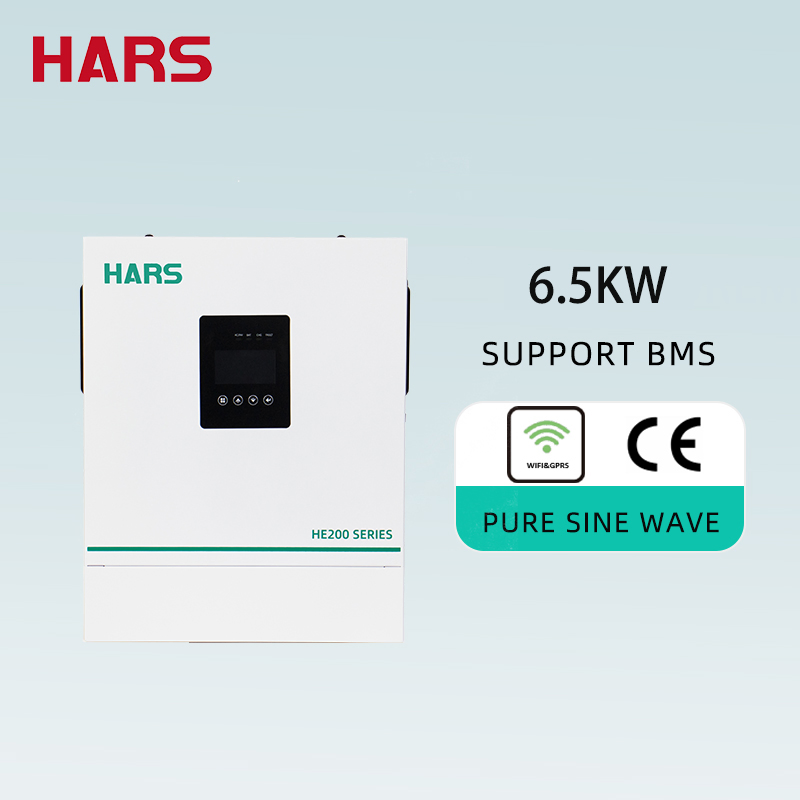

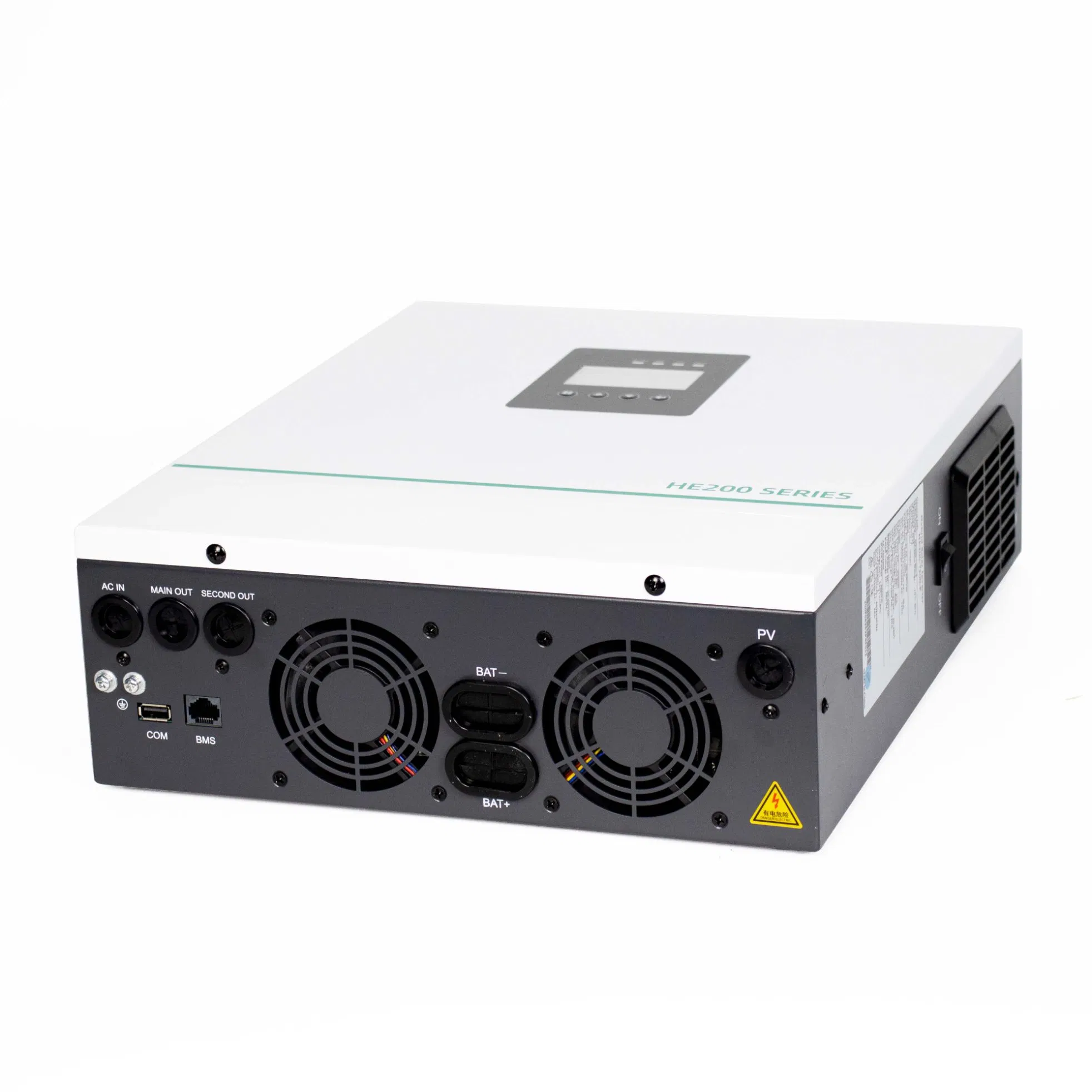

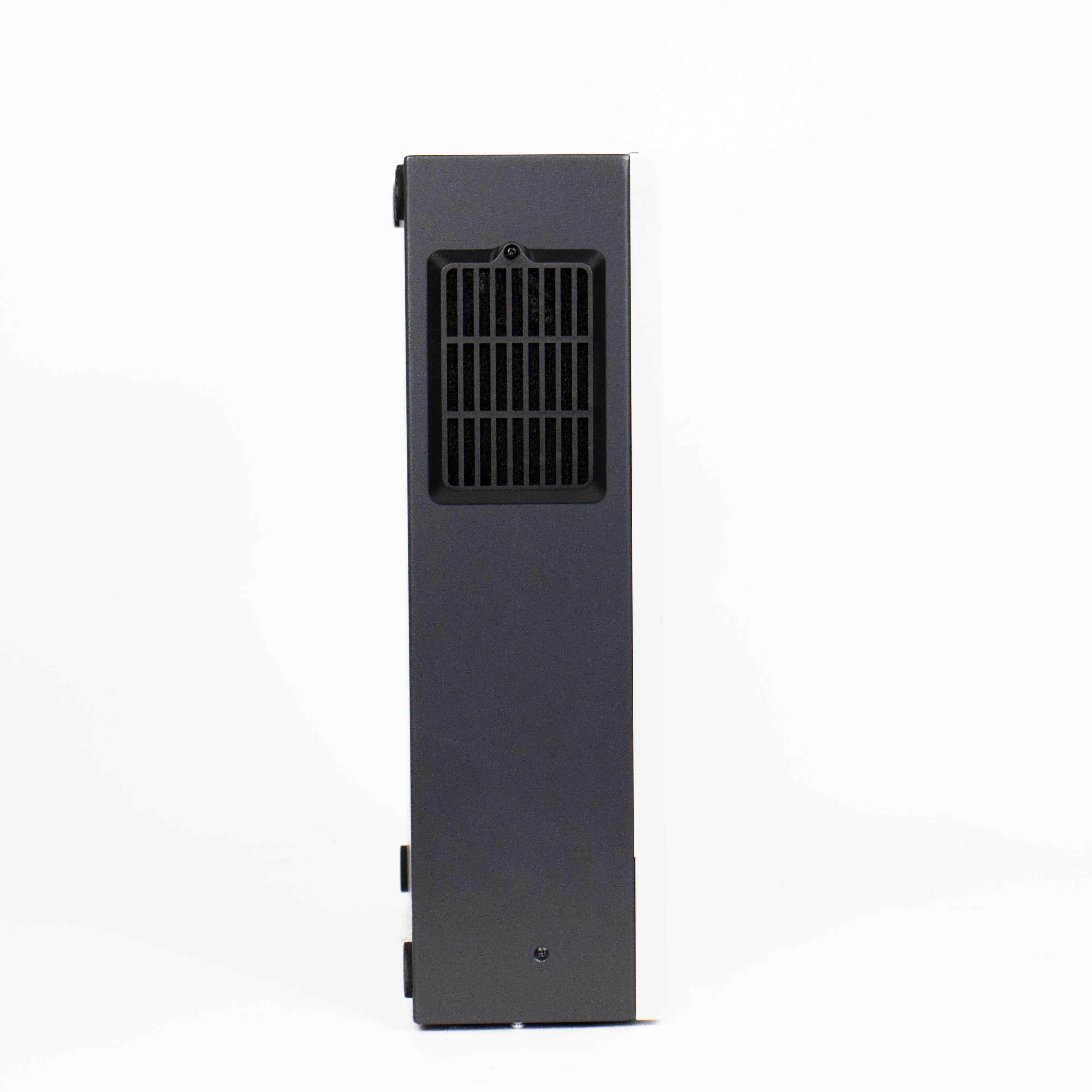

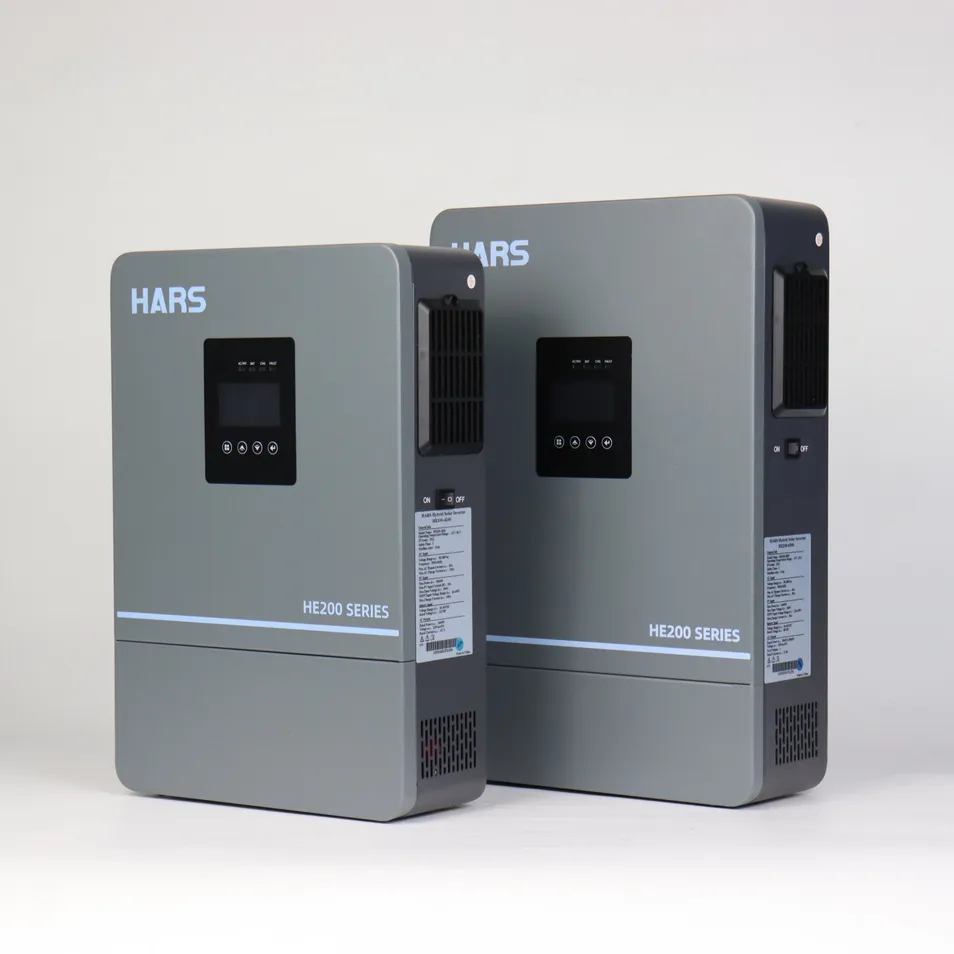

Hybrid Solar Inverter: The HE200 is a multifunctional hybrid solar inverter that outputs single-phase pure sine wave power. Designed with a portable size, it supports uninterruptible power supply (UPS) switching and features flexible settings for battery charging voltage and current.

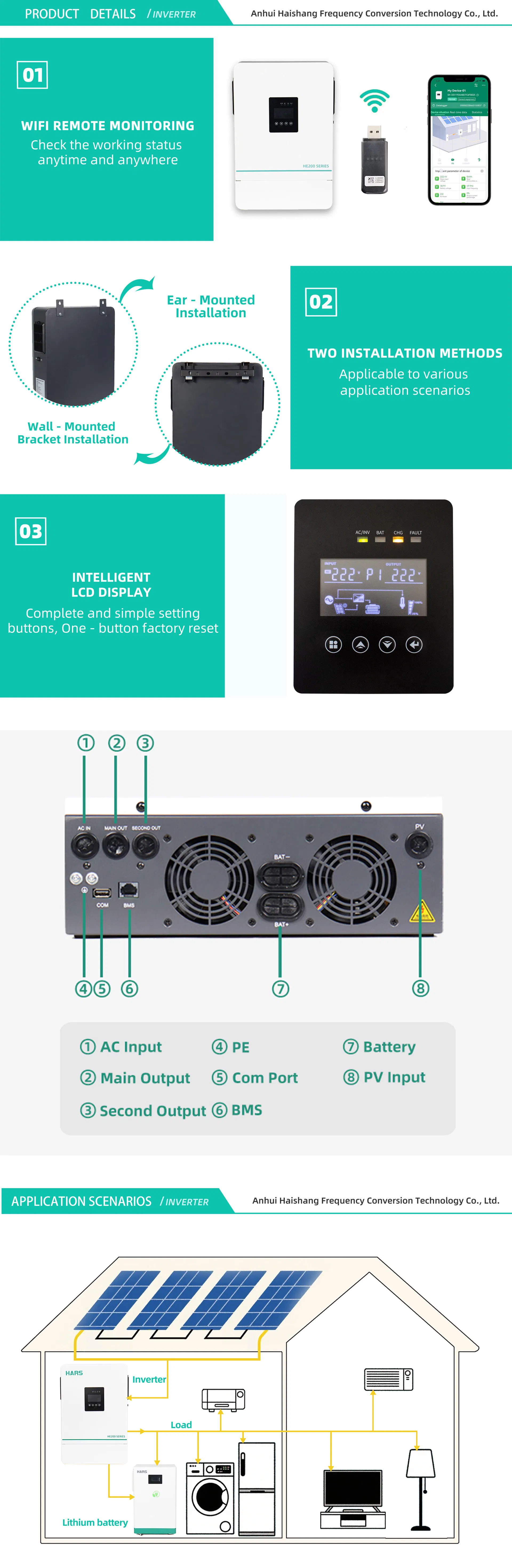

With multiple power input and output priority settings, the output AC voltage and frequency can be adjusted to suit different power grid environments. It also includes a mobile APP for convenient online data monitoring.

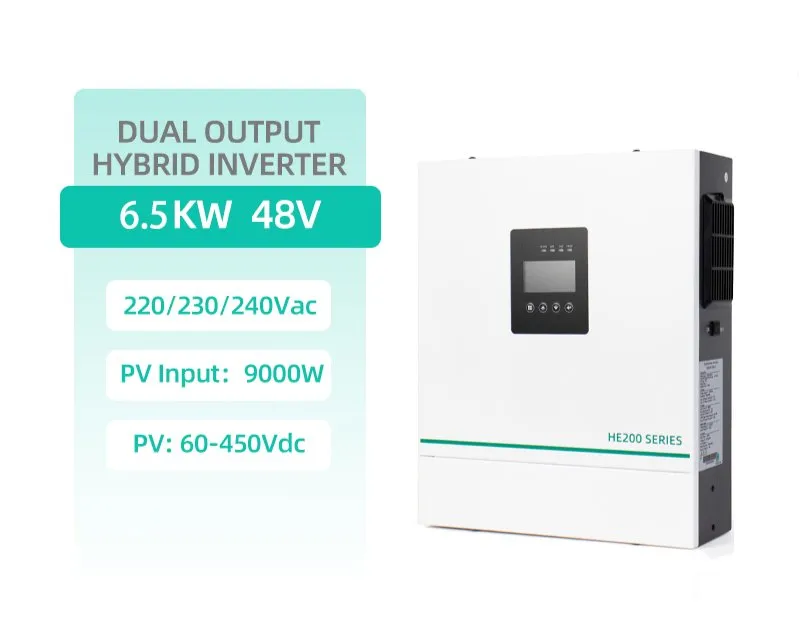

| Inverter Output Details | |
|---|---|
| Rated Output Power | 6500W |
| Rated Output Voltage | 230Vac ± 5% |
| Rated Output Current | 27A |
| Output Frequency | 50/60Hz |
| Waveform | Pure Sine Wave |
| Solar & Battery Parameters | |
|---|---|
| Battery Type | Lead-acid / Gel / Lithium |
| Rated Battery Voltage | 48V |
| Max PV Input Power | 9000W |
| Max PV Charging Current | 120A |
| MPPT Efficiency | 99.5% |
| Max Input Current | 27A |
| PV Input Voltage Range | 60~450Vdc |

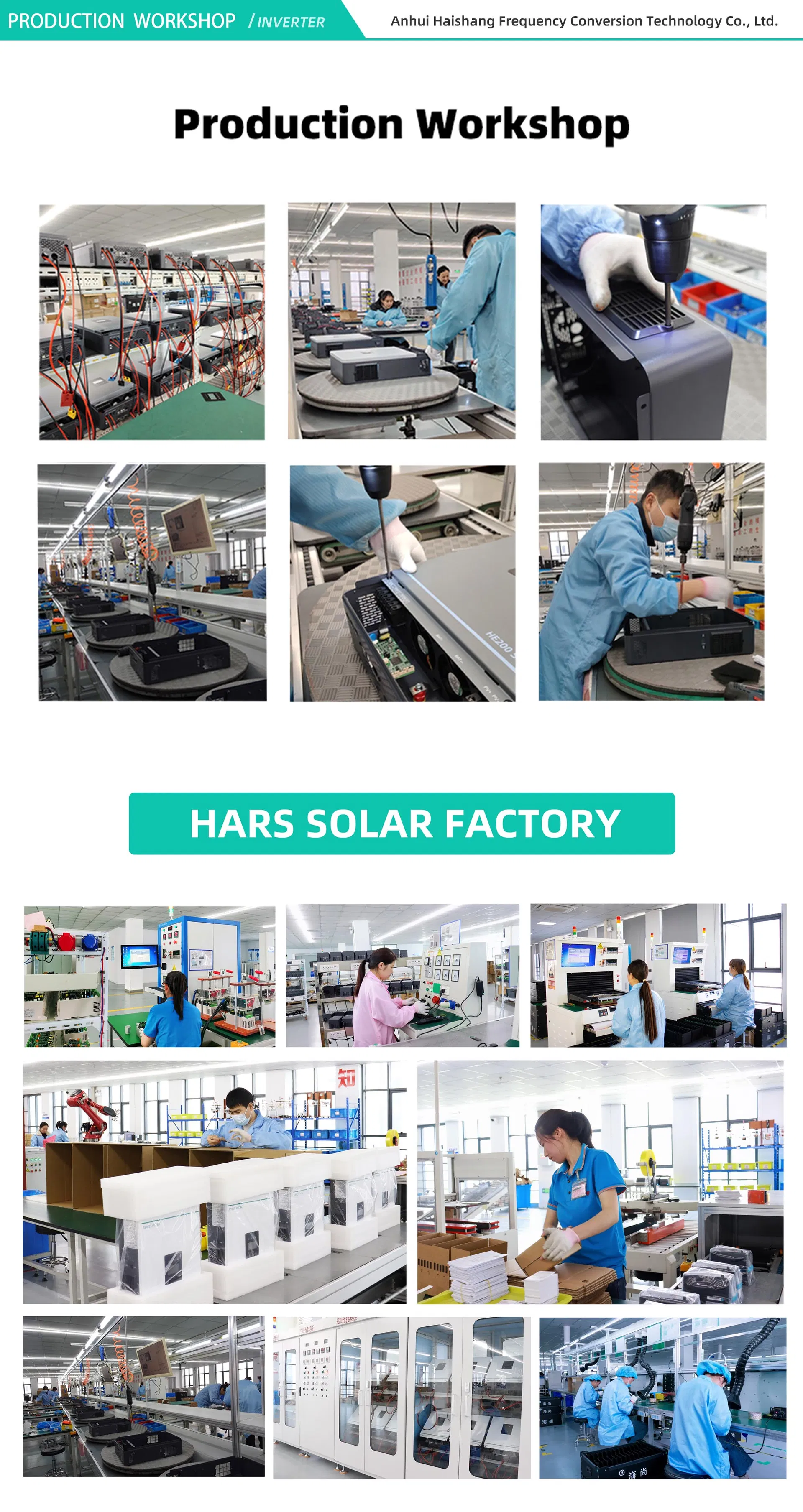

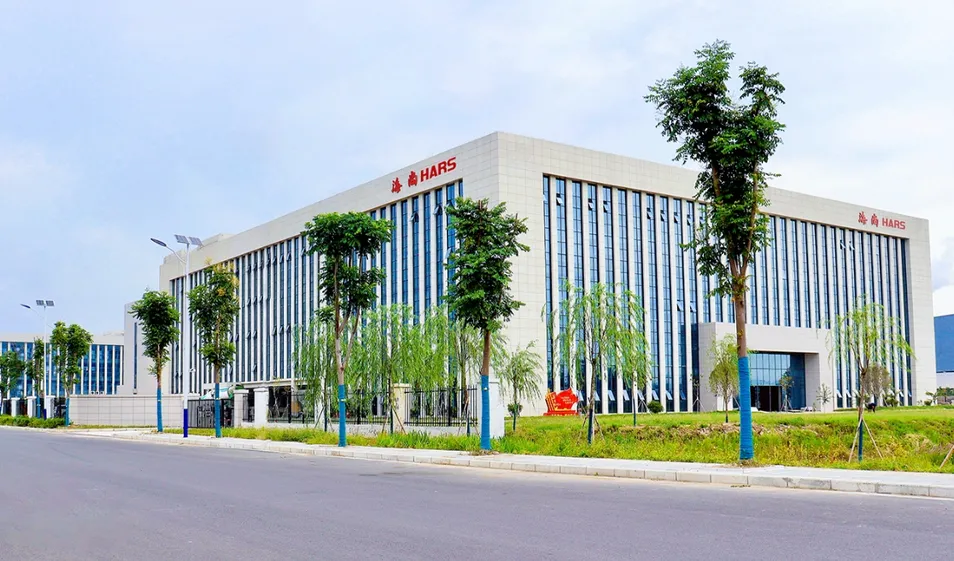

Our manufacturing facility utilizes high-tech automated production, reaching rates as high as 80%. With a construction area of 30,000 square meters and dedicated photovoltaic workshops, we ensure consistent quality and sufficient inventory for global demands. We offer robust technical support through our three specialized technical centers.
