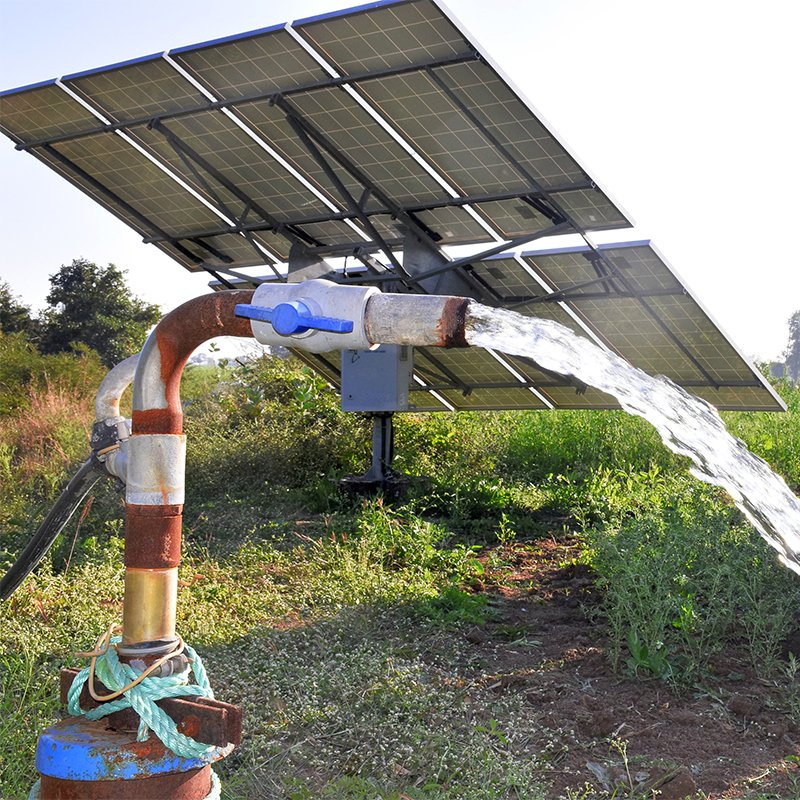

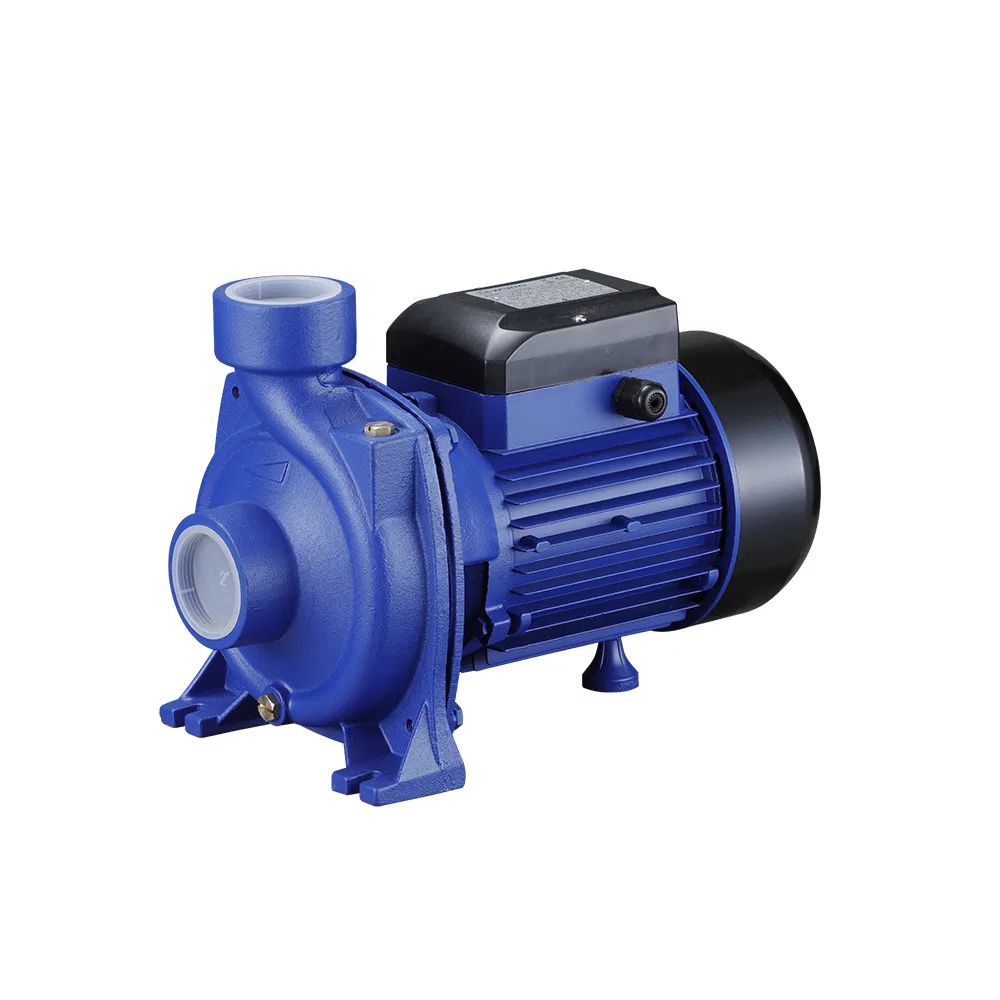

Wdhf High Pressure DC Solar Surface Water Pump for Agricultural Irrigation System

📋 Basic Information

Model NO.

WDHF6-25-48-550

Max.Head

15-25m

Max.Capacity

6-50m3/H

Driving Type

Motor

Material

Cast Iron

Structure

Single-stage Pump

Power

Solar Energy

Water Proof Grade

IP65

Shaft with Rotor

304s/S

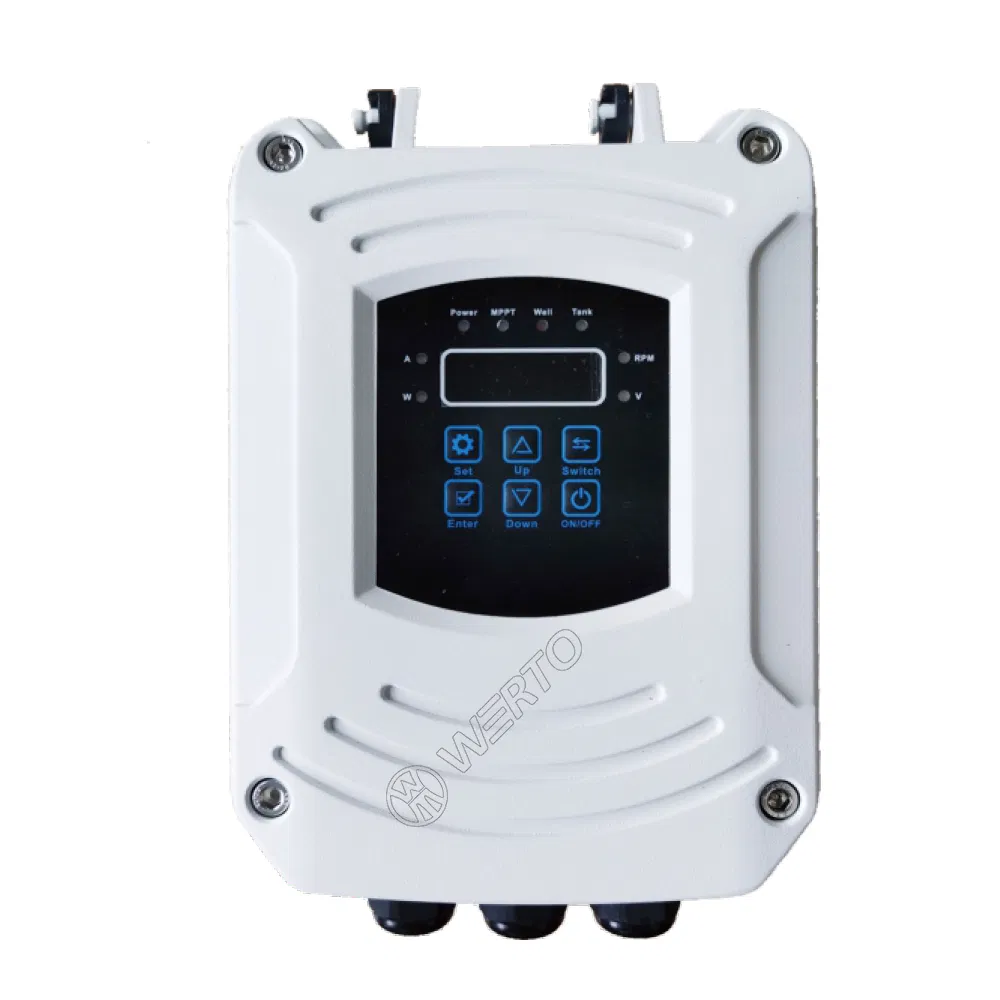

Controller

MPPT Function

📦 Packaging & Delivery

Package Size

31.00cm * 22.00cm * 21.00cm

Gross Weight

8.000kg

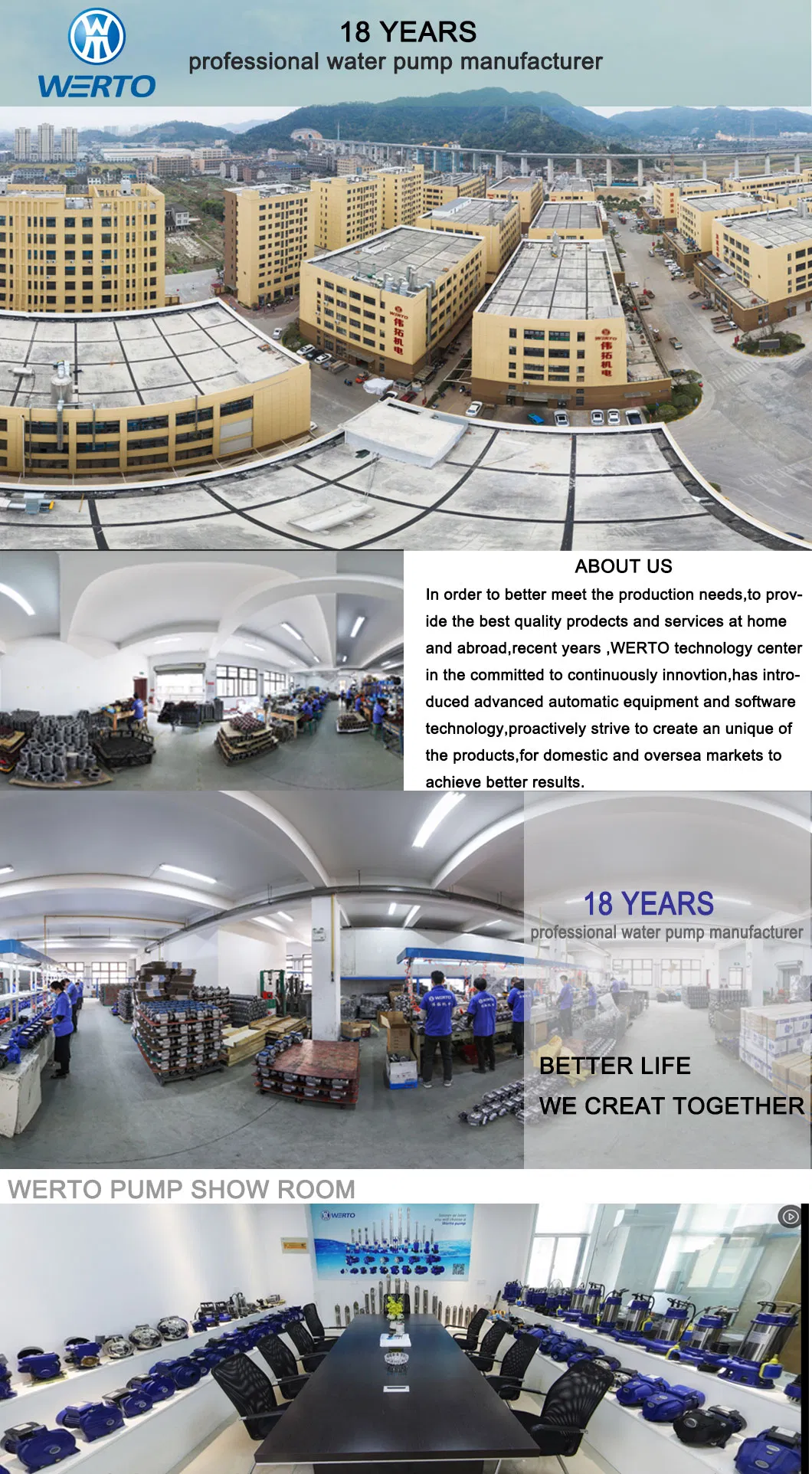

🏭 Factory Display

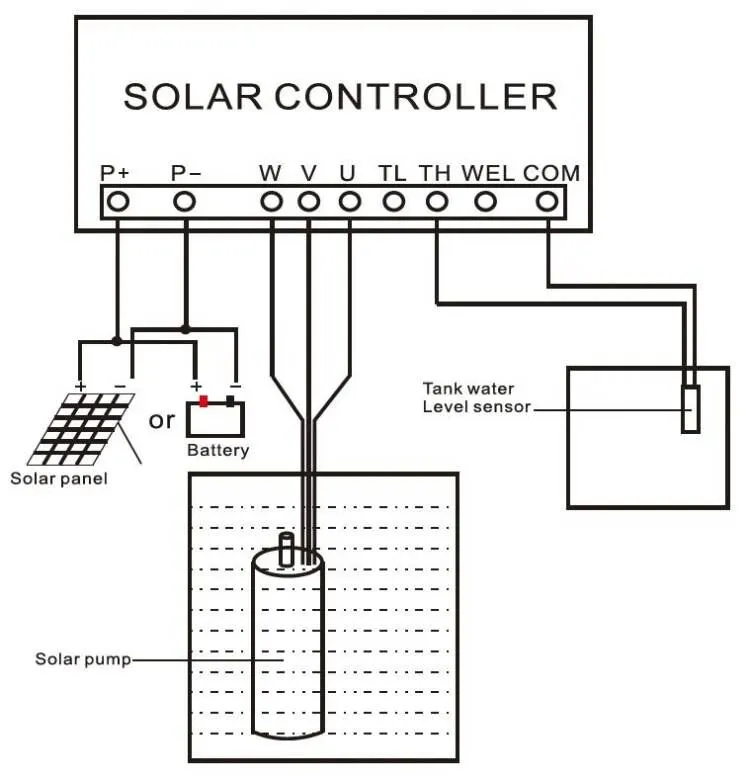

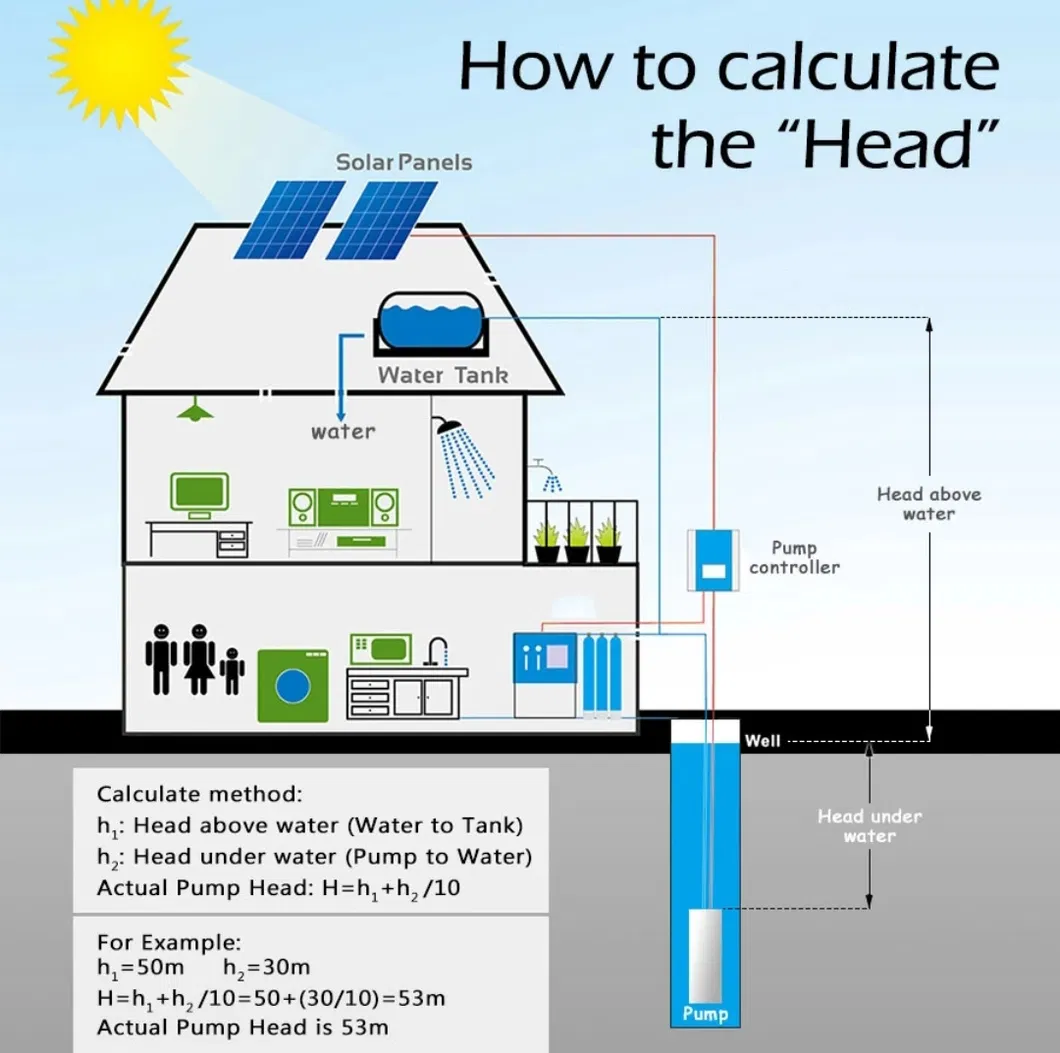

🔧 Installation Instructions

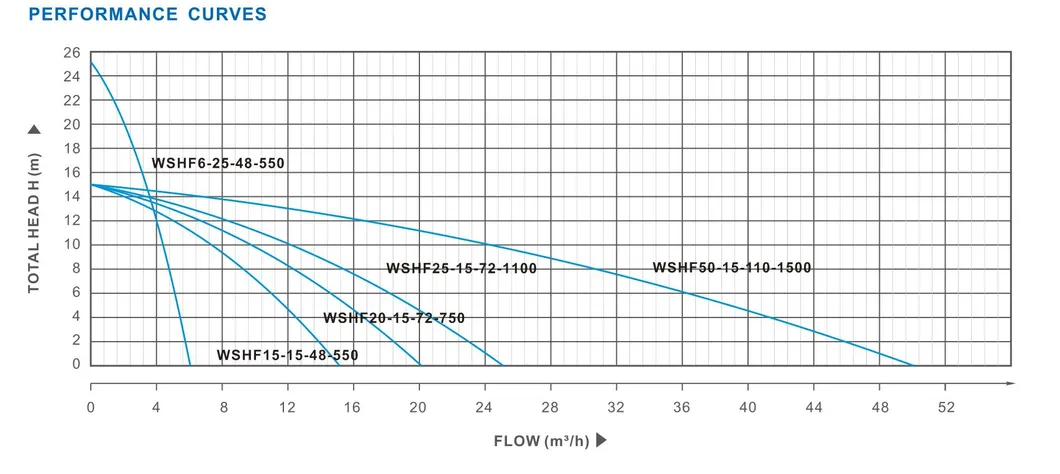

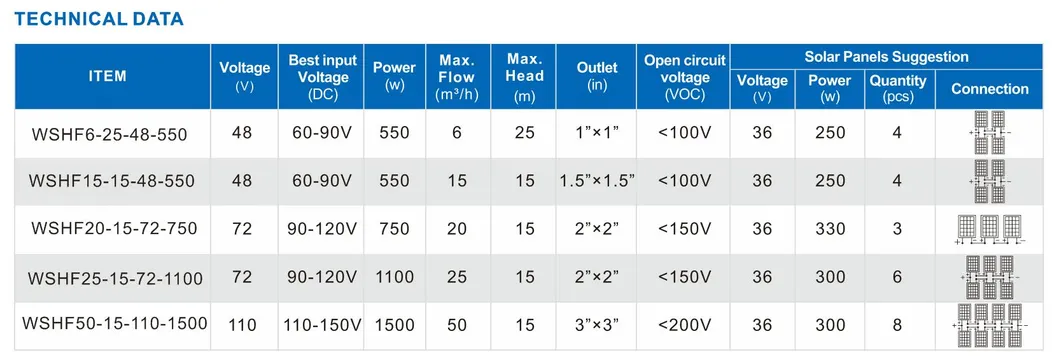

📈 Performance Curve & Technical Data

Item Model	Voltage (V)	Best Input Voltage (DC)	Power (W)	Max Flow (m3/h)	Max Head (m)	Outlet (in)	Solar Panels Suggestion
Item Model	Voltage (V)	Best Input Voltage (DC)	Power (W)	Max Flow (m3/h)	Max Head (m)	Outlet (in)	VOC	Voltage (V)	Power (W)	Quantity
WSHF6-25-48-550	48	60-90V	550	6	25	1''x1''	<100V	36	250	4
WSHF15-15-48-550	48	60-90V	550	15	15	1.5"x1.5"	<100V	36	250	4
WSHF20-15-72-750	72	90-120V	750	20	15	2"x2"	<150V	36	330	3
WSHF25-15-72-1100	72	90-120V	1100	25	15	2"x2"	<150V	36	330	6
WSHF50-15-110-1500	110	110-150V	1500	50	15	3"x3"	<200V	36	300	8

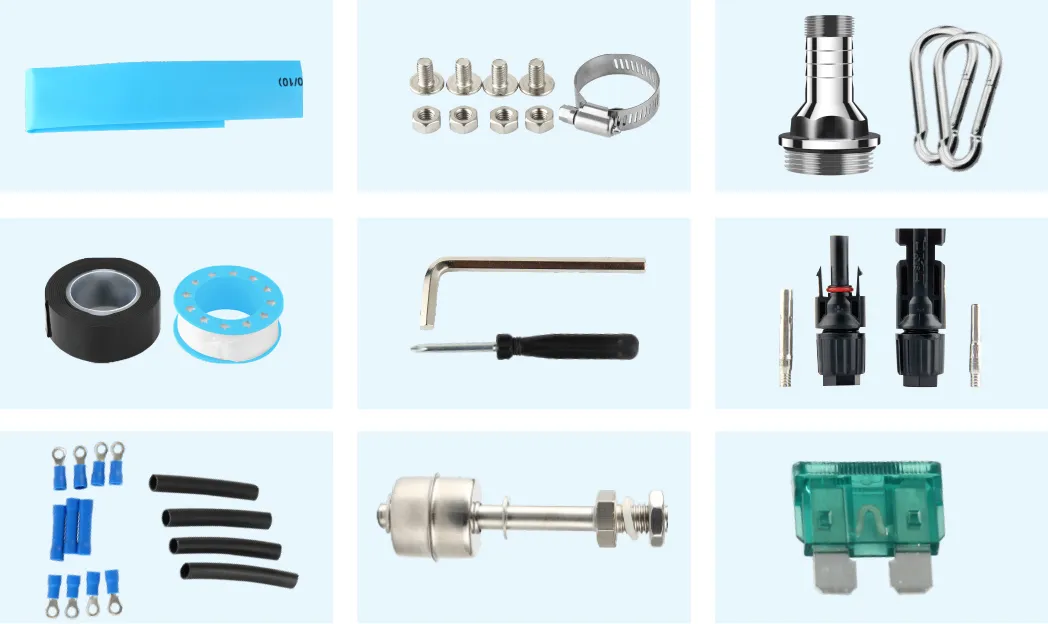

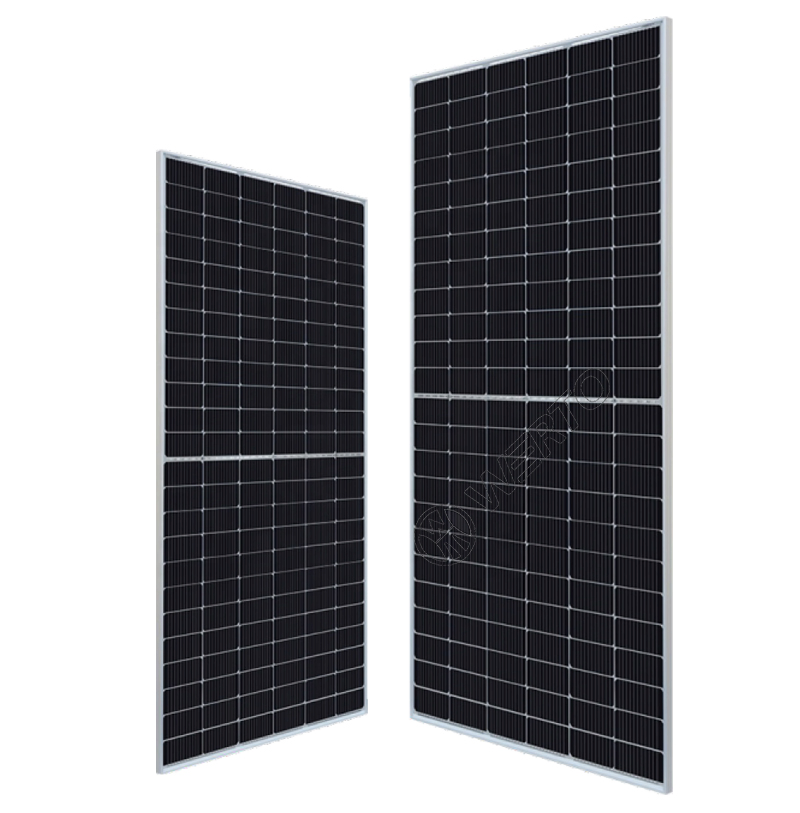

🛠️ Accessories

❓ Frequently Asked Questions

1. Can the products be customized based on specific requirements?

Yes, we have a professional R&D team capable of developing and producing products according to specific drawings or samples provided by customers.

2. How do you ensure the quality of your solar pumps?

We maintain high quality standards through our specialized laboratory and advanced testing equipment, ensuring every product meets industry benchmarks.

3. What is your current production capacity?

Our annual output exceeds 300,000 sets, allowing us to efficiently meet the needs of customers with various purchasing volumes.

4. Are your products suitable for international markets?

Absolutely. Our products are designed to meet international standards and are widely exported to Europe, America, Southeast Asia, South America, and the Middle East.

5. What makes your solar pumps cost-effective?

We manage our own pump and motor production lines along with raw material processing. This factory-direct approach eliminates middlemen and reduces costs.

6. What powers these surface pumps?

These pumps are specifically designed to be powered by solar energy, featuring high-efficiency MPPT controllers for optimal performance.
